Abstract

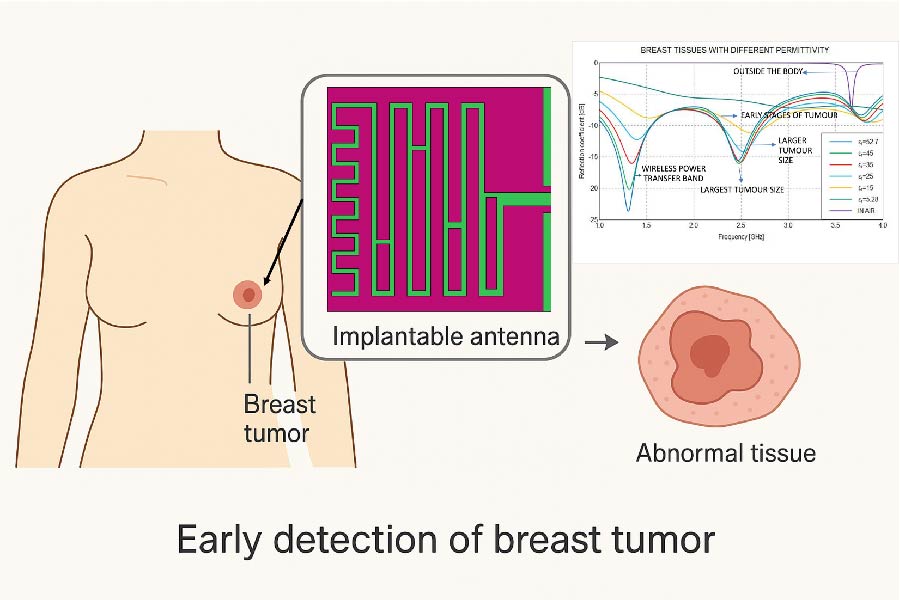

Early detection of breast tumour is crucial for reducing the likelihood of mastectomy. To monitor the dielectric changes in breast tissue caused by the formation of tumorous cells, a novel biocompatible implantable antenna sensor is proposed. This flexible implant, measuring just 5 mm × 5 mm × 0.25 mm, operates in the ISM band at 2.45 GHz for real-time breast tumour detection. It is wirelessly powered via Wireless Power Transfer (WPT) operating in the mid-band range of 1.2-1.4 GHz. The antenna achieves an ultra-compact volume of 12.5 mm³ through closed-loop structures and meandered strips that enhance radiation efficiency. Inside abnormal breast tissue with a relative permittivity (ε_r) of 52.7, the antenna demonstrates a reflection coefficient of -17 dB and offers a -10 dB bandwidth of 330 MHz. The sensor is activated when the tissue permittivity rises above 15, achieving a maximum gain of -10 dBi. The antenna has been fabricated, and the simulated results have been validated in-vivo. This design enables proactive detection of tumour cell formation within breast tissue, allowing treatment before it spreads. It is particularly suitable for individuals with a genetic predisposition to breast tumour, offering continuous monitoring for early intervention.

1. Kim, Hyeonseok, Bruno Rigo, Gabriella Wong, Yoon Jae Lee, and Woon-Hong Yeo, "Advances in wireless, batteryless, implantable electronics for real-time, continuous physiological monitoring," Nano-Micro Letters, Vol. 16, No. 1, 52, 2024.
doi:10.1007/s40820-023-01272-6

2. Nithiyanandam, Vijayanandam and Vidhya Sampath, "Approach-based analysis on wireless power transmission for bio-implantable devices," Applied Sciences, Vol. 13, No. 1, 415, 2023.
doi:10.3390/app13010415

3. Mahmud, Sultan, Ali Nezaratizadeh, Alfredo Bayu Satriya, Yong-Kyu Yoon, John S. Ho, and Adam Khalifa, "Harnessing metamaterials for efficient wireless power transfer for implantable medical devices," Bioelectronic Medicine, Vol. 10, No. 1, 7, 2024.
doi:10.1186/s42234-023-00136-z

4. Khaleghi, Ali, Aminolah Hasanvand, and Ilangko Balasingham, "Design and implementation of a hybrid wireless power and communication system for medical implants," 2023 IEEE MTT-S International Microwave Biomedical Conference (IMBioC), 52-54, Leuven, Belgium, 2023.
doi:10.1109/IMBioC56839.2023.10305096

5. Wang, Wei, Zhanghao Yu, Yiwei Zou, Joshua E. Woods, Prahalad Chari, Yumin Su, Jacob T. Robinson, and Kaiyuan Yang, "Omnidirectional wireless power transfer for millimetric magnetoelectric biomedical implants," IEEE Journal of Solid-State Circuits, Vol. 59, No. 11, 3599-3611, 2024.
doi:10.1109/jssc.2024.3464533

6. Omi, Asif Iftekhar, Anyu Jiang, and Baibhab Chatterjee, "A systematic method for optimum biomedical wireless power transfer using inductive links in area-constrained implants," ArXiv Preprint ArXiv:2501.08766, 2025.
doi:10.48550/arXiv.2501.08766

7. Leena, Vishnupriya and Nikhil Kumar, "Quasi crystal based circular patch antenna with artificial magnetic conductor for breast cancer detection," ArXiv Preprint ArXiv:2502.16269, 2025.
doi:10.48550/arXiv.2502.16269

8. Huda, S. M. Asiful, Muhammad Yeasir Arafat, and Sangman Moh, "Wireless power transfer in wirelessly powered sensor networks: A review of recent progress," Sensors, Vol. 22, No. 8, 2952, 2022.
doi:10.3390/s22082952

9. Zhang, Jungang, Rupam Das, Jinwei Zhao, Nosrat Mirzai, John Mercer, and Hadi Heidari, "Battery-free and wireless technologies for cardiovascular implantable medical devices," Advanced Materials Technologies, Vol. 7, No. 6, 2101086, 2022.
doi:10.1002/admt.202101086

10. Hamza, Musa N., Mohammad Tariqul Islam, and Slawomir Koziel, "Advanced sensor for non-invasive breast cancer and brain cancer diagnosis using antenna array with metamaterial-based AMC," Engineering Science and Technology, An International Journal, Vol. 56, 101779, 2024.
doi:10.1016/j.jestch.2024.101779

11. Mohan, Archana and Niraj Kumar, "Implantable antennas for biomedical applications: A systematic review," BioMedical Engineering OnLine, Vol. 23, No. 1, 87, 2024.
doi:10.1186/s12938-024-01277-1

12. Smida, Jamel, Mohamed Karim Azizi, Anandh Sam Chandra Bose, and Mohamed I. Waly, "A compact implantable multiple-input-multiple-output antenna for biotelemetry and sensing applications," Sensors, Vol. 25, No. 11, 3323, 2025.
doi:10.3390/s25113323

13. Jasim, Mosab, Ahmed Jamal Abdullah Al-Gburi, Mehwish Hanif, Zaheer Ahmed Dayo, Mohd Muzafar Ismail, and Zahriladha Zakaria, "An extensive review on implantable antennas for biomedical applications: Health considerations, geometries, fabrication techniques, and challenges," Alexandria Engineering Journal, Vol. 112, 110-139, 2025.
doi:10.1016/j.aej.2024.10.105

14. Hazrati Marangalou, Amin, Miguel Gonzalez, Nathaniel Reppucci, and Ulkuhan Guler, "A design review for biomedical wireless power transfer systems with a three-coil inductive link through a case study for NICU applications," Electronics, Vol. 13, No. 19, 3947, 2024.
doi:10.3390/electronics13193947

15. Shaw, Tarakeswar, Bappaditya Mandal, Gopinath Samanta, Thiemo Voigt, Debasis Mitra, and Robin Augustine, "Rotation insensitive implantable wireless power transfer system for medical devices using metamaterial-polarization converter," Scientific Reports, Vol. 14, No. 1, 19688, 2024.
doi:10.1038/s41598-024-70591-4

16. Rana, Md. Masud, Md. Ariful Islam, and Ibrahim M. Mehedi, "Dual-band implantable antenna loaded with patch slots for wireless biotelemetry systems," Progress In Electromagnetics Research C, Vol. 141, 151-162, 2024.
doi:10.2528/PIERC23112003

17. Yan, Xiaoheng, Jinshu Yao, Weihua Chen, and Yuhang Song, "Wireless power transfer system for cardiac pacemakers based on multi-coil series magnetic integration," Progress In Electromagnetics Research C, Vol. 143, 87-98, 2024.
doi:10.2528/PIERC24031301

18. Fernandez-Munoz, Miguel, Mohamed Missous, Mohammadreza Sadeghi, Pablo Luis Lopez-Espi, Rocio Sanchez-Montero, Juan Antonio Martinez-Rojas, and Efren Diez-Jimenez, "Fully integrated miniaturized wireless power transfer rectenna for medical applications tested inside biological tissues," Electronics, Vol. 13, No. 16, 3159, 2024.
doi:10.3390/electronics13163159

19. Al-Gburi, Rasool M., Mohammad Alibakhshikenari, Bal S. Virdee, Teba M. Hameed, Dion Mariyanayagam, Sandra Fernando, Innocent Lubangakene, Yi Tang, Salah Uddin Khan, and Taha A. Elwi, "Microwave-based breast cancer detection using a high-gain Vivaldi antenna and metasurface neural network approach for medical diagnostics," Frequenz, Vol. 79, No. 7-8, 311-325, 2025.
doi:10.1515/freq-2024-0190

20. Gabriel, C., S. Gabriel, and Y. E. Corthout, "The dielectric properties of biological tissues: I. Literature survey," Physics in Medicine & Biology, Vol. 41, No. 11, 2231, 1996.
doi:10.1088/0031-9155/41/11/001

21. Safety, Electromagnetic, IEEE C95.7/DRAFT, 2005.
