Abstract

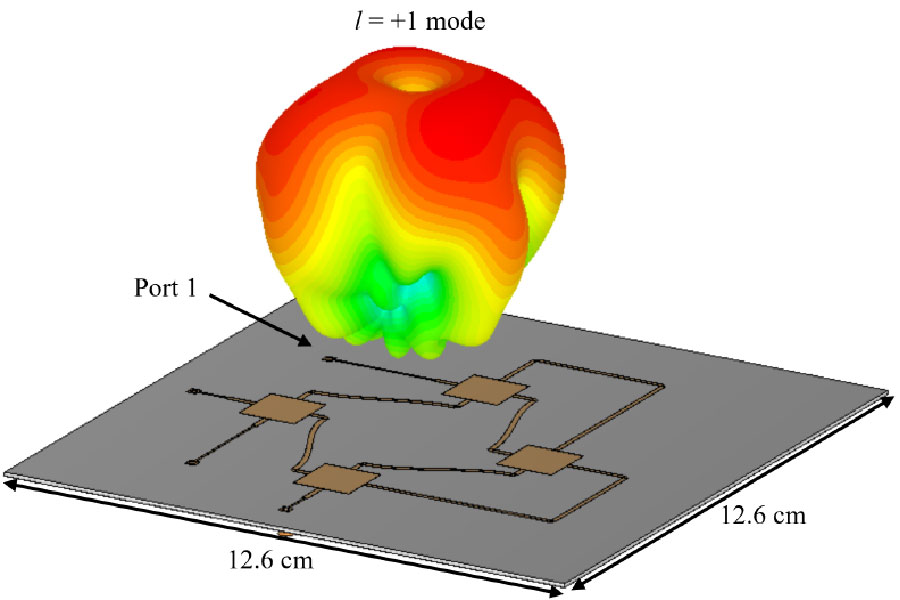

In this paper, we present a dual-mode, dual-polarized orbital angular momentum (OAM) antenna, implemented as a four-element uniform circular array (UCA) with a series-fed network on a single-layer substrate. The novelty of the antenna lies in its ability to generate four orthogonal states simultaneously in a single transmission channel - two from l = ±1 OAM states and two from vertical/horizontal polarizations - without requiring multilayer feeds or complex phase-shifting networks. Full-wave simulations and experimental measurements have been used to validate the antenna's performance within the 5.85-6.1 GHz band. Far-field radiation patterns exhibit the characteristic vortex-beam profile, featuring a conical shape with a central null, while phase distributions reconstructed via FFT-based holography confirm the generation of distinct OAM modes. The antenna has four feed ports; of these, activating Ports 1 and 4 yields the highest OAM modal purity at 6 and 6.1 GHz, while Ports 2 and 3 peak in purity at 6.1 GHz. Owing to its compact, reconfigurable architecture, the designed and tested antenna is well-suited for integration into space- and power-constrained platforms such as UAVs, IoT devices, and full-duplex MIMO systems.

1. Shah, A. F. M. Shahen, Ahmed Nidham Qasim, Muhammet Ali Karabulut, Haci Ilhan, and Md. Baharul Islam, "Survey and performance evaluation of multiple access schemes for next-generation wireless communication systems," IEEE Access, Vol. 9, 113428-113442, 2021.
doi:10.1109/access.2021.3104509

2. ITU-R, "Future technology trends of terrestrial international mobile telecommunications systems towards 2030 and beyond," Report ITU-R M.2516-0, Available: https://www.itu.int/dms_pub/itu-r/opb/rep/R-REP-M.2516-2022-PDF-E.pdf, 2022.

3. Thidé, B., H. Then, J. Sjöholm, K. Palmer, J. Bergman, T. D. Carozzi, Y. N. Istomin, N. H. Ibragimov, and R. Khamitova, "Utilization of photon orbital angular momentum in the low-frequency radio domain," Physical Review Letters, Vol. 99, No. 8, 087701, Aug. 2007.
doi:10.1103/physrevlett.99.087701

4. Drysdale, Timothy D., Ben Allen, Chris Stevens, Simon J. Berry, Francis C. Smith, and Justin Coon, "How orbital angular momentum modes are boosting the performance of radio links," IET Microwaves, Antennas & Propagation, Vol. 12, No. 10, 1625-1632, 2018.
doi:10.1049/iet-map.2017.0293

5. Papathanasopoulos, Anastasios and Yahya Rahmat-Samii, "Fundamentals of orbital angular momentum beams: Concepts, antenna analogies, and applications," Electromagnetic Vortices: Wave Phenomena and Engineering Applications, 1-32, Z. H. Jiang and D. H. Werner (eds.), IEEE Press, Wiley, 2021.
doi:10.1002/9781119662945.ch1

6. Rao, Madasu Venkateswara, Yaswanth Bhuvan Modugu, S. Yuvaraj, and M. V. Kartikeyan, "Generation of highly azimuthal symmetric conical beam using the planar uniform circular array antenna for vehicular communication," Applied Physics A, Vol. 129, No. 12, 834, Nov. 2023.
doi:10.1007/s00339-023-07059-1

7. Chen, Rui, Hong Zhou, Marco Moretti, Xiaodong Wang, and Jiandong Li, "Orbital angular momentum waves: Generation, detection, and emerging applications," IEEE Communications Surveys & Tutorials, Vol. 22, No. 2, 840-868, 2020.
doi:10.1109/comst.2019.2952453

8. Noor, Shehab Khan, Mohd Najib Mohd Yasin, Arif Mawardi Ismail, Mohamed Nasrun Osman, Ping Jack Soh, Nurulazlina Ramli, and Ali Hanafiah Rambe, "A review of orbital angular momentum vortex waves for the next generation wireless communications," IEEE Access, Vol. 10, 89465-89484, 2022.
doi:10.1109/access.2022.3197653

9. Rao, Madasu Venkateswara, Arif Mawardi Ismail, Mohd Najib Mohd Yasin, Shehab Khan Noor, Mohamed Nasrun Osman, N. A. Abd Rahman, Jagannath Malik, and S. Yuvaraj, "Novel switched mode OAM beam generation using series-fed UCA antenna for AAVs," IEEE Canadian Journal of Electrical and Computer Engineering, Vol. 48, No. 2, 60-65, 2025.
doi:10.1109/ICJECE.2025.3539782

10. Veerabathini, Sneha, Madasu Venkateswara Rao, S. Yuvaraj, and M. V. Kartikeyan, "Generation of a dual-mode OAM beam using a CP UCA antenna for wireless communication," 2023 IEEE Wireless Antenna and Microwave Symposium (WAMS), 1-4, Ahmedabad, India, 2023.
doi:10.1109/wams57261.2023.10242970

11. An, Cheng, Jun Lei, Weiwen Li, Jianliang Zhuo, Longfang Ye, and Yanhui Liu, "Generation of OAM beams using circular ring array with in-phase feed," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 9, 7028-7038, 2023.
doi:10.1109/tap.2023.3278842

12. Naseri, Hassan, Peyman PourMohammadi, Noureddine Melouki, Amjad Iqbal, and Tayeb A. Denidni, "A low-profile antenna system for generating reconfigurable OAM-carrying beams," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 2, 402-406, 2023.
doi:10.1109/lawp.2022.3214123

13. Wu, Jie, Zhixiang Huang, Xingang Ren, Wei E. I. Sha, and Xianliang Wu, "Wideband millimeter-wave dual-mode dual circularly polarized OAM antenna using sequentially rotated feeding technique," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 8, 1296-1300, 2020.
doi:10.1109/lawp.2020.2997057

14. Nawaz, Haq and Ibrahim Tekin, "Dual port single patch antenna with high interport isolation for 2.4 GHz in‐band full duplex wireless applications," Microwave and Optical Technology Letters, Vol. 58, No. 7, 1756-1759, 2016.
doi:10.1002/mop.29899

15. CTIA, "Test plan for wireless device over-the-air performance: Method of measurement for radiated RF power and receiver performance," Available: https://api.ctia.org/wp-content/uploads/2019/04/CTIA_OTA_Test_Plan_3_8_2.pdf, 2019.

16. Kang, Le, Hui Li, Jinzhu Zhou, and Shufeng Zheng, "An OAM-mode reconfigurable array antenna with polarization agility," IEEE Access, Vol. 8, 40445-40452, 2020.
doi:10.1109/access.2020.2975846

17. Guo, Li and Yiping Chen, "Low-profile dual-layer circularly polarized orbital angular momentum uniform circular array antenna with reconfigurable OAM modes," Journal of Electromagnetic Waves and Applications, 1-13, 2025.
doi:10.1080/09205071.2025.2548926

18. Naseri, Hassan, Peyman PourMohammadi, Noureddine Melouki, Fahad Ahmed, Amjad Iqbal, and Tayeb A. Denidni, "Reconfigurable OAM antenna with flexibility on mode numbers, polarization, and frequency," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 6, 1710-1714, 2024.
doi:10.1109/lawp.2024.3367625

19. Rao, M. Venkateswara, Yaswanth B. Modugu, Debasish Mondal, S. Yuvaraj, and M. V. Kartikeyan, "Generation of dual‐band OAM beam using planar uniform circular array for vehicular communications," Microwave and Optical Technology Letters, Vol. 66, No. 1, e13717, 2024.
doi:10.1002/mop.33717
