Abstract

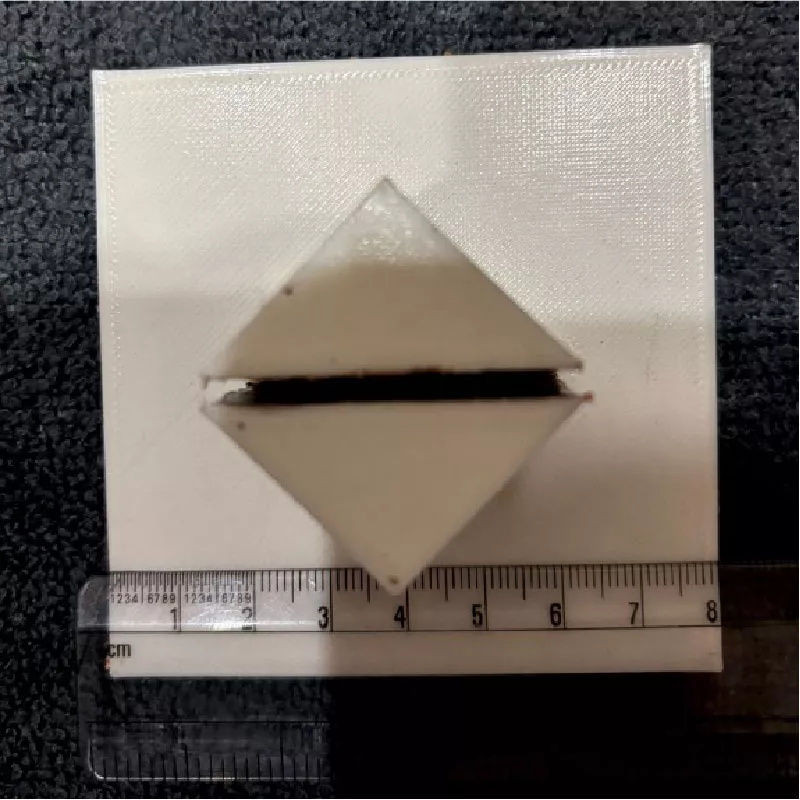

In this study, we describe a compact two-port MIMO dielectric resonator antenna (DRA) system made from biodegradable polylactic acid (PLA) using additive manufacturing techniques. Performance goals were achieved through a systematic performance study on the pin height, pin position, cavity width, and cavity length. The simulated results showed a wide range of bandwidth from 5.0 to 7.4 GHz with return loss (|S₁₁|) lower than -10 dB corresponding to a fractional bandwidth of approximately 36.8%. Excellent port isolation is achieved with |S₂₁| < -20 dB consistent across the entire band. The antenna provides more than 10 dBi gain with a high directivity making it useful for high-performance wireless applications. Furthermore, diversity MIMO performance confirms exceptional diversity performance with the Envelope correlation coefficient (ECC) remaining below 0.015 and ideal Diversity Gain (DG) of 10 dB. Another important feature is the electronic beam steering capability of this antenna, enabled by adjusting the phase difference between the two ports. With excitation phase shifts of 0°, 90°, 180°, and 270°, the antenna's main beam can be steered between broadside and unidirectional directions, providing flexible spatial coverage through dynamic phase control, rather than switching among fundamentally different radiation patterns. The employment of environmentally friendly PLA materials paired with 3D printing technology fosters sustainable practices for antenna development while simultaneously permitting inexpensive prototype creation and swift adaptability in the design changes. This MIMO DRA system can be extensively employed in C-band applications like the 5G communication systems, satellite downlink services, radar systems, and high-speed wireless data links where it is crucial to have wide bandwidth, high isolation, and compact size.

1. Ahmad, Hamza, Mohd Haizal Jamaluddin, Fauziahanim Che Seman, and Muhibur Rahman, "MIMO dielectric resonator antennas for 5G applications: A review," Electronics, Vol. 12, No. 16, 3469, 2023.
doi:10.3390/electronics12163469 Google Scholar

2. Harkare, Ankita H., Ashwin G. Kothari, Ankit A. Bhurane, Mahesh P. Abegaonkar, and Pragati Patel, "A compact dielectric resonator antenna with wideband circular polarization characteristics for C and X‐band applications," Microwave and Optical Technology Letters, Vol. 66, No. 7, e34241, 2024.
doi:10.1002/mop.34241 Google Scholar

3. Ahmad, Hamza, Mohd Haizal Jamaluddin, Fauziahanim Che Seman, Muhibur Rahman, Nida Nasir, and Ayesha Ayub, "Compact dual-band enhanced bandwidth 5G mm-wave MIMO dielectric resonator antenna utilizing metallic strips," AEU --- International Journal of Electronics and Communications, Vol. 187, 155510, 2024.
doi:10.1016/j.aeue.2024.155510 Google Scholar

4. El Yousfi, Ahmed, Kerlos Atia Abdalmalak, Abdenasser Lamkaddem, Alejandro Murrillo Barrera, Bruno Biscontini, and Daniel Segovia-Vargas, "Miniaturized dual-polarized, high-gain, and wideband dielectric resonator antenna for low band massive MIMO applications," Progress In Electromagnetics Research, Vol. 179, 101-111, 2024.
doi:10.2528/pier24021303 Google Scholar

5. Muttair, Karrar Shakir, Oras Ahmed Shareef, and Hazeem Baqir Taher, "Designs, developments, challenges, and fabrication materials for MIMO antennas with various 5G and 6G applications: A review," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 9, 1510-1539, 2024.
doi:10.1017/s1759078724001004 Google Scholar

6. Merlos-Garza, Erendira, Zia U. Khan, and Salam K. Khamas, "A compact MIMO rectangular dielectric resonator antenna for millimeter-wave communication," Electronics, Vol. 13, No. 16, 3280, 2024.
doi:10.3390/electronics13163280 Google Scholar

7. Dhananjeyan, R., S. Ramesh, D. Rajesh Kumar, and Om Prakash Kumar, "Compact octagonal MIMO antenna system for broadband applications with enhanced isolation and wideband performance," Scientific Reports, Vol. 15, No. 1, 18921, 2025.
doi:10.1038/s41598-025-03494-7 Google Scholar

8. Sharma, Preeti, Rakesh N. Tiwari, Prabhakar Singh, Pradeep Kumar, and Binod K. Kanaujia, "MIMO antennas: Design approaches, techniques and applications," Sensors, Vol. 22, No. 20, 7813, 2022.
doi:10.3390/s22207813 Google Scholar

9. Votis, Constantinos, George Tatsis, and Panos Kostarakis, "Envelope correlation parameter measurements in a MIMO antenna array configuration," International Journal of Communications, Network and System Sciences, Vol. 3, No. 4, 350-354, 2010.
doi:10.4236/ijcns.2010.34044 Google Scholar

10. El Hadri, D., A. Zugari, A. Zakriti, and M. El Ouahabi, "Dual-band MIMO antenna with four CPW elements using polarization diversity for 5G mobile communication networks and satellite," Advanced Electromagnetics, Vol. 12, No. 3, 43-53, 2023.
doi:10.7716/aem.v12i3.2077 Google Scholar

11. Yurduseven, Okan, Shengrong Ye, Thomas Fromenteze, Benjamin J. Wiley, and David R. Smith, "3D conductive polymer printed metasurface antenna for Fresnel focusing," Designs, Vol. 3, No. 3, 46, 2019.
doi:10.3390/designs3030046 Google Scholar

12. Aydın, Emine Avşar, Mustafa Berkan Biçer, Mehmet Erman Mert, Ceyla Özgür, and Başak Doğru Mert, "3D-printed antenna design using graphene filament and copper tape for high-tech air components," SAE International Journal of Aerospace, Vol. 16, No. 2, 131-140, 2023.
doi:10.4271/01-16-02-0008 Google Scholar

13. Stopforth, Riaan, "Conductive polylactic acid filaments for 3D printed sensors: Experimental electrical and thermal characterization," Scientific African, Vol. 14, e01040, 2021.
doi:10.1016/j.sciaf.2021.e01040 Google Scholar

14. Zhang, Jinhua, Shi Dong, Deema Mohammed Alsekait, Imran Khan, Pi-Chung Wang, and Ibrahim A. Hameed, "Design and performance optimization of a novel lens antenna for emerging beyond 5G wireless applications," Frontiers in Materials, Vol. 11, 1479398, 2024.
doi:10.3389/fmats.2024.1479398 Google Scholar

15. Shang, Yuqiu, Qingsheng Zeng, Wanzhao Cui, Xinwei Wang, and Gengqi Zheng, "Design of pattern reconfigurable patch antenna array based on reflective phase-shifter," International Journal of Antennas and Propagation, Vol. 2022, No. 1, 2803285, 2022.
doi:10.1155/2022/2803285 Google Scholar

16. Zhou, Zijian, Jingze Ding, and Rui Zhang, "Polarforming design with phase shifter based polarization reconfigurable antennas," ArXiv Preprint ArXiv:2505.21990, 2025.
doi:10.48550/arXiv.2505.21990 Google Scholar

Mr. Bingi Naresh Kumar

Dr. Metuku Shyam Sunder

Dr. Dasari Ramakrishna
