Abstract

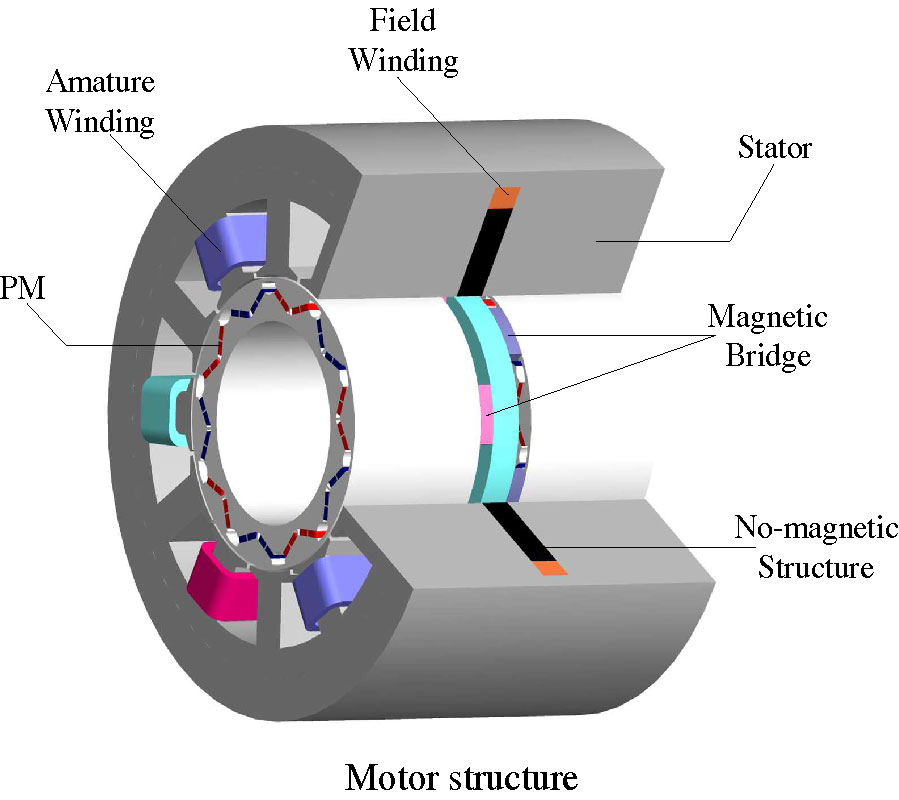

Conventional permanent magnet synchronous motors (PMSMs) suffer from limitations in speed regulation range, poor fault tolerance, and restricted torque output in electric vehicle drive applications. To address these limitations, this paper proposes a six-phase, 12-slot/10-pole hybrid-excited reverse-salient fault-tolerant motor (FT-HE-RSPM). To achieve reverse-salient characteristics and regulate the air-gap magnetic field, the rotor adopts segmented permanent magnets and a q-axis magnetic barrier. This design increases the d-axis inductance while reducing the q-axis inductance, achieving the reverse-salient characteristic L_d > L_q under rated conditions. Additionally, both the stator and rotor adopt segmented structures, forming axial magnetic paths via magnetic bridges. The excitation windings are embedded in the stator using non-magnetic materials, and the air-gap magnetic field is regulated by controlling the excitation current. The motor's magnetic field regulation mechanism was analyzed using the equivalent magnetic circuit method. Combined with three-dimensional finite element analysis (3D-FEA), the motor's electromagnetic performance and fault-tolerant characteristics were investigated, leading to the design of a current reconstruction fault-tolerant control strategy for single-phase open-circuit faults. Results demonstrate that this motor exhibits high torque output capability, excellent flux regulation characteristics, high efficiency, and outstanding fault tolerance, meeting the demands of complex operating conditions in electric vehicles.
