Abstract

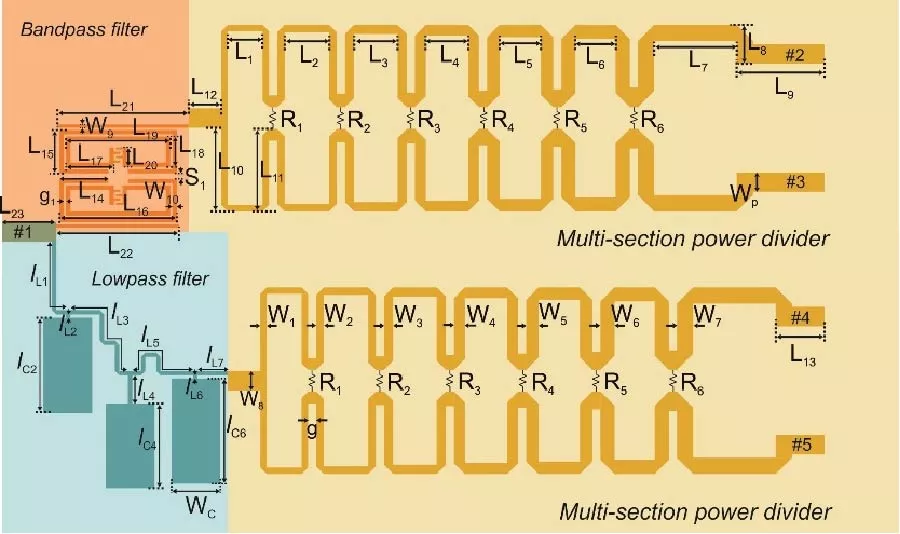

In this paper, a novel diplexing power divider with a lowpass and two bandpass channels is presented. The lowpass channel is constructed by using a 7th-order quasi-elliptical transfer function, while the dual-band bandpass response is obtained by using co-directional split ring resonators. A lowpass-bandpass diplexer is first designed by integrating the lowpass and bandpass filters directly. In order to achieve the power division within the entire frequency range, a multi-section power divider is located at the end of both filter structures. The proposed lowpass-bandpass diplexing power divider is fabricated and measured in very good agreement with the predicted results. The measured frequency range of the lowpass channel is between 100 MHz and 2 GHz. The measured center frequencies of the bandpass channels are at 3.4 and 3.9 GHz with the 3-dB fractional bandwidths of 7 and 6.6%, respectively.

1. Zhu, Hao-Ran, Zhong-Miao Wang, Zhi-Xiang Huang, and Xian-Liang Wu, "An ultra-wideband and sharp-selectivity filtering power divider with modified three-line coupled structure," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 31, No. 8, e22738, 2021.
doi:10.1002/mmce.22738 Google Scholar

2. Lin, Kai-Che and Ching-Wen Tang, "Design of the filtering power divider with highly-selective bandpass filters," IEEE Access, Vol. 12, 150249-150254, 2024.
doi:10.1109/access.2024.3477458 Google Scholar

3. Deng, Yijing, Jianpeng Wang, Lei Zhu, and Wen Wu, "Filtering power divider with good isolation performance and harmonic suppression," IEEE Microwave and Wireless Components Letters, Vol. 26, No. 12, 984-986, Dec. 2016.
doi:10.1109/lmwc.2016.2623244 Google Scholar

4. Wei, Feng, Bo Liu, Zhao Li, Le Xu, Rui Li, Yong Yang, and Xiao Ning Yang, "Balanced dual-band BPF and FPD using quad-mode RLR with improved selectivity," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 69, No. 4, 2081-2085, Apr. 2022.
doi:10.1109/tcsii.2022.3142813 Google Scholar

5. Jing, Wang, Zhi-Hao Liu, Bao-Guang Liu, and Chong-Hu Cheng, "A K-band low-pass filtering power divider with two transmission zeros base on four-line interdigitated coupling structure," 2023 International Conference on Microwave and Millimeter Wave Technology (ICMMT), 1-3, Qingdao, China, 2023.
doi:10.1109/ICMMT58241.2023.10277558

6. Chen, Chi-Feng, Ting-Yi Huang, Tze-Min Shen, and Ruey-Beei Wu, "Design of miniaturized filtering power dividers for system-in-a-package," IEEE Transactions on Components, Packaging and Manufacturing Technology, Vol. 3, No. 10, 1663-1672, Oct. 2013.
doi:10.1109/tcpmt.2013.2254488 Google Scholar

7. Chen, Ming-Tzung and Ching-Wen Tang, "Design of the filtering power divider with a wide passband and stopband," IEEE Microwave and Wireless Components Letters, Vol. 28, No. 7, 570-572, Jul. 2018.
doi:10.1109/lmwc.2018.2835446 Google Scholar

8. Xu, Kai, Jin Shi, Longlong Lin, and Jian-Xin Chen, "A balanced-to-unbalanced microstrip power divider with filtering function," IEEE Transactions on Microwave Theory and Techniques, Vol. 63, No. 8, 2561-2569, Aug. 2015.
doi:10.1109/tmtt.2015.2445051 Google Scholar

9. Gao, Xin, Wenjie Feng, Wenquan Che, and Quan Xue, "Wideband balanced-to-unbalanced filtering power dividers based on coupled lines," IEEE Transactions on Microwave Theory and Techniques, Vol. 65, No. 1, 86-95, Jan. 2017.
doi:10.1109/tmtt.2016.2614668 Google Scholar

10. Wei, Feng, Wei-Shen Liu, Jia Xin Wang, and Xi-Bei Zhao, "Design of a novel balanced-to-balanced dual-band diplexing power divider," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 2, 516-520, Feb. 2023.
doi:10.1109/tcsii.2022.3212002 Google Scholar

11. Lin, Chen-Hsiang, Pu-Hua Deng, and Wei-Ting Chen, "Design of a microstrip diplexing filtering power divider," 2019 IEEE Asia-Pacific Microwave Conference (APMC), 944-946, Singapore, 2019.
doi:10.1109/APMC46564.2019.9038352

12. Gorur, Ali Kursad, "A dual-band balun BPF using codirectional split ring resonators," IEEE Microwave and Wireless Components Letters, Vol. 30, No. 10, 949-952, Oct. 2020.
doi:10.1109/lmwc.2020.3016622 Google Scholar

13. Kizilbey, Oguzhan, Suheyb Bozdemir, and Binboga Siddik Yarman, "2-10 GHz multisection 2-way Wilkinson power divider with enhanced port match and isolation," 2017 IEEE 18th Wireless and Microwave Technology Conference (WAMICON), 1-4, Cocoa Beach, FL, USA, 2017.
doi:10.1109/WAMICON.2017.7930250

14. Lee, Sanghoon, Min-Yu Huang, Yeojoon Youn, and Hua Wang, "A 15-55 GHz low-loss ultra-compact folded inductor-based multi-section Wilkinson power divider for multi-band 5G applications," 2019 IEEE MTT-S International Microwave Symposium (IMS), 432-435, Boston, MA, USA, 2019.
doi:10.1109/MWSYM.2019.8700973

15. Hayati, Mohsen, Abbas Rezaei, and Leila Noori, "Design of a high-performance lowpass-bandpass diplexer using a novel microstrip structure for GSM and WiMAX applications," IET Circuits, Devices & Systems, Vol. 13, No. 3, 361-367, Apr. 2019.
doi:10.1049/iet-cds.2018.5395 Google Scholar

16. Alyahya, Meshaal, Mohammed Aseeri, Hatim Bukhari, Hussein Shaman, Abdulrahman Alhamrani, and Adnan Affandi, "Compact microstrip lowpass filter with ultra-wide rejection-band," 2017 International Conference on Wireless Technologies, Embedded and Intelligent Systems (WITS), 1-4, Fez, Morocco, 2017.
doi:10.1109/WITS.2017.7934683

17. Heshmati, Hossein and Sobhan Roshani, "A miniaturized lowpass bandpass diplexer with high isolation," AEU --- International Journal of Electronics and Communications, Vol. 87, 87-94, Apr. 2018.
doi:10.1016/j.aeue.2018.02.004 Google Scholar

18. Yang, Mengsu, Jing Xia, Yan Guo, and Anding Zhu, "Highly efficient broadband continuous inverse class-F power amplifier design using modified elliptic low-pass filtering matching network," IEEE Transactions on Microwave Theory and Techniques, Vol. 64, No. 5, 1515-1525, May 2016.
doi:10.1109/tmtt.2016.2544318 Google Scholar

19. Elden, Seda and Ali K. Gorur, "Design of a compact lowpass-bandpass diplexer with high isolation," Progress In Electromagnetics Research Letters, Vol. 97, 21-26, 2021.
doi:10.2528/pierl21012701 Google Scholar

20. Nouri, Leila, Farid Zubir, Lewis Nkenyereye, Abbas Rezaei, Mohammed Abdel-Hafez, Fawwaz Hazzazi, Muhammad Akmal Chaudhary, Maher Assaad, and Zubaida Binti Yusoff, "Novel ultra-compact wide stopband microstrip lowpass-bandpass triplexer for 5G multi-service wireless networks," IEEE Access, Vol. 12, 2926-2940, 2024.
doi:10.1109/access.2023.3348786 Google Scholar

21. Chen, Fu-Chang, Jie-Ming Qiu, Hao-Tao Hu, Qing-Xin Chu, and Michael J. Lancaster, "Design of microstrip lowpass-bandpass triplexer with high isolation," IEEE Microwave and Wireless Components Letters, Vol. 25, No. 12, 805-807, Dec. 2015.
doi:10.1109/lmwc.2015.2496797 Google Scholar

22. Deng, Pu-Hua, Wei Lo, Bo-Lin Chen, and Chen-Hsiang Lin, "Designs of diplexing power dividers," IEEE Access, Vol. 6, 3872-3881, 2018.
doi:10.1109/access.2018.2791991 Google Scholar

23. Tang, Liming, Xinde Zhang, Fei Jiao, Shicheng Liu, Gang Zhang, and Jiquan Yang, "Design of a compact microstrip triplexer-power divider with E-shaped resonator," 2019 International Conference on Microwave and Millimeter Wave Technology (ICMMT), 1-2, Guangzhou, China, 2019.
doi:10.1109/ICMMT45702.2019.8992434

24. Sorkherizi, Milad Sharifi, Abbas Vosoogh, Ahmed A. Kishk, and Per-Simon Kildal, "Design of integrated diplexer-power divider," 2016 IEEE MTT-S International Microwave Symposium (IMS), 1-3, San Francisco, CA, USA, 2016.
doi:10.1109/MWSYM.2016.7540124

25. Yan, Yuchen, Kaijun Song, and Yuxuan Chen, "High-isolation diplexing power divider with high-frequency selectivity," Electromagnetics, Vol. 40, No. 3, 217-225, 2020.
doi:10.1080/02726343.2020.1726074 Google Scholar

26. Hong, Jia-Sheng and M. J. Lancaster, Microstrip Filters for RF/Microwave Applications, John Wiley & Sons, New York, 2001.
doi:10.1002/0471221619

27. Cohn, S. B., "A class of broadband three-port TEM-mode hybrids," IEEE Transactions on Microwave Theory and Techniques, Vol. 16, No. 2, 110-116, Feb. 1968.
doi:10.1109/tmtt.1968.1126617 Google Scholar

Mr. Al Amin

Dr. Osman Bakacak

Dr. Seher Dilsiz

Dr. Alper Turkeli

Dr. Burak Mahmut Yanar

Dr. Ali Kursad Gorur
