Slot-Enhanced Next-Generation Wireless Antenna for Millimeter-Wave Applications for SDG-9 and SDG-11
By
Progress In Electromagnetics Research C, Vol. 162, 224-233, 2025
Abstract

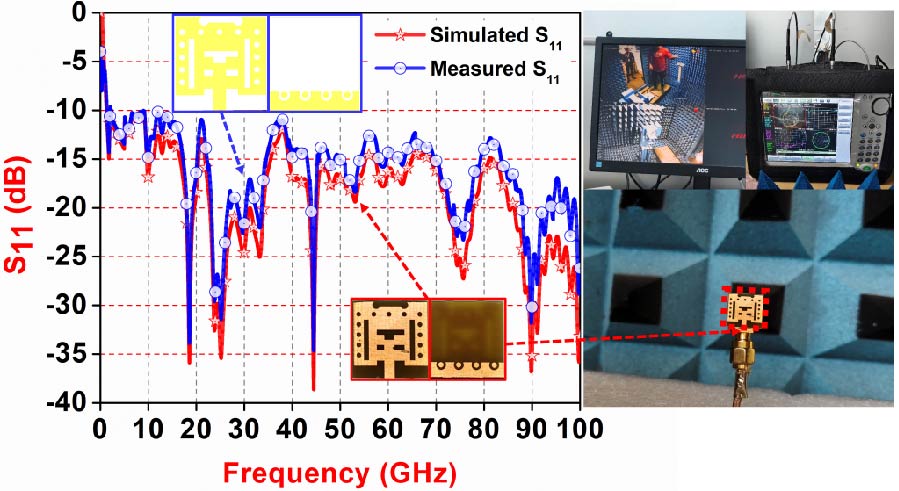

This article presents a slot-enhanced compact antenna tailored for next-generation millimeter-wave communication systems. The design, implemented on an FR4 substrate with dimensions of 15 × 16 × 1.5 mm3, was optimized using CST Microwave Studio and validated through fabrication and experimental testing. At 9.1 GHz, the antenna exhibits an electrical size of 0.45λ × 0.48λ × 0.045λ, confirming its suitability for integration into modern high-frequency platforms. The measured and simulated results demonstrate an ultra-wide impedance bandwidth of approximately 166%, covering 9.1-100 GHz with a primary resonance observed at 45.45 GHz. Throughout this wide operating spectrum, the antenna maintains stable radiation characteristics, achieving a peak gain of 8.91 dBi and efficiency close to 90%. The slot-based geometry enables excitation of multiple resonant modes, ensuring wideband operation while maintaining compactness. With its robust performance across multiple frequency bands, the proposed antenna is a strong candidate for applications in X-band radar, Ku- and Ka-band satellite communications, K-band sensing, V-band short-range links, W-band automotive radar, and future 6G wireless networks.
Citation
Swati Varun Yadav, Manish Varun Yadav, Saraswati Kulkarni, Vikas Gupta, and Tanweer Ali, "Slot-Enhanced Next-Generation Wireless Antenna for Millimeter-Wave Applications for SDG-9 and SDG-11," Progress In Electromagnetics Research C, Vol. 162, 224-233, 2025.
doi:10.2528/PIERC25091902
References

1. Mishra, Brijesh, Ramesh Kumar Verma, Rakesh Kumar Singh, et al. "A review on microstrip patch antenna parameters of different geometry and bandwidth enhancement techniques," International Journal of Microwave and Wireless Technologies, Vol. 14, No. 5, 652-673, 2022.
doi:10.1017/s1759078721001148

2. Przesmycki, Rafal, Marek Bugaj, and Leszek Nowosielski, "Broadband microstrip antenna for 5G wireless systems operating at 28 GHz," Electronics, Vol. 10, No. 1, 1, 2021.
doi:10.3390/electronics10010001

3. Imran, D., M. M. Farooqi, M. I. Khattak, Z. Ullah, M. I. Khan, M. A. Khattak, and H. Dar, "Millimeter wave microstrip patch antenna for 5G mobile communication," 2018 International Conference on Engineering and Emerging Technologies (ICEET), 1-6, Lahore, Pakistan, Feb. 2018.
doi:10.1109/iceet1.2018.8338623

4. Khidre, Ahmed, Kai-Fong Lee, Atef Z. Elsherbeni, and Fan Yang, "Wide band dual-beam U-slot microstrip antenna," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 3, 1415-1418, 2013.
doi:10.1109/tap.2012.2228617

5. Baudha, Sudeep, Kannan Kapoor, and Manish Varun Yadav, "U-shaped microstrip patch antenna with partial ground plane for mobile satellite services (MSS)," 2019 URSI Asia-Pacific Radio Science Conference (AP-RASC), 1-5, New Delhi, India, Mar. 2019.
doi:10.23919/URSIAP-RASC.2019.8738196

6. Kurniawan, Adit and Salik Mukhlishin, "Wideband antenna design and fabrication for modern wireless communications systems," Procedia Technology, Vol. 11, 348-353, 2013.
doi:10.1016/j.protcy.2013.12.201

7. Ghosh, Abhijyoti, Sudip Kumar Ghosh, Dia Ghosh, and Sudipta Chattopadhyay, "Improved polarization purity for circular microstrip antenna with defected patch surface," International Journal of Microwave and Wireless Technologies, Vol. 8, No. 1, 89-94, 2016.
doi:10.1017/s1759078714001305

8. Verma, Shivangi, Leena Mahajan, Rajesh Kumar, Hardeep Singh Saini, and Naveen Kumar, "A small microstrip patch antenna for future 5G applications," 2016 5th International Conference on Reliability, Infocom Technologies and Optimization (Trends and Future Directions) (ICRITO), 460-463, Noida, India, Sep. 2016.
doi:10.1109/ICRITO.2016.7784999

9. Akyildiz, Ian F., Chong Han, and Shuai Nie, "Combating the distance problem in the millimeter wave and terahertz frequency bands," IEEE Communications Magazine, Vol. 56, No. 6, 102-108, Jun. 2018.
doi:10.1109/mcom.2018.1700928

10. Akyildiz, Ian F., Josep Miquel Jornet, and Chong Han, "Terahertz band: Next frontier for wireless communications," Physical Communication, Vol. 12, 16-32, 2014.
doi:10.1016/j.phycom.2014.01.006

11. Han, Chong and Yi Chen, "Propagation modeling for wireless communications in the terahertz band," IEEE Communications Magazine, Vol. 56, No. 6, 96-101, Jun. 2018.
doi:10.1109/mcom.2018.1700898

12. Rappaport, Theodore S., Yunchou Xing, Ojas Kanhere, Shihao Ju, Arjuna Madanayake, Soumyajit Mandal, Ahmed Alkhateeb, and Georgios C. Trichopoulos, "Wireless communications and applications above 100 GHz: Opportunities and challenges for 6G and beyond," IEEE Access, Vol. 7, 78729-78757, 2019.
doi:10.1109/access.2019.2921522

13. Jornet, Josep M., Edward W. Knightly, and Daniel M. Mittleman, "Wireless communications sensing and security above 100 GHz," Nature Communications, Vol. 14, No. 1, 841, 2023.
doi:10.1038/s41467-023-36621-x

14. Singh, Chandraveer, Chetna Sharma, Shanu Tripathi, Manish Sharma, and Anand Agrawal, "A comprehensive survey on millimeter wave antennas at 30/60/120 GHz: Design, challenges and applications," Wireless Personal Communications, Vol. 133, No. 3, 1547-1584, 2023.
doi:10.1007/s11277-023-10828-z

15. Min, Jong-Sik, Seong-Mo Moon, and Han Lim Lee, "Low-profile radome-optimized high-gain series-fed array antenna for W-band radar applications," Alexandria Engineering Journal, Vol. 125, 388-398, 2025.
doi:10.1016/j.aej.2025.04.044

16. Al-Hiti, Ahmed Shakir, Abdullah Khalid Ahmed, Shahad Hussam Mhmood, and Bashayer Ismail Hamdallah, "Broadband and multiband millimeter wave microstrip patch antenna for 5G and 6G applications," Journal of Umm Al-Qura University for Engineering and Architecture, Vol. 16, No. 3, 720-731, 2025.
doi:10.1007/s43995-025-00161-w

17. Perez-Palomino, Gerardo, Mariano Barba, José A. Encinar, Robert Cahill, Raymond Dickie, Paul Baine, and Michael Bain, "Design and demonstration of an electronically scanned reflectarray antenna at 100 GHz using multiresonant cells based on liquid crystals," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 8, 3722-3727, 2015.
doi:10.1109/tap.2015.2434421

18. Kumar, Praveen, Tanweer Ali, Om Prakash Kumar, Shweta Vincent, Pradeep Kumar, Yashwanth Nanjappa, and Sameena Pathan, "An ultra-compact 28 GHz arc-shaped millimeter-wave antenna for 5G application," Micromachines, Vol. 14, No. 1, 5, 2023.
doi:10.3390/mi14010005

19. Muttair, Karrar Shakir, Oras Ahmed Shareef, Hazeem Baqir Taher, and Faiz Arith, "A new geometry of multi-band MIMO antenna for 5G and 6G systems," Journal of Techniques, Vol. 6, No. 4, 48-56, 2024.
doi:10.51173/jt.v6i4.2596

20. Khidre, Ahmed, Kai Fang Lee, Fan Yang, and Atef Elsherbeni, "Wideband circularly polarized E-shaped patch antenna for wireless applications [wireless corner]," IEEE Antennas and Propagation Magazine, Vol. 52, No. 5, 219-229, Oct. 2010.
doi:10.1109/map.2010.5687547

21. Baudha, Sudeep, Kannan Kapoor, and Manish Varun Yadav, "U-shaped microstrip patch antenna with partial ground plane for mobile satellite services (MSS)," 2019 URSI Asia-Pacific Radio Science Conference (AP-RASC), 1-5, New Delhi, India, 2019.
doi:10.23919/URSIAP-RASC.2019.8738196

22. Marotkar, Devashree S. and Prasanna Zade, "Bandwidth enhancement of microstrip patch antenna using defected ground structure," 2016 International Conference on Electrical, Electronics, and Optimization Techniques (ICEEOT), 1712-1716, Chennai, India, 2016.
doi:10.1109/iceeot.2016.7754978
