Abstract

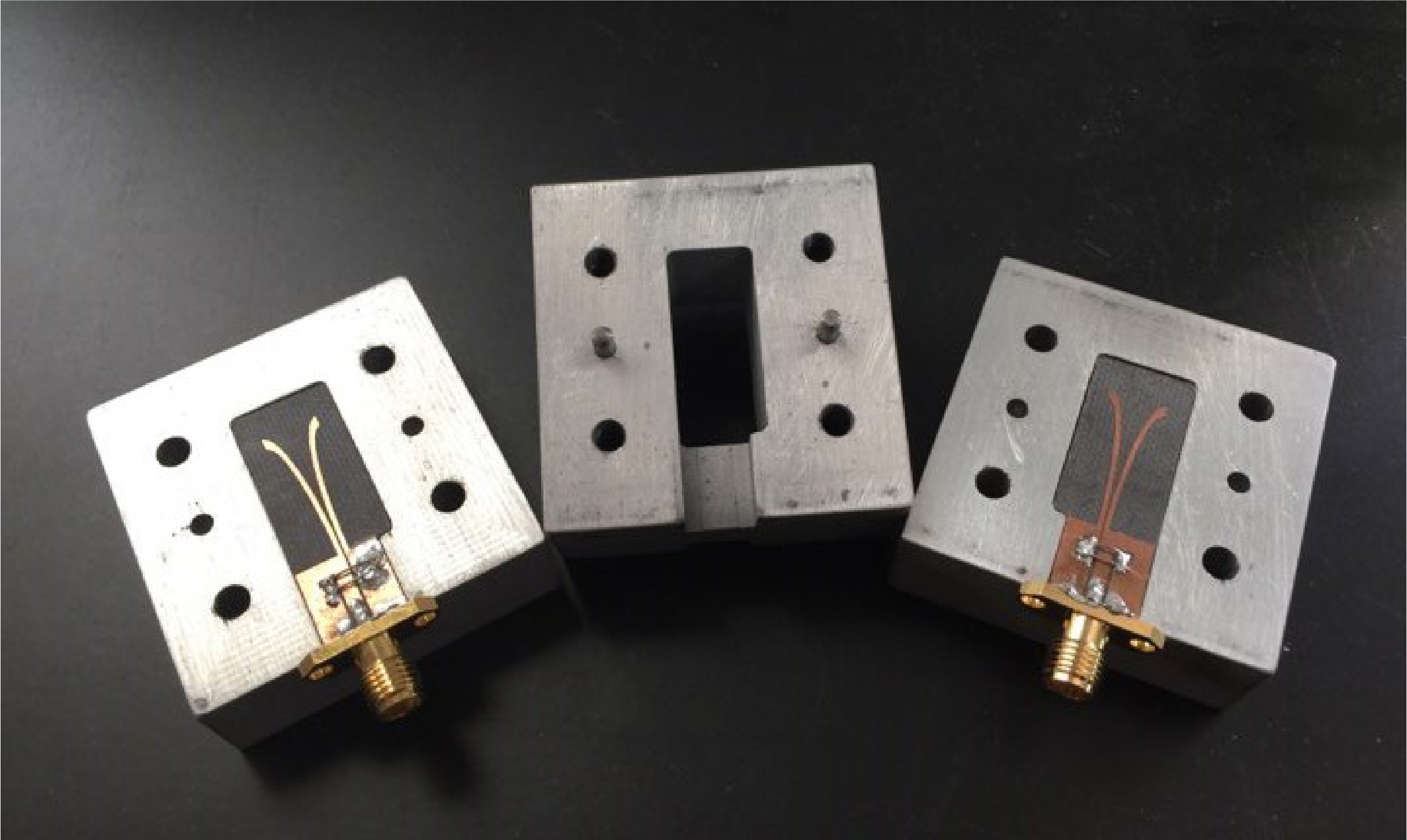

In this paper, a coplanar waveguide-to-rectangular waveguide TE₂₀ mode transition using an antisymmetric tapered probe is proposed. The transmission coefficient of the TE₂₀ mode is nearly 0 dB, and the reflection coefficient of the coplanar waveguide mode is smaller than -10 dB from 13.48 GHz to 14.7 GHz. In this frequency range, the transmission coefficient of the TE₁₀ mode is smaller than -20 dB while the reflection coefficient of the coupled slotline mode is smaller than -19 dB. Besides, a microstrip line-to-rectangular waveguide TE₂₀ mode transition using an antisymmetric fork is proposed. The transmission coefficient of the TE₂₀ mode is nearly 0 dB, and the reflection coefficient of the microstrip line mode is smaller than -10 dB from 13.34 GHz to 15 GHz. In this frequency range, the transmission coefficient of the TE₁₀ mode is smaller than -20 dB. To verify the simulation results, the coplanar waveguide-to-rectangular waveguide TE₂₀ transition and the microstrip line-to-rectangular waveguide TE₂₀ mode transition are back-to-back fabricated and measured, with the measurement results agreeing well with the simulation ones.

1. Ponchak, G. E. and R. N. Simons, "A new rectangular waveguide to coplanar waveguide transition," IEEE International Digest on Microwave Symposium, Vol. 1, 491-492, Dallas, TX, USA, 08-10 May 1990.
doi:10.1109/MWSYM.1990.99626

2. Shireen, Rownak, Shouyuan Shi, Peng Yao, Christopher A. Schuetz, Julien Macario, and Dennis W. Prather, "CPW to rectangular waveguide transition on an LiNbO3 substrate," IEEE Transactions on Microwave Theory and Techniques, Vol. 57, No. 6, 1494-1499, Jun. 2009.
doi:10.1109/tmtt.2009.2020673

3. Fang, Ruei-Ying, Cheng-Tze Wang, and Chun-Long Wang, "A direct CPW-to-rectangular waveguide transition using a dipole slot antenna," 2009 European Microwave Conference (EuMC), 157-160, Rome, Italy, 2009.
doi:10.23919/EUMC.2009.5296536

4. Dong, Yunfeng, Tom K. Johansen, Vitaliy Zhurbenko, and Peter Jesper Hanberg, "Rectangular waveguide-to-coplanar waveguide transitions at U-band using E-plane probe and wire bonding," 2016 46th European Microwave Conference (EuMC), 5-8, London, UK, 04-06 October 2016.
doi:10.1109/EuMC.2016.7824263

5. Mottonen, V. S., "Wideband coplanar waveguide-to-rectangular waveguide transition using fin-line taper," IEEE Microwave and Wireless Components Letters, Vol. 15, No. 2, 119-121, Feb. 2005.
doi:10.1109/lmwc.2004.842855

6. Lin, Ting-Huei and Ruey-Beei Wu, "CPW to waveguide transition with tapered slotline probe," IEEE Microwave and Wireless Components Letters, Vol. 11, No. 7, 314-316, Jul. 2001.
doi:10.1109/7260.933782

7. Mottonen, V. S. and A. V. Raisanen, "Novel wide-band coplanar waveguide-to-rectangular waveguide transition," IEEE Transactions on Microwave Theory and Techniques, Vol. 52, No. 8, 1836-1842, Aug. 2004.
doi:10.1109/tmtt.2004.831580

8. Fang, Ruei-Ying and Chun-Long Wang, "Miniaturized coplanar waveguide to rectangular waveguide transition using inductance-compensated slotline," IEEE Transactions on Components, Packaging and Manufacturing Technology, Vol. 2, No. 10, 1666-1671, Oct. 2012.
doi:10.1109/tcpmt.2012.2208460

9. Wang, Shih-Han, Che-Chi Chang, Yuan-Chun Lee, and Chun-Long Wang, "Compact and broadband CPW-to-RWG transition using stub resonators," IEEE Transactions on Microwave Theory and Techniques, Vol. 64, No. 10, 3198-3207, Oct. 2016.
doi:10.1109/tmtt.2016.2599167

10. Yuan, Bin and Zhongjun Yu, "A wideband high-gain LTCC cavity antenna fed by TE20 mode substrate integrated waveguide for W-band applications," 2022 IEEE MTT-S International Microwave Workshop Series on Advanced Materials and Processes for RF and THz Applications (IMWS-AMP), 1-3, Guangzhou, China, 2022.
doi:10.1109/IMWS-AMP54652.2022.10107144

11. Chairi, Youssef, Sarra Abedrrabba, Rozenn Allanic, Anne-Charlotte Amiaud, Ahmed El Oualkadi, Cédric Quendo, Thomas Merlet, Kamal Reklaoui, and Thierry Le Gouguec, "Design of a slotted waveguide antenna based on TE20 mode in ku-band suitable for direct metal laser sintering," Electronics, Vol. 11, No. 13, 2079, 2022.
doi:10.3390/electronics11132079

12. Tang, Hui, Changwu Tong, Jian-Xin Chen, Cheng Shao, Wei Qin, and Wenwen Yang, "Differentially SIW TE20-mode fed substrate integrated filtering dielectric resonator antenna for 5G millimeter wave application," 2019 IEEE International Conference on Computational Electromagnetics (ICCEM), 1-3, Shanghai, China, 2019.
doi:10.1109/COMPEM.2019.8778961

13. Adhikary, Moitreya, Anirban Sarkar, Abhishek Sharma, Animesh Biswas, and M. J. Akhtar, "TE20 mode air filled SIW based balun bandpass filter," 2018 International Symposium on Antennas and Propagation (ISAP), 1-2, Busan, Korea (South), 2018.

14. Zhang, Qiang, Cheng-Wei Yuan, and Lie Liu, "Theoretical design and analysis for TE20-TE10 rectangular waveguide mode converters," IEEE Transactions on Microwave Theory and Techniques, Vol. 60, No. 4, 1018-1026, Apr. 2012.
doi:10.1109/TMTT.2011.2182206

15. Liu, Guo, Yan Wang, Youlei Pu, Jianxun Wang, Ran Yan, Yong Luo, and Shafei Wang, "A millimeter wave high-order TE13 mode converter," IEEE Transactions on Electron Devices, Vol. 63, No. 7, 2907-2911, Jul. 2016.
doi:10.1109/ted.2016.2562025

16. Liu, Guo, Yan Wang, Youlei Pu, and Yong Luo, "Design and microwave measurement of a novel compact TE 0n /TE 1n′ -mode converter," IEEE Transactions on Microwave Theory and Techniques, Vol. 64, No. 12, 4108-4116, Dec. 2016.
doi:10.1109/TMTT.2016.2608770

17. Martinez, R., M. Belaid, Z. Ouardirhi, J.-J. Laurin, and Ke Wu, "Concept of a quasi-optic power amplifier utilising a new converter of mode TE10 to TE20," CCECE 2003 --- Canadian Conference on Electrical and Computer Engineering. Toward a Caring and Humane Technology (Cat. No.03CH37436), Vol. 1, 565-568, Montreal, QC, Canada, 04-07 May 2003.
doi:10.1109/CCECE.2003.1226459
