Abstract

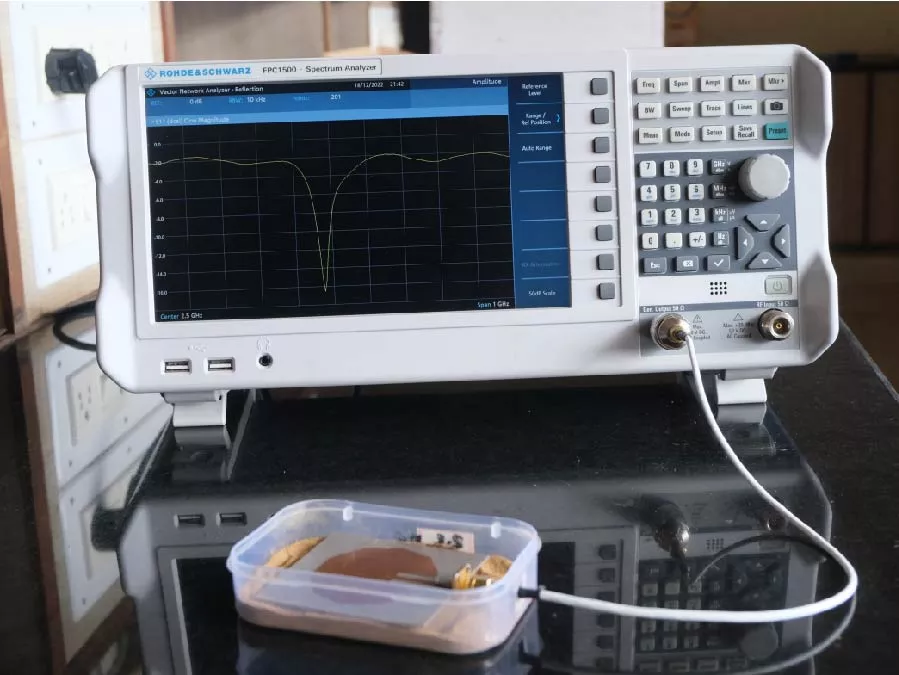

This paper presents the design, fabrication and experimental validation of a novel compact high-gain decagonal microstrip patch antenna designed for noninvasive soil moisture sensing. The antenna utilizes the strong correlation between its dielectric properties and soil moisture content, which directly influences the antenna's reflection coefficient and resonant frequency. The decagonal geometry using a Taconic TLY-5 substrate achieves a high gain of 7 dBi and an excellent radiation efficiency of 96.5% compared to the FR-4 substrate. The prototype antenna fabricated on Taconic TLY- substrate resonates at 2.445 GHz frequency with a measured reflection coefficient of -34.3 dB, validating the high-performance characteristics predicted by full-wave simulations using CST Studio Suite 2018. The sensing capability of the fabricated antenna is carefully tested across sandy, loamy, and clay soils, demonstrating a predictable downward shift in resonant frequency as moisture content increases. A linear regression analysis is performed on the experimental data from sandy, loamy, and clay soils, yielded a high coefficient of determination (R² ≈ 0.9) for all three soil types, establishing a calibration model to accurately convert the resonant frequency shifts into soil moisture values. The obtained sensitivity values for soil moisture detection are 4.76 MHz/% for sandy soil, 5.15 MHz/% for loamy soil and 4.89 MHz/% for clay soil respectively. The compact size, high gain and consistent performance across different soil samples make this proposed antenna a better solution for precision agriculture and environmental monitoring through integration into wireless sensor networks.

1. Raza, Ali, Rasool Keshavarz, and Negin Shariati, "Precision agriculture: Ultra-compact sensor and reconfigurable antenna for joint sensing and communication," IEEE Transactions on Instrumentation and Measurement, Vol. 73, 1-13, 2024.
doi:10.1109/tim.2024.3350126 Google Scholar

2. Ruszczak, Bogdan and Dominika Boguszewska-Mańkowska, "Soil moisture a posteriori measurements enhancement using ensemble learning," Sensors, Vol. 22, No. 12, 4591, 2022.
doi:10.3390/s22124591 Google Scholar

3. Rasheed, Muhammad Waseem, Jialiang Tang, Abid Sarwar, Suraj Shah, Naeem Saddique, Muhammad Usman Khan, Muhammad Imran Khan, Shah Nawaz, Redmond R. Shamshiri, Marjan Aziz, and Muhammad Sultan, "Soil moisture measuring techniques and factors affecting the moisture dynamics: A comprehensive review," Sustainability, Vol. 14, No. 18, 11538, 2022.
doi:10.3390/su141811538 Google Scholar

4. Singh, Abhilash, Kumar Gaurav, Gaurav Kailash Sonkar, and Cheng-Chi Lee, "Strategies to measure soil moisture using traditional methods, automated sensors, remote sensing, and machine learning techniques: Review, bibliometric analysis, applications, research findings, and future directions," IEEE Access, Vol. 11, 13605-13635, 2023.
doi:10.1109/access.2023.3243635 Google Scholar

5. Oliveira, João G. D., Erica N. M. G. Pinto, Valdemir P. Silva Neto, and Adaildo G. D'Assunção, "CSRR-based microwave sensor for dielectric materials characterization applied to soil water content determination," Sensors, Vol. 20, No. 1, 255, 2020.
doi:10.3390/s20010255 Google Scholar

6. Park, Chang-Hwan, Andreas Behrendt, Ellsworth LeDrew, and Volker Wulfmeyer, "New approach for calculating the effective dielectric constant of the moist soil for microwaves," Remote Sensing, Vol. 9, No. 7, 732, 2017.
doi:10.3390/rs9070732 Google Scholar

7. Khan, Muhammad Talha, Xian Qi Lin, Abid Muhammad Khan, and Zhe Chen, "Sensitivity enhancement for moisture content detection using modified microstrip patch antennas," AIP Advances, Vol. 14, No. 5, 055219, 2024.
doi:10.1063/5.0208292 Google Scholar

8. Jin, Xiao, Wen Yang, Xiaoqing Gao, and Zhenchao Li, "Analysis and modeling of the complex dielectric constant of bound water with application in soil microwave remote sensing," Remote Sensing, Vol. 12, No. 21, 3544, 2020.
doi:10.3390/rs12213544 Google Scholar

9. Ul Haq, Muhammad Aziz, Ammar Armghan, Khaled Aliqab, and Meshari Alsharari, "A review of contemporary microwave antenna sensors: Designs, fabrication techniques, and potential application," IEEE Access, Vol. 11, 40064-40074, 2023.
doi:10.1109/access.2023.3268109 Google Scholar

10. Lee, Kai-Fong and Kin-Fai Tong, "Microstrip patch antennas --- Basic characteristics and some recent advances," Proceedings of the IEEE, Vol. 100, No. 7, 2169-2180, 2012.
doi:10.1109/jproc.2012.2183829 Google Scholar

11. Cao, Yufan, Yang Cai, Wenquan Cao, Baokun Xi, Zuping Qian, Tao Wu, and Lei Zhu, "Broadband and high-gain microstrip patch antenna loaded with parasitic mushroom-type structure," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 7, 1405-1409, 2019.
doi:10.1109/lawp.2019.2917909 Google Scholar

12. Labiano, Isidoro Ibanez and Akram Alomainy, "Fabric antenna for temperature sensing over ISM frequency band," 2019 IEEE International Symposium on Antennas and Propagation and USNC-URSI Radio Science Meeting, 1567-1568, Atlanta, GA, USA, 2019.
doi:10.1109/APUSNCURSINRSM.2019.8888610

13. Škiljo, Maja, Zoran Blažević, Lea Dujić-Rodić, Toni Perković, and Petar Šolić, "Self-sensing antenna for soil moisture: Beacon approach," Sensors, Vol. 22, No. 24, 9863, 2022.
doi:10.3390/s22249863 Google Scholar

14. Muttath, Dony J., Saira Joseph, A. Jain, R. Ratheesh, et al. "Effect of loss tangent on the performance of octagonal ultra wideband antenna," 2015 IEEE Applied Electromagnetics Conference (AEMC), 1-2, Guwahati, India, 2015.
doi:10.1109/AEMC.2015.7509123

15. NishaBegam, R. and R. Srithulasiraman, "The study of microstrip antenna and their applications," 2015 Online International Conference on Green Engineering and Technologies (IC-GET), 1-3, Coimbatore, India, 2015.
doi:10.1109/GET.2015.7453852

16. Balanis, C. A., Antenna Theory Design and Application, 3rd Ed., John Wiley & Sons, Hoboken, 1982.

17. Periasamy, Shoba and Kokila Priya Ravi, "The effect of varying moisture content in the retrieval of the imaginary part of dielectric constant from C-band frequency SAR," 2020 IEEE India Geoscience and Remote Sensing Symposium (InGARSS), 114-117, Ahmedabad, India, 2020.
doi:10.1109/InGARSS48198.2020.9358917

18. Guo, Jing, Yan Tang, Yongji Wu, Chen Zhu, and Jie Huang, "Embeddable soil moisture content sensor based on open-end microwave coaxial cable resonator," IEEE Sensors Journal, Vol. 23, No. 12, 13575-13584, 2023.
doi:10.1109/jsen.2023.3266665 Google Scholar

19. Jain, Sweety, Pankaj Kumar Mishra, Vandana Vikas Thakare, and Jyoti Mishra, "Microstrip moisture sensor based on microstrip patch antenna," Progress In Electromagnetics Research M, Vol. 76, 177-185, 2018.
doi:10.2528/pierm18092602 Google Scholar

20. Khan, Muhammad Talha, Xian Qi Lin, Chen Zhe, and Abdus Saboor, "Design, analysis and validation of a microstrip patch antenna with enhanced coupling for leaf moisture sensing: An IoT approach," Frontiers in Physics, Vol. 12, 1402326, 2024.
doi:10.3389/fphy.2024.1402326 Google Scholar

Dr. Sahana K

Dr. Bharathraj Kumar M
