Abstract

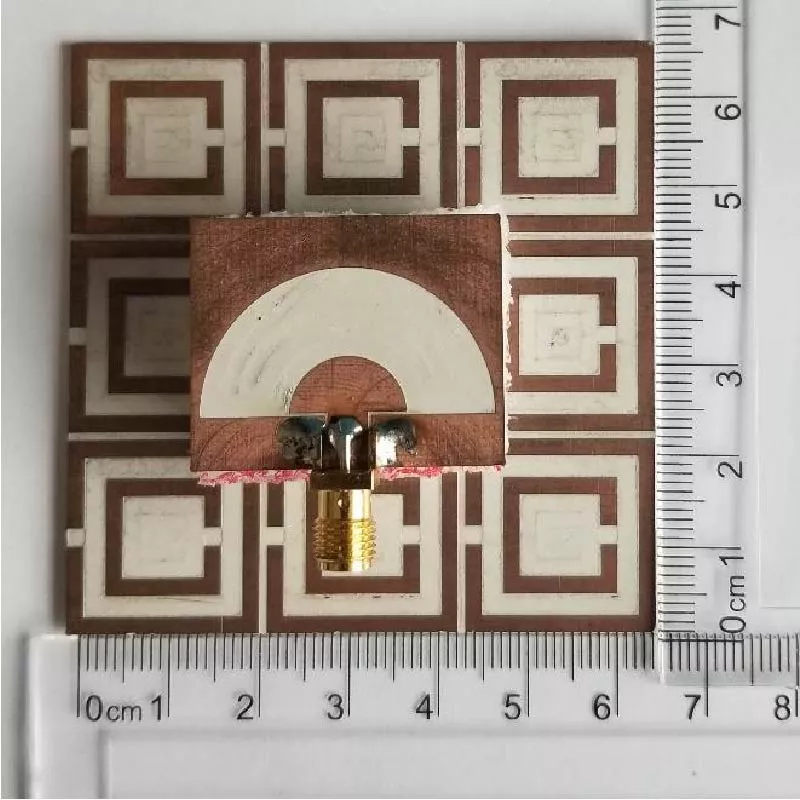

A flexible semicircular ring slot antenna with an artificial magnetic conductor (AMC) structure for wireless body area network application is proposed in this paper. The AMC structure is an array of the double split ring resonator (DSRR) unit cells. According to the analysis of the DSRR unit cell, the volume of the AMC element is miniaturized for applications such as wearable technology. The measured impedance bandwidth of the proposed antenna is observed to be 2.34-2.61 GHz, which covers the 2.4 GHz Industrial Scientific Medical (ISM) band. The simulated half-power beamwidths are 81.1° and 70.1° in the E-plane and H-plane, respectively, and the front-to-back ratios are 17.51 dB in both the E-plane and H-plane. The calculated specific absorption rates (SARs) taken over the volume containing a mass of 1 g of tissue (U.S. standard) and 10 g of tissue (E.U. standard) are both less than the limitations. In conclusion, it is proper to use the proposed flexible antenna in wearable applications.

1. Vallozzi, Luigi, Patrick Van Torre, Carla Hertleer, Hendrik Rogier, Marc Moeneclaey, and Jo Verhaevert, "Wireless communication for firefighters using dual-polarized textile antennas integrated in their garment," IEEE Transactions on Antennas and Propagation, Vol. 58, No. 4, 1357-1368, Apr. 2010.
doi:10.1109/TAP.2010.2041168 Google Scholar

2. Monti, Giuseppina, Laura Corchia, Egidio De Benedetto, and Luciano Tarricone, "Wearable logo-antenna for GPS-GSM-based tracking systems," IET Microwaves, Antennas & Propagation, Vol. 10, No. 12, 1332-1338, 2016.
doi:10.1049/iet-map.2015.0774 Google Scholar

3. Hong, Seungman, Seok Hyon Kang, Youngsung Kim, and Chang Won Jung, "Transparent and flexible antenna for wearable glasses applications," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 7, 2797-2804, Jul. 2016.
doi:10.1109/tap.2016.2554626 Google Scholar

4. Chen, Yen-Sheng and Ting-Yu Ku, "A low-profile wearable antenna using a miniature high impedance surface for smartwatch applications," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1144-1147, 2016.
doi:10.1109/lawp.2015.2496366 Google Scholar

5. Shakhirul, M. S., M. Jusoh, A. Sahadah, C. M. Nor, and Hasliza A. Rahim, "Embroidered wearable textile antenna on bending and wet performances for UWB reception," Microwave and Optical Technology Letters, Vol. 56, No. 9, 2158-2163, 2014.
doi:10.1002/mop.28527 Google Scholar

6. Hu, Bin, Guo-Ping Gao, Le-Le He, Xiao-Dong Cong, and Jin-Ning Zhao, "Bending and on-arm effects on a wearable antenna for 2.45 GHz body area network," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 378-381, 2016.
doi:10.1109/lawp.2015.2446512 Google Scholar

7. Zhu, Xiao-Qi, Yong-Xin Guo, and Wen Wu, "A compact dual-band antenna for wireless body-area network applications," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 98-101, 2016.
doi:10.1109/lawp.2015.2431822 Google Scholar

8. Agneessens, Sam, Sam Lemey, Thomas Vervust, and Hendrik Rogier, "Wearable, small, and robust: The circular quarter-mode textile antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 14, 1482-1485, 2015.
doi:10.1109/lawp.2015.2389630 Google Scholar

9. Raad, Haider R., Ayman I. Abbosh, Hussain M. Al-Rizzo, and Daniel G. Rucker, "Flexible and compact AMC based antenna for telemedicine applications," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 2, 524-531, Feb. 2013.
doi:10.1109/tap.2012.2223449 Google Scholar

10. Genovesi, Simone, Filippo Costa, Filippo Fanciulli, and Agostino Monorchio, "Wearable inkjet-printed wideband antenna by using miniaturized AMC for sub-GHz applications," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1927-1930, 2016.
doi:10.1109/lawp.2015.2513962 Google Scholar

11. Agarwal, Kush, Yong-Xin Guo, and Budiman Salam, "Wearable AMC backed near-endfire antenna for on-body communications on latex substrate," IEEE Transactions on Components, Packaging and Manufacturing Technology, Vol. 6, No. 3, 346-358, Mar. 2016.
doi:10.1109/tcpmt.2016.2521487 Google Scholar

12. Jiang, Zhi Hao, Zheng Cui, Taiwei Yue, Yong Zhu, and Douglas H. Werner, "Compact, highly efficient, and fully flexible circularly polarized antenna enabled by silver nanowires for wireless body-area networks," IEEE Transactions on Biomedical Circuits and Systems, Vol. 11, No. 4, 920-932, Aug. 2017.
doi:10.1109/tbcas.2017.2671841 Google Scholar

13. Yan, Sen, Ping Jack Soh, and Guy A. E. Vandenbosch, "Low-profile dual-band textile antenna with artificial magnetic conductor plane," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 12, 6487-6490, Dec. 2014.
doi:10.1109/tap.2014.2359194 Google Scholar

14. Liu, Xiongying, Yunhui Di, Hui Liu, Zetao Wu, and Manos M. Tentzeris, "A planar windmill-like broadband antenna equipped with artificial magnetic conductor for off-body communications," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 64-67, 2016.
doi:10.1109/lawp.2015.2429683 Google Scholar

15. Naoui, Seif, Lassaad Latrach, and Ali Gharsallah, "Equivalent circuit model of double split ring resonators," International Journal of Microwave and Optical Technology, Vol. 11, No. 1, 1-6, 2016. Google Scholar

16. Makarov, Sergey N., Gregory M. Noetscher, Janakinadh Yanamadala, Matthew W. Piazza, Sara Louie, Alexander Prokop, Ara Nazarian, and Aapo Nummenmaa, "Virtual human models for electromagnetic studies and their applications," IEEE Reviews in Biomedical Engineering, Vol. 10, 95-121, 2017.
doi:10.1109/rbme.2017.2722420 Google Scholar

17. Kamel, Yara A., Hesham A. Mohamed, Hala ELsadek, and Hadia El-Hennawy, "Flexible wearable antenna based on AMC with different materials for bio-telemetry applications," Progress In Electromagnetics Research M, Vol. 127, 1-10, 2024.
doi:10.2528/pierm23121701 Google Scholar

18. Shah, Arpan and Piyush Patel, "Suspended embroidered triangular e-textile broadband antenna loaded with shorting pins," AEU --- International Journal of Electronics and Communications, Vol. 130, 153573, 2021.
doi:10.1016/j.aeue.2020.153573 Google Scholar

19. Nie, Hong-Kuai, Xiu-Wei Xuan, and Guang-Jun Ren, "Wearable antenna pressure sensor with electromagnetic bandgap for elderly fall monitoring," AEU --- International Journal of Electronics and Communications, Vol. 138, 153861, 2021.
doi:10.1016/j.aeue.2021.153861 Google Scholar
