Abstract

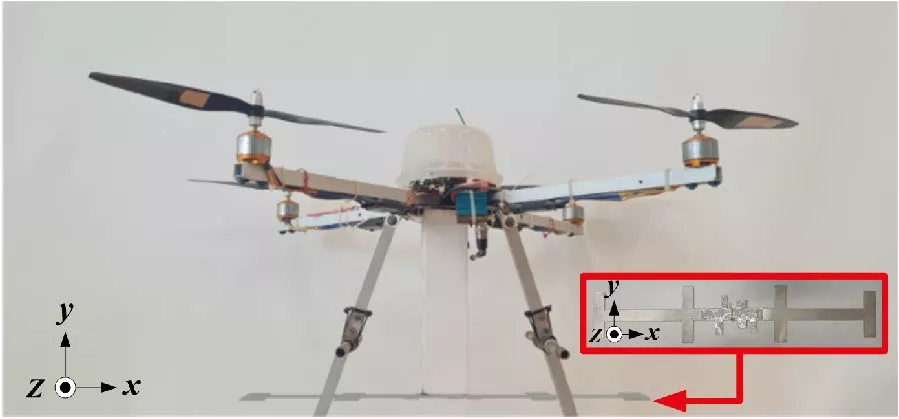

This research presents a quad-band dipole antenna for use with a surveying drone. The dipole antenna structure design employs the technique of adding I-shaped stubs and V-shaped etching, using aluminum plates with a strong and lightweight structure, with a thickness of 2 mm, a width of 1,325 mm, and a length of 190 mm. The antenna is designed to support frequency bands according to standards (VOR: Very High Frequency Omnidirectional Range) at 118 MHz, (GS: Glide Slope) at 336 MHz, (DME: Distance Measuring Equipment) at 1231 MHz, and WiFi at 2.45 GHz. From the calculations and simulations using the CST program, optimal parameter values were obtained, leading to the fabrication of a prototype antenna and the testing of its antenna properties. The results showed reflection coefficient values of -21.87 dB (108-118 MHz), -12.76 dB (328-336 MHz), -11.99 dB (962-1231 MHz), and -21.79 dB (2400-2480 MHz), which covers the VOR/GS/DME/ IEEE 802.11b/g/n standards. The antenna gain values are 1.12, 2.38, 3.76, and 4.00 dBi, respectively, with an omnidirectional radiation pattern, and the prototype dipole antenna tested with a drone was found to operate normally in the low frequency range of 108-118 MHz, the first mid frequency range of 328-336 MHz, the second mid frequency range of 962-1231 MHz, and the high frequency range of 2400-2480 MHz.

1. Tariq, Rameesha, Maham Rahim, Nimra Aslam, Narmeen Bawany, and Ummay Faseeha, "DronAID: A smart human detection drone for rescue," 2018 15th International Conference on Smart Cities: Improving Quality of Life Using ICT & IoT (HONET-ICT), 33-37, Islamabad, Pakistan, 2018.
doi:10.1109/honet.2018.8551326

2. Herdel, Viviane, Lee J. Yamin, and Jessica R. Cauchard, "Above and beyond: A scoping review of domains and applications for human-drone interaction," Proceedings of the 2022 CHI Conference on Human Factors in Computing Systems, 1-22, New Orleans, United States, 2022.
doi:10.1145/3491102.3501881

3. Auda, Jonas, Martin Weigel, Jessica R. Cauchard, and Stefan Schneegass, "Understanding drone landing on the human body," Proceedings of the 23rd International Conference on Mobile Human-Computer Interaction, 1-13, France, 2021.
doi:10.1145/3447526.3472031

4. Brophy, P., G. Albeaino, M. Gheisari, and I. Jeelani, "New risks for workers at heights: Human-drone collaboration risks in construction," Computing in Civil Engineering, 321-328, 2022.
doi:10.1061/9780784483893.040

5. Rødtang, Einar, Knut Alfredsen, and Ana Juárez, "Drone surveying of volumetric ice growth in a steep river," Frontiers in Remote Sensing, Vol. 2, 767073, 2021.
doi:10.3389/frsen.2021.767073

6. Sladonja, Barbara, Danijela Damijanić, Marin Krapac, Mirela Uzelac, Ida Linić, and Danijela Poljuha, "Development of drone-based methodology for inventory and monitoring invasive plants along river banks in Croatia," Management of Biological Invasions, Vol. 13, No. 4, 679-689, 2022.
doi:10.3391/mbi.2022.13.4.06

7. Sanjou, Michio, Kyohei Kato, Wataru Aizawa, and Takaaki Okamoto, "Development of drone-type float for surface-velocity measurement in rivers," Environmental Fluid Mechanics, Vol. 22, No. 4, 955-969, 2022.
doi:10.1007/s10652-022-09874-1

8. Mustamu, Novilda Elizabeth, Volvo Sihombing, et al. "Drone simulation for agriculture and LoRa based approach," Internet of Things and Artificial Intelligence Journal, Vol. 1, No. 4, 221-235, 2021.
doi:10.31763/iota.v1i4.501

9. Ghazali, Mohamad Hazwan Mohd, A. Azmin, and Wan Rahiman, "Drone implementation in precision agriculture --- A survey," International Journal of Emerging Technology and Advanced Engineering, Vol. 12, No. 4, 67-77, 2022.
doi:10.46338/ijetae0422_10

10. Chin, Ruben, Cagatay Catal, and Ayalew Kassahun, "Plant disease detection using drones in precision agriculture," Precision Agriculture, Vol. 24, No. 5, 1663-1682, 2023.
doi:10.1007/s11119-023-10014-y

11. Wood, Sarah A., Patrick W. Robinson, Daniel P. Costa, and Roxanne S. Beltran, "Accuracy and precision of citizen scientist animal counts from drone imagery," PLoS One, Vol. 16, No. 2, e0244040, 2021.
doi:10.1371/journal.pone.0244040

12. Jintasuttisak, Thani, Andrew Leonce, Moayyed Sher Shah, Tamer Khafaga, Greg Simkins, and Eran Edirisinghe, "Deep learning based animal detection and tracking in drone video footage," Proceedings of the 8th International Conference on Computing and Artificial Intelligence, 425-431, Tianjin, China, 2022.
doi:10.1145/3532213.3532280

13. Schad, Lukas and Julia Fischer, "Opportunities and risks in the use of drones for studying animal behaviour," Methods in Ecology and Evolution, Vol. 14, No. 8, 1864-1872, 2023.
doi:10.1111/2041-210x.13922

14. Kawabata, Kohei and A. Hiroyuki, "Wind influence of air wire antenna suspended from drone," 2018 International Symposium on Antennas and Propagation (ISAP), 1-2, Busan, Korea (South), 2018.

15. Chen, Jianlin, Devin Raye, Wahab Khawaja, Priyanka Sinha, and Ismail Guvenc, "Impact of 3D UWB antenna radiation pattern on air-to-ground drone connectivity," 2018 IEEE 88th Vehicular Technology Conference (VTC-Fall), 1-5, Chicago, IL, USA, 2018.
doi:10.1109/vtcfall.2018.8690726

16. Namsang, A., R. Lerdwanittip, and A. Ruengwaree, "I-shaped antenna with horizontal I-shape tuning for dual-band frequency," Proceedings of the 11th Conference of Electrical Engineering Network of Rajamangala University of Technology 2019 (EENET 2019), Thailand, 2019.

17. Naktong, W., S. Sakulchat, and L. Ruengyote, "Study of a dipole antenna tuned by triangle-shaped slot for drone," The 10th Engineering, Science, Technology and Architecture Conference 2019 (ESTACON 2019), 708-713, Thailand, 2019.

18. Naktong, W., M. Kupimai, and S. Wangkuntod, "The studies of a dipole antenna by tuning of I-shape stub for drones application in airport," The 12th Engineering, Science, Technology and Architecture Conference 2021 (ESTACON 2021), 216-221, Thailand, 2021.

19. Naktong, Watcharaphon, Amnoiy Ruengwaree, Suwat Sakulchat, and Sommart Promput, "The design of a triple-band H- and dual C-shaped planar dipole antenna for a drone application," Progress In Electromagnetics Research C, Vol. 134, 103-117, 2023.
doi:10.2528/pierc23031506

20. Wu, Kaijun and Sébastien Lambot, "Analysis of low-frequency drone-borne GPR for root-zone soil electrical conductivity characterization," IEEE Transactions on Geoscience and Remote Sensing, Vol. 60, 1-13, 2022.
doi:10.1109/tgrs.2022.3198431

21. Reyna, Alberto, Jesús Cruz Garza, Omar Elizarraras, Marco Panduro, Luz Idalia Balderas, and María de la Luz Prado, "3D random virtual antenna arrays for FANETs wireless links," Telecommunication Systems, Vol. 77, No. 3, 469-477, 2021.
doi:10.1007/s11235-021-00774-1

22. Assimonis, Stylianos D., Muhammad Ali Babar Abbasi, and Vincent Fusco, "Millimeter-wave multi-mode circular antenna array for uni-cast multi-cast and OAM communication," Scientific Reports, Vol. 11, No. 1, 4928, 2021.
doi:10.1038/s41598-021-83301-1

23. Imran, Abu Zafar Md., Mohammad Lutful Hakim, Md. Razu Ahmed, Mohammad Tariqul Islam, and Elias Hossain, "Design of microstrip patch antenna to deploy unmanned aerial vehicle as UE in 5G wireless network," International Journal of Electrical and Computer Engineering (IJECE), Vol. 11, No. 5, 4202-4213, 2021.
doi:10.11591/ijece.v11i5.pp4202-4213

24. Zarbakhsh, Saman and Abdel R. Sebak, "Multifunctional drone-based antenna for satellite communication," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 8, 7223-7227, 2022.
doi:10.1109/tap.2022.3145463

25. Garza, Jesús C., Alberto Reyna, Luz I. Balderas, Marco A. Panduro, and Lourdes Y. García, "Dual-band virtual antenna array with time modulation in presence of position perturbations," Telecommunication Systems, Vol. 81, No. 4, 539-547, 2022.
doi:10.1007/s11235-022-00960-9

26. Arpaio, Maximilian James, Franco Fuschini, and Diego Masotti, "A dual frequency blade antenna enabling UAV-based operations in ADS-B and 5G environments," 2021 International Conference on Unmanned Aircraft Systems (ICUAS), 1618-1623, Athens, Greece, 2021.
doi:10.1109/icuas51884.2021.9476703

27. Akhter, Zubair, Rana M. Bilal, and Atif Shamim, "Dual-mode circular microstrip patch antenna for airborne applications," 2021 15th European Conference on Antennas and Propagation (EuCAP), 1-5, Dusseldorf, Germany, 2021.
doi:10.23919/eucap51087.2021.9411160

28. Pham, Duc Anh, Minjae Lee, and Sungjoon Lim, "High-gain conical-beam planar antenna for millimeter-wave drone applications," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 10, 6959-6964, 2021.
doi:10.1109/tap.2021.3070662

29. Seker, Cihat and Muhammet Tahir Guneser, "Circular microstrip array antenna design for advance biomedical applications," 2021 International Conference on Biomedical Innovations and Applications (BIA), 18-20, Varna, Bulgaria, 2022.
doi:10.1109/bia52594.2022.9831380

30. Belen, A., E. Tetık, and H. Başak, "3D printed stacked antenna for WLAN drone communication," Sigma: Journal of Engineering & Natural Sciences, Vol. 41, No. 3, 2023.
doi:10.14744/sigma.2023.00066

31. Reyna, Alberto, Jesús C. Garza, Luz I. Balderas, Jonathan Méndez, Marco A. Panduro, Gonzalo Maldonado, and Lourdes Y. García, "Virtual antenna arrays with frequency diversity for radar systems in fifth-generation flying ad hoc networks," Applied Sciences, Vol. 14, No. 10, 4219, 2024.
doi:10.3390/app14104219

32. Salazar-Cerreno, Jorge L., Syed Shahan Jehangir, Nafati Aboserwal, Antony Segales, and Zeeshan Qamar, "An UAV-based polarimetric antenna measurements for radar and communication systems from 3 GHz to 32 GHz," 2021 IEEE Conference on Antenna Measurements & Applications (CAMA), 55-60, Antibes Juan-les-Pins, France, 2021.
doi:10.1109/cama49227.2021.9703660

33. Carpenter, Anthony, James A. Lawrence, Richard Ghail, and Philippa J. Mason, "The development of copper clad laminate horn antennas for drone interferometric synthetic aperture radar," Drones, Vol. 7, No. 3, 215, 2023.
doi:10.3390/drones7030215

Dr. Suwat Sakulchat

Mr. Sommart Promput

Dr. Watcharaphon Naktong

Mr. Panuwit Thongbor
