Abstract

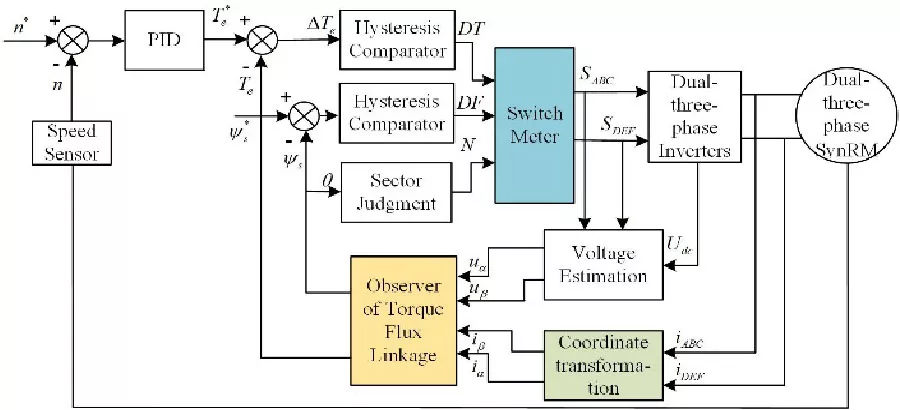

High reliability and stability are essential for drive systems in intelligent inspection robots used in the power industry. To meet this requirement, this study investigates dual three-phase synchronous reluctance motors and proposes a five-leg fault-tolerant drive strategy based on direct-torque control (DTC). Unlike conventional dimension-reduction coordinate transformation methods that require isolating the faulty phase, which often leads to degraded system performance, the proposed approach introduces a bridge-arm sharing technique. By electrically coupling the faulty phase with a healthy phase, the spatial voltage vector distribution was reconstructed, enabling the reutilization of the faulty phase windings. Under single-phase fault conditions, the method effectively synthesizes the missing voltage vectors, preserves a circular flux linkage trajectory in the α-β subspace, suppresses 5th and 7th harmonics, and improves the current waveform quality. Simulation results verify that the strategy delivers superior harmonic suppression, reduced torque ripple, and enhanced system reliability, offering a novel technical pathway for fault-tolerant control of multiphase motors with strong potential for engineering applications.

1. Jiang, Qian, Yadong Liu, Yingjie Yan, Qingzhen Liu, Si Chen, and Xiuchen Jiang, "Substation inspection robot PTZ camera alignment method for high zoom scenes," Proceedings of the CSEE, Vol. 44, No. 8, 3337-3347, 2024.
doi:10.13334/j.0258-8013.pcsee.223072 Google Scholar

2. Yang, Zhiyong, Qiao Fang, Zihao Zhang, Xing Liu, Xianjin Xu, Yu Yan, and Chen Miao, "Research on optimal control strategy for unpowered downslope of high-voltage inspection robot based on motor temperature rise in complexity microgrid networks," Complexity, Vol. 2021, No. 1, 6659941, 2021.
doi:10.1155/2021/6659941 Google Scholar

3. Hou, Jianguo, Bin Zhang, Xiaoming Liu, Guofang Huang, Dongliang Xue, Xiangqing Wen, and Xuan Jiang, "Charging system design and charging strategy of overhead trans-mission line inspection robot on tower," Science Technology and Engineering, Vol. 22, No. 28, 12388-12394, 2022.
doi:10.3969/j.issn.1671-1815.2022.28.019 Google Scholar

4. Suzuki, Hironori, Katsuhiro Hirata, Noboru Niguchi, and Kazuaki Takahara, "Fault-tolerant control for a six-phase two-controllable-rotor motor," IEEE Transactions on Magnetics, Vol. 59, No. 4, 1-7, 2023.
doi:10.1109/tmag.2021.3076084 Google Scholar

5. Herrera, Danilo, Javier Villegas, Eduardo Galván, and Juan Manuel Carrasco, "Powertrain EV synchronous reluctance motor design with redundant topology with novel control," IET Electric Power Applications, Vol. 13, No. 11, 1647-1659, 2019.
doi:10.1049/iet-epa.2018.5891 Google Scholar

6. Kamel, Tamer, Peter Amor, Nursaid Polater, Yizhe Zhang, Zhongbei Tian, Stuart Hillmansen, and Pietro Tricoli, "Development of a smart hybrid drive system with advanced logistics for railway applications," International Journal of Hydrogen Energy, Vol. 52, 559-576, 2024.
doi:10.1016/j.ijhydene.2023.01.293 Google Scholar

7. Huang, Shoudao, Li Zhao, Jian Zheng, and Yunyun Zhao, "Space vector pulse width modulation strategy for six-phase voltage source inverter in full modulation range based on sector subdivision method," Transactions of China Electrotechnical Society, Vol. 34, No. 24, 5070-5083, 2019.
doi:10.19595/j.cnki.1000-6753.tces.181645 Google Scholar

8. Mai, Zhiqin, Fei Xiao, Jilong Liu, Weiwei Zhang, and Chuanqiang Lian, "Harmonic current suppression strategy of dual three-phase permanent magnet synchronous motor based on quasi proportional resonant cascading PI," Transactions of China Electrotechnical Society, Vol. 33, No. 24, 5751-5759, 2018.
doi:10.19595/j.cnki.1000-6753.tces.181128 Google Scholar

9. Zhang, Jianya, Kai Wang, Shushu Zhu, and Dong Liu, "Control strategies of dual three-phase permanent magnet machines with multi-harmonics," Proceedings of the CSEE, Vol. 40, No. 2, 644-651, 2020.
doi:10.13334/j.0258-8013.pcsee.190682 Google Scholar

10. Shao, Bo, Zi-Qiang Zhu, J. H. Feng, S. Y. Guo, Y. F. Li, Ling Feng, and Bo Shuang, "Improved direct torque control method for dual-three-phase permanent-magnet synchronous machines with back EMF harmonics," IEEE Transactions on Industrial Electronics, Vol. 68, No. 10, 9319-9333, 2021.
doi:10.1109/tie.2020.3026282 Google Scholar

11. Nandawadekar, Ajit, M. R. Rashmi, and K. K. Nipin, "Lookup table based switching selection for direct torque controlled multi-phase asynchronous machine drive," Journal of the Institution of Engineers (India): Series B, Vol. 103, No. 5, 1605-1618, 2022.
doi:10.1007/s40031-022-00732-8 Google Scholar

12. Huang, Linsen, Jinghua Ji, Wenxiang Zhao, Hongyu Tang, Tao Tao, and Shibo Jin, "Direct torque control for dual three-phase permanent magnet motor with improved torque and flux," IEEE Transactions on Energy Conversion, Vol. 37, No. 4, 2385-2397, 2022.
doi:10.1109/tec.2022.3171073 Google Scholar

13. Wu, Kelu, Yongchao Zhang, Wenqi Lu, Yubao Qi, and Weimin Shi, "Harmonic suppression in permanent magnet synchronous motor currents based on quasi-proportional-resonant sliding mode control," Applied Sciences, Vol. 14, No. 16, 7206, 2024.
doi:10.3390/app14167206 Google Scholar

14. Xu, Jinquan, Si Guo, Hong Guo, and Xinlei Tian, "Fault-tolerant current control of six-phase permanent magnet motor with multifrequency quasi-proportional-resonant control and feedforward compensation for aerospace drives," IEEE Transactions on Power Electronics, Vol. 38, No. 1, 283-293, 2023.
doi:10.1109/tpel.2022.3202929 Google Scholar

15. Wang, Xueqing, Zheng Wang, Minrui Gu, Zhixian Xu, Zhixiang Zou, Wei Wang, and Ming Cheng, "Fault-tolerant control of common electrical faults in dual three-phase PMSM drives fed by T-type three-level inverters," IEEE Transactions on Industry Applications, Vol. 57, No. 1, 481-491, 2021.
doi:10.1109/tia.2020.3026987 Google Scholar

16. Zhou, Hao, Xuewei Xiang, Hui Li, Hao Zhang, Sidong He, and Keying Li, "Magnetomotive force balance-based open-circuit fault diagnosis for T-type three-level inverter-fed dual three-phase PMSM drives," IEEE Transactions on Power Electronics, Vol. 41, No. 1, 966-982, 2026.
doi:10.1109/tpel.2025.3608876 Google Scholar

17. Yang, Jinbo, Tiecai Li, and Guijie Yang, "Modeling and control of dual three-phase PMSM with one open phase," Transactions of China Electrotechnical Society, Vol. 26, No. 10, 167-173, 2011. Google Scholar

18. Li, Wenlong, Pengzhao Song, Qiang Li, Ze Li, and Narayan C. Kar, "Open-phase fault modeling for dual three-phase PMSM using vector space decomposition and negative sequence components," IEEE Transactions on Magnetics, Vol. 58, No. 8, 1-6, 2022.
doi:10.1109/tmag.2022.3168780 Google Scholar

19. Zheng, Boyuan, Bingjun Li, Yongxiang Xu, Jibin Zou, Guodong Yu, and Mei Zhao, "Modeling and fault-tolerant control for DTP-PMSM with one phase open circuit fault considering voltage constraints," Proceedings of the CSEE, Vol. 43, No. 1, 294-303, 2023.
doi:10.13334/j.0258-8013.pcsee.212745 Google Scholar

20. Zhao, Liping, Baojun Ge, Hanying Gao, and Dajun Tao, "Fault-tolerant control for reducing harmonic distortion of dual three-phase permanent magnet synchronous motor," Energies, Vol. 15, No. 11, 3887, 2022.
doi:10.3390/en15113887 Google Scholar

21. Wang, Xueqing, Zheng Wang, Mingzhi He, Qun Zhou, Xueshan Liu, and Xin Meng, "Fault-tolerant control of dual three-phase PMSM drives with minimized copper loss," IEEE Transactions on Power Electronics, Vol. 36, No. 11, 12938-12953, 2021.
doi:10.1109/tpel.2021.3076509 Google Scholar

22. Ai, Xingquan, Lan Xiao, and Qunfang Wu, "Fault-tolerant control strategy of open-phase fault with minimum loss in full torque operation range for DTP-PMSM based on harmonic current injection," Transactions of China Electrotechnical Society, Vol. 40, No. 10, 3157-3169, 2025.
doi:10.19595/j.cnki.1000-6753.tces.240480 Google Scholar

23. Geng, Qiang, Ziteng Qin, Xuefeng Jin, Guozheng Zhang, and Zhanqing Zhou, "Direct torque control of dual three-phase permanent magnet synchronous motors based on master-slave virtual vectors," World Electric Vehicle Journal, Vol. 15, No. 5, 199, 2024.
doi:10.3390/wevj15050199 Google Scholar

24. Shao, Bo, Z. Q. Zhu, Jianghua Feng, Shuying Guo, Yifeng Li, and Wu Liao, "Compensation of selective current harmonics for switching-table-based direct torque control of dual three-phase PMSM drives," IEEE Transactions on Industry Applications, Vol. 57, No. 3, 2505-2515, 2021.
doi:10.1109/tia.2021.3059190 Google Scholar

25. Yan, Xunzhi, Sheng Ai, Chushan Li, and Dan Mei, "Fault-tolerant control of dual three-phase PMSM based on minimum copper loss under multi-phase open and open-switch faults," Journal of Electrical Engineering & Technology, Vol. 19, No. 5, 3163-3174, 2024.
doi:10.1007/s42835-024-01783-1 Google Scholar
