Abstract

This manuscript describes the design of a scannable Cosecant² Shaped Pattern Generating Phased Array Antenna (PAA) intended for airborne synthetic aperture radar (SAR). The Cosecant² Shape avoids the requirement of sensitivity time control correction at receiver side. A C-band linear array antenna consisting of 16 elements is designed, analyzed, developed, and characterized. The array antenna is embedded with a U-slot and Defected Ground Structure (DGS) integrated microstrip elements. The introduction of a DGS provides an improvement of 6.5 dB in cross-polarization levels when scanning. Additionally, the null perturbation technique is employed to synthesize the excitation coefficients for the Cosecant²-Shaped pattern, aiming to achieve the minimum current taper ratio. These synthesized coefficients are combined with a progressive phase for beams that can scan within a ±30° angular range. The proposed linear array, along with its excitation and phasing network, has also been developed and characterized in an anechoic chamber.

1. Balanis, Constantine A., Antenna Theory: Analysis and Design, 3rd Ed., John Wiley & Sons, 2005.

2. Bhattacharya, A. K., Phased Array Antenna, John Wiley & Sons, 2006.

3. Mailloux, Robert J., Phased Array Antenna Handbook, 2nd Ed., 2005.

4. Pozar, D. M., "A relation between the active input impedance and the active element pattern of a phased array," IEEE Transactions on Antennas and Propagation, Vol. 51, No. 9, 2486-2489, 2003.
doi:10.1109/tap.2003.816302 Google Scholar

5. Abdolahi, Mohsen, Gholamreza Askari, and Hamid Mirmohammad Sadeghi, "A new microstrip array antenna with cosecant-squared beam shaping as a radiating column for SSR," 2014 22nd Iranian Conference on Electrical Engineering (ICEE), 1781-1785, Tehran, Iran, 2014.
doi:10.1109/IranianCEE.2014.6999827

6. Mukherjee, Ananya, Sujit Kumar Mandal, and Rowdra Ghatak, "Synthesis of non-uniformly spaced planar array geometry using differential evolution algorithm," 2016 IEEE Indian Antenna Week (IAW 2016), 63-66, Madurai, India, 2016.
doi:10.1109/IndianAW.2016.7883599

7. Dehghani, M. J., Z. Karbalaee, and M. Mahzon, "Design of a wide band antenna array with cosecant square pattern using genetic algorithm," 2012 20th Telecommunications Forum (TELFOR), 564-567, Belgrade, Serbia, 2012.
doi:10.1109/TELFOR.2012.6419273

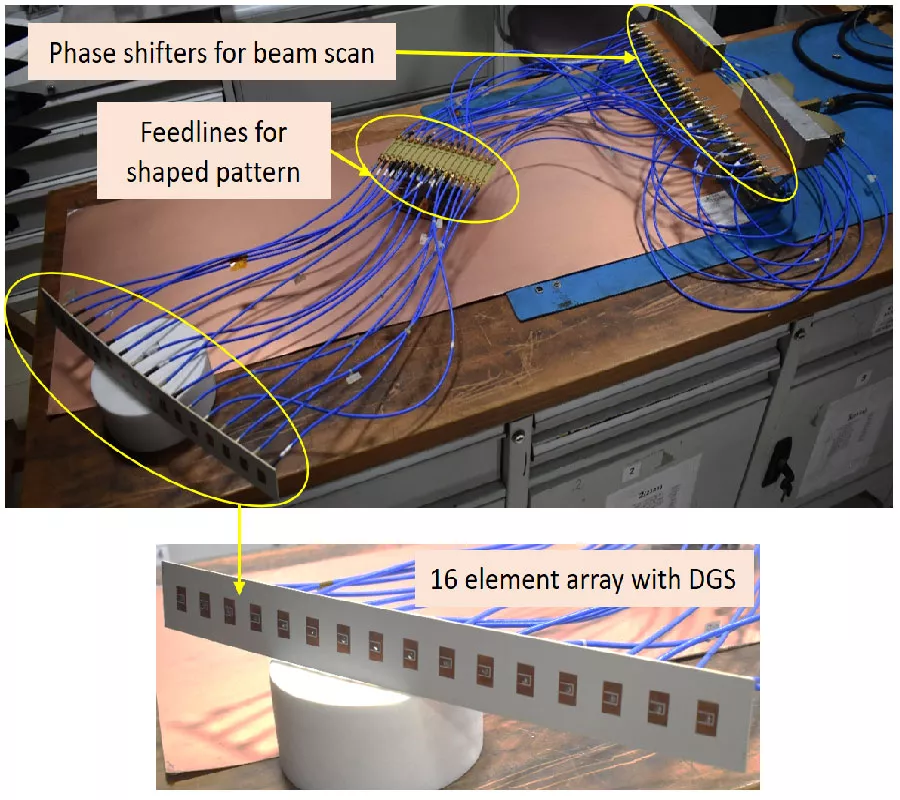

8. Yucedag, Okan Mert, Mustafa Dagcan Senturk, and Ahmet Serdar Turk, "Parametric analysis of open-ended waveguide array feeder for cosecant-squared and pencil beam radiation pattern," 2012 19th International Conference on Microwaves, Radar & Wireless Communications, 383-387, Warsaw, Poland, 2012.
doi:10.1109/MIKON.2012.6233523

9. Yang, Xiao-Long, Lei Chang, Jian-Qiang Zhang, Dan Li, and Min Zhang, "A cosecant squared beam antenna array operating at 5.85-7.6 GHz," 2019 Cross Strait Quad-Regional Radio Science and Wireless Technology Conference (CSQRWC), 1-3, Taiyuan, China, 2019.
doi:10.1109/CSQRWC.2019.8799290

10. Puskely, Jan, Tomas Mikulasek, Yanki Aslan, Antoine Roederer, and Alexander Yarovoy, "5G SIW-based phased antenna array with cosecant-squared shaped pattern," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 1, 250-259, Jan. 2022.
doi:10.1109/tap.2021.3098577 Google Scholar

11. Jiang, Yi, Shu Zhang, Qiang Guo, and Xiaoming Luan, "A hybrid strategy based on weighting density and genetic algorithm for the synthesis of uniformly weighted concentric ring arrays," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 186-189, 2017.
doi:10.1109/LAWP.2016.2567785 Google Scholar

12. Chu, Hui, Peng Li, and Yong-Xin Guo, "A beam-shaping feeding network in series configuration for antenna array with cosecant-square pattern and low sidelobes," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 4, 742-746, 2019.
doi:10.1109/lawp.2019.2901948 Google Scholar

13. Hasibi-Taheri, Sina, Mahmood Rafaei-Booket, and Ayaz Ghorbani, "Design and fabrication of an efficient metallic phased array for TACAN application," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 6, 4979-4984, Jun. 2020.
doi:10.1109/tap.2019.2951841 Google Scholar

14. Cai, Xiao, Qian Zhao, Peng Xu, and Wen Geyi, "Synthesis of cosecant-squared pattern with a compact linear array using the extended method of maximum power transmission efficiency," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 4, 863-867, Apr. 2025.
doi:10.1109/lawp.2024.3519517 Google Scholar

15. Khandelwal, Mukesh Kumar, Binod Kumar Kanaujia, and Sachin Kumar, "Defected ground structure: Fundamentals, analysis, and applications in modern wireless trends," International Journal of Antennas and Propagation, Vol. 2017, No. 1, 1-22, 2017.
doi:10.1155/2017/2018527 Google Scholar

16. Kumar, Gaurav, Kashish Grover, Sanjeev Kulshrestha, Soumyabrata Chakrabarty, and Milind B. Mahajan, "A compact microstrip CP antenna using slots and defected ground structure (DGS)," 2019 IEEE Indian Conference on Antennas and Propogation (InCAP), 1-4, Ahmedabad, India, 2019.
doi:10.1109/InCAP47789.2019.9134558

17. Guha, D., M. Biswas, and Y. M. M. Antar, "Microstrip patch antenna with defected ground structure for cross polarization suppression," IEEE Antennas and Wireless Propagation Letters, Vol. 4, 455-458, 2005.
doi:10.1109/lawp.2005.860211 Google Scholar

18. Dwivedy, Biswajit, "Consideration of engineered ground planes for planar antennas: Their effects and applications, a review," IEEE Access, Vol. 10, 84317-84329, 2022.
doi:10.1109/access.2022.3195507 Google Scholar

19. Shringi, Tushar, Vishrut Sharma, Garima Sharma, Deepak Bhatia, and Mithilesh Kumar, "DGS loaded 1 x 4 patch antenna array for S-band applications," 2023 Fourth International Conference on Smart Technologies in Computing, Electrical and Electronics (ICSTCEE), 1-5, Bengaluru, India, 2023.
doi:10.1109/ICSTCEE60504.2023.10585104

20. Guha, Debatosh, Chandrakanta Kumar, and Sujoy Biswas, DGS-based Low Cross-pol Array Design and Applications, 181-203, Wiley, 2023.
doi:10.1002/9781119896210.ch6

21. Abdullah, Mujeeb, Saad Hassan Kiani, Nosherwan Shoaib, Tanweer Ali, Hela Elmannai, Abeer D. Algarni, and Umar Farooq Khattak, "An eight element wideband DGS MIMO antenna system for 5G handheld devices," IEEE Access, Vol. 12, 141476-141488, 2024.
doi:10.1109/access.2024.3467060 Google Scholar

Dr. Rajeev Jyoti

Dr. Amalendu Patnaik

Mr. Gaurav Kumar

Dr. Pratik Mevada

Mr. Gaurav Ahuja
