Abstract

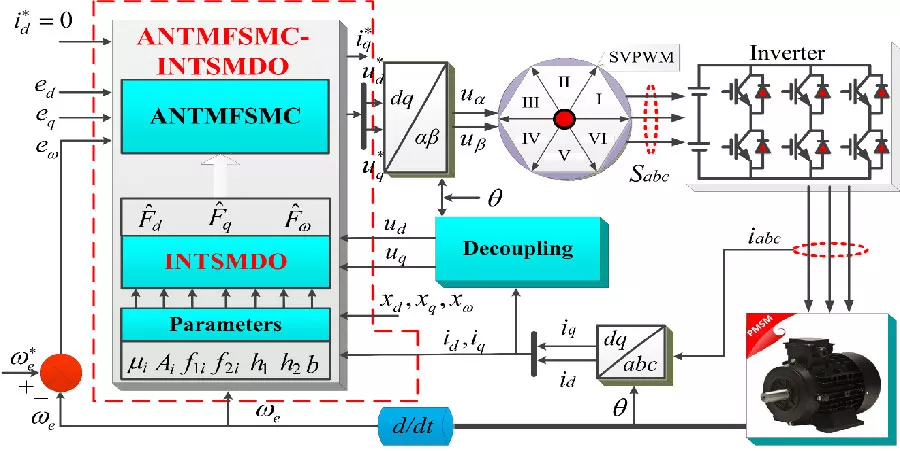

To address the limitations of Permanent Magnet Synchronous Motor (PMSM) speed-current closed-loop systems, including control performance degradation due to PI controller integral saturation and insufficient convergence in traditional model predictive current control (MPCC) while simultaneously reducing the computational load in the control system, this study combines model-free control theory with higher-order sliding mode methods and proposes an adaptive nonsingular terminal model-free sliding mode composite control strategy (ANTMFSMC) that considers parameter mismatch. First, based on the mathematical model of PMSM and the model-free theory for nonlinear systems, a speed-current loop control model is established. By combining the nonsingular terminal sliding mode with adaptive sliding mode reaching law, a speed-current loop ANTMFSMC controller is designed, and an improved exponential sliding mode disturbance observer (INTSMDO) is constructed to estimate the unknown components of the unmodeled dynamics and parameter uncertainties in the system. These estimates are then introduced as a feedforward compensation into the ANTMFSMC controller to form a complete composite control architecture. Finally, through simulations and experimental comparisons with traditional PI control and the traditional nonsingular terminal model-free sliding mode control based on sliding mode disturbance observer method (NTMFSMC-SMDO), the results show that the proposed strategy effectively suppresses d-q axis current and voltage ripple, significantly improves the convergence speed and anti-disturbance capability of the system, and demonstrates good engineering application value.

1. Li, Xiangfei, Junqin Liu, Kaihui Zhao, Yang Yin, and Lihua Zou, "An improved model-free sliding mode control algorithm of super-twisting for SPMSM," Progress In Electromagnetics Research C, Vol. 135, 195-210, 2023.
doi:10.2528/pierc23061502 Google Scholar

2. Lin, Faa-Jeng, Syuan-Yi Chen, I-Ming Hsu, and Cheng-Xi Xu, "Robust deadbeat predict current control using intelligent integral sliding mode control for interior permanent magnet synchronous motor drive," IEEE Transactions on Transportation Electrification, Vol. 11, No. 3, 8282-8293, 2025.
doi:10.1109/tte.2025.3539298 Google Scholar

3. Shi, Song, Yi Wang, and Songping Mai, "Research on speed control of PMSM based on a new sliding mode reaching law of fast integral terminal sliding mode control with iterative-based high-gain disturbance observer," IEEE Transactions on Industry Applications, Vol. 61, No. 3, 4352-4363, 2025.
doi:10.1109/tia.2025.3540986 Google Scholar

4. Zhao, Xinyu and Limei Wang, "Finite-time control of permanent magnet linear synchronous motor via variable gain fractional-order terminal sliding mode control," IEEE Transactions on Transportation Electrification, Vol. 11, No. 4, 9105-9120, 2025.
doi:10.1109/tte.2025.3561454 Google Scholar

5. Liu, Junqin, Zhentong Wang, Haicheng Zhong, Feng Deng, Kaihui Zhao, and Xiangfei Li, "Improved active-disturbance rejection cascade control of PMSM based on new fast super-twisting non-singular terminal sliding mode control law," Progress In Electromagnetics Research Letters, Vol. 128, 1-9, 2025.
doi:10.2528/pierl25070303 Google Scholar

6. Lee, Hyung-Woo, Gi-Jung Nam, and Kyo-Beum Lee, "Simple speed control strategy for a mono-inverter dual parallel permanent magnet synchronous motor drive system," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 13, No. 2, 2580-2589, 2025.
doi:10.1109/jestpe.2025.3550977 Google Scholar

7. Liu, Junqin, Zhentong Wang, Feng Deng, Kaihui Zhao, and Xiangfei Li, "Continuous high-order sliding mode optimization control of PMSM based on STSMO," Progress In Electromagnetics Research Letters, Vol. 127, 29-37, 2025.
doi:10.2528/PIERL25070101 Google Scholar

8. Wang, Shuming, Zheming Wang, Xitong Niu, Yanyan Zhu, Wu Lu, and Yongsheng Liu, "An adaptive sliding mode control for PMSM servo systems beyond the inertia ratio limit," IEEE Transactions on Power Electronics, Vol. 40, No. 11, 16352-16366, 2025.
doi:10.1109/tpel.2025.3580353 Google Scholar

9. Yu, Xu, Xuan Wu, Ting Wu, Dan Yang, Zhenghao Lei, and Shoudao Huang, "An FTSMO-based current measurement offset error compensation method in SPMSM drives," IEEE Transactions on Industrial Electronics, Vol. 72, No. 7, 6840-6851, 2025.
doi:10.1109/tie.2024.3519570 Google Scholar

10. Qu, Lizhi, Wei Qiao, and Liyan Qu, "An extended-state-observer-based sliding-mode speed control for permanent-magnet synchronous motors," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 9, No. 2, 1605-1613, 2021.
doi:10.1109/jestpe.2020.2990442 Google Scholar

11. Yim, Jaeyun, Sesun You, Youngwoo Lee, and Wonhee Kim, "Chattering attenuation disturbance observer for sliding mode control: Application to permanent magnet synchronous motors," IEEE Transactions on Industrial Electronics, Vol. 70, No. 5, 5161-5170, May 2023.
doi:10.1109/tie.2022.3189074 Google Scholar

12. Xu, Wei, Abdul Khalique Junejo, Yi Liu, and Md. Rabiul Islam, "Improved continuous fast terminal sliding mode control with extended state observer for speed regulation of PMSM drive system," IEEE Transactions on Vehicular Technology, Vol. 68, No. 11, 10465-10476, Nov. 2019.
doi:10.1109/tvt.2019.2926316 Google Scholar

13. Hou, Qiankang, Shihong Ding, and Xinghuo Yu, "Composite super-twisting sliding mode control design for PMSM speed regulation problem based on a novel disturbance observer," IEEE Transactions on Energy Conversion, Vol. 36, No. 4, 2591-2599, Dec. 2021.
doi:10.1109/tec.2020.2985054 Google Scholar

14. Liu, Yong-Chao, Salah Laghrouche, Daniel Depernet, Abdesslem Djerdir, and Maurizio Cirrincione, "Disturbance-observer-based complementary sliding-mode speed control for PMSM drives: A super-twisting sliding-mode observer-based approach," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 9, No. 5, 5416-5428, 2021.
doi:10.1109/jestpe.2020.3032103 Google Scholar

15. He, Yingshen, Kaihui Zhao, Zhixuan Yi, and Yishan Huang, "Improved terminal sliding mode control of PMSM dual-inertia system with acceleration feedback based on finite-time ESO," Progress In Electromagnetics Research M, Vol. 134, 21-30, 2025.
doi:10.2528/pier25040405 Google Scholar

16. Zhang, Yang, Mingfeng Zhou, Wenxuan Luo, and Zhun Cheng, "An adaptive learning co-evolutionary variational particle swarm optimization algorithm for parameter identification of PMSWG," Progress In Electromagnetics Research C, Vol. 141, 175-183, 2024.
doi:10.2528/pierc24011201 Google Scholar

17. Wang, Xueqing, Jianwei Shen, Shuai Sun, Dianxun Xiao, Yicheng Liu, and Zheng Wang, "General modeling and control of multiple three-phase PMSM drives," IEEE Transactions on Power Electronics, Vol. 40, No. 1, 1900-1909, 2025.
doi:10.1109/tpel.2024.3483830 Google Scholar

Professor Junqin Liu

Dr. Haicheng Zhong

Dr. Zhentong Wang

Dr. Xinchun Jiang

Dr. Yilin Chen

Dr. Daoyi Gu

Professor Kaihui Zhao

Dr. Xiangfei Li

Dr. Lin Liu
