Abstract

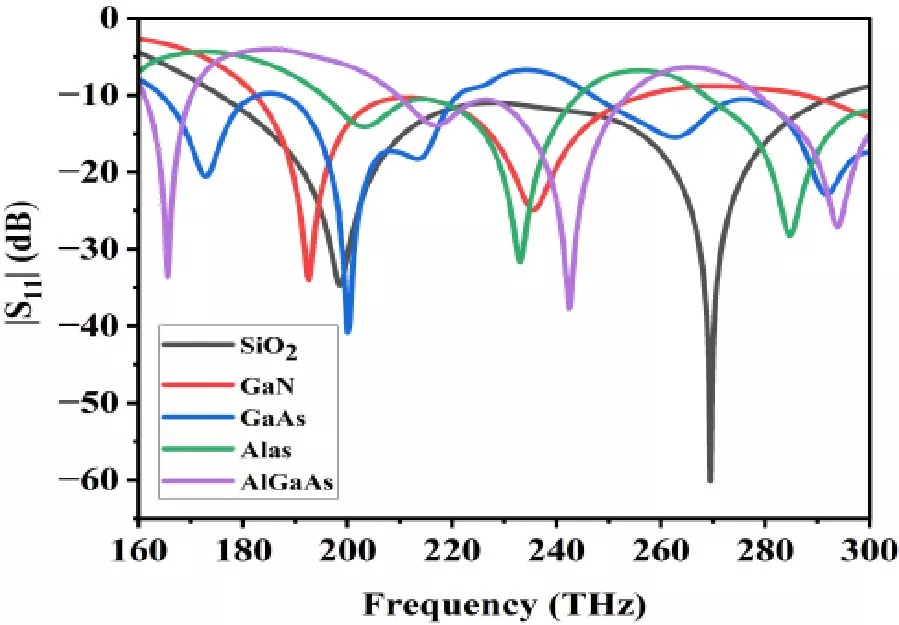

The Plasmonic nanoantennas operating in the optical frequency range often experience reduced radiation efficiency due to substrate-induced nonradiative losses and insufficient electromagnetic field confinement. This work aims to systematically examine the influence of substrate material properties on plasmonic resonance behavior, surface current distribution, and radiation efficiency of a gold nanostrip patch antenna. A fixed-geometry plasmonic nanoantenna is designed and numerically investigated on five substrates, namely SiO₂, GaN, GaAs, AlAs, and AlGaAs. Full-wave electromagnetic simulations are performed using frequency-dependent material dispersion modelled through established Drude-Lorentz formulations. The antenna implemented on the Au-SiO₂ combination provides the most favourable plasmonic performance, yielding the best impedance matching (-51.27 dB), maximum radiation efficiency of 83%, wide impedance bandwidth (118 THz), and highly stable radiation patterns. GaN also exhibits strong performance with a high radiation efficiency (71%) and wide bandwidth (97 THz), making it a viable choice for high-power optical systems. GaAs, AlAs, and AlGaAs substrates show reduced efficiency due to higher dielectric losses and weaker plasmonic confinement. The study confirms that substrate permittivity and loss characteristics play a crucial role in determining plasmonic nanoantenna performance.

1. Boltasseva, Alexandra and Harry A. Atwater, "Low-loss plasmonic metamaterials," Science, Vol. 331, No. 6015, 290-291, 2011.
doi:10.1126/science.1198258 Google Scholar

2. Maier, S. A., M. L. Brongersma, P. G. Kik, S. Meltzer, A. A. G. Requicha, and H. A. Atwater, "Plasmonics --- A route to nanoscale optical devices," Advanced Materials, Vol. 13, No. 19, 1501-1505, 2001. Google Scholar

3. Bharadwaj, Palash, Bradley Deutsch, and Lukas Novotny, "Optical antennas," Advances in Optics and Photonics, Vol. 1, No. 3, 438-483, 2009.
doi:10.1364/aop.1.000438 Google Scholar

4. Kashyap, Nitesh, Zamir Ahmad Wani, Rishi Jain, Khusboo, and V. Dinesh Kumar, "Investigation of a nanostrip patch antenna in optical frequencies," Applied Physics A, Vol. 117, No. 2, 725-729, 2014.
doi:10.1007/s00339-014-8730-7 Google Scholar

5. Vasa, Parinda and Christoph Lienau, "Strong light-matter interaction in quantum emitter/metal hybrid nanostructures," ACS Photonics, Vol. 5, No. 1, 2-23, 2018.
doi:10.1021/acsphotonics.7b00650 Google Scholar

6. Kaniber, M., K. Schraml, A. Regler, J. Bartl, G. Glashagen, F. Flassig, J. Wierzbowski, and J. J. Finley, "Surface plasmon resonance spectroscopy of single bowtie nano-antennas using a differential reflectivity method," Scientific Reports, Vol. 6, No. 1, 23203, 2016.
doi:10.1038/srep23203 Google Scholar

7. Ahmad, Waqas, Yihuan Wang, Guangqing Du, Qing Yang, and Feng Chen, "Graphene-based plasmonic antenna for advancing nano-scale sensors," Nanomaterials, Vol. 15, No. 12, 943, 2025.
doi:10.3390/nano15120943 Google Scholar

8. Butt, Muhammad A., "Plasmonics meets metasurfaces: A vision for next generation planar optical systems," Micromachines, Vol. 17, No. 1, 119, 2026.
doi:10.3390/mi17010119 Google Scholar

9. Coviello, Vito, Denis Badocco, Paolo Pastore, Martina Fracchia, Paolo Ghigna, Alessandro Martucci, Daniel Forrer, and Vincenzo Amendola, "Accurate prediction of the optical properties of nanoalloys with both plasmonic and magnetic elements," Nature Communications, Vol. 15, No. 1, 834, 2024.
doi:10.1038/s41467-024-45137-x Google Scholar

10. Moazen Dehkordi, Shiva and Hamidreza Mohammadi, "Improvement of directivity in plasmonic nanoantennas based on structured cubic gold nanoparticles," Scientific Reports, Vol. 14, No. 1, 17153, 2024.
doi:10.1038/s41598-024-68320-y Google Scholar

11. Sekrafi, Houssem Eddine, Daniela S. Costa, Manuela Proença, Diana I. Meira, Filipe Vaz, and Joel Borges, "Experimental and theoretical studies on Ag nanoparticles with enhanced plasmonic response, formed within Al2O3 thin films deposited by magnetron sputtering," Plasmonics, Vol. 19, No. 6, 3177-3188, 2024.
doi:10.1007/s11468-024-02227-2 Google Scholar

12. Coello, Victor, Mas-ud A. Abdulkareem, Cesar E. Garcia-Ortiz, Citlalli T. Sosa-Sánchez, Ricardo Téllez-Limón, and Marycarmen Peña-Gomar, "Plasmonic coupled modes in a metal-dielectric periodic nanostructure," Micromachines, Vol. 14, No. 9, 1713, 2023.
doi:10.3390/mi14091713 Google Scholar

13. Dmitriev, Pavel A., Emmanuel Lassalle, Lu Ding, Zhenying Pan, Darren C. J. Neo, Vytautas Valuckas, Ramón Paniagua-Dominguez, Joel K. W. Yang, Hilmi Volkan Demir, and Arseniy I. Kuznetsov, "Hybrid dielectric-plasmonic nanoantenna with multiresonances for subwavelength photon sources," ACS Photonics, Vol. 10, No. 3, 582-594, 2023.
doi:10.1021/acsphotonics.2c01332 Google Scholar

14. Faramarzi, Vahid, Sareh Vatani, Mohsen Heidari, Jeongwon Park, and Michael Taeyoung Hwang, "Plasmonic resonance modulation of graphene by nanoscale substrate curvatures," Nanoscale Advances, Vol. 7, No. 24, 7899-7912, 2025.
doi:10.1039/d5na00470e Google Scholar

15. Alsayed, Ahmad E., AbdelRahman M. Ghanim, Ashraf Yahia, and Mohamed A. Swillam, "Giant localized electromagnetic field of highly doped silicon plasmonic nanoantennas," Scientific Reports, Vol. 13, No. 1, 5793, 2023.
doi:10.1038/s41598-023-32808-w Google Scholar

16. Zhu, Hanchen, Yanmeng Chu, Fuxiang Shang, Linjun Zhang, Yunqi Chen, Haodong Wang, Zhouxiang Chen, Qichao Hou, Lulu Chen, Weiou Qin, Zhiyuan Cheng, and Yunyan Zhang, "Plasmon-enhanced absorption in dielectric layer coated III-V nanowire array decorated with nanoparticles," Optical Materials, Vol. 162, 116922, 2025.
doi:10.1016/j.optmat.2025.116922 Google Scholar

17. Esfahani, Niloofar Ebrahimzadeh, Jaroslav Kovác Jr., Giuseppe Maruccio, Silvia Rizzato, and Soňa Kovácová, "Comparative analysis of two different mim configurations of a plasmonic nanoantenna," Plasmonics, Vol. 20, No. 6, 3265-3279, 2025.
doi:10.1007/s11468-024-02528-6 Google Scholar

18. Raeen, Mohammad Sarwar, Anveshkumar Nella, and Rabah W. Aldhaheri, "A high-performance ultra-compact plasmonic metamaterial structure for optical THz absorption," Scientific Reports, Vol. 14, No. 1, 27203, 2024.
doi:10.1038/s41598-024-77898-2 Google Scholar

19. Indhu, A. R., L. Keerthana, and Gnanaprakash Dharmalingam, "Plasmonic nanotechnology for photothermal applications --- An evaluation," Beilstein Journal of Nanotechnology, Vol. 14, No. 1, 380-419, 2023.
doi:10.3762/bjnano.14.33 Google Scholar

20. Rana, Anchal, Neeraj Kumar Sharma, Sambhunath Bera, Aditya Yadav, Govind Gupta, and Abhimanyu Singh Rana, "Tuning the plasmonic resonance in TiN refractory metal," Scientific Reports, Vol. 14, No. 1, 7905, 2024.
doi:10.1038/s41598-024-55000-0 Google Scholar

21. Kavitha, Shekhara, Kanduri Venkata Sairam, and Ashish Singh, "Investigation of plasmonic metal conductors and dielectric substrates on nano-antenna for optical wireless communication," Progress In Electromagnetics Research B, Vol. 95, 1-22, 2022.
doi:10.2528/pierb21122407 Google Scholar

22. Kushwaha, Ritesh Kumar, P. Karuppanan, and L. D. Malviya, "Design and analysis of novel microstrip patch antenna on photonic crystal in THz," Physica B: Condensed Matter, Vol. 545, 107-112, 2018.
doi:10.1016/j.physb.2018.05.045 Google Scholar

23. Zare, E., H. Baghban, M. Dolatyari, G. Rostami, and A. Rostami, "Design and simulation of nano-antenna with tunable direction of radiation," Optik, Vol. 125, No. 12, 2891-2894, 2014.
doi:10.1016/j.ijleo.2013.11.046 Google Scholar

24. Taya, Sofyan A., Nael Doghmosh, Anas A. Alkanoo, Vigneswaran Dhasarathan, N. R. Ramanujam, and I. S. Amiri, "Waveguides including negative permeability and simultaneously negative permittivity and permeability materials for sensing applications," Optik, Vol. 228, 166147, 2021.
doi:10.1016/j.ijleo.2020.166147 Google Scholar

25. Krishnamurthy, R., V. Revathy, K. S. Joseph Wilson, Sofyan A. Taya, and I. S. Amiri, "Phonon polariton dispersion in metal-doped nanocomposite superlattice system," Journal of Optical Communications, Vol. 44, No. 2, 2019.
doi:10.1515/joc-2019-0109 Google Scholar

26. Alù, Andrea and Nader Engheta, "Theory, modeling and features of optical nanoantennas," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 4, 1508-1517, 2013.
doi:10.1109/tap.2013.2241718 Google Scholar

27. Ordal, M. A., L. L. Long, R. J. Bell, S. E. Bell, R. R. Bell, R. W. Alexander, and C. A. Ward, "Optical properties of the metals Al, Co, Cu, Au, Fe, Pb, Ni, Pd, Pt, Ag, Ti, and W in the infrared and far infrared," Applied Optics, Vol. 22, No. 7, 1099-1119, 1983.
doi:10.1364/ao.22.001099 Google Scholar

28. Tabata, Hitoshi, "Application of terahertz wave technology in the biomedical field," IEEE Transactions on Terahertz Science and Technology, Vol. 5, No. 6, 1146-1153, 2015. Google Scholar

29. Jha, Kumud Ranjan and G. Singh, "Terahertz planar antennas for future wireless communication: A technical review," Infrared Physics & Technology, Vol. 60, 71-80, 2013.
doi:10.1016/j.infrared.2013.03.009 Google Scholar

30. Maier, Stefan A., Plasmonics: Fundamentals and Applications, Springer, New York, 2007.
doi:10.1007/0-387-37825-1
