Abstract

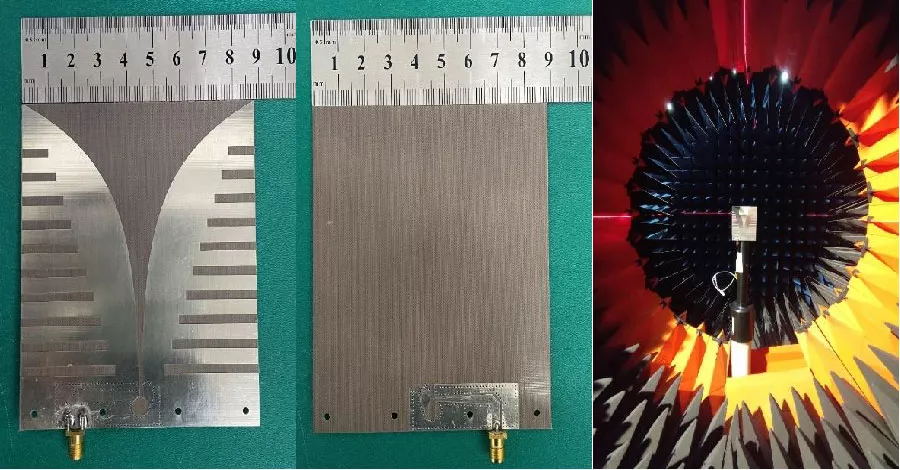

The traditional microstrip-fed Vivaldi antenna has the disadvantage of a high cross-polarization level owing to the nonparallelism between the electric field and the antenna plane. Based on the balanced E-field distribution property of the grounded coplanar waveguide (GCPW) structure, this paper proposes a planar ultrawideband Vivaldi antenna with low cross-polarization. The measured results confirm that an enhanced impedance bandwidth of 159.54% is achieved in the range of 2.01-17.86 GHz (|S₁₁| < -10 dB) with a 4-6 dB improvement in cross-polarization over traditional Vivaldi antenna. In addition, the proposed antenna has a maximum gain of 9.9 dBi within the size of 88.2 mm × 107.3 mm × 1 mm. Owing to the advantages of ultra-wideband, low cross-polarization ratio, stable radiation patterns and high gain, the proposed method can be widely applied in UWB communication and multifunctional integrated RF systems.
