Abstract

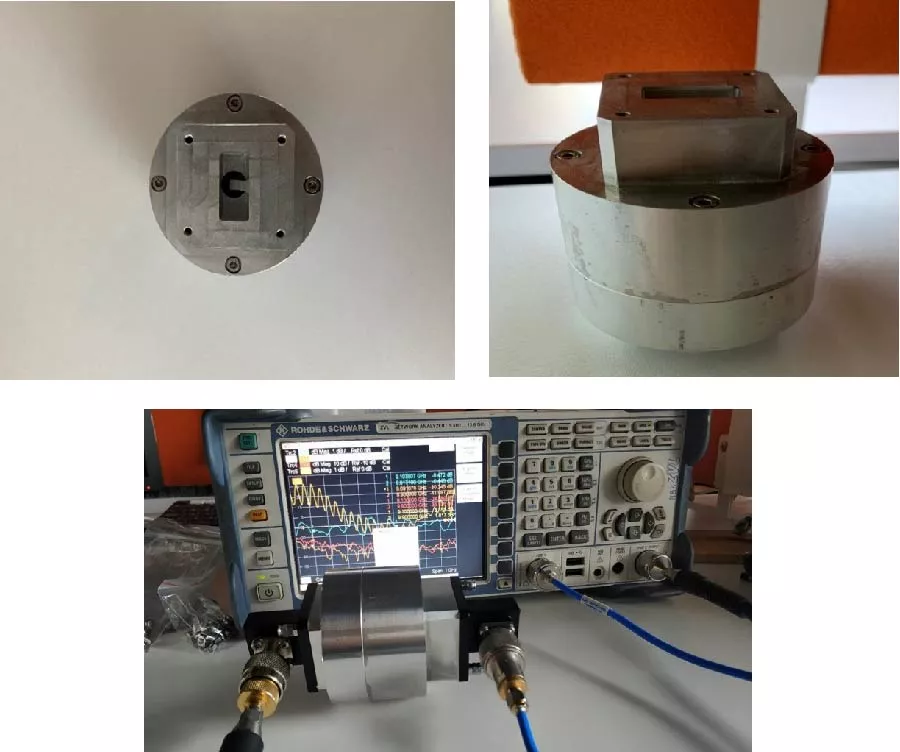

In this study, a high-performance wideband I-type rectangular waveguide rotary joint (RJ) has been meticulously designed, simulated, and experimentally verified for deployment in X-band radar systems operating within the 9-10 GHz frequency range. The proposed RJ achieves superior radio frequency (RF) characteristics, including an insertion loss of less than 0.1 dB and a return loss exceeding -30 dB, making it highly suitable for critical applications that require minimal signal degradation. Unlike conventional rigid waveguide systems that restrict mechanical movement, the developed RJ enables full 360° rotation with negligible variation in both amplitude and phase, thereby ensuring continuous, stable operation in dynamic environments such as mechanically rotating radar platforms. Notably, the design achieves an amplitude and phase wobble (WoW) of only 0.005 dB and a phase fluctuation within ±3.2°, meeting the stringent performance requirements of modern radar and satellite tracking systems. In addition to RF characterization, the rotary joint has been subjected to high-power RF breakdown analysis using particle-in-cell (PIC) simulations to evaluate its resilience under extreme operational stress. High-power robustness was numerically assessed using PIC simulations, indicating stable operation up to 2 kW CW and 30 kW pulsed under the simulated conditions, without breakdown signatures. This performance is further supported by optimized choke structures that minimize discontinuity-related mismatch at the mechanical interface between stationary and rotating sections. The results confirm that the developed rotary joint is not only electrically efficient and mechanically reliable but also capable of sustaining stable RF performance under high-power and rotational conditions, making it a promising candidate for next-generation radar front-ends and high-power satellite communication terminals.

1. Borisov, Sergey and Alexander Shishlov, "Antennas for SatCom-on-the-move, review," 2014 International Conference on Engineering and Telecommunication, 3-7, Moscow, Russia, 2014.
doi:10.1109/EnT.2014.12

2. Güvenç, Merve, Ismail Şişman, and A. Arif Ergin, "Design, optimization and fabrication of a X-band septum polarizer for satellite communication," 2023 IEEE International Symposium on Antennas and Propagation and USNC-URSI Radio Science Meeting (USNC-URSI), 1347-1348, Portland, OR, USA, 2023.
doi:10.1109/USNC-URSI52151.2023.10237446

3. Azim, Muhammad Tayyab, Junhyeong Park, and Seong-Ook Park, "Contactless linear rotary joint at Ku-band," IEEE Microwave and Wireless Components Letters, Vol. 29, No. 6, 373-375, Jun. 2019.
doi:10.1109/lmwc.2019.2912271 Google Scholar

4. Yevdokymov, Anatoliy, Volodymyr Kryzhanovskiy, Vadim Pazynin, and Kostyantyn Sirenko, "Ka-band waveguide rotary joint," IET Microwaves, Antennas & Propagation, Vol. 7, No. 5, 365-369, Apr. 2013.
doi:10.1049/iet-map.2012.0326 Google Scholar

5. Şişman, İsmail, Tugba Haykir Ergin, Duygun Erol Barkana, and Hüseyin Arda Ülkü, "Design and realization of an X band monopulse feed antenna for low earth orbit (LEO) satellite ground station," International Journal of Antennas and Propagation, Vol. 2024, No. 1, 6659390, 2024.
doi:10.1155/2024/6659390 Google Scholar

6. Ghosh, Subir and Luiz C. Da Silva, "Waveguide rotary joint and mode transducer structure therefor," US Patent 5,442,329, Aug. 1995.

7. Kaiden, Masahiro, Kimihiro Kimura, Hideo Ogawa, Takashi Kasuga, Masato Tsuboi, and Yasuhiro Murata, "Septum polarizer for Ka-band H-shaped rotary joint," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 30, No. 7, 727-737, 2009.
doi:10.1007/s10762-009-9491-9 Google Scholar

8. Chang, T. H. and B. R. Yu, "High-power millimeter-wave rotary joint," Review of Scientific Instruments, Vol. 80, No. 3, 034701, 2009.
doi:10.1063/1.3089827 Google Scholar

9. Abramov, V. I., Hun-Joong Park, Dong-Hyun Kim, and Tae-Hyung Lee, "U-style rotary joint with E/sub 01/mode for millimeter waves," 2004 IEEE MTT-S International Microwave Symposium Digest (IEEE Cat. No.04CH37535), Vol. 3, 1879-1882, Fort Worth, TX, USA, 2004.
doi:10.1109/MWSYM.2004.1338974

10. Rambabu, K. and J. Bornemann, "Compact single-channel rotary joint using ridged waveguide sections for phase adjustment," IEEE Transactions on Microwave Theory and Techniques, Vol. 51, No. 8, 1982-1986, Aug. 2003.
doi:10.1109/tmtt.2003.815269 Google Scholar

11. McNamara, D. A., D. A. McNamara, and L. T. Hildebrand, "Fullwave analysis of non-contacting rotary joint choke sections using the generalised scattering matrix (GSM) approach," IEE Proceedings --- Microwaves, Antennas and Propagation, Vol. 150, No. 1, 5-10, 2003.
doi:10.1049/ip-map:20030438 Google Scholar

12. Franco, M. A. R., V. A. Serrao, C. Fuhrmann, and S. B. Herdade, "A simple procedure for impedance matching and tuning of microwave couplers for an electron linear accelerator," IEEE Transactions on Microwave Theory and Techniques, Vol. 49, No. 3, 562-564, 2001.
doi:10.1109/22.910565 Google Scholar

13. Yousefian, Mohsen, Seyed Jalil Hosseini, and Masoud Dahmardeh, "Compact broadband coaxial to rectangular waveguide transition," Journal of Electromagnetic Waves and Applications, Vol. 33, No. 9, 1239-1247, 2019.
doi:10.1080/09205071.2019.1606737 Google Scholar

14. Smith, P. H. and G. H. Mongold, "A high power rotary waveguide joint," IEEE Transactions on Microwave Theory and Techniques, Vol. 12, No. 1, 55-58, 1964.
doi:10.1109/tmtt.1964.1125751 Google Scholar

15. King, H. E., "Broad-band coaxial choked coupling design," IRE Transactions on Microwave Theory and Techniques, Vol. 8, No. 2, 132-135, 1960.
doi:10.1109/tmtt.1960.1124711 Google Scholar

16. Liu, Jiayang, Jiaru Shi, Jiaqi Qiu, Huaibi Chen, and Xiaowei Wu, "Development of a high-power X-band compact RF rotary joint," Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, Vol. 908, 72-77, 2018.
doi:10.1016/j.nima.2018.08.049 Google Scholar

17. Azim, Muhammad Tayyab, Junhyeong Park, Laxmikant Minz, Rao Shahid Aziz, and Seong-Ook Park, "Single channel linear rotary joint at X-band," 2018 International Symposium on Antennas and Propagation (ISAP), 1-2, Busan, Korea, 2018.

18. Pandey, Ankur, Tarlok Singh, Seema Doongarwal, and Sanjay Choube, "Development of RF rotary joint for IFF RADAR application," 2022 IEEE Microwaves, Antennas, and Propagation Conference (MAPCON), 1514-1517, Bangalore, India, 2022.
doi:10.1109/MAPCON56011.2022.10046725

19. Morini, Antonio, "Design of a dual-band rotary joint operating in X- and Ka-bands," IEEE Transactions on Microwave Theory and Techniques, Vol. 59, No. 6, 1461-1467, Jun. 2011.
doi:10.1109/TMTT.2011.2123110 Google Scholar

20. Zhang, Zhiqiang, Kaibin Xue, and Zibin Weng, "A high-power radar rotary joint," Frontiers in Physics, Vol. 10, 948570, 2022.
doi:10.3389/fphy.2022.948570 Google Scholar

21. Farahbakhsh, Ali, "Wideband rotary joint based on gap waveguide technology," IEEE Transactions on Microwave Theory and Techniques, Vol. 69, No. 10, 4385-4391, 2021.
doi:10.1109/tmtt.2021.3090988 Google Scholar

22. Pandey, Ankur, Tarlok Singh, and Bal Mukund Jha, "Development of non-contacting type microwave rotary joint for S-band radar application," 2024 Second International Conference on Microwave, Antenna and Communication (MAC), 1-4, Dehradun, India, 2024.
doi:10.1109/MAC61551.2024.10837571

Dr. İsmail Şişman

Dr. Emin Polat

Dr. Tugba Haykir Ergin
