2026-02-27
Development of a Non-Contact Microwave Sensor System Specifically for the Detection of Honey Adulteration with Syrup
By
Progress In Electromagnetics Research C, Vol. 166, 209-216, 2026
Abstract

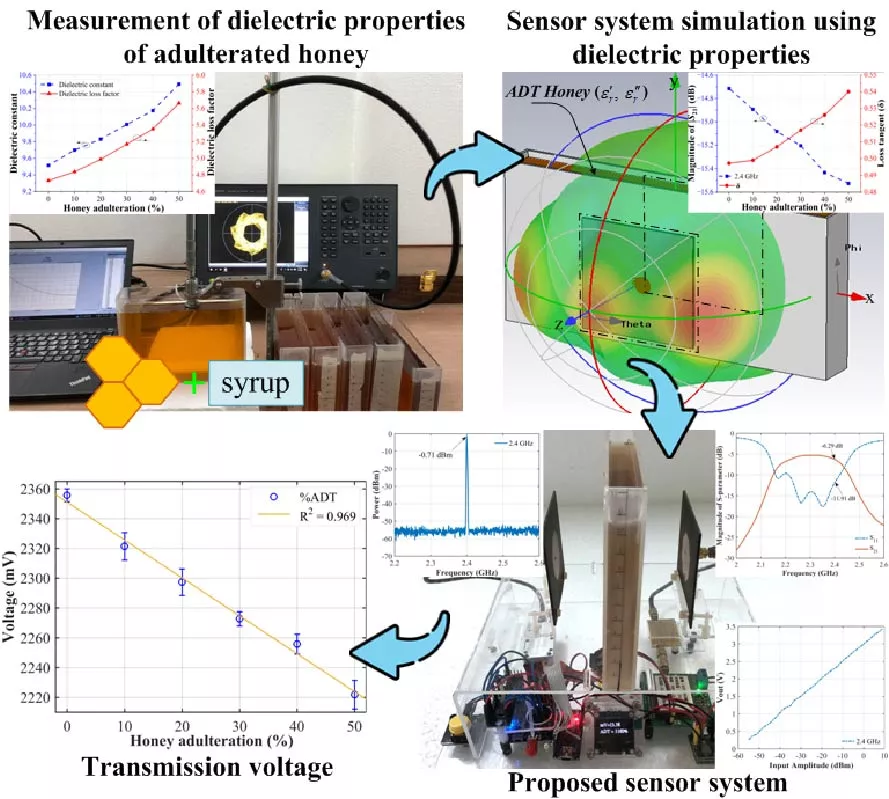

This article presents microwave detection and analysis of honey adulteration. A study of the differences between pure and adulterated honey based on dielectric properties in the frequency range of 2 to 12 GHz was performed. A honey adulteration determination system using a free-space method with microwaves was developed. The transmitting section was responsible for generating a 2.4 GHz frequency signal using a high-frequency signal generator and radiating the signal power through a prototype transmitting antenna that propagated through the honey sample to the receiving antenna. All 72 honey samples were tested and categorized into six levels of adulteration. The average transmission power (S21) at adulteration levels of pure honey, 10%, 20%, and 50% was found to be 2.356, 2.321, 2.297, and 2.222 mV, respectively, with a coefficient of determination R2 of 0.969. The sensitivity of the detection was 0.027 mV/10% adulteration. The decision-making system was used to test the measurement of 144 honey samples. The sensor system achieved an accuracy of 95.83%, indicating that the non-contact microwave-based method for detecting honey adulteration is effective.
Citation
Pornpimon Chaisaeng, Anekchai Rasrikul, and Prapan Leekul, "Development of a Non-Contact Microwave Sensor System Specifically for the Detection of Honey Adulteration with Syrup," Progress In Electromagnetics Research C, Vol. 166, 209-216, 2026.
doi:10.2528/PIERC26010603
References

1. Singh, Iqbal and Sukhmeet Singh, "Honey moisture reduction and its quality," Journal of Food Science and Technology, Vol. 55, No. 10, 3861-3871, 2018.
doi:10.1007/s13197-018-3341-5        Google Scholar

2. Ranneh, Yazan, Abdah Md. Akim, Hasiah Ab. Hamid, Huzwah Khazaai, Abdulmannan Fadel, Zainul Amiruddin Zakaria, Mohammed Albujja, and Mohd Fadzelly Abu Bakar, "Honey and its nutritional and anti-inflammatory value," BMC Complementary Medicine and Therapies, Vol. 21, No. 1, 30, 2021.
doi:10.1186/s12906-020-03170-5        Google Scholar

3. Pentoś, Katarzyna and Deta Łuczycka, "Dielectric properties of honey: The potential usability for quality assessment," European Food Research and Technology, Vol. 244, No. 5, 873-880, 2018.
doi:10.1007/s00217-017-3011-2        Google Scholar

4. Cheng, Ee Meng, Kim Yee Lee, Shing Fhan Khor, Nashrul Fazli, et al., "Microwave dielectric and reflection analysis on pure and adulterated trigona honey and honey gold," Radioengineering, Vol. 31, No. 3, 281-292, 2022.
doi:10.13164/re.2022.0281        Google Scholar

5. Yakubu, Abubakar, Zulkifli Abbas, and Adamu Muhammed, "Determination of adulteration of honey syrup using open ended coaxial probe sensor at microwave frequency," Open Access Library Journal, Vol. 6, No. 7, 1-11, 2019.
doi:10.4236/oalib.1105448        Google Scholar

6. Islam, Md. Khairul, Tomislav Sostaric, Lee Yong Lim, Katherine Hammer, and Cornelia Locher, "Sugar profiling of honeys for authentication and detection of adulterants using high-performance thin layer chromatography," Molecules, Vol. 25, No. 22, 5289, 2020.
doi:10.3390/molecules25225289        Google Scholar

7. Naila, Aishath, Steve H. Flint, A. Z. Sulaiman, Azilah Ajit, and Zuben Weeds, "Classical and novel approaches to the analysis of honey and detection of adulterants," Food Control, Vol. 90, 152-165, 2018.
doi:10.1016/j.foodcont.2018.02.027        Google Scholar

8. Bougrini, Madiha, Khalid Tahri, Tarik Saidi, Nadia El Alami El Hassani, Benachir Bouchikhi, and Nezha El Bari, "Classification of honey according to geographical and botanical origins and detection of its adulteration using voltammetric electronic tongue," Food Analytical Methods, Vol. 9, No. 8, 2161-2173, 2016.
doi:10.1007/s12161-015-0393-2        Google Scholar

9. Lauredo da Silva, Beatriz Duarte, Lárissa Kellen Ribeiro de Lima, Juliano Rocha Pereira, Ângelo Márcio Leite Denadai, Jeferson Gomes da Silva, and Wesley Nascimento, "Study of quality factor (Q) and phase angle (θ) obtained per electrical impedance to characterization and detection adulteration in honey," Quarks: Brazilian Electronic Journal of Physics, Chemistry and Materials Science, Vol. 4, No. 1, 16-23, 2022.
doi:10.34019/2674-9688.2022.v4.36770        Google Scholar

10. Huang, Furong, Han Song, Liu Guo, Peiwen Guang, Xinhao Yang, Liqun Li, Hongxia Zhao, and Maoxun Yang, "Detection of adulteration in Chinese honey using NIR and ATR-FTIR spectral data fusion," Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, Vol. 235, 118297, 2020.
doi:10.1016/j.saa.2020.118297        Google Scholar

11. Zolkapli, Maizatul, Nurul Syafiqah Zulkiflee, Ahmad Sabirin Zoolfakar, Rozina Abdul Rani, and Dharma Aryani, "Detection and classification of honey adulteration combined with multivariate analysis," International Journal of Integrated Engineering, Vol. 14, No. 3, 262-272, 2022.
doi:10.30880/ijie.2022.14.03.028        Google Scholar

12. Chaisaeng, Pornpimon, Thunyawat Limpiti, and Prapan Leekul, "Intelligent sensor system with transmission coefficient in X-band frequency for determining sugar content," Progress In Electromagnetics Research C, Vol. 135, 157-172, 2023.
doi:10.2528/pierc23040404        Google Scholar

13. Hasar, Ugur C., Hafize Hasar, Hamdullah Ozturk, Huseyin Korkmaz, Yunus Kaya, Mehmet Akif Ozkaya, Amir Ebrahimi, Joaquim J. Barroso, Vahid Nayyeri, and Omar M. Ramahi, "Simple and inexpensive microwave setup for industrial based applications: Quantification of flower honey adulteration as a case study," Scientific Reports, Vol. 14, No. 1, 8847, 2024.
doi:10.1038/s41598-024-59346-3        Google Scholar

14. Yang, M., Y. Gao, Y. Liu, X. Fan, K. Zhao, and Sh. Zhao, "Broadband dielectric properties of honey: Effect of water content," Journal of Agricultural Science and Technology, Vol. 20, No. 4, 685-693, 2018.        Google Scholar

15. Bakar, Aslina Abu, Muhammad Aiman Najmi Bin Rodzali, Rosfariza Radzali, Azlina Idris, and Ahmad Rashidy Razali, "Dielectric properties assessment of honey by using non-destructive dielectric spectroscopy," International Journal of Electrical and Computer Engineering, Vol. 12, No. 1, 189-200, 2022.
doi:10.11591/ijece.v12i1.pp189-200        Google Scholar

16. Nuan-On, Adisorn, Niwat Angkawisittpan, Nawarat Piladaeng, and Chaiyong Soemphol, "Design and fabrication of modified SMA-connector sensor for detecting water adulteration in honey and natural latex," Applied System Innovation, Vol. 5, No. 1, 4, 2022.
doi:10.3390/asi5010004        Google Scholar

17. Sparma, Floriane, Sarah Sennoun, and Pierre Sabouroux, "Detection of water content in honey by electromagnetics characterization measurements," Progress In Electromagnetics Research Letters, Vol. 111, 1-7, 2023.
doi:10.2528/pierl23041205        Google Scholar

18. Hasar, Hafize, Ugur C. Hasar, Yunus Kaya, Hamdullah Ozturk, Mucahit Izginli, Taskin Oztas, Nevzat Aslan, Mehmet Ertugrul, Joaquim J. Barroso, and Omar M. Ramahi, "Honey-water content analysis by mixing models using a self-calibrating microwave method," IEEE Transactions on Microwave Theory and Techniques, Vol. 71, No. 2, 691-697, 2023.
doi:10.1109/tmtt.2022.3208024        Google Scholar

19. Rajendran, Jolly, Sreedevi K. Menon, and Massimo Donelli, "A novel liquid adulteration sensor based on a self complementary antenna," Progress In Electromagnetics Research C, Vol. 103, 97-110, 2020.
doi:10.2528/pierc20040802        Google Scholar

20. Li, Zhen, Zhaozong Meng, Arthur Haigh, Ping Wang, and Andrew Gibson, "Characterisation of water in honey using a microwave cylindrical cavity resonator sensor," Journal of Food Engineering, Vol. 292, 110373, 2021.
doi:10.1016/j.jfoodeng.2020.110373        Google Scholar

21. Reyes-Ayona, José R., Eloisa Gallegos-Arellano, and Juan M. Sierra-Hernández, "Use of the composite properties of a microwave resonator to enhance the sensitivity of a honey moisture sensor," Sensors, Vol. 21, No. 7, 2549, 2021.
doi:10.3390/s21072549        Google Scholar

22. Chuma, Euclides Lourenco and Yuzo Iano, "Novelty sensor using integrated fluorescence and dielectric spectroscopy to improve food quality identification," 2022 IEEE Sensors, 1-4, Dallas, TX, USA, 2022.
doi:10.1109/SENSORS52175.2022.9966998

23. Billa, Md. Bakey, Touhidul Alam, and Mohammad Tariqul Islam, "Preparation and performance analysis of Mg0.75Co0.15Ni0.1Fe2O4 nanoparticles-based flexible metamaterial for honey adulteration detection," IEEE Sensors Journal, Vol. 25, No. 4, 7135-7144, 2025.
doi:10.1109/JSEN.2024.3524001        Google Scholar

24. Piekarz, Ilona, Jakub Sorocki, Nicolo Delmonte, Lorenzo Silvestri, and Maurizio Bozzi, "Low-cost honey adulteration detection platform with a plug-and-measure microwave sensor," Measurement, Vol. 246, 116692, 2025.
doi:10.1016/j.measurement.2025.116692        Google Scholar

25. Tıraş, Buşra, Sercan Dede, and Filiz Altay, "Dielectric properties of foods," Turkish Journal of Agriculture --- Food Science and Technology, Vol. 7, No. 11, 1805-1816, 2019.
doi:10.24925/turjaf.v7i11.1805-1816.2650        Google Scholar

26. Taherian, Reza and Ayesha Kausar, Electrical Conductivity in Polymer-based Composites: Experiments, Modelling, and Applications, William Andrew, 2018.

27. Rossmann, Christian and Dieter Haemmerich, "Review of temperature dependence of thermal properties, dielectric properties, and perfusion of biological tissues at hyperthermic and ablation temperatures," Critical Reviews™ in Biomedical Engineering, Vol. 42, No. 6, 467-492, 2014.
doi:10.1615/critrevbiomedeng.2015012486        Google Scholar

28. Pozar, D. M., Microwave Engineering, 4th Ed., John Wiley & Sons, 2012.

29. Wu, Yugong, Xuanhe Zhao, Fei Li, and Zhigang Fan, "Evaluation of mixing rules for dielectric constants of composite dielectrics by MC-FEM calculation on 3D cubic lattice," Journal of Electroceramics, Vol. 11, No. 3, 227-239, 2003.
doi:10.1023/b:jecr.0000026377.48598.4d        Google Scholar

30. Lebda, H. I., H. E. Atyia, and D. M. Habashy, "From experimentation to prediction: Comprehensive study of dielectric properties through experimental research and theoretical modeling," Journal of Materials Science: Materials in Electronics, Vol. 35, No. 15, 1017, 2024.
doi:10.1007/s10854-024-12746-7        Google Scholar

31. Leekul, Prapan, Hoang Nam Dao, Phaophak Sirisuk, Chuwong Phongcharoenpanich, and Monai Krairiksh, "Single-frequency sensor for thick rind fruit quality assessment," IEEE Sensors Journal, Vol. 25, No. 12, 21535-21545, 2025.
doi:10.1109/jsen.2025.3566117        Google Scholar

32. Li, Qi, Fang-Zhou Yao, Yang Liu, Guangzu Zhang, Hong Wang, and Qing Wang, "High-temperature dielectric materials for electrical energy storage," Annual Review of Materials Research, Vol. 48, No. 1, 219-243, 2018.
doi:10.1146/annurev-matsci-070317-124435        Google Scholar

33. Pochaiya, Charernkiat, Srawouth Chandhaket, Prapan Leekul, Jhirat Mearnchu, Tanawut Tantisopharak, and Thunyawat Limpiti, "Bandwidth enhancement of dual-band bidirectional microstrip antenna using complementary split ring resonator with defected structure for 3/5 GHz applications," International Journal of Electrical and Computer Engineering (IJECE), Vol. 12, No. 2, 1683-1694, 2022.
doi:10.11591/ijece.v12i2.pp1683-1694        Google Scholar

34. Leekul, Prapan, Bonny Mgawe, Twahir Kazema, Hoang Nam Dao, Phaophak Sirisuk, and Monai Krairiksh, "Simple and effective design concept for constructing in-situ soil dielectric property sensor with dual low-cost COTS microwave modules," IEEE Access, Vol. 10, 54516-54524, 2022.
doi:10.1109/access.2022.3175845        Google Scholar

35. Omran, Mamdouh, Timo Fabritius, Guo Chen, and Aoxi He, "Microwave absorption properties of steelmaking dusts: Effects of temperature on the dielectric constant (ε′) and loss factor (ε′′) at 1064 MHz and 2423 MHz," RSC Advances, Vol. 9, No. 12, 6859-6870, 2019.
doi:10.1039/C9RA00009G        Google Scholar

36. Coronel-Gaviro, J., Virginia Yagüe-Jiménez, and J. L. Blanco-Murillo, "Nonintrusive honey fraud detection and quantification based on differential radiofrequency absorbance analysis," Journal of Food Engineering, Vol. 295, 110448, 2021.
doi:10.1016/j.jfoodeng.2020.110448        Google Scholar

37. Li, Shuifang, Yang Shan, Xiangrong Zhu, Xin Zhang, and Guowei Ling, "Detection of honey adulteration by high fructose corn syrup and maltose syrup using Raman spectroscopy," Journal of Food Composition and Analysis, Vol. 28, No. 1, 69-74, 2012.
doi:10.1016/j.jfca.2012.07.006        Google Scholar

38. Phillips, Tessa and Waleed Abdulla, "A new honey adulteration detection approach using hyperspectral imaging and machine learning," European Food Research and Technology, Vol. 249, No. 2, 259-272, 2023.
doi:10.1007/s00217-022-04113-9        Google Scholar
