Abstract

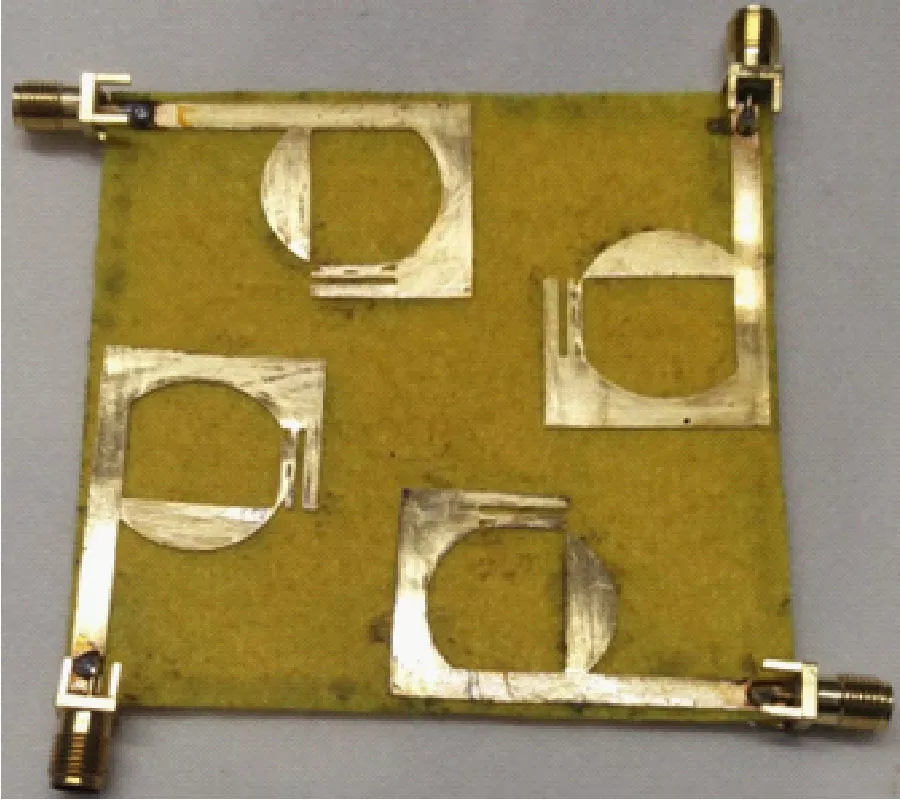

A compact, low-profile, and highly isolated four-element flexible MIMO antenna for biomedical body-centric wireless applications is proposed and experimentally validated. The antenna is realized on a 75 × 75 × 1 mm³ ultra-low permittivity felt substrate (ε_r = 1.2, tanδ = 0.0013) and incorporates a perturbed circular slot with rectangular defected ground stubs to simultaneously enhance impedance bandwidth and inter-element isolation. The proposed design achieves a measured -10 dB impedance bandwidth of 320 MHz (2.20-2.52 GHz), corresponding to a fractional bandwidth of 13.3% centered at 2.4 GHz ISM band. The four-element MIMO configuration exhibits isolation better than 25 dB despite an edge-to-edge spacing of only 1 mm, demonstrating strong mutual coupling suppression without additional decoupling structures. The antenna provides a peak gain of 2.8 dBi and achieves a peak radiation efficiency of 95%, with an efficiency of 92.5% under flat conditions (R = 0 mm). Envelope correlation coefficient (ECC) remains below 0.01, ensuring excellent diversity performance. Under conformal bending conditions (R = 10-60 mm), the antenna maintains stable resonance with only 1.6% frequency deviation, while gain and efficiency remain above 2.21 dBi and 84.58%, respectively, demonstrating robust mechanical resilience. On-body evaluations over arm, leg, and chest phantoms indicate stable operation within 2.35-2.49 GHz, with gain varying between 1.87-2.01 dBi and efficiency above 87.15%. The maximum measured SAR is 5.98 W/kg (1 g tissue), confirming acceptable safety compliance for wearable biomedical applications. Measured S-parameters and radiation patterns show strong agreement with simulations, validating the proposed slot-ground co-engineering methodology. Compared to existing wearable ISM antennas, the proposed design offers isolation >25 dB, high efficiency (95%), mechanical flexibility, and compact form factor without requiring complex EBG or AMC structures. The antenna is therefore a strong candidate for next-generation flexible biomedical MIMO systems.

1. Namath, Sini, Kumudham Rajamohan, Ramesh Subramaniam, and Vijayalakshmi Alagarsamy, "Flexible dual-band antenna for ISM/5G enabled MIMO systems with pattern diversity for wireless body area networks," International Journal of Microwave and Wireless Technologies, Vol. 17, No. 1, 83-91, Feb. 2025.
doi:10.1017/s1759078724001144 Google Scholar

2. Illahi, Usman, Javed Iqbal, Shahid Mahmood Ramay, and Mohamad Ismail Sulaiman, "Design and development of a new circularly polarized MIMO wearable DRA for WBAN applications," AEU --- International Journal of Electronics and Communications, Vol. 177, 155208, Apr. 2024.
doi:10.1016/j.aeue.2024.155208 Google Scholar

3. Kumar, Diwakar, Deepti Sharma, Rakesh N. Tiwari, Imran Ahmed Khan, and Pradeep Kumar, "Multiband flexible MIMO antenna for NB-IoT/ISM/5G and wearable applications," Results in Engineering, Vol. 27, 106088, 2025.
doi:10.1016/j.rineng.2025.106088 Google Scholar

4. Das, Priyanka, Lakshita K J, Vijay Aditya S, Haritra G, Swapna S, and S. Lakshitha, "A wearable MIMO antenna for WBAN applications," 2025 IEEE Wireless Antenna and Microwave Symposium (WAMS), 1-5, Chennai, India, Jun. 2025.
doi:10.1109/WAMS64402.2025.11158144

5. John, Deepthi Mariam, Tanweer Ali, Shweta Vincent, Sameena Pathan, Jaume Anguera, Bal Virdee, Rajiv Mohan David, Krishnamurthy Nayak, and Sudheesh Puthenveettil Gopi, "A dual-band flexible MIMO array antenna for sub-6 GHz 5G communications," Sensors, Vol. 25, No. 11, 3557, 2025.
doi:10.3390/s25113557 Google Scholar

6. Shailesh, Garima Srivastava, Sachin Kumar, Saad Aldosary, Walid El-Shafai, Bhawna Goyal, and Sandeep Kumar Palaniswamy, "A flexible reconfigurable MIMO antenna for IoT-enabled smart systems," International Journal of Antennas and Propagation, Vol. 2024, No. 1, 7557178, 2024.
doi:10.1155/2024/7557178 Google Scholar

7. Shirvani, Parisa, Javad Soleiman Meiguni, Ali Amn-E Elahi, Farzad Khajeh-Khalili, and Chunxu Mao, "A design of dual band wearable MIMO antenna using Organza fabric for medical applications," The Journal of The Textile Institute, Vol. 115, No. 5, 826-834, 2024.
doi:10.1080/00405000.2023.2197346 Google Scholar

8. Salisu, Abubakar, Umar Musa, Umar U. Sabo, Mustapha M. Abubakar, Abubakar Sadiq Hussaini, Mobayode O. Akinsolu, Chan Hwang See, and Raed A. Abd-Alhameed, "Compact dual-band wearable antenna for millimeter-wave applications: Designed for medical and IoT device integration," Progress In Electromagnetics Research Letters, Vol. 126, 77-85, 2025.
doi:10.2528/pierl25030504 Google Scholar

9. Giftsy, A. L. Sharon, Usha Kiran Kommuri, and Ravi Prakash Dwivedi, "Flexible and wearable antenna for biomedical application: Progress and opportunity," IEEE Access, Vol. 12, 90016-90040, 2024.
doi:10.1109/access.2023.3343154 Google Scholar

10. Ashyap, Adel, Raad Raad, Faisel Tubbal, Wajid Ali Khan, and Suhila Abulgasem, "Comprehensive review of wearable antennas with flexible periodic structures for body-effect mitigation," IEEE Access, Vol. 13, 22590-22636, 2025.
doi:10.1109/access.2025.3536525 Google Scholar

11. Pradeep, Pendli, Mohammed Mahaboob Basha, Srinivasulu Gundala, and Javed Syed, "Development of wearable textile MIMO antenna for sub-6 GHz band new radio 5G applications," Micromachines, Vol. 15, No. 5, 651, 2024.
doi:10.3390/mi15050651 Google Scholar

12. Samal, Purna B., Shengjian Jammy Chen, and Christophe Fumeaux, "Flexible hybrid-substrate dual-band dual-mode wearable antenna," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 2, 1286-1296, Feb. 2024.
doi:10.1109/tap.2023.3332432 Google Scholar

13. Musa, Umar, Amor Smida, Muhammad S. Yahya, Mohamed I. Waly, Jun Jiat Tiang, Nazih Khaddaj Mallat, Surajo Muhammad, and Abubakar Salisu, "Machine learning-optimized dual-band wearable antenna for real-time remote patient monitoring in biomedical IoT systems," Scientific Reports, Vol. 15, No. 1, 30943, 2025.
doi:10.1038/s41598-025-15984-9 Google Scholar

14. Fernandez, Marta, Hugo G. Espinosa, David V. Thiel, and Amaia Arrinda, "Wearable slot antenna at 2.45 GHz for off‐body radiation: Analysis of efficiency, frequency shift, and body absorption," Bioelectromagnetics, Vol. 39, No. 1, 25-34, Jan. 2018.
doi:10.1002/bem.22081 Google Scholar

15. Noda, Akihito, "Augmented MIMO: Body-mounted antennas for tiny wearable devices," Applied Sciences, Vol. 15, No. 2, 557, 2025.
doi:10.3390/app15020557 Google Scholar

16. John, Deepthi Mariam, Shweta Vincent, Sameena Pathan, Kunjan D. Shinde, B. S. Supreetha, and Tanweer Ali, "Eight-element flexible MIMO antenna based on characteristics mode theory with enhanced channel capacity for sub 6 GHz 5G communications," Results in Engineering, Vol. 25, 104208, 2025.
doi:10.1016/j.rineng.2025.104208 Google Scholar

17. Peng, Huanchen, Chengzhu Du, and Ruohui Wang, "Four-port flexible UWB-MIMO antenna with triple band-notched for wearable IoT applications," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 8, 1261-1271, 2024.
doi:10.1017/s1759078723001435 Google Scholar

18. Geyikoglu, Miraç Dilruba, "A novel UWB flexible antenna with dual notch bands for wearable biomedical devices," Analog Integrated Circuits and Signal Processing, Vol. 114, No. 3, 439-450, 2023.
doi:10.1007/s10470-023-02146-y Google Scholar

19. Shailesh, Garima Srivastava, Sachin Kumar, Arpan Desai, Bhawna Goyal, Abdulkarem H. M. Almawgani, and Turki Alsuwian, "Circularly polarized sixteen-port flexible UWB MIMO antenna featuring polarization diversity for WBAN applications," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 2024, No. 1, 8442770, 2024.
doi:10.1155/2024/8442770 Google Scholar

20. Wang, Tian-Shi, Cheng-Zhu Du, Hai-Feng Shu, and Zhi-Hua Yue, "A flexible UWB slot antenna with quad band-notched characteristics for wearable application," Progress In Electromagnetics Research C, Vol. 140, 127-134, 2024.
doi:10.2528/pierc23111602 Google Scholar

21. Jhunjhunwala, Vikash Kumar, Tanweer Ali, Pramod Kumar, Praveen Kumar, Pradeep Kumar, Sakshi Shrivastava, and Arnav Abhijit Bhagwat, "Flexible UWB and MIMO antennas for wireless body area network: A review," Sensors, Vol. 22, No. 23, 9549, 2022.
doi:10.3390/s22239549 Google Scholar

22. Goldsmith, Andrea, Wireless Communications, Cambridge University Press, 2005.
doi:10.1017/cbo9780511841224

23. Latré, Benoît, Bart Braem, Ingrid Moerman, Chris Blondia, and Piet Demeester, "A survey on wireless body area networks," Wireless Networks, Vol. 17, No. 1, 1-18, 2011.
doi:10.1007/s11276-010-0252-4 Google Scholar

24. "IEEE standard for safety levels with respect to human exposure to electric, magnetic, and electromagnetic fields, 0 Hz to 300 GHz," IEEE Std C95.1-2019 (Revision of IEEE Std C95.1-2005/ Incorporates IEEE Std C95.1-2019/Cor 1-2019) , 1-312, 2019.
doi:10.1109/IEEESTD.2019.8859679 Google Scholar

25. Kulkarni, Jayshri, Abdullah G. Alharbi, Chow-Yen-Desmond Sim, Issa Elfergani, Jaume Anguera, Chemseddine Zebiri, and Jonathan Rodriguez, "Dual polarized, multiband four-port decagon shaped flexible MIMO antenna for next generation wireless applications," IEEE Access, Vol. 10, 128132-128150, 2022.
doi:10.1109/access.2022.3227034 Google Scholar

26. Shariff, B. G. P., Akshay Anil Naik, Tanweer Ali, Pallavi R. Mane, Rajiv Mohan David, Sameena Pathan, and Jaume Anguera, "High-isolation wide-band four-element MIMO antenna covering Ka-band for 5G wireless applications," IEEE Access, Vol. 11, 123030-123046, 2023.
doi:10.1109/access.2023.3328777 Google Scholar

Mr. Immanuel Prabaharan Soundararajan

Dr. Subramoniam Muthurajan

Dr. Arul Kulandaivel

Dr. Rajeshkumar Dhandapani
