Abstract

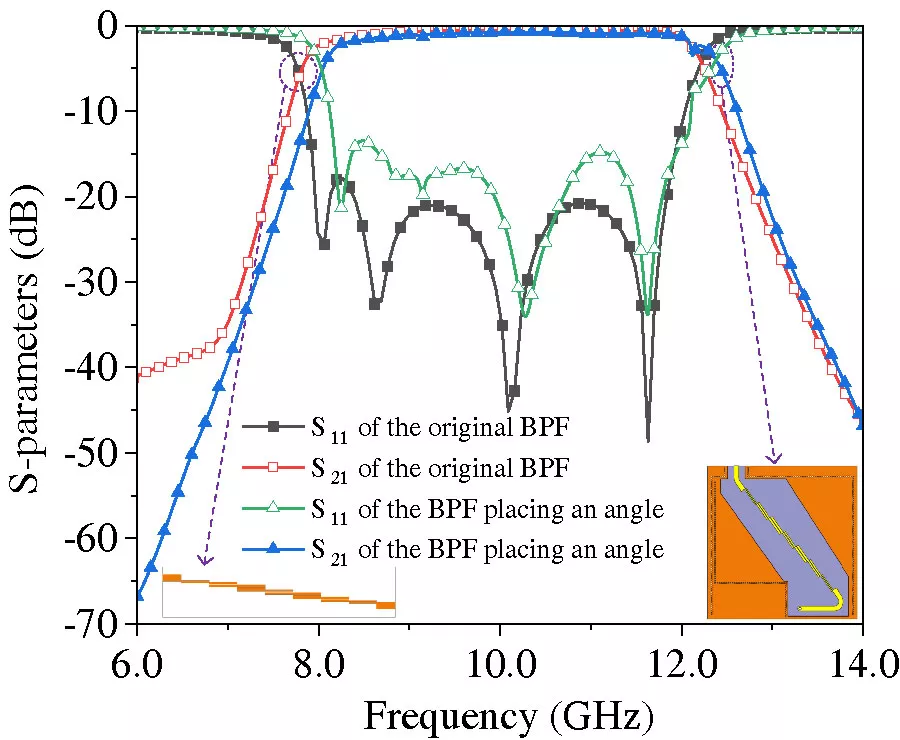

This paper presents a compact wideband integrated filtering antenna for X-band applications enabled by a three-dimensional (3D) vertical-interconnect architecture. A self-packaged electromagnetic platform is constructed on a multilayer substrate with a central air cavity, realizing high-density monolithic integration of a slotted patch radiator and a seventh-order microstrip bandpass filter (BPF). Distinct from conventional planar cascaded filtering antennas, the proposed 3D collaborative electromagnetic structure - formed by the air cavity, a perimeter vertical interconnect access (VIA) array, and multilayer ground planes - provides low-loss signal transmission and effectively suppresses parasitic coupling within a compact volume. To enhance radiation performance, the patch is co-optimized via slot loading, chamfering, and asymmetric feeding to extend the surface-current path, lower the resonant frequency, and broaden the impedance bandwidth, achieving a 45.27% reduction in patch area relative to the initial design. To accommodate the BPF within the packaging boundary, spatial adaptation and impedance matching are achieved through a tilted layout, arc-shaped port extension, and vertical feed VIAs while maintaining essentially unchanged electrical performance. Measured results demonstrate a 40.3% fractional bandwidth from 7.99 to 12.02 GHz, a peak gain of 6.85 dBi, good out-of-band/harmonic suppression, and stable radiation patterns. The overall size is 1.17λ₀ × 1.17λ₀ × 0.12λ₀. The proposed 3D vertical-interconnect and multifunctional self-packaged co-design methodology offers an effective solution for broadband, miniaturized, high-isolation filtering antennas and system-on-package (SoP) RF front ends.

1. Sun, Fukun, Xian Wu, Naiming Ou, Yuchen Luan, and Weidong Yu, "A dual-band X/Ku copolarized shared-aperture waveguide slot antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4418-4422, 2024.
doi:10.1109/lawp.2024.3450117 Google Scholar

2. Lim, Eng Hock and Kwok Wa Leung, Compact Multifunctional Antennas for Wireless Systems, John Wiley & Sons, 2012.
doi:10.1002/9781118243244

3. Tang, Jiaming and Haiwen Liu, "An efficient dual-band filter-antenna design based on simplified integration methodology," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 29, No. 6, e21704, 2019.
doi:10.1002/mmce.21704 Google Scholar

4. Rodrigues, Luís, Tiago Varum, and João Nuno Matos, "The application of reconfigurable filtennas in mobile satellite terminals," IEEE Access, Vol. 8, 77179-77187, 2020.
doi:10.1109/access.2020.2989529 Google Scholar

5. Dorairajan, Nithya and Chitra M. Perumal, "Implementation and parametric analysis of single and dual band planar filtering antennas for WLAN applications," Wireless Networks, Vol. 26, No. 8, 5883-5895, 2020.
doi:10.1007/s11276-020-02414-z Google Scholar

6. Xue, Kun, Dong Yang, Chaozong Guo, Huiqing Zhai, Hongkun Li, and Yi Zeng, "A dual-polarized filtering base-station antenna with compact size for 5G applications," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 8, 1316-1320, 2020.
doi:10.1109/lawp.2020.2998871 Google Scholar

7. Yang, Kansheng, Manh-Ha Hoang, Xiulong Bao, Patrick McEvoy, and Max J. Ammann, "Dual‐stub Ka‐band Vivaldi antenna with integrated bandpass filter," IET Microwaves, Antennas & Propagation, Vol. 12, No. 5, 668-671, 2018.
doi:10.1049/iet-map.2017.0488 Google Scholar

8. Mao, Chun-Xu, Steven Gao, Yi Wang, Fan Qin, and Qing-Xin Chu, "Multimode resonator-fed dual-polarized antenna array with enhanced bandwidth and selectivity," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 12, 5492-5499, 2015.
doi:10.1109/tap.2015.2496099 Google Scholar

9. Jiang, Zhi Hao and Douglas H. Werner, "A compact, wideband circularly polarized co-designed filtering antenna and its application for wearable devices with low SAR," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 9, 3808-3818, 2015.
doi:10.1109/tap.2015.2452942 Google Scholar

10. Zuo, Jianhong, Xinwei Chen, Guorui Han, Li Li, and Wenmei Zhang, "An integrated approach to RF antenna-filter co-design," IEEE Antennas and Wireless Propagation Letters, Vol. 8, 141-144, 2009.
doi:10.1109/lawp.2009.2012732 Google Scholar

11. Lovato, Ricardo and Xun Gong, "A third-order SIW-integrated filter/antenna using two resonant cavities," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 3, 505-508, 2018.
doi:10.1109/lawp.2018.2799518 Google Scholar

12. Feng, Wenjie, Yanhao Feng, Wanchen Yang, Wenquan Che, and Quan Xue, "High-performance filtering antenna using spoof surface plasmon polaritons," IEEE Transactions on Plasma Science, Vol. 47, No. 6, 2832-2837, 2019.
doi:10.1109/tps.2019.2915627 Google Scholar

13. Chuang, Chao-Tang and Shyh-Jong Chung, "Synthesis and design of a new printed filtering antenna," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 3, 1036-1042, 2011.
doi:10.1109/tap.2010.2103001 Google Scholar

14. Wu, Wei-Jun, Ying-Zeng Yin, Shao-Li Zuo, Zhi-Ya Zhang, and Jiao-Jiao Xie, "A new compact filter-antenna for modern wireless communication systems," IEEE Antennas and Wireless Propagation Letters, Vol. 10, 1131-1134, 2011.
doi:10.1109/lawp.2011.2171469 Google Scholar

15. Chen, Xinwei, Fengxian Zhao, Liyun Yan, and Wenmei Zhang, "A compact filtering antenna with flat gain response within the passband," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 857-860, 2013.
doi:10.1109/lawp.2013.2271972 Google Scholar

16. Hsieh, Chin-Yuan, Cheng-Hsun Wu, and Tzyh-Ghuang Ma, "A compact dual-band filtering patch antenna using step impedance resonators," IEEE Antennas and Wireless Propagation Letters, Vol. 14, 1056-1059, 2015.
doi:10.1109/lawp.2015.2390033 Google Scholar

17. Nova, Omar A., Juan C. Bohorquez, Nestor M. Pena, Greg E. Bridges, Lotfollah Shafai, and Cyrus Shafai, "Filter-antenna module using substrate integrated waveguide cavities," IEEE Antennas and Wireless Propagation Letters, Vol. 10, 59-62, 2011.
doi:10.1109/lawp.2011.2107724 Google Scholar

18. Yusuf, Yazid, Haitao Cheng, and Xun Gong, "A seamless integration of 3-D vertical filters with highly efficient slot antennas," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 11, 4016-4022, 2011.
doi:10.1109/tap.2011.2164186 Google Scholar

19. Jin, Jun Ye, Shaowei Liao, and Quan Xue, "Design of filtering-radiating patch antennas with tunable radiation nulls for high selectivity," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 4, 2125-2130, 2018.
doi:10.1109/tap.2018.2804661 Google Scholar

20. Yang, Wanchen, Mengzhu Xun, Wenquan Che, Wenjie Feng, Yingqi Zhang, and Quan Xue, "Novel compact high-gain differential-fed dual-polarized filtering patch antenna," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 12, 7261-7271, 2019.
doi:10.1109/tap.2019.2930213 Google Scholar

21. Pan, Y. M., P. F. Hu, X. Y. Zhang, and S. Y. Zheng, "A low-profile high-gain and wideband filtering antenna with metasurface," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 5, 2010-2016, 2016.
doi:10.1109/tap.2016.2535498 Google Scholar

22. Liu, Qianwen, Lei Zhu, Jianpeng Wang, and Wen Wu, "A wideband patch and SIW cavity hybrid antenna with filtering response," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 5, 836-840, 2020.
doi:10.1109/lawp.2020.2981650 Google Scholar

23. Xu, Kai, Jin Shi, Xianming Qing, and Zhi Ning Chen, "A substrate integrated cavity backed filtering slot antenna stacked with a patch for frequency selectivity enhancement," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 10, 1910-1914, 2018.
doi:10.1109/lawp.2018.2869533 Google Scholar

24. Yang, Dong, Huiqing Zhai, Chaozong Guo, and Hongkun Li, "A compact single-layer wideband microstrip antenna with filtering performance," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 5, 801-805, 2020.
doi:10.1109/lawp.2020.2980631 Google Scholar

25. Ding, Chao Feng, Xiu Yin Zhang, Yao Zhang, Yong Mei Pan, and Quan Xue, "Compact broadband dual-polarized filtering dipole antenna with high selectivity for base-station applications," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 11, 5747-5756, 2018.
doi:10.1109/tap.2018.2862465 Google Scholar

26. Zhang, Xiu Yin, Wen Duan, and Yong-Mei Pan, "High-gain filtering patch antenna without extra circuit," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 12, 5883-5888, 2015.
doi:10.1109/tap.2015.2481484 Google Scholar

27. Yang, Wanchen, Si Chen, Quan Xue, Wenquan Che, Guangxu Shen, and Wenjie Feng, "Novel filtering method based on metasurface antenna and its application for wideband high-gain filtering antenna with low profile," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 3, 1535-1544, 2019.
doi:10.1109/tap.2018.2889028 Google Scholar

28. Yan, Ningning, Kaixue Ma, Haobin Zhang, and Pengcheng Jia, "An SISL triple-band multimode stacked-patch antenna with L-strips for multiband applications," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 2, 1284-1288, 2019.
doi:10.1109/tap.2018.2883565 Google Scholar

29. Ma, Kaixue, Ningning Yan, and Yongqiang Wang, "Recent progress in SISL circuits and systems: Review of passive and active circuits demonstrating SISL's low loss and self-packaging and showcasing the merits of metallic, shielded, suspended lines," IEEE Microwave Magazine, Vol. 22, No. 4, 49-71, 2021.
doi:10.1109/mmm.2020.3047748 Google Scholar

30. Wang, Jiawei, Tao Tang, Thamer S. Almoneef, and Maged A. Aldhaeebi, "X/Ku-band antenna with integrated back cavity for directional radiation," Progress In Electromagnetics Research C, Vol. 158, 171-177, 2025.
doi:10.2528/PIERC25012105 Google Scholar

31. Zhang, Xiexun, Tao Tang, Maged A. Aldhaeebi, and Thamer S. Almoneef, "Novel design and implementation of 3D packaged wideband bandpass filters," Scientific Reports, Vol. 14, No. 1, 23584, 2024.
doi:10.1038/s41598-024-74676-y Google Scholar

32. Althuwayb, Ayman A., Divya Chaturvedi, and Arvind Kumar, "Substrate integrated waveguide (SIW) cavity-backed slot antenna with monopole-like radiation for vehicular communications," Applied Physics A, Vol. 128, No. 3, 202, 2022.
doi:10.1007/s00339-021-05203-3 Google Scholar

33. Chen, Bing-Jie, Xue-Song Yang, and Bing-Zhong Wang, "A compact high-selectivity wideband filtering antenna with multipath coupling structure," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 8, 1654-1658, 2022.
doi:10.1109/lawp.2022.3176920 Google Scholar

34. Zhang, Jinfeng, Lintao Li, Yejun He, and Long Zhang, "A novel wideband filtering antenna for sub-6 GHz 5G base station application," 2022 IEEE MTT-S International Microwave Workshop Series on Advanced Materials and Processes for RF and THz Applications (IMWS-AMP), 1-3, Guangzhou, China, 2022.
doi:10.1109/IMWS-AMP54652.2022.10106956

35. Yin, Wenfei, Jiacheng Si, Zhiwen Deng, Chunhua Li, and Salam K. Khamas, "A compact coupling-fed omnidirectional wideband filtering antenna with high selectivity," Electromagnetics, Vol. 44, No. 7, 521-532, 2024.
doi:10.1080/02726343.2024.2409464 Google Scholar
