2026-04-29
Variable Reaching Law Nonsingular Fast Terminal Sliding Mode Observer-Based Deadbeat Fault-Tolerant Compensation Control for IPMSM's Demagnetization Fault
By
Progress In Electromagnetics Research C, Vol. 169, 205-215, 2026
Abstract

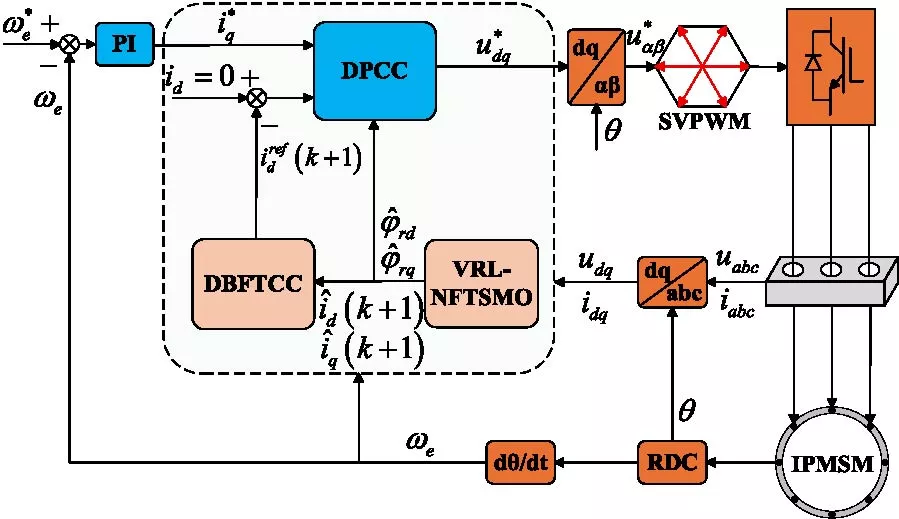

To address the issues of electromagnetic torque attenuation and insufficient robustness caused by demagnetization faults in interior permanent magnet synchronous motors (IPMSMs), a deadbeat fault-tolerant compensation control (DBFTCC) strategy based on a variable reaching law nonsingular fast terminal sliding mode observer (VRL-NFTSMO) is proposed. First, the VRL-NFTSMO is designed to achieve a precise observation of the flux linkage and next current value. Second, DBFTCC is constructed based on flux linkage and current information, which can effectively suppress electromagnetic torque attenuation caused by demagnetization faults, improve system robustness, and achieve reliable fault-tolerant control under demagnetization faults. Finally, the experimental results indicate that the proposed compensation strategy has stronger fault tolerance and robustness than traditional methods when the IPMSMs suffer from both demagnetization fault and large load variation.
Citation
Dingdou Wen, Dengliang Xia, Xiaorui Wei, Wenjie Wu, and Yuanyuan Xiao, "Variable Reaching Law Nonsingular Fast Terminal Sliding Mode Observer-Based Deadbeat Fault-Tolerant Compensation Control for IPMSM's Demagnetization Fault," Progress In Electromagnetics Research C, Vol. 169, 205-215, 2026.
doi:10.2528/PIERC26030902
References

1. Wei, Dong, Kan Liu, Wei Hu, Xiaoyan Peng, Yongdan Chen, and Rongjun Ding, "Short-time adaline based fault feature extraction for inter-turn short circuit diagnosis of PMSM via residual insulation monitoring," IEEE Transactions on Industrial Electronics, Vol. 70, No. 3, 3103-3114, 2023.
doi:10.1109/tie.2022.3167164        Google Scholar

2. Perera, Aravinda and Roy Nilsen, "Recursive prediction error gradient-based algorithms and framework to identify PMSM parameters online," IEEE Transactions on Industry Applications, Vol. 59, No. 2, 1788-1799, 2023.
doi:10.1109/tia.2022.3219041        Google Scholar

3. Toloue, Shirin Fartash, Seyed Hossein Kamali, and Mehrdad Moallem, "Torque ripple minimization and control of a permanent magnet synchronous motor using multiobjective extremum seeking," IEEE/ASME Transactions on Mechatronics, Vol. 24, No. 5, 2151-2160, 2019.
doi:10.1109/tmech.2019.2929390        Google Scholar

4. Nasiri, Mojtaba, Saleh Mobayen, and Ali Arzani, "PID-type terminal sliding mode control for permanent magnet synchronous generator-based enhanced wind energy conversion systems," CSEE Journal of Power and Energy Systems, Vol. 8, No. 4, 993-1003, 2022.
doi:10.17775/CSEEJPES.2020.06590        Google Scholar

5. Jung, Jin-Woo, Viet Quoc Leu, Ton Duc Do, Eun-Kyung Kim, and Han Ho Choi, "Adaptive PID speed control design for permanent magnet synchronous motor drives," IEEE Transactions on Power Electronics, Vol. 30, No. 2, 900-908, 2015.
doi:10.1109/tpel.2014.2311462        Google Scholar

6. Xu, Bo, Lei Zhang, and Wei Ji, "Improved non-singular fast terminal sliding mode control with disturbance observer for PMSM drives," IEEE Transactions on Transportation Electrification, Vol. 7, No. 4, 2753-2762, 2021.
doi:10.1109/tte.2021.3083925        Google Scholar

7. Zhang, Xiaoguang, Zheng Liu, Pinjia Zhang, and Yongchang Zhang, "Model predictive current control for PMSM drives based on nonparametric prediction model," IEEE Transactions on Transportation Electrification, Vol. 10, No. 1, 711-719, 2024.
doi:10.1109/tte.2023.3293512        Google Scholar

8. Li, Xueping, Shuo Zhang, Xing Cui, Yang Wang, Chengning Zhang, Zhaozong Li, and Ying Zhou, "Novel deadbeat predictive current control for PMSM with parameter updating scheme," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 10, No. 2, 2065-2074, 2022.
doi:10.1109/jestpe.2021.3133928        Google Scholar

9. Xu, Yongxiang, Shaobin Li, and Jibin Zou, "Integral sliding mode control based deadbeat predictive current control for PMSM drives with disturbance rejection," IEEE Transactions on Power Electronics, Vol. 37, No. 3, 2845-2856, 2022.
doi:10.1109/tpel.2021.3115875        Google Scholar

10. Sun, Zheng, Yongting Deng, Jianli Wang, Tian Yang, Zongen Wei, and Haiyang Cao, "Finite control set model-free predictive current control of PMSM with two voltage vectors based on ultralocal model," IEEE Transactions on Power Electronics, Vol. 38, No. 1, 776-788, 2023.
doi:10.1109/tpel.2022.3198990        Google Scholar

11. Faiz, Jawad and Ehsan Mazaheri-Tehrani, "Demagnetization modeling and fault diagnosing techniques in permanent magnet machines under stationary and nonstationary conditions: An overview," IEEE Transactions on Industry Applications, Vol. 53, No. 3, 2772-2785, 2017.
doi:10.1109/tia.2016.2608950        Google Scholar

12. Song, Xuewei, Jiwen Zhao, Juncai Song, Fei Dong, Liang Xu, and Jing Zhao, "Local demagnetization fault recognition of permanent magnet synchronous linear motor based on S-transform and PSO-LSSVM," IEEE Transactions on Power Electronics, Vol. 35, No. 8, 7816-7825, 2020.
doi:10.1109/tpel.2020.2967053        Google Scholar

13. Li, Zhongyi, Shiwei Zhao, Xiangyu Yang, Jianghua Cao, and Jiahao Li, "Partial demagnetization fault diagnosis of interior permanent magnet synchronous motor based on back electromotive force constant of a new search coil," IEEE Transactions on Instrumentation and Measurement, Vol. 74, 1-12, 2025.
doi:10.1109/tim.2025.3585215        Google Scholar

14. Ye, Shuaichen and Xiaoxian Yao, "A modified flux sliding-mode observer for the sensorless control of PMSMs with online stator resistance and inductance estimation," IEEE Transactions on Power Electronics, Vol. 35, No. 8, 8652-8662, 2020.
doi:10.1109/tpel.2019.2963112        Google Scholar

15. Zhao, Kai-Hui, Te-Fang Chen, Chang-Fan Zhang, Jing He, and Gang Huang, "Online fault detection of permanent magnet demagnetization for ipmsms by nonsingular fast terminal-sliding-mode observer," Sensors, Vol. 14, No. 12, 23119-23136, 2014.
doi:10.3390/s141223119        Google Scholar

16. Rosero, J. A., J. Cusido, A. Garcia, J. A. Ortega, and L. Romeral, "Study on the permanent magnet demagnetization fault in permanent magnet synchronous machines," IECON 2006 --- 32nd Annual Conference on IEEE Industrial Electronics, 879-884, Paris, France, 2006.
doi:10.1109/IECON.2006.347598

17. Jin, Ping, Yue Yuan, Qingyang Xu, Shuhua Fang, Heyun Lin, and S. L. Ho, "Analysis of axial-flux Halbach permanent-magnet machine," IEEE Transactions on Magnetics, Vol. 51, No. 11, 1-4, 2015.
doi:10.1109/tmag.2015.2449352        Google Scholar

18. Feng, Wan, Mengdi Li, Wenjuan Zhang, Shoudao Huang, and Haixia Zhang, "Sliding mode fault-tolerant control based on fast convergence law for faults of PMSM," Chinese Journal of Electrical Engineering, Vol. 10, No. 3, 147-157, 2024.
doi:10.23919/cjee.2024.000082        Google Scholar

19. Han, Yaofei, Shaofeng Chen, Chao Gong, Xing Zhao, Fanggang Zhang, and Yunwei Li, "Accurate SM disturbance observer-based demagnetization fault diagnosis with parameter mismatch impacts eliminated for IPM motors," IEEE Transactions on Power Electronics, Vol. 38, No. 5, 5706-5710, 2023.
doi:10.1109/tpel.2023.3245052        Google Scholar

20. Zhao, Kaihui, Tonghuan Yin, Changfan Zhang, Jing He, Xiangfei Li, Yue Chen, Ruirui Zhou, and Aojie Leng, "Robust model-free nonsingular terminal sliding mode control for PMSM demagnetization fault," IEEE Access, Vol. 7, 15737-15748, 2019.
doi:10.1109/access.2019.2895512        Google Scholar

21. Zhao, Kaihui, Ruirui Zhou, Jinhua She, Changfan Zhang, Jing He, Gang Huang, and Xiangfei Li, "Demagnetization-fault reconstruction and tolerant-control for PMSM using improved SMO-based equivalent-input-disturbance approach," IEEE/ASME Transactions on Mechatronics, Vol. 27, No. 2, 701-712, 2022.
doi:10.1109/tmech.2021.3069787        Google Scholar

22. Hu, Fang, Derong Luo, Chengwei Luo, Zhuo Long, and Gongping Wu, "Cascaded robust fault-tolerant predictive control for PMSM drives," Energies, Vol. 11, No. 11, 3087, 2018.
doi:10.3390/en11113087        Google Scholar

23. Zhang, Changfan, Gongping Wu, Fei Rong, Jianghua Feng, Lin Jia, Jing He, and Shoudao Huang, "Robust fault-tolerant predictive current control for permanent magnet synchronous motors considering demagnetization fault," IEEE Transactions on Industrial Electronics, Vol. 65, No. 7, 5324-5334, 2018.
doi:10.1109/tie.2017.2774758        Google Scholar

24. Zeghlache, Ayyoub, Hemza Mekki, Ali Djerioui, and Mohamed Fouad Benkhoris, "Active fault-tolerant control for surface permanent magnet synchronous motor under demagnetization fault," Periodica Polytechnica Electrical Engineering and Computer Science, Vol. 68, No. 1, 12-20, 2023.
doi:10.3311/ppee.22464        Google Scholar

25. Wang, Hongzhe, Chun Gan, Chong Zhang, Haotian Ren, and Ronghai Qu, "Parameter robust predictive current control for PMSM drives based on self-tuning incremental model and voltage constraint compensation," IEEE Transactions on Power Electronics, Vol. 40, No. 8, 11268-11282, 2025.
doi:10.1109/tpel.2025.3539434        Google Scholar

26. Woldegiorgis, Abebe Teklu, Xinglai Ge, Huiming Wang, and Yun Zuo, "An active flux estimation in the estimated reference frame for sensorless control of IPMSM," IEEE Transactions on Power Electronics, Vol. 37, No. 8, 9047-9060, 2022.
doi:10.1109/tpel.2022.3156726        Google Scholar
