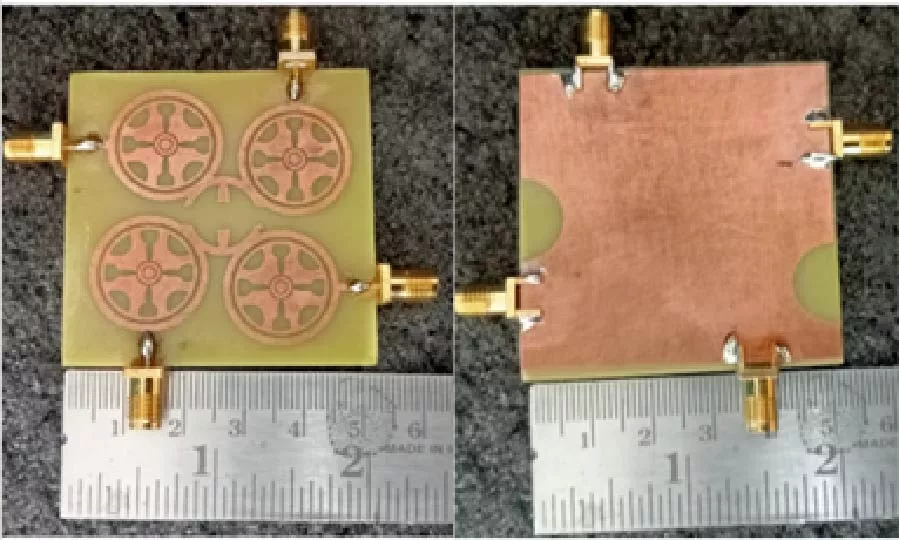

The proposed symmetric quad circular radiator antenna with a semicircular etched-slot DGS was designed and fabricated on an FR4 substrate of size 50 × 50 × 1.6 mm³. The antenna provides impedance bandwidths of 2.24-2.94 GHz, 3.84-3.98 GHz, and 4.92-5.06 GHz, with resonant frequencies observed at 2.44 GHz (-40.3 dB), 2.86 GHz (-17.9 dB), 3.92 GHz (-14.9 dB), and 4.98 GHz (-10.6 dB). These operating bands make the antenna suitable for WLAN, ISM, and other sub-6 GHz wireless communication systems. The antenna also achieves a realized gain above 5 dB at the operating frequencies, indicating stable radiation characteristics. The diversity performance was evaluated using standard metrics. The ECC remains below 0.5, which lies within the acceptable range for diversity operation. In addition, the diversity gain varies between 9.88 and 10.02 dB, while the channel capacity loss stays below 0.6 bits/s/Hz across the frequency range. A compact symmetric quad circular radiator antenna incorporating a three-segment semi-circular bridge along with a semicircular etched-slot mdefected ground structure (DGS) is presented for multi-band wireless communication applications. These results confirm that the proposed antenna provides reliable radiation and diversity performance for practical wireless communication applications.
