Abstract

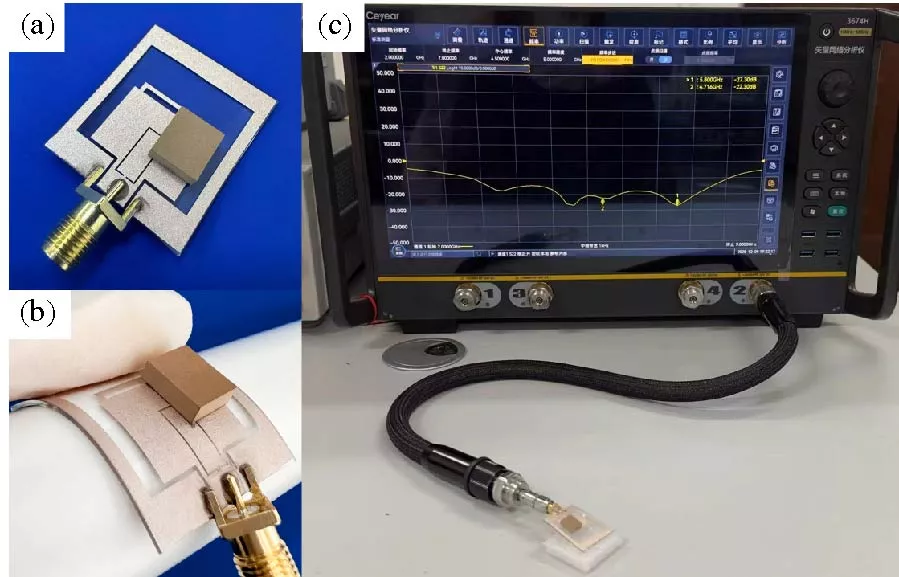

A novel flexible hybrid rectenna for simultaneous RF energy harvesting (RF-EH) and dedicated wireless power transfer (WPT) is proposed. The rectenna comprises a notched broadband omnidirectional microstrip antenna (2.8-6.3 GHz with a 4.7 GHz notch) and a 4.7 GHz directional dielectric resonator antenna (DRA) located on the microstrip antenna. At the 4.7 GHz notch band, electromagnetic energy is confined around an L-shaped strip and a split-ring slot of the microstrip antenna, exciting a TM₂₀₁^z resonant mode in the DRA that produces a narrow radiation beam at 4.7 GHz. This enables a frequency-domain complementary operation: ambient energy is harvested across the broadband region for low-power applications, while dedicated power is efficiently received at 4.7 GHz for high-power operation. A broadband rectifier employing a dual-channel impedance matching architecture is further proposed, in which two parallel branches cooperatively extend the rectification bandwidth. Measurements demonstrate that the rectenna achieves efficiencies above 45% across 2.8-6.3 GHz, with a peak efficiency of 57.9%. In addition, the use of Polydimethylsiloxane (PDMS) as the substrate provides high flexibility and excellent conformability. These features make the proposed rectenna well-suited for powering electronics on curved surfaces, compact devices, and curved-surface Internet-of-Things (IoT) nodes, such as robots, drones, in-vehicle applications and industrial robotic arm units, enabling reliable conformal deployment on non-planar equipment and distributed IoT systems.

1. Zhou, Ian, Imran Makhdoom, Negin Shariati, Muhammad Ahmad Raza, Rasool Keshavarz, Justin Lipman, Mehran Abolhasan, and Abbas Jamalipour, "Internet of things 2.0: Concepts, applications, and future directions," IEEE Access, Vol. 9, 70961-71012, 2021.
doi:10.1109/access.2021.3078549 Google Scholar

2. Ullah, Md. Amanath, Rasool Keshavarz, Mehran Abolhasan, Justin Lipman, Karu P. Esselle, and Negin Shariati, "A review on antenna technologies for ambient RF energy harvesting and wireless power transfer: Designs, challenges and applications," IEEE Access, Vol. 10, 17231-17267, 2022.
doi:10.1109/access.2022.3149276 Google Scholar

3. Kim, Seong-Jin, Sol Kim, Ji-Hoon Lee, and Jong-Won Yu, "A compact broadband stepped bow-tie antenna for ambient RF energy harvesting," IEEE Access, Vol. 11, 60365-60373, 2023.
doi:10.1109/access.2023.3286535 Google Scholar

4. Das, Rajesh, M. V. Swati, and Gaurav Singh Baghel, "Highly efficient, broadband, hexagonal shaped rectenna for energy harvesting in IoT applications," AEU --- International Journal of Electronics and Communications, Vol. 201, 155957, 2025.
doi:10.1016/j.aeue.2025.155957 Google Scholar

5. Shi, Yanyan, Jianwei Jing, Yue Fan, Lan Yang, Yan Li, and Meng Wang, "A novel compact broadband rectenna for ambient RF energy harvesting," AEU --- International Journal of Electronics and Communications, Vol. 95, 264-270, 2018.
doi:10.1016/j.aeue.2018.08.035 Google Scholar

6. Shi, Yanyan, Yue Fan, Yan Li, Lan Yang, and Meng Wang, "An efficient broadband slotted rectenna for wireless power transfer at LTE band," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 2, 814-822, 2019.
doi:10.1109/tap.2018.2882632 Google Scholar

7. Muhammad, Surajo, Jun Jiat Tiang, Sew Kin Wong, Amor Smida, Ridha Ghayoula, and Amjad Iqbal, "A dual-band ambient energy harvesting rectenna design for wireless power communications," IEEE Access, Vol. 9, 99944-99953, 2021.
doi:10.1109/access.2021.3096834 Google Scholar

8. Wang, Chenchen, Jinling Zhang, Shuobing Bai, Dunyu Chang, and Lifeng Duan, "A multiband compact flexible energy collector for wearable or portable IoT devices," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 5, 1164-1168, 2023.
doi:10.1109/lawp.2023.3235918 Google Scholar

9. Yang, Yang, Jun Li, Lu Li, Yilin Liu, Bing Zhang, Huacheng Zhu, and Kama Huang, "A 5.8 GHz circularly polarized rectenna with harmonic suppression and rectenna array for wireless power transfer," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 7, 1276-1280, 2018.
doi:10.1109/lawp.2018.2842105 Google Scholar

10. Sang, Jifei, Libo Qian, Xiudeng Wang, Minhua Li, Jian Wang, Ge Shi, and Zhangming Zhu, "A triple-band and high-gain circularly polarized rectenna for radio-frequency energy harvesting applications," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 8, 5223-5238, 2025.
doi:10.1109/tap.2025.3564712 Google Scholar

11. Zhou, Zengtai, Wei Lin, and Yu-Xiang Sun, "Wideband circularly polarized high-efficiency rectenna with large-angle wireless power capture capability," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4428-4432, 2024.
doi:10.1109/lawp.2024.3450310 Google Scholar

12. Zhang, Wenzhang, Jinyao Zhang, Chaoyun Song, Rui Pei, Xuanming Zhang, Haiwen Liu, Congzheng Han, Yi Huang, and Jiafeng Zhou, "Aperture sharing metasurface-based wide-beam antenna for energy harvesting," AEU --- International Journal of Electronics and Communications, Vol. 173, 155009, 2024.
doi:10.1016/j.aeue.2023.155009 Google Scholar

13. Wagih, Mahmoud, Alex S. Weddell, and Steve Beeby, "Omnidirectional dual-polarized low-profile textile rectenna with over 50% efficiency for sub-μw/cm wearable power harvesting," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 5, 2522-2536, 2021.
doi:10.1109/TAP.2020.3030992 Google Scholar

14. Pathak, Satendra, Jagmohan Singh, Amalendu Patnaik, A. K. Gautam, and Tushar Goel, "Wideband hybrid AEH system: Exploring transparent and opaque materials for sustainable power solutions in small gadgets," AEU --- International Journal of Electronics and Communications, Vol. 201, 155973, 2025.
doi:10.1016/j.aeue.2025.155973 Google Scholar

15. Wagih, Mahmoud, Geoffrey S. Hilton, Alex S. Weddell, and Steve Beeby, "Millimeter-wave power transmission for compact and large-area wearable IoT devices based on a higher order mode wearable antenna," IEEE Internet of Things Journal, Vol. 9, No. 7, 5229-5239, 2022.
doi:10.1109/jiot.2021.3107594 Google Scholar

16. Qi, Xiaokang, Zhiwei Xu, and Huan Li, "High-efficiency 2-D multibeam rectenna based on gain enhanced patch array," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 12, 2537-2541, 2022.
doi:10.1109/lawp.2022.3200516 Google Scholar

17. Boussaadia, Yacine, Mohamed Tellache, and Fayçal Amrani, "A novel high-gain rectenna for wireless power transmission (WPT) applications," International Journal of Communication Systems, Vol. 38, No. 9, e70112, 2025.
doi:10.1002/dac.70112 Google Scholar

18. Lu, Xiao, Ping Wang, Dusit Niyato, Dong In Kim, and Zhu Han, "Wireless networks with RF energy harvesting: A contemporary survey," IEEE Communications Surveys & Tutorials, Vol. 17, No. 2, 757-789, 2015.
doi:10.1109/comst.2014.2368999 Google Scholar

19. Li, Huacheng and Wei Lin, "An electrically small, pattern-reconfigurable, HCP antenna with quasi-isotropic beam coverage for wireless power transfer enabled IoT applications," IEEE Internet of Things Journal, Vol. 13, No. 6, 12169-12177, 2026.
doi:10.1109/jiot.2026.3654862 Google Scholar

20. Zhang, Pei, Hao Yi, Haixia Liu, Hong Yang, Guofei Zhou, and Long Li, "Back-to-back microstrip antenna design for broadband wide-angle RF energy harvesting and dedicated wireless power transfer," IEEE Access, Vol. 8, 126868-126875, 2020.
doi:10.1109/access.2020.3008551 Google Scholar

21. Lu, Ze Fan, Jian Liu, and Bing Xi Liu, "A hybrid high-efficiency rectenna for simultaneously dedicated single-band WPT and broadband omnidirectional RF energy harvesting," IEEE Transactions on Antennas and Propagation, Vol. 74, No. 2, 2113-2118, 2026.
doi:10.1109/tap.2025.3632305 Google Scholar

22. Liu, Sui-Bin, Fu-Shun Zhang, Ma Boyuan, Si-Ping Gao, and Yong-Xin Guo, "Multiband dual-polarized hybrid antenna with complementary beam for simultaneous RF energy harvesting and WPT," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 9, 8485-8495, 2022.
doi:10.1109/tap.2022.3177484 Google Scholar

23. Sharma, Praveen Kumar, Navneet Gupta, and Plamen I. Dankov, "Analysis of dielectric properties of polydimethylsiloxane (PDMS) as a flexible substrate for sensors and antenna applications," IEEE Sensors Journal, Vol. 21, No. 17, 19492-19504, 2021.
doi:10.1109/jsen.2021.3089827 Google Scholar

24. Zhuang, Zhihao, Xiuwei Xuan, Hongji Li, Daolian Jiang, and Mingji Li, "A wearable antenna sensor based on ePDA/SiO nanowalls for the detection of lactic acid in sweat," Sensors and Actuators B: Chemical, Vol. 404, 135265, 2024.
doi:10.1016/j.snb.2023.135265 Google Scholar

25. Wang, Zehua, Dongyang Lu, Ruozhou Li, and Ying Yu, "Flexible broadband rectifying array antenna based on printed liquid metal," IEEE Transactions on Microwave Theory and Techniques, Vol. 73, No. 9, 6001-6008, 2025.
doi:10.1109/tmtt.2025.3589591 Google Scholar

26. Yu, Bu-Yun, Zhe-Han Wang, Lu Ju, Chao Zhang, Zhen-Guo Liu, Li Tao, and Wei-Bing Lu, "Flexible and wearable hybrid RF and solar energy harvesting system," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 3, 2223-2233, 2022.
doi:10.1109/tap.2021.3118814 Google Scholar

27. Wang, Tian-Shi, Cheng-Zhu Du, Hai-Feng Shu, and Zhi-Hua Yue, "A flexible UWB slot antenna with quad band-notched characteristics for wearable application," Progress In Electromagnetics Research C, Vol. 140, 127-134, 2024.
doi:10.2528/pierc23111602 Google Scholar

28. Zada, Muhammad, Usman Rizqi Iman, Abdul Basir, and Hyoungsuk Yoo, "Battery-free digitally embroidered smart textile energy harvester for wearable healthcare IoTs," IEEE Transactions on Industrial Electronics, Vol. 71, No. 8, 9865-9874, 2024.
doi:10.1109/tie.2023.3326095 Google Scholar

29. Li, Lei, Xue Li, Lihua Wang, Yuting Jia, Yang Hu, and Jingchang Nan, "High gain nested dielectric resonator rectenna based on higher order mode and magneto-electric dipole theory," AEU --- International Journal of Electronics and Communications, Vol. 188, 155590, 2025.
doi:10.1016/j.aeue.2024.155590 Google Scholar
