Abstract

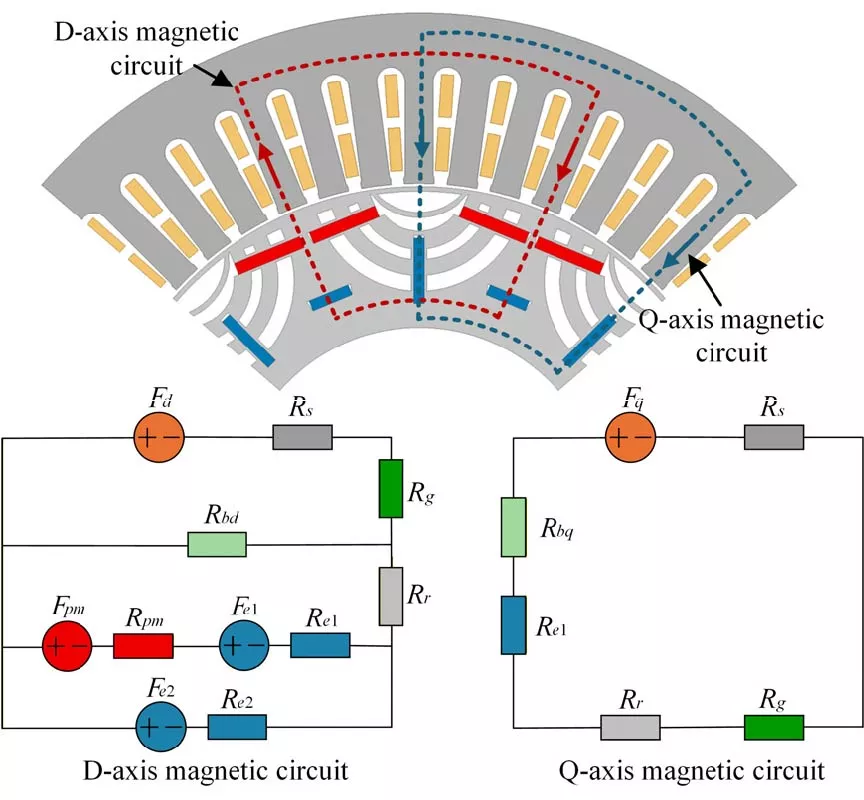

To address the shortcomings of conventional permanent magnet synchronous motors (CPMSMs), such as the inability to adjust the permanent magnet field and a narrow speed control range, this paper proposes a variable leakage flux permanent magnet synchronous motor (HPM-VLFM) based on a hybrid series-parallel permanent magnet configuration. This motor achieves a variable leakage flux permanent magnet motor (VLFM) by designing a magnetic barrier on the q-axis, and further realizes the HPM-VLFM by designing ferrite permanent magnets with a series-parallel magnetic circuit. First, this paper introduces a rotor topology of the proposed motor and establishes its equivalent magnetic circuit to elucidate its operating principle. Second, sensitivity analysis and response surface analysis are employed to investigate the relationship between parameters and response variables, and an optimal solution is obtained based on the given constraints. Finally, based on two-dimensional finite element analysis (FEA), the electromagnetic characteristics of the proposed motor were analyzed in detail, including variable flux leakage characteristics, no-load characteristics, inductance characteristics, and torque efficiency characteristics. The results indicate that the HPM-VLFM has a wider speed control range and higher efficiency.

1. Zhu, Xiaoyong, Juan Huang, Li Quan, Zixuan Xiang, and Bing Shi, "Comprehensive sensitivity analysis and multiobjective optimization research of permanent magnet flux-intensifying motors," IEEE Transactions on Industrial Electronics, Vol. 66, No. 4, 2613-2627, Apr. 2019.
doi:10.1109/tie.2018.2849961 Google Scholar

2. Tosun, Ozturk, Necibe Fusun Oyman Serteller, Ugur Demir, Onur Akar, and Vedat Esen, "Multi-objective design improvement of a double-stator single-rotor axial flux brushless DC motor with a focus on efficiency," Elektronika ir Elektrotechnika, Vol. 31, No. 5, 17-25, 2025.
doi:10.5755/j02.eie.41843 Google Scholar

3. Zhou, Xue, Xiaoyong Zhu, Wenye Wu, Zixuan Xiang, Yongfeng Liu, and Li Quan, "Multi-objective optimization design of variable-saliency-ratio PM motor considering driving cycles," IEEE Transactions on Industrial Electronics, Vol. 68, No. 8, 6516-6526, Aug. 2021.
doi:10.1109/tie.2020.3007106 Google Scholar

4. Liu, Xiping, Hongzhan Hu, Qianli Jia, Zhangqi Liu, and Zhiguo Zhu, "Lower cost variable-leakage-flux reverse-salient-pole permanent magnet motor by reducing rare-earth permanent magnet usage," Progress In Electromagnetics Research C, Vol. 166, 57-67, 2026.
doi:10.2528/pierc25123004 Google Scholar

5. Kashif, Mohd and Bhim Singh, "Design of a new spoke-PMSM with multiple flux barriers considering flux-intensifying effect for SWPS," 2021 IEEE 12th Energy Conversion Congress & Exposition - Asia (ECCE-Asia), 521-525, Singapore, 2021.
doi:10.1109/ECCE-Asia49820.2021.9479444

6. Yang, Hui, Heyun Lin, and Z. Q. Zhu, "Recent advances in variable flux memory machines for traction applications: A review," CES Transactions on Electrical Machines and Systems, Vol. 2, No. 1, 34-50, Mar. 2018.
doi:10.23919/tems.2018.8326450 Google Scholar

7. Hu, Zhigang, Xiping Liu, Zhangqi Liu, Zhiguo Huang, Wenliang Hu, and Zihao Shi, "Design and analysis of wide speed-regulated reverse salient-pole variable leakage flux interior permanent magnet machine," 2023 IEEE 6th Student Conference on Electric Machines and Systems (SCEMS), 1-6, Huzhou, China, 2023.
doi:10.1109/SCEMS60579.2023.10379209

8. Zhu, Wenqing, Xiaoyong Zhu, and Zixuan Xiang, "Research on power factor improvement of a variable-leakage-flux PM motor based on regulated-flux-barrier topology," IEEE Transactions on Magnetics, Vol. 60, No. 9, 1-6, Sep. 2024.
doi:10.1109/tmag.2024.3404562 Google Scholar

9. Abdel-Mageed, Bassam S., Akrem M. Aljehaimi, and Pragasen Pillay, "Analysis of design topologies for variable flux permanent magnet motors," IEEE Transactions on Industry Applications, Vol. 62, No. 1, 939-955, Jan.-Feb. 2026.
doi:10.1109/tia.2025.3594638 Google Scholar

10. Abdel-Mageed, Bassam S., Akrem M. Aljehaimi, and Pragasen Pillay, "Modeling and remedies for rare-earth permanent magnet demagnetization effects in hybrid permanent magnet variable flux motors," IEEE Transactions on Energy Conversion, Vol. 40, No. 1, 490-504, Mar. 2025.
doi:10.1109/tec.2024.3439249 Google Scholar

11. Xu, Hai, Jian Li, Junhua Chen, Yang Lu, and Meng Ge, "Analysis of a hybrid permanent magnet variable-flux machine for electric vehicle tractions considering magnetizing and demagnetizing current," IEEE Transactions on Industry Applications, Vol. 57, No. 6, 5983-5992, Nov.-Dec. 2021.
doi:10.1109/tia.2021.3115077 Google Scholar

12. Qiao, Guangyuan, Yong Liu, Mingqiao Wang, Faliang Liu, and Ping Zheng, "Study of a high-efficiency series-parallel-connected hybrid-PM variable-flux permanent magnet synchronous machine," IEEE Transactions on Magnetics, Vol. 58, No. 2, 1-7, Feb. 2022.
doi:10.1109/tmag.2021.3085763 Google Scholar

13. Barman, Dwaipayan and Pragasen Pillay, "Effect of skewing in a variable flux interior permanent magnet synchronous machine," IEEE Transactions on Industry Applications, Vol. 56, No. 6, 6399-6410, Nov.-Dec. 2020.
doi:10.1109/tia.2020.3015693 Google Scholar

14. Zhao, Wenliang, Zhishuo Yang, Yan Liu, and Xiuhe Wang, "Analysis of a novel surface-mounted permanent magnet motor with hybrid magnets for low cost and low torque pulsation," IEEE Transactions on Magnetics, Vol. 57, No. 6, 1-4, Jun. 2021.
doi:10.1109/tmag.2021.3057391 Google Scholar

15. Du, Zhentao S. and Thomas A. Lipo, "Cost-effective high torque density bi-magnet machines utilizing rare earth and ferrite permanent magnets," IEEE Transactions on Energy Conversion, Vol. 35, No. 3, 1577-1584, Sep. 2020.
doi:10.1109/tec.2020.2978256 Google Scholar

16. Fan, Deyang, Xiaoyong Zhu, Li Quan, Peng Han, Zixuan Xiang, and Jiqi Wu, "Driving cycle design optimization of less-rare-earth PM motor using dimension reduction method," IEEE Transactions on Energy Conversion, Vol. 38, No. 3, 1614-1625, Sep. 2023.
doi:10.1109/tec.2023.3248302 Google Scholar

17. Chen, Yunyun, Tongle Cai, Xiaoyong Zhu, Deyang Fan, and Qianlong Wang, "Analysis and design of a new type of less-rare-earth hybrid-magnet motor with different rotor topologies," IEEE Transactions on Applied Superconductivity, Vol. 30, No. 4, 1-6, Jun. 2020.
doi:10.1109/tasc.2020.2965879 Google Scholar

18. Chen, Yunyun, Tongle Cai, Xiaoyong Zhu, and Yu Ding, "Optimization of a new asymmetric-hybrid-PM machine with high torque density and low torque ripple considering the difference of magnetic materials," IEEE Transactions on Magnetics, Vol. 58, No. 2, 1-5, Feb. 2022.
doi:10.1109/tmag.2021.3086859 Google Scholar
