Abstract

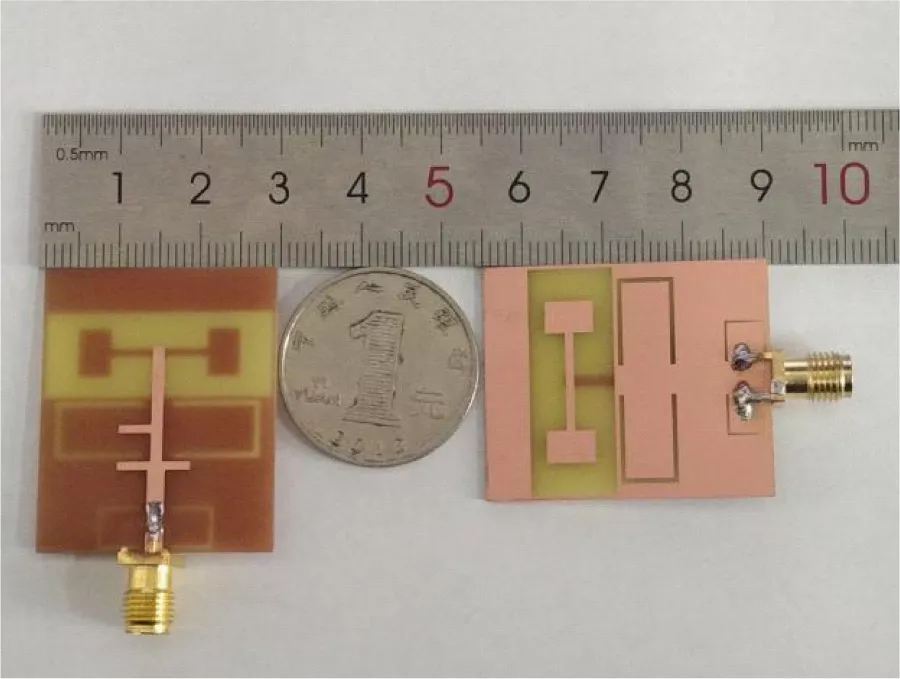

This paper presents a compact, low-profile, single-layer filtering antenna. The antenna features a simple structure, consisting of a substrate, two pairs of U-shaped defected ground structures, a symmetric dumbbell-shaped radiating patch, and a microstrip cross-feed line with asymmetric branches. The symmetric dumbbell-shaped patch and the asymmetric branch feedline collaboratively introduce additional high-frequency resonances, thereby broadening the impedance bandwidth. Furthermore, two pairs of U-shaped slots are etched into the bottom layer to introduce two radiation nulls on both sides of the passband, enhancing the frequency selectivity at the band edges and optimizing the antenna's radiation and filtering performance. To validate the proposed design, a prototype of the antenna was fabricated and measured. The measured and simulated results are in good agreement. The design achieves a wide impedance bandwidth of 48.6% from 3.7 to 6.18 GHz (centered at 5 GHz), a peak realized gain of 4.5 dBi, and a compact overall size of 35 mm × 29 mm × 0.8 mm. Moreover, the antenna structure is simple and easy to fabricate. Benefiting from its superior radiation performance and filtering characteristics, the proposed antenna is well-suited for wireless communication applications in the 5G Sub-6 GHz and WiFi-6E bands.

1. Gui, Hao, Zhonggen Wang, Wenyan Nie, Ming Yang, and Mingqing Wang, "Design of a compact wideband filtering antenna with high frequency selectivity," Progress In Electromagnetics Research M, Vol. 131, 27-35, 2025.
doi:10.2528/pierm24112503 Google Scholar

2. Kong, Yong-Dan, Xu-Cheng Zhang, and Qing-Xin Chu, "A wideband filtering antenna for wearable applications with high suppression level," AEU --- International Journal of Electronics and Communications, Vol. 205, 156167, Feb. 2026.
doi:10.1016/j.aeue.2025.156167 Google Scholar

3. Zhang, Yi-Ming, Shuai Zhang, Qi-Cheng Ye, and Gert Frølund Pedersen, "Cosynthesis of a filtering antenna with harmonic suppression," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 10, 1729-1733, Oct. 2020.
doi:10.1109/lawp.2020.3015538 Google Scholar

4. Sahu, Bhagirath, Soni Singh, Manoj Kumar Meshram, and Surya Pal Singh, "Integrated design of filtering antenna with high selectivity and improved performance for L-band applications," AEU --- International Journal of Electronics and Communications, Vol. 97, 185-194, Dec. 2018.
doi:10.1016/j.aeue.2018.10.015 Google Scholar

5. Lin, Jing-Yu, Sai-Wai Wong, Lei Zhu, Yang Yang, Xi Zhu, Ze-Ming Xie, and Yejun He, "A dual-functional triple-mode cavity resonator with the integration of filters and antennas," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 5, 2589-2593, May 2018.
doi:10.1109/tap.2018.2801347 Google Scholar

6. Wu, Zixian, Anxue Zhang, Jianzhong Chen, Xinru Lu, and Jianxing Li, "Co-design of low profile single-fed circularly polarized filtering antenna with high out-of-band rejection," AEU --- International Journal of Electronics and Communications, Vol. 102, 99-104, Apr. 2019.
doi:10.1016/j.aeue.2019.01.031 Google Scholar

7. Hong, Wei, Zi-Jun Guo, and Zhang-Cheng Hao, "Seamless integration technology for filtenna toward 5G/6G wireless communications," IEEE Open Journal of Antennas and Propagation, Vol. 5, No. 1, 18-36, Feb. 2024.
doi:10.1109/ojap.2023.3342468 Google Scholar

8. Chen, Fu-Chang, Hao-Tao Hu, Run-Shuo Li, Qing-Xin Chu, and Michael J. Lancaster, "Design of filtering microstrip antenna array with reduced sidelobe level," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 2, 903-908, Feb. 2017.
doi:10.1109/tap.2016.2639469 Google Scholar

9. He, Jiaxing, Aiting Wu, Zhihua Fang, Zhonghai Zhang, Pengquan Zhang, Wei Wang, and Zhijian Wang, "A high out-of-band suppression and selective filtering patch antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 9, 3159-3163, Sep. 2025.
doi:10.1109/lawp.2025.3584943 Google Scholar

10. He, Qing-Qiang, Pengfei Zhou, Dajiang Li, Ming-Chun Tang, Zhentian Wu, Da Yi, and Mei Li, "A compact, uniplanar, wideband, differential-fed transparent filtenna," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 4, 735-739, Apr. 2022.
doi:10.1109/lawp.2022.3144401 Google Scholar

11. Chen, Xiaoming, Lei Zhu, and Mei Li, "Design of wideband, compact, filtering slot antennas enabled by mixed electric/magnetic couplings," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 4, 3718-3723, Apr. 2024.
doi:10.1109/tap.2023.3333384 Google Scholar

12. Liu, Qianwen and Lei Zhu, "A compact wideband filtering antenna on slots-loaded square patch radiator under triple resonant modes," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 10, 9882-9887, Oct. 2022.
doi:10.1109/tap.2022.3184494 Google Scholar

13. Yin, Jia-Yuan, Tao-Long Bai, Jing-Ya Deng, Jian Ren, Dongquan Sun, Yin Zhang, and Li-Xin Guo, "Wideband single-layer substrate integrated waveguide filtering antenna with U-shaped slots," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 9, 1726-1730, Sep. 2021.
doi:10.1109/lawp.2021.3095188 Google Scholar

14. Chen, Bing-Jie, Xue-Song Yang, and Bing-Zhong Wang, "A compact high-selectivity wideband filtering antenna with multipath coupling structure," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 8, 1654-1658, Aug. 2022.
doi:10.1109/lawp.2022.3176920 Google Scholar

15. Cheng, Guangshang, Jian Zhou, Baoqing Huang, Lixia Yang, and Zhixiang Huang, "Compact low-profile wideband filtering antenna without additional filtering structure," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 10, 2477-2481, Oct. 2023.
doi:10.1109/lawp.2023.3291729 Google Scholar

16. Li, Lei, Hui Dong Xiong, Wan Ying Wu, An Bang Fu, and Jia Ying Han, "A T-shaped strips loaded wideband filtering patch antenna with high selectivity," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 1, 89-93, Jan. 2024.
doi:10.1109/lawp.2023.3318223 Google Scholar

17. Zhang, Xiu Yin, Wen Duan, and Yong-Mei Pan, "High-gain filtering patch antenna without extra circuit," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 12, 5883-5888, Dec. 2015.
doi:10.1109/tap.2015.2481484 Google Scholar

18. Liang, Gen-Zhu, Fu-Chang Chen, Hang Yuan, Kai-Ran Xiang, and Qing-Xin Chu, "A high selectivity and high efficiency filtering antenna with controllable radiation nulls based on stacked patches," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 1, 708-713, Jan. 2022.
doi:10.1109/tap.2021.3098563 Google Scholar

19. Yang, Dong, Huiqing Zhai, Chaozong Guo, and Hongkun Li, "A compact single-layer wideband microstrip antenna with filtering performance," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 5, 801-805, May 2020.
doi:10.1109/lawp.2020.2980631 Google Scholar

20. Chen, Xinwei, Qihao Zhuge, Guorui Han, Runbo Ma, Jinrong Su, and Wenmei Zhang, "A wideband harmonic suppression filtering antenna with multiple radiation nulls," Progress In Electromagnetics Research Letters, Vol. 112, 17-25, 2023.
doi:10.2528/pierl23042801 Google Scholar

21. Yuan, Hang, Fu-Chang Chen, and Qing-Xin Chu, "A wideband and high gain dual-polarized filtering antenna based on multiple patches," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 10, 9843-9848, Oct. 2022.
doi:10.1109/tap.2022.3177494 Google Scholar

22. Cheng, Guangshang, Baoqing Huang, Zhixiang Huang, and Lixia Yang, "A high-gain circularly polarized filtering stacked patch antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 5, 995-999, May 2023.
doi:10.1109/lawp.2022.3229951 Google Scholar

23. Wang, Li, Han Lin, and Chenlu Li, "Miniaturized wideband filtering antenna without additional filtering structures," Progress In Electromagnetics Research C, Vol. 163, 222-230, 2026.
doi:10.2528/pierc25103102 Google Scholar
