Low-Pass and Bandpass Dual-Band Filter Based on Surface Mounted Technology Using Lumped Parameter Components
By
Progress In Electromagnetics Research M, Vol. 134, 41-45, 2025
Abstract

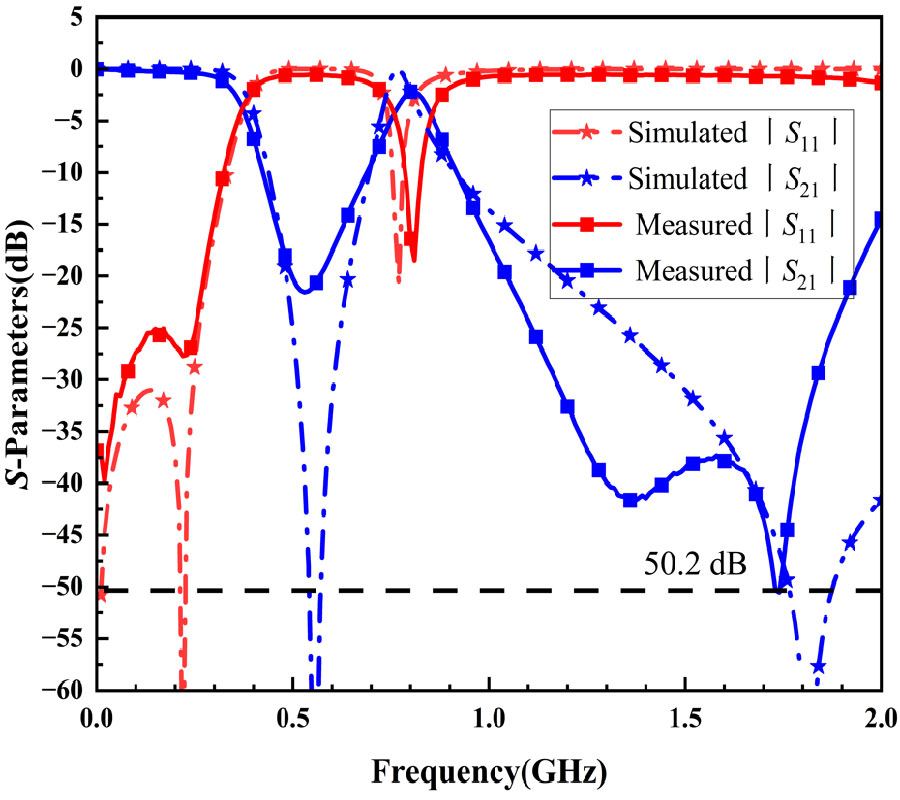

This paper proposes a lumped parameter microwave dual frequency filter implemented using surface mount technology (SMT), which has low-pass and band-pass characteristics. We implement a dual-band response by integrating a matching network and harnessing the inherent parasitic inductance of SMT capacitors. This strategy generates transmission zeros (TZs) in the high-frequency band, significantly enhancing frequency selectivity. The performance of the filter was verified through odd-even mode analysis and validated through experimental measurement. The experiment measured that the low pass cut-off frequency of the filter is 360 MHz, and the second channel exhibits good band-pass characteristics at 800 MHz, with an insertion loss of -2.191 dB.
Citation
Jie Xu, Yongle Wu, Qinghua Yang, and Weimin Wang, "Low-Pass and Bandpass Dual-Band Filter Based on Surface Mounted Technology Using Lumped Parameter Components," Progress In Electromagnetics Research M, Vol. 134, 41-45, 2025.
doi:10.2528/PIERM25050902
