Abstract

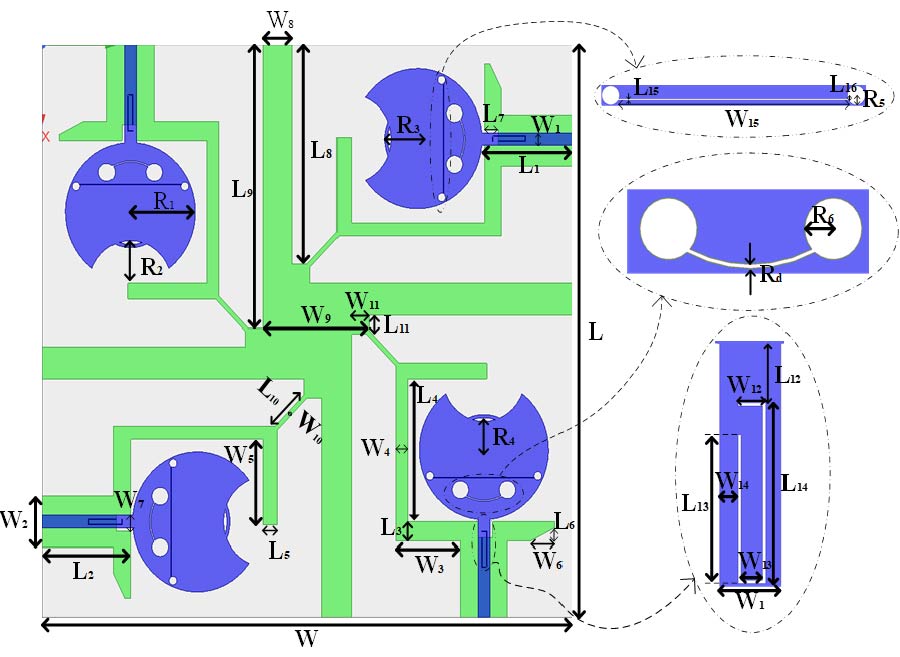

This paper proposes a four-port ultra-wideband (UWB) MIMO antenna with high isolation and three notch bands. A cross-shaped decoupling structure (CSDS) is synergistically integrated with an improved L-shaped ground plane to achieve high port isolation. Composite resonant slots (CRSs) are introduced on the radiating patch, and two L-shaped slots are etched on the feed line to suppress interferences from WiMAX (3.19 GHz), C-band (4.45 GHz), and X-band (7.95 GHz). Simulation and measurement results verify that the Voltage Standing Wave Ratio (VSWR) at the center frequencies of the notched bands is greater than 6.8, 8.1, and 4.3, respectively. In the operating frequency band of 2.7-12 GHz (excluding the notched bands), the isolation is > 24.3 dB, envelope correlation coefficient (ECC) < 0.0045, diversity gain (DG) > 9.9990 dB, total active reflection coefficient (TARC) < -10 dB, and channel capacity loss (CCL) < 0.4 bps/Hz. It fully meets the requirements of high-performance MIMO systems for channel independence and transmission efficiency. Compared with similar studies, this work has significant advantages in core indicators such as bandwidth, number of notched bands, and isolation, providing new ideas for the design of UWB-MIMO systems in complex electromagnetic environments.

1. Nie, Li Ying, Xian Qi Lin, Zi Qiang Yang, Jin Zhang, and Bao Wang, "Structure-shared planar UWB MIMO antenna with high isolation for mobile platform," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 4, 2735-2738, 2019.
doi:10.1109/tap.2018.2889596

2. Ren, Jian, Wei Hu, Yingzeng Yin, and Rong Fan, "Compact printed MIMO antenna for UWB applications," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 1517-1520, 2014.
doi:10.1109/lawp.2014.2343454

3. Gómez-Villanueva, Ricardo and Hildeberto Jardón-Aguilar, "Compact UWB uniplanar four-port MIMO antenna array with rejecting band," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 12, 2543-2547, 2019.
doi:10.1109/lawp.2019.2942827

4. Li, Ru Long, Zhi Qiang Chen, Fan Jiang, Liang Hua Ye, and Jian-Feng Li, "Three-port ultrawideband MIMO slot antenna with high isolation," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4388-4392, 2024.
doi:10.1109/lawp.2024.3449068

5. Rajagopalan, Ajit, Gaurav Gupta, Anand S. Konanur, Brian Hughes, and Gianluca Lazzi, "Increasing channel capacity of an ultrawideband MIMO system using vector antennas," IEEE Transactions on Antennas and Propagation, Vol. 55, No. 10, 2880-2887, 2007.
doi:10.1109/tap.2007.905938

6. Labade, Rekha, Ajaykumar Poddar, Jawad Y. Siddiqui, S. R. Jondhale, and G. S. Mani, "Design of flower shaped CSRR UWB antenna with integrated Bluetooth and Wi-Max band-notched characteristics," 2024 IEEE Conference on Antenna Measurements and Applications (CAMA), 1-4, Da Nang, Vietnam, 2024.
doi:10.1109/CAMA62287.2024.10986066

7. Lee, Jae-Min, Ki-Baek Kim, Hong-Kyun Ryu, and Jong-Myung Woo, "A compact ultrawideband MIMO antenna with WLAN band-rejected operation for mobile devices," IEEE Antennas and Wireless Propagation Letters, Vol. 11, 990-993, 2012.
doi:10.1109/lawp.2012.2214431

8. Tao, Jun and Quanyuan Feng, "Compact ultrawideband MIMO antenna with half-slot structure," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 792-795, 2017.
doi:10.1109/lawp.2016.2604344

9. Jayant, Shailesh and Garima Srivastava, "Close-packed quad-element triple-band-notched UWB MIMO antenna with upgrading capability," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 1, 353-360, 2023.
doi:10.1109/tap.2022.3222768

10. Deng, Jing-Ya, Li-Xin Guo, and Xiang-Long Liu, "An ultrawideband MIMO antenna with a high isolation," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 182-185, 2016.
doi:10.1109/lawp.2015.2437713

11. Bilal, Muhammad, Rashid Saleem, Hammad H. Abbasi, Muhammad Farhan Shafique, and Anthony K. Brown, "An FSS-based nonplanar quad-element UWB-MIMO antenna system," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 987-990, 2017.
doi:10.1109/lawp.2016.2615884

12. Li, Hongmei and Naicheng Gong, "An SRR and CSRR based UWB-MIMO antenna," 2020 IEEE International Symposium on Antennas and Propagation and North American Radio Science Meeting, 679-680, Montreal, QC, Canada, 2020.
doi:10.1109/IEEECONF35879.2020.9329911

13. Liu, X.-L., Z.-D. Wang, Y.-Z. Yin, J. Ren, and J.-J. Wu, "A compact ultrawideband MIMO antenna using QSCA for high isolation," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 1497-1500, 2014.
doi:10.1109/lawp.2014.2340395

14. Gao, Peng, Shuang He, Xubo Wei, Ziqiang Xu, Ning Wang, and Yi Zheng, "Compact printed UWB diversity slot antenna with 5.5-GHz band-notched characteristics," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 376-379, 2014.
doi:10.1109/lawp.2014.2305772

15. Wang, Xuefeng and Yufa Sun, "Ultra-wideband MIMO antenna with double notched band," 2020 Cross Strait Radio Science & Wireless Technology Conference (CSRSWTC), 1-3, Fuzhou, China, 2020.
doi:10.1109/CSRSWTC50769.2020.9372601

16. Li, Jian-Feng, Qing-Xin Chu, Zhi-Hui Li, and Xing-Xing Xia, "Compact dual band-notched UWB MIMO antenna with high isolation," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 9, 4759-4766, 2013.
doi:10.1109/tap.2013.2267653

17. Liu, Li, S. W. Cheung, and T. I. Yuk, "Compact MIMO antenna for portable UWB applications with band-notched characteristic," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 5, 1917-1924, 2015.
doi:10.1109/tap.2015.2406892

18. Kang, Le, Hui Li, Xinhuai Wang, and Xiaowei Shi, "Compact offset microstrip-fed MIMO antenna for band-notched UWB applications," IEEE Antennas and Wireless Propagation Letters, Vol. 14, 1754-1757, 2015.
doi:10.1109/lawp.2015.2422571

19. Liu, Yan-Yan and Zhi-Hong Tu, "Compact differential band-notched stepped-slot UWB-MIMO antenna with common-mode suppression," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 593-596, 2016.
doi:10.1109/lawp.2016.2592179

20. Tang, Zhijun, Xiaofeng Wu, Jie Zhan, Shigang Hu, Zaifang Xi, and Yunxin Liu, "Compact UWB-MIMO antenna with high isolation and triple band-notched characteristics," IEEE Access, Vol. 7, 19856-19865, 2019.
doi:10.1109/access.2019.2897170

21. Chen, Zhijian, Weisi Zhou, and Jingsong Hong, "A miniaturized MIMO antenna with triple band-notched characteristics for UWB applications," IEEE Access, Vol. 9, 63646-63655, 2021.
doi:10.1109/access.2021.3074511

22. Zhao, Liangliang, Yongmao Wang, Chenlu Liu, Dengyang Song, Chufeng Hu, Chuwei Li, Huiling Zhao, and Zefang Wang, "Compact circular-shaped MIMO antenna covers UWB bandwidth with four frequently-used band-notched characteristics for multi-scenario applications," IEEE Access, Vol. 12, 32762-32771, 2024.
doi:10.1109/access.2024.3371571

23. Rekha, Vutukuri Sarvani Duti, Pokkunuri Pardhasaradhi, Boddapati Taraka Phani Madhav, and Yalavarthi Usha Devi, "Dual band notched orthogonal 4-element MIMO antenna with isolation for UWB applications," IEEE Access, Vol. 8, 145871-145880, 2020.
doi:10.1109/access.2020.3015020

24. Li, Zhenya, Chengyou Yin, and Xiaosong Zhu, "Compact UWB MIMO Vivaldi antenna with dual band-notched characteristics," IEEE Access, Vol. 7, 38696-38701, 2019.
doi:10.1109/access.2019.2906338

25. Sushma, Thotakura, Rajesh Gogineni, Nallagonda Vijaya Ratnam, Sadineni Ramesh Babu, Sunitha Mandava, and Paruchuri Venkata Krishna Kanth, "A miniaturized quad port highly isolated triple band notched UWB-MIMO diversity antenna," Progress In Electromagnetics Research C, Vol. 152, 43-53, 2025.
doi:10.2528/pierc24111702

26. Lu, Xuan, Shushu Linghu, Furong Peng, and Ting Zhang, "A miniaturized ultra-wideband MIMO antenna design with dual-band notched characteristics," Progress In Electromagnetics Research M, Vol. 115, 45-58, 2023.
doi:10.2528/pierm22111603
