2025-08-21
Minkowski Island Fractal Monopole Antenna with CPW-Feed for Wide-Band Wireless Systems
By
Progress In Electromagnetics Research C, Vol. 159, 10-16, 2025
Abstract

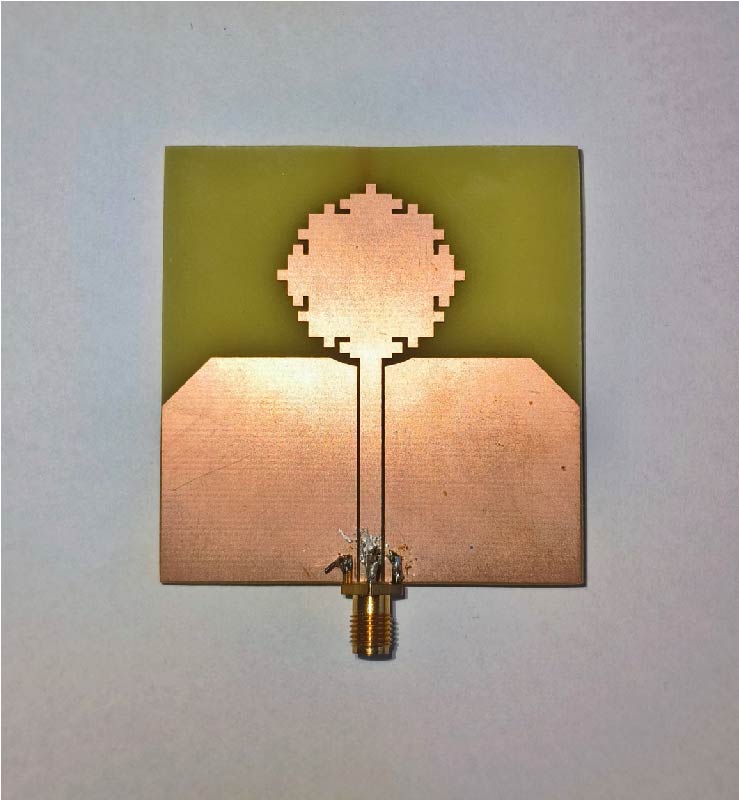

This paper presents a CPW-fed Minkowski island fractal monopole antenna with wideband characteristics. The Minkowski island fractal geometry is applied on the radiating patch of the monopole antenna to make it compact and enhance bandwidth performance. The measured return loss values indicate a fractional bandwidth of 114% from 2 GHz to 7.3 GHz. The simple structure and wideband characteristics make this antenna suitable for various wireless communication applications, including WLAN, Wi-Fi, Wi-Max, 5G, and sub-6 GHz band services.
Citation
Vanilakshmi Venugopal, Rohith K. Raj, Aswin Shiju, Janardhanan Linesh, and Thomaskutty Mathew, "Minkowski Island Fractal Monopole Antenna with CPW-Feed for Wide-Band Wireless Systems," Progress In Electromagnetics Research C, Vol. 159, 10-16, 2025.
doi:10.2528/PIERC25071504
References

1. Murugan, Neelaveni Ammal, Ramachandran Balasubramanian, and Hanumantha Rao Patnam, "Printed planar monopole antenna design for ultra-wideband communications," Radioelectronics and Communications Systems, Vol. 61, No. 6, 267-273, 2018.
doi:10.3103/s0735272718060055

2. Shameena, V. A., M. Manoj, M. Remsha, P. V. Anila, M. Sreejith Nair, and P. Mohanan, "Wideband electrically small monopole antenna," 2020 XXXIIIrd General Assembly and Scientific Symposium of the International Union of Radio Science, 1-3, Rome, Italy, 2020.
doi:10.23919/URSIGASS49373.2020.9232408

3. Johnson, J. M. and Y. Rahmat-Samii, "The tab monopole," IEEE Transactions on Antennas and Propagation, Vol. 45, No. 1, 187-188, 1997.
doi:10.1109/8.554262

4. Lin, C.-C., Y.-C. Kan, L.-C. Kuo, and H.-R. Chuang, "A planar triangular monopole antenna for UWB communication," IEEE Microwave and Wireless Components Letters, Vol. 15, No. 10, 624-626, 2005.
doi:10.1109/LMWC.2005.856694

5. Liang, Jianxin, C. C. Chiau, Xiaodong Chen, and C. G. Parini, "Study of a printed circular disc monopole antenna for UWB systems," IEEE Transactions on Antennas and Propagation, Vol. 53, No. 11, 3500-3504, 2005.
doi:10.1109/tap.2005.858598

6. Ashong, Ebenezer Tawiah and Young-Bae Jung, "Bandwidth enhancement and size reduction of printed monopole antenna using bounding box structure," IET Microwaves, Antennas & Propagation, Vol. 13, No. 9, 1484-1490, 2019.
doi:10.1049/iet-map.2018.6161

7. Liu, Wen-Chung and Ping-Chi Kao, "CPW-fed triangular monopole antenna for ultra-wideband operation," Microwave and Optical Technology Letters, Vol. 47, No. 6, 580-582, 2005.
doi:10.1002/mop.21235

8. Deng, Chao, Yong-Jun Xie, and Ping Li, "CPW-fed planar printed monopole antenna with impedance bandwidth enhanced," IEEE Antennas and Wireless Propagation Letters, Vol. 8, 1394-1397, 2009.
doi:10.1109/lawp.2009.2039743

9. Liu, Hsien-Wen, Chia-Hao Ku, and Chang-Fa Yang, "Novel CPW-fed planar monopole antenna for WiMAX/WLAN applications," IEEE Antennas and Wireless Propagation Letters, Vol. 9, 240-243, 2010.
doi:10.1109/lawp.2010.2044860

10. Tizyi, Hafid, Fatima Riouch, Abdelwahed Tribak, Abdellah Najid, and Angel Mediavilla Sanchez, "CPW and microstrip line-fed compact fractal antenna for UWB-RFID applications," Progress In Electromagnetics Research C, Vol. 65, 201-209, 2016.
doi:10.2528/PIERC16041110

11. Werner, D. H. and S. Ganguly, "An overview of fractal antenna engineering research," IEEE Antennas and Propagation Magazine, Vol. 45, No. 1, 38-57, 2003.
doi:10.1109/map.2003.1189650

12. Joseph, Saira, Binu Paul, Shanta Mridula, and Pezholil Mohanan, "CPW-fed fractal antenna with improved UWB response," 2015 IEEE 4th Asia-Pacific Conference on Antennas and Propagation (APCAP), 74-76, Bali, Indonesia, 2015.
doi:10.1109/APCAP.2015.7374277

13. Dash, Rajib Kumar, Puspendu Bikash Saha, Dibyendu Ghoshal, and Gopinath Palai, "CPW fed Koch modified fractal antenna backed with partial ground for multiband wireless applications," Radioengineering, Vol. 30, No. 2, 278-287, 2021.
doi:10.13164/re.2021.0278

14. Ge, Zhouchi, Xiang Zhou, Tao Zhou, Haokang Sheng, Jie Ren, and Ying Wang, "Design of a fractal-based ultra-wideband antenna," 2024 IEEE 10th International Symposium on Microwave, Antenna, Propagation and EMC Technologies for Wireless Communications (MAPE), 1-4, Guangzhou, China, 2024.
doi:10.1109/MAPE62875.2024.10813877

15. Chiang, Ka Hing and Kam Weng Tam, "Microstrip monopole antenna with enhanced bandwidth using defected ground structure," IEEE Antennas and Wireless Propagation Letters, Vol. 7, 532-535, 2008.
doi:10.1109/lawp.2008.2005592

16. Desai, Arpan, Trushit K. Upadhyaya, Rikikumar Patel, Sagar Bhatt, and Parthesh Mankodi, "Wideband high gain fractal antenna for wireless applications," Progress In Electromagnetics Research Letters, Vol. 74, 125-130, 2018.
doi:10.2528/pierl18011504

17. Alsariera, Hussein, Zahriladha Zakaria, and Azmi bin Awang Md Isa, "New broadband L-shaped CPW-fed circularly polarized monopole antenna with asymmetric modified ground plane and a couple series-aligning inverted L-shaped strip," AEU --- International Journal of Electronics and Communications, Vol. 118, 153139, 2020.
doi:10.1016/j.aeue.2020.153139

18. Huda, Shabana, Anuradha Saha, and Anirban Karmakar, "Ultra wideband (UWB) dielectric resonator antenna using fractal-inspired feeding mechanism," International Journal of Communication Systems, Vol. 36, No. 13, e5519, 2023.
doi:10.1002/dac.5519

19. Ali, Haider, Preeti Singh, Sudhir Kumar, and Tushar Goel, "A Minkowski fractal ultrawide band antenna for 5G applications," 2017 IEEE International Conference on Antenna Innovations & Modern Technologies for Ground, Aircraft and Satellite Applications (iAIM), 1-5, Bangalore, India, 2017.
doi:10.1109/IAIM.2017.8402541

20. Soni, Binod Kumar and Rakesh Singhai, "Design and analysis of Minkowskized hybrid fractal like antenna for multiband operation," Progress In Electromagnetics Research Letters, Vol. 80, 117-126, 2018.
doi:10.2528/PIERL18092904

21. Joseph, Elijah, Pradeep Kumar, and Thomas Afullo, "Design and performance evaluation of a second-order iterated circular Minkowski fractal antenna for ultra-wideband applications," Fractal and Fractional, Vol. 7, No. 11, 806, 2023.
doi:10.3390/fractalfract7110806

22. Dhar, Sayantan, Rowdra Ghatak, Bhaskar Gupta, and Dipak Ranjan Poddar, "A wideband Minkowski fractal dielectric resonator antenna," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 6, 2895-2903, 2013.
doi:10.1109/tap.2013.2251596

23. Venugopal, Vanilakshmi, Achari P. Abhilash, Rohith K. Raj, and Thomaskutty Mathew, "CPW-fed Minkowski island fractal slot antenna for wideband application," Progress In Electromagnetics Research Letters, Vol. 125, 9-15, 2025.
doi:10.2528/pierl24121805

24. More, C. S. and N. T. Markad, "Design and implementation of wideband microstrip antenna by using modified ground plane for high gain 5G applications," Inernational Journal of Electical and Electroics Engineering, Vol. 11, No. 4, 14-24, 2024.
doi:10.14445/23488379/IJEEE-V11I4P103
