Abstract

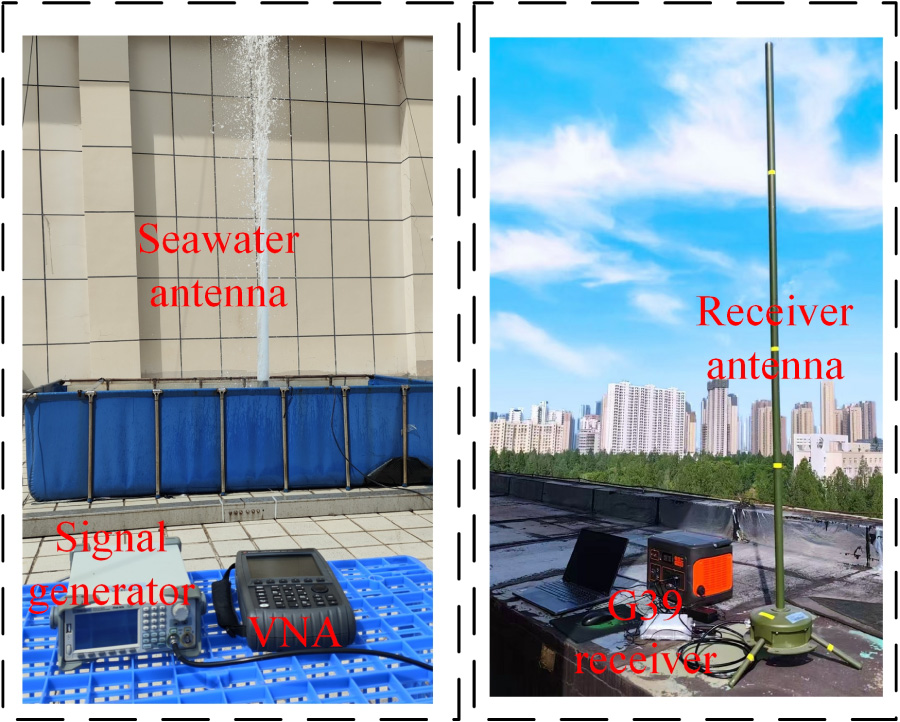

In this paper, a high-efficiency, center-fed dynamic seawater monopole antenna is proposed. The antenna's radiation efficiency increases by raising the feed point position, adding a metal tube above the feed point, and reducing the inner diameter of the water pipe below the feed point. Concurrently, the effects of the feeding position, the length of the metal pipe and the inner diameter of the water supply pipe on the current distribution are analyzed by theoretical modeling. FEKO electromagnetic simulation software is applied to simulate and analyze metal tubes with different lengths and water supply side pipes with different inner diameters. The simulation results indicate that the antenna attains optimal performance when being configured with a water supply pipe of 1 cm inner diameter and a 30 cm metal tube, achieving a maximum gain of 0.93 dBi and a peak radiation efficiency of 52%. Based on the simulation data, a simplified center-fed dynamic seawater antenna prototype is designed and fabricated. Experimental validation confirms that the seawater serves as the primary radiating element. The measured radiation characteristic curves exhibit consistent trends with the simulated results.

1. Dey, Abhishek, Rasim Guldiken, and Gokhan Mumcu, "Microfluidically reconfigured wideband frequency-tunable liquid-metal monopole antenna," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 6, 2572-2576, Jun. 2016.
doi:10.1109/tap.2016.2551358

2. Wang, Min, Zhe Zhang, and Aixin Chen, "Ultrawideband pattern reconfigurable planar monopole antenna based on liquid metal," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 11, 3734-3738, Nov. 2024.
doi:10.1109/LAWP.2024.3439314

3. Huang, Yi, Lei Xing, Chaoyun Song, Stephen Wang, and Fatma Elhouni, "Liquid antennas: Past, present and future," IEEE Open Journal of Antennas and Propagation, Vol. 2, 473-487, Mar. 2021.
doi:10.1109/ojap.2021.3069325

4. Sayem, Abu Sadat Md., Ali Lalbakhsh, Karu P. Esselle, Gholamhosein Moloudian, John L. Buckley, and Roy B. V. B. Simorangkir, "Advancements, challenges, and prospects of water-filled antennas," IEEE Access, Vol. 11, 8301-8323, Jan. 2023.
doi:10.1109/access.2023.3238571

5. SPAWAR "Sea water antenna system," [Online]. Available: http://www.public.navy.mil/spawar/Pacific/TechTransfer/ProductsServices/Pages/SeaWaterAntennaSystem.aspx and https://www.youtube.com/watch?v=9tIZUhu21sQ, Apr. 2011.

6. Hua, Changzhou, Zhongxiang Shen, and Jian Lu, "High-efficiency sea-water monopole antenna for maritime wireless communications," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 12, 5968-5973, Dec. 2014.
doi:10.1109/tap.2014.2360210

7. Xing, Lei, Yi Huang, Yaochun Shen, Saqer Al Ja'afreh, Qian Xu, and Rula Alrawashdeh, "Further investigation on water antennas," IET Microwaves, Antennas & Propagation, Vol. 9, No. 8, 735-741, Jun. 2015.
doi:10.1049/iet-map.2014.0298

8. Xing, Lei, Yi Huang, Saqer S. Alja'afreh, and Steve J. Boyes, "A monopole water antenna," 2012 Loughborough Antennas & Propagation Conference (LAPC), 1-4, Loughborough, UK, 2012.
doi:10.1109/LAPC.2012.6402985

9. Hua, Changzhou and Zhongxiang Shen, "Sea-water half-loop antenna for maritime wireless communications," 2015 IEEE 4th Asia-Pacific Conference on Antennas and Propagation (APCAP), 231-232, Bali, Indonesia, 2015.
doi:10.1109/APCAP.2015.7374349

10. Akimoto, S., T. Yanagi, T. Fukasawa, and H. Miyashita, "Demonstration of a highly efficient seawater antenna," 2016 IEEE-APS Topical Conference on Antennas and Propagation in Wireless Communications (APWC), 55-58, Cairns, QLD, Australia, 2016.
doi:10.1109/APWC.2016.7738117

11. Li, Lihua, Shimin Feng, and Menglei Xiu, "Inductive reactance isolated dynamic seawater monopole antenna of high efficiency," Applied Computational Electromagnetics Society Journal (ACES), Vol. 38, No. 12, 952-957, Dec. 2023.
doi:10.13052/2023.aces.j.381204

12. Hua, Changzhou and Zhongxiang Shen, "Shunt-excited sea-water monopole antenna of high efficiency," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 11, 5185-5190, Nov. 2015.
doi:10.1109/tap.2015.2477418

13. Lv, Z., X. An, Y. Wang, X. Shan, and Q. Lv, "A conductive liquid antenna," China Patent 110994149A, 2019.

14. Mitsubishi Electric Corporation "Antenna device," China Patent 105940555B, 2017.

15. Yang, Z., "Preliminary study on seawater antenna," Ship Electronic Engineering, Vol. 31, No. 12, 101-103, 2011.

16. Balanis, C. A., Antenna Theory, Wiley, 1997.

17. Qian, Y., "Wideband high efficiency hybrid liquid antennas," Ph.D. dissertation, South China University of Technology, Guangzhou, China, 2017.

18. Frohn, Arnold and Norbert Roth, Dynamics of Droplets, Springer Science & Business Media, 2000.
doi:10.1007/978-3-662-04040-9

19. Zhang, B., P. Cheng, Q. L. Li, H. Y. Chen, and C. Y. Li, "Breakup process of liquid jet in gas film," Acta Physica Sinica, Vol. 70, No. 5, 054702, 2021.
doi:10.7498/aps.70.20201384

Dr. Xin Zhang

Mrs. Lihua Li

Dr. Mingxuan Hu
