Abstract

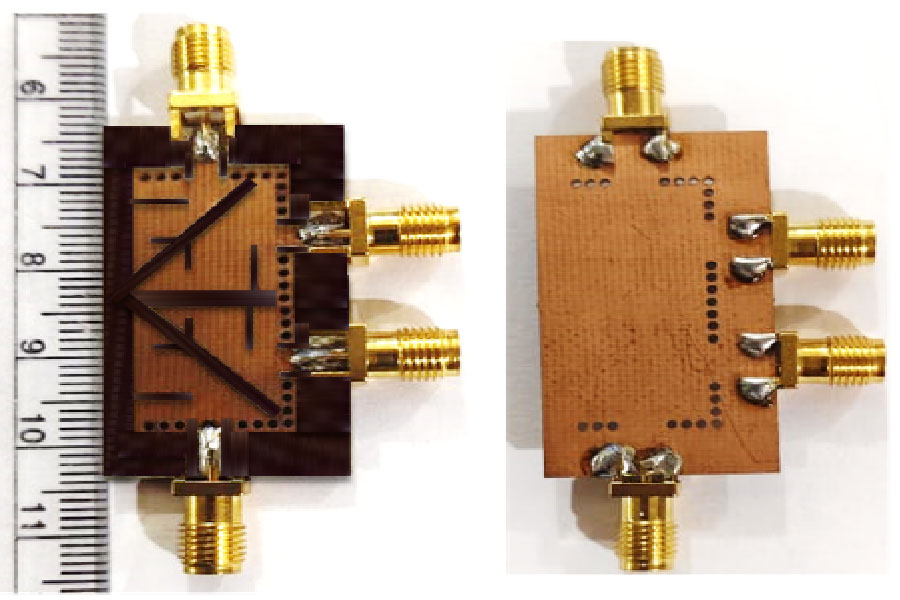

In this paper, a highly compact half mode substrate integrated waveguide (HMSIW)-based self-quadplexing antenna is proposed, employing four quarter-mode SIW (QMSIW) radiating elements integrated with longitudinal slots. The antenna operates at four closely spaced resonant frequencies 3.68 GHz, 3.83 GHz, 4.04 GHz, and 4.17 GHz achieved by precisely tuning the slot dimensions. A minimum port isolation of 26 dB is maintained between any two ports, ensuring minimal mutual coupling. The proposed design exhibits a compact footprint of only 0.05λ₀², where λ₀ is the free-space wavelength at the lowest resonant frequency. The simulated and measured gains exceed 5.5 dBi across all four bands, with a radiation efficiency of approximately 85%. Owing to its compact size, high isolation, and efficient radiation performance, the proposed antenna is well-suited for the upper S-band (3.1-3.9 GHz) and lower C-band (4.0-4.2 GHz) which are widely allocated for fixed-satellite service (FSS) communications applications.

1. Bozzi, M., A. Georgiadis, and K. Wu, "Review of substrate-integrated waveguide circuits and antennas," IET Microwaves, Antennas & Propagation, Vol. 5, No. 8, 909-920, 2011.
doi:10.1049/iet-map.2010.0463

2. Maruti, Ayyadevara Murali and Bhavan S. Naga Kishore, "Dual-band SIW slot array filtering antenna for X and Ku band applications," Progress In Electromagnetics Research Letters, Vol. 103, 109-117, 2022.
doi:10.2528/pierl22020306

3. Iqbal, Amjad, Ismail Ben Mabrouk, Muath Al-Hasan, Mourad Nedil, and Tayeb A. Denidni, "Wideband substrate integrated waveguide antenna for full-duplex systems," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 1, 212-216, 2022.
doi:10.1109/lawp.2021.3125610

4. Subani, Shaik Mahaboob, S. Nagakishore Bhavanam, Vasujadevi Midasala, and M. Gopi Krishna, "HMSIW-based MIMO antenna with enhanced isolation for advanced V2X communication," 2025 10th International Conference on Signal Processing and Communication (ICSC), 114-118, Noida, India, 2025.
doi:10.1109/ICSC64553.2025.10967725

5. Deslandes, D. and Ke Wu, "Single-substrate integration technique of planar circuits and waveguide filters," IEEE Transactions on Microwave Theory and Techniques, Vol. 51, No. 2, 593-596, 2003.
doi:10.1109/tmtt.2002.807820

6. Deslandes, D. and Ke Wu, "Accurate modeling, wave mechanisms, and design considerations of a substrate integrated waveguide," IEEE Transactions on Microwave Theory and Techniques, Vol. 54, No. 6, 2516-2526, 2006.
doi:10.1109/tmtt.2006.875807

7. JayaPrakash, V. and D. Chandu, "Self-isolated quadruplexing SIW antenna with extremely low frequency ratio for C-band applications," Microwave and Optical Technology Letters, Vol. 66, No. 2, e34064, 2024.

8. Althuwayb, Ayman A., "Design of highly compact self-diplexing Y-shaped slot antenna employing quarter-mode substrate integrated waveguide," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 31, No. 10, e22827, 2021.
doi:10.1002/mmce.22827

9. Iqbal, Amjad, Muath Al-Hasan, Ismail Ben Mabrouk, and Mourad Nedil, "Ultracompact quarter-mode substrate integrated waveguide self-diplexing antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 7, 1269-1273, 2021.
doi:10.1109/lawp.2021.3077451

10. Barik, R. K., Q. S. Cheng, S. K. K. Dash, N. C. Pradhan, and S. S. Karthikeyan, "Compact high-isolation self-diplexing antenna based on SIW for C-band applications," Journal of Electromagnetic Waves and Applications, Vol. 34, No. 7, 960-974, 2020.
doi:10.1080/09205071.2020.1763859

11. Iqbal, Amjad, Jun Jiat Tiang, Ching Kwang Lee, and Nazih Khaddaj Mallat, "SIW cavity backed self-diplexing tunable antenna," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 8, 5021-5025, 2021.
doi:10.1109/tap.2021.3060024

12. Pradhan, Nrusingha Charan, Karthikeyan Sholampettai Subramanian, Rusan Kumar Barik, and Qingsha S. Cheng, "A shielded-QMSIW-based self-diplexing antenna for closely spaced bands and high isolation," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 12, 2382-2386, 2021.
doi:10.1109/lawp.2021.3112610

13. Prakash, V. Jaya and D. Chandu, "Microfluidic HMSIW based self-diplexing antenna for simultaneous sensing of liquid samples," 2023 IEEE Microwaves, Antennas, and Propagation Conference (MAPCON), 1-6, Ahmedabad, India, 2023.
doi:10.1109/MAPCON58678.2023.10464008

14. Dash, Sounik Kiran Kumar, Qingsha S. Cheng, Rusan Kumar Barik, Nrusingha Charan Pradhan, and Karthikeyan Sholampettai Subramanian, "A compact substrate integrated self-diplexing antenna for WiFi and ISM band applications," 2020 50th European Microwave Conference (EuMC), 232-235, Utrecht, Netherlands, 2021.
doi:10.23919/EuMC48046.2021.9337976

15. Iqbal, Amjad, Marwa Ammar Selmi, Lway Faisal Abdulrazak, Omar A. Saraereh, Nazih Khaddaj Mallat, and Amor Smida, "A compact substrate integrated waveguide cavity-backed self-triplexing antenna," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 67, No. 11, 2362-2366, 2020.
doi:10.1109/tcsii.2020.2966527

16. JayaPrakash, V. and D. Chandu, "Self-triplexing HMSIW antenna with enhanced isolation and extremely low frequency ratio," AEU --- International Journal of Electronics and Communications, Vol. 170, 154829, 2023.
doi:10.1016/j.aeue.2023.154829

17. Priya, Shruti and Santanu Dwari, "A compact self-triplexing antenna using HMSIW cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 5, 861-865, 2020.
doi:10.1109/lawp.2020.2982533

18. Nigam, Padmini, Rahul Agarwal, Arjuna Muduli, Sandeep Sharma, and Amrindra Pal, "Substrate integrated waveguide based cavity-backed self-triplexing slot antenna for X-ku band applications," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 4, e22172, 2020.
doi:10.1002/mmce.22172

19. Kumar, Arvind, Divya Chaturvedi, and Singaravelu Raghavan, "Low‐profile substrate integrated waveguide (SIW) cavity‐backed self‐triplexed slot antenna," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 29, No. 3, e21606, 2019.
doi:10.1002/mmce.21606

20. Barik, Rusan Kumar and Slawomir Koziel, "Highly miniaturized self-quadruplexing antenna based on substrate-integrated rectangular cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 3, 482-486, 2023.
doi:10.1109/lawp.2022.3216305

21. Kumar, Arvind, "Design of self-quadruplexing antenna using substrate-integrated waveguide technique," Microwave and Optical Technology Letters, Vol. 61, No. 12, 2687-2689, 2019.
doi:10.1002/mop.31952

22. Pullarao, Matta Venkata, Singam Aruna, and Kethavathu Srinivasa Naik, "Highly isolated and miniaturized SIW based self-quadplexing antenna with modified CSRR-inspired slots for S-band wireless applications," Progress In Electromagnetics Research M, Vol. 131, 9-17, 2025.
doi:10.2528/pierm24112401

23. Subani, Shaik Mahaboob, Satya Nagakishore Bhavanam, Vasujadevi Midasala, and Mallarapu Gopi Krishna, "Highly isolated self-quadplexing antenna based on quarter-mode substrate integrated waveguide cavity," Progress In Electromagnetics Research C, Vol. 158, 37-45, 2025.
doi:10.2528/PIERC25042809

24. Singh, Abhay Kumar and Paras, "Compact self-quadruplexing antenna based on SIW cavity-backed with enhanced isolation," Progress In Electromagnetics Research C, Vol. 110, 243-252, 2021.
doi:10.2528/PIERC21020106

25. Priya, Shruti, Santanu Dwari, Kundan Kumar, and Mrinal Kanti Mandal, "Compact self-quadruplexing SIW cavity-backed slot antenna," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 10, 6656-6660, 2019.
doi:10.1109/tap.2019.2925124

26. Naseri, Hassan, Peyman PourMohammadi, Amjad Iqbal, Ahmed A. Kishk, and Tayeb A. Denidni, "SIW-based self-quadruplexing antenna for microwave and mm-Wave frequencies," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 7, 1482-1486, 2022.
doi:10.1109/lawp.2022.3172007

27. Nigam, Padmini and Venkatesh Shenoy, "Self-quadplexing slot antenna for S-and C-band applications," Telecommunications and Radio Engineering, Vol. 82, No. 2, 17-30, 2023.
doi:10.1615/TelecomRadEng.2022037135

28. Kumar, Kundan, Shruti Priya, Santanu Dwari, and Mrinal Kanti Mandal, "Self-quadruplexing circularly polarized SIW cavity-backed slot antennas," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 8, 6419-6423, 2020.
doi:10.1109/tap.2020.2970101

29. Dash, Sounik Kiran Kumar, Qingsha S. Cheng, and Rusan Kumar Barik, "A compact substrate integrated waveguide backed self‐quadruplexing antenna for C‐band communication," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 10, e22366, 2020.
doi:10.1002/mmce.22366

30. Chaturvedi, Divya and Singaravelu Raghavan, "Compact QMSIW based antennas for WLAN/WBAN applications," Progress In Electromagnetics Research C, Vol. 82, 145-153, 2018.
doi:10.2528/pierc18012003

31. Barik, Rusan Kumar and Slawomir Koziel, "Microfluidically frequency-reconfigurable self-quadruplexing antenna based on substrate integrated square-cavity," AEU --- International Journal of Electronics and Communications, Vol. 175, 155082, 2024.
doi:10.1016/j.aeue.2023.155082
