Abstract

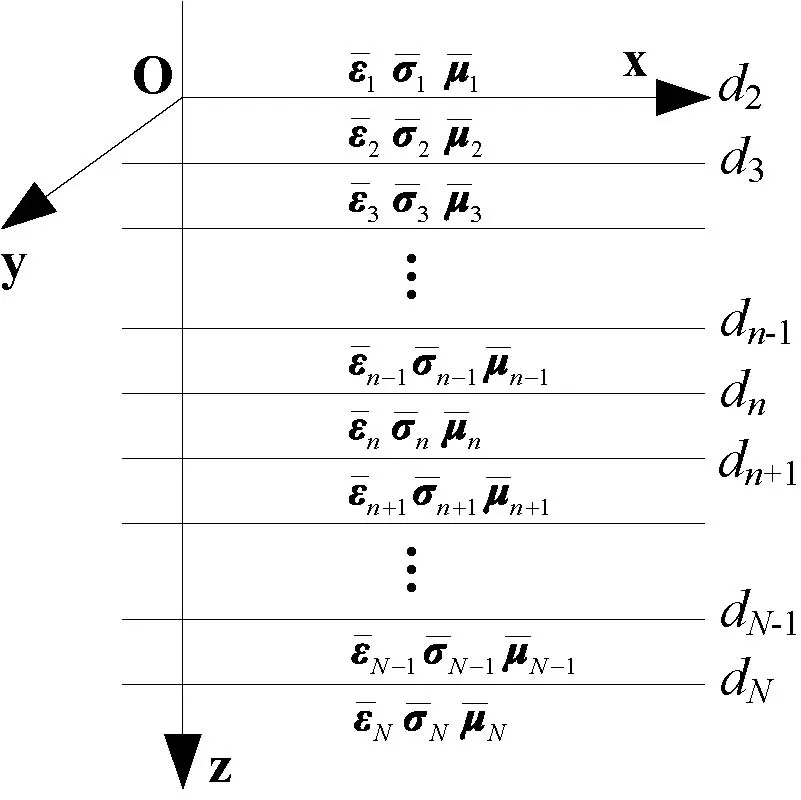

In this paper, a semi-analytical method for the calculation of electromagnetic(EM) fields in horizontal multilayered media(HMLM) with full anisotropy is presented. First, the governing equation was obtained by plane wave decomposition to Maxwell's equations, and the EM fields in the wavenumber domain (WD) were solved by means of eigensystems. Subsequently, a more intuitive derivation of the spectral-domain propagation matrix method based on existing literature was employed for calculating WD's EM fields in the HMLM. Finally, the EM fields in the spatial domain (SD) were obtained by 2-D inverse Fourier transform. To accelerate the evaluation of SD's EM fields, 2-D infinite integrals were transformed into semi-infinite integrals including sine(cosine) functions by Euler's formula, and fast sine(cosine) transforms based on digital filters were introduced. It has been shown that the proposed semi-analytical method can be effectively used to calculate the EM fields in HMLM with full anisotropy through comparison with the existing numerical algorithm.

1. Kong, J. A., Electromagnetic Wave Theory, Wiley, New York, 1990.

2. Chen, Zhi Ning and Xianming Qing, Substrate-Integrated Millimeter-Wave Antennas for Next-Generation Communication and Radar Systems, John Wiley & Sons, 2021.

3. Tsang, Leung, Jin Au Kong, and Kung-Hau Ding, Scattering of Electromagnetic Waves: Theories and Applications, John Wiley & Sons, 2000.
doi:10.1002/0471224286

4. Zhdanov, Michael S., Foundations of Geophysical Electromagnetic Theory and Methods, Vol. 43, Elsevier, 2017.

5. Chew, Weng Cho, Waves and Fields in Inhomogenous Media, IEEE Press, 1995.
doi:10.1109/9780470547052

6. Chew, W. C., E. Michielssen, J. M. Song, and J. M. Jin, Fast and Efficient Algorithms in Computational Electromagnetics, Artech House, 2001.

7. Wannamaker, Philip E., Gerald W. Hohmann, and William A. SanFilipo, "Electromagnetic modeling of three-dimensional bodies in layered earths using integral equations," Geophysics, Vol. 49, No. 1, 60-74, 1984.
doi:10.1190/1.1441562 Google Scholar

8. Graham, Jennifer W. and Jay Kyoon Lee, "Reflection and transmission from biaxially anisotropic-isotropic interfaces," Progress In Electromagnetics Research, Vol. 136, 681-702, 2013.
doi:10.2528/pier12110808 Google Scholar

9. Eroglu, Abdullah, Yun Hee Lee, and Jay Kyoon Lee, "Wave propagation and fresnel coefficients for three layered uniaxially anisotropic media with arbitrarily oriented optic axes," Progress In Electromagnetics Research B, Vol. 47, 63-86, 2013.
doi:10.2528/pierb12101913 Google Scholar

10. Cui, Tie Jun, W. Wiesbeck, and A. Herschlein, "Electromagnetic scattering by multiple three-dimensional scatterers buried under multilayered media. I. Theory," IEEE Transactions on Geoscience and Remote Sensing, Vol. 36, No. 2, 526-534, 1998.
doi:10.1109/36.662735 Google Scholar

11. Han, Feng, Jianliang Zhuo, Na Liu, Yanhui Liu, Hai Liu, and Qing Huo Liu, "Fast solution of electromagnetic scattering for 3-D inhomogeneous anisotropic objects embedded in layered uniaxial media by the BCGS-FFT method," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 3, 1748-1759, 2019.
doi:10.1109/tap.2018.2883682 Google Scholar

12. Chen, Gui Bo, Ye Zhang, and Jun Lu, "Contraction integral equation for modeling of EM scattering by 3-D bodies buried in multilayered anisotropic medium," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 2, 962-970, 2021.
doi:10.1109/tap.2020.3026903 Google Scholar

13. Lin, Zhu Hong, Zhiyi Gao, Qi Hang Wang, and Yan Li, "Analysis of radiation field excited by a vertical electric dipole in a four-layered region," Progress In Electromagnetics Research M, Vol. 95, 35-44, 2020.
doi:10.2528/pierm20051902 Google Scholar

14. Okhmatovski, Vladimir and Shucheng Zheng, Theory and Computation of Electromagnetic Fields in Layered Media, John Wiley & Sons, 2024.
doi:10.1002/9781119763222

15. Kong, J. A., "Electromagnetic fields due to dipole antennas over stratified anisotropic media," Geophysics, Vol. 37, No. 6, 985-996, 1972.
doi:10.1190/1.1440321 Google Scholar

16. Michalski, K. A. and J. R. Mosig, "Multilayered media Green's functions in integral equation formulations," IEEE Transactions on Antennas and Propagation, Vol. 45, No. 3, 508-519, 1997.
doi:10.1109/8.558666 Google Scholar

17. Li, Xiaobo and Laust B. Pedersen, "The electromagnetic response of an azimuthally anisotropic half-space," Geophysics, Vol. 56, No. 9, 1462-1473, 1991.
doi:10.1190/1.1443166 Google Scholar

18. Li, Xiaobo and Laust B. Pedersen, "Controlled-source tensor magnetotelluric responses of a layered earth with azimuthal anisotropy," Geophysical Journal International, Vol. 111, No. 1, 91-103, 1992.
doi:10.1111/j.1365-246x.1992.tb00557.x Google Scholar

19. Li, Na, Decheng Hong, Wei Han, and Qing Huo Liu, "An analytic algorithm for electromagnetic field in planar-stratified biaxial anisotropic formation," IEEE Transactions on Geoscience and Remote Sensing, Vol. 58, No. 3, 1644-1653, 2020.
doi:10.1109/tgrs.2019.2947279 Google Scholar

20. Huang, Ying and Jay Kyoon Lee, "Dyadic Green's functions for unbounded and two-layered general anisotropic media," Progress In Electromagnetics Research B, Vol. 30, 27-46, 2011.
doi:10.2528/pierb11031306 Google Scholar

21. Yin, C. and H.-M. Maurer, "Electromagnetic induction in a layered earth with arbitrary anisotropy," Geophysics, Vol. 66, No. 5, 1405-1416, 2001.
doi:10.1190/1.1487086 Google Scholar

22. Løseth, L. O. and B. Ursin, "Electromagnetic fields in planarly layered anisotropic media," Geophysical Journal International, Vol. 170, No. 1, 44-80, 2007.
doi:10.1111/j.1365-246x.2007.03390.x Google Scholar

23. Hu, Yunyun, Yuan Fang, Dezhi Wang, Yu Zhong, and Qing Huo Liu, "Electromagnetic waves in multilayered generalized anisotropic media," IEEE Transactions on Geoscience and Remote Sensing, Vol. 56, No. 10, 5758-5766, 2018.
doi:10.1109/tgrs.2018.2825430 Google Scholar

24. Zeng, Shubin, Jiefu Chen, and Xufei Hu, "Electromagnetic fields of dipole sources in multilayered arbitrary anisotropic formation," 2020 IEEE USNC-CNC-URSI North American Radio Science Meeting (Joint with AP-S Symposium), 145-146, Montreal, QC, Canada, 2020.
doi:10.23919/USNC/URSI49741.2020.9321686

25. Penninck, Lieven, Patrick De Visschere, Jeroen Beeckman, and Kristiaan Neyts, "Dipole radiation within one-dimensional anisotropic microcavities: A simulation method," Optics Express, Vol. 19, No. 19, 18558-18576, 2011.
doi:10.1364/oe.19.018558 Google Scholar

26. James, J. F., A Student's Guide to Fourier Transforms: With Applications in Physics and Engineering, Cambridge University Press, 2011.

27. Meyer, Carl D., Matrix Analysis and Applied Linear Algebra, Society for Industrial and Applied Mathematics, Philadelphia, 2000.

28. Kurosh, A., Higher Algebra, MIR Publishers, Moscow, 1980.

29. Anderson, Walter L., "A hybrid fast hankel transform algorithm for electromagnetic modeling," Geophysics, Vol. 54, No. 2, 263-266, 1989.
doi:10.1190/1.1442650 Google Scholar

30. Dahlquist, G., Numerical Methods in Scientific Computing: Volume 1, Philadelphia: Society for Industrial and Applied Mathematics, 2008.
doi:10.1137/1.9780898717785

31. Zhang, Ye, Hong-Nian Wang, Hong-Gen Tao, and Shou-Wen Yang, "Finite volume algorithm to simulate 3D responses of multi-component induction tools in inhomogeneous anisotropic formation based on coupled scalar-vector potentials," Chinese Journal of Geophysics, Vol. 55, No. 6, 2141-2152, 2012.
doi:10.6038/j.issn.0001-5733.2012.06.036 Google Scholar

Prof. Guibo Chen

Dr. Ye Zhang
