Experimental Validation of the UHF RFID Dipole Tag Antenna Applied in the Supply Chain
By
Progress In Electromagnetics Research C, Vol. 163, 252-262, 2026
Abstract

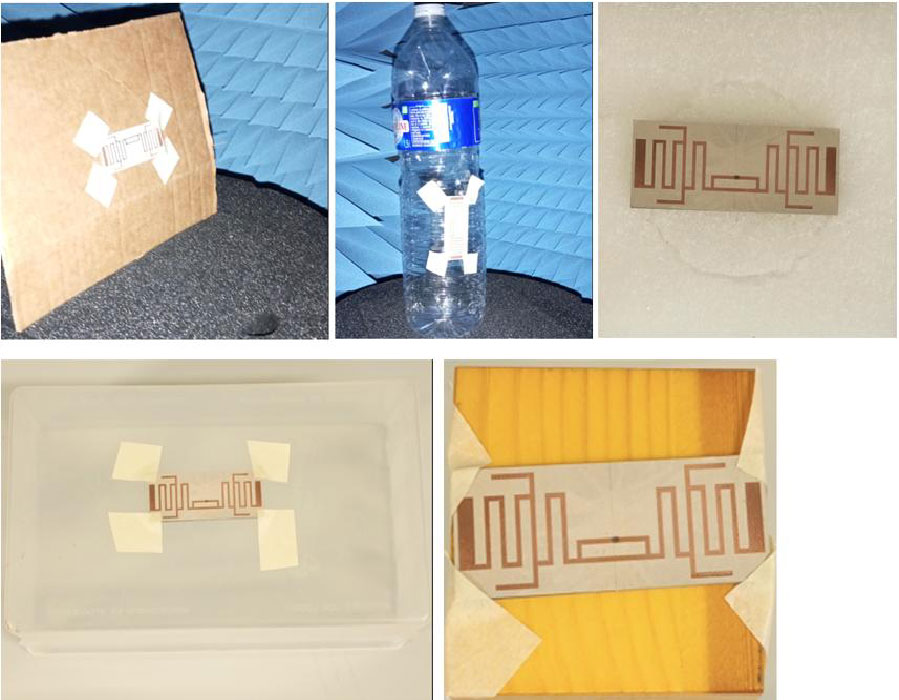

This paper presents a passive UHF RFID dipole antenna designed for object identification in supply chain applications. The antenna features a simple structure measuring 75 × 28 × 1.6 mm3 (2.17 × 0.81 × 0.046λ0), with a copper radiating element printed on Taconic RF-35A2 substrate. It is matched to a Monza R6 chip with an impedance of 13 - j125 Ω at 868 MHz through a T-matching circuit. The prototype was tested on various complex surfaces, including plastic bottles, foam, cardboard, plastic boxes, and wood. Its performance evaluation involved measuring the reading distances in these environments. Simulation and measurement results demonstrate effective impedance matching between the antenna and chip. The read distances vary with the surface type, with the maximum distance reaching up to 14 meters on a plastic bottle within the European UHF RFID band ((865.5-869.5) MHz) and the shortest distance around 6 meters on wood. Overall, the tag exhibits strong adaptability to different surfaces. Simulations were conducted using CST Studio microwave software.
Citation
Pape Waly Sarr, Aminata Diop, Arnaud Vena, and Ibra Dioum, "Experimental Validation of the UHF RFID Dipole Tag Antenna Applied in the Supply Chain," Progress In Electromagnetics Research C, Vol. 163, 252-262, 2026.
doi:10.2528/PIERC25082204
References

1. Sharif, Abu, Rajesh Kumar, Jun Ouyang, Hasan T. Abbas, Akram Alomainy, Kamran Arshad, Khaled Assaleh, Ayman Althuwayb, Muhammad Ali Imran, and Qammer H. Abbasi, "Making assembly line in supply chain robust and secure using UHF RFID," Scientific Reports, Vol. 11, No. 1, 18041, 2021.
doi:10.1038/s41598-021-97598-5

2. Sarr, Pape Waly, Ibra Dioum, and Aminata Diop, "Robust RFID antenna for tracking health products and water bottles," 2023 IEEE 13th International Conference on RFID Technology and Applications (RFID-TA), 119-122, Aveiro, Portugal, 2023.
doi:10.1109/RFID-TA58140.2023.10290648

3. Bouhassoune, Ibtissame, Hasna Chaibi, Abdellah Chehri, and Rachid Saadane, "UHF RFID spiral-loaded dipole tag antenna conception for healthcare applications," Procedia Computer Science, Vol. 192, 2531-2539, 2021.
doi:10.1016/j.procs.2021.09.022

4. Diallo, Aliou, Philippe Le Thuc, Stéphane Lanteri, and Georges F. Carle, "Antenne miniature implantée pour applications RFID UHF," 20èmes Journées Nationales Microondes (JNM 2017), 4, Saint-Malo, France, 2017.

5. Sharif, Abubakar, Yi Yan, Jun Ouyang, Hassan Tariq Chattha, Kamran Arshad, Khaled Assaleh, Abdullah Alhumaidi Alotabi, Turke Althobaiti, Naeem Ramzan, Qammer Hussain Abbasi, and Muhammad Ali Imran, "Uniform magnetic field characteristics based UHF RFID tag for internet of things applications," Electronics, Vol. 10, No. 13, 1603, 2021.
doi:10.3390/electronics10131603

6. Hussain, Muhammad, Yasar Amin, and Kyung-Geun Lee, "A compact and flexible UHF RFID tag antenna for massive IoT devices in 5G system," Sensors, Vol. 20, No. 19, 5713, 2020.
doi:10.3390/s20195713

7. Byondi, Franck Kimetya and Youchung Chung, "Longest-range UHF RFID sensor tag antenna for IoT applied for metal and non-metal objects," Sensors, Vol. 19, No. 24, 5460, 2019.
doi:10.3390/s19245460

8. Rao, K. V. S., "An overview of backscattered radio frequency identification system (RFID)," 1999 Asia Pacific Microwave Conference. APMC'99. Microwaves Enter the 21st Century. Conference Proceedings (Cat. No.99TH8473), Vol. 3, 746-749, Singapore, 1999.
doi:10.1109/APMC.1999.833700

9. Köny, Marcus, Marian Walter, Thomas Schlebusch, and Steffen Leonhardt, "An RFID communication system for medical applications," 2010 International Conference on Body Sensor Networks, 71-75, Singapore, 2010.
doi:10.1109/BSN.2010.20

10. Chawla, Vipul and Dong Sam Ha, "An overview of passive RFID," IEEE Communications Magazine, Vol. 45, No. 9, 11-17, 2007.
doi:10.1109/mcom.2007.4342873

11. Riaz, Mahreen, Grzegorz Rymar, Mohammad Ghavami, and Sandra Dudley, "A novel design of UHF RFID passive tag antenna targeting smart cards limited area," 2018 IEEE International Conference on Consumer Electronics (ICCE), 1-4, Las Vegas, NV, USA, 2018.
doi:10.1109/icce.2018.8326224

12. He, Sailing, Yiming Zhang, Laijun Li, Yuefeng Lu, Yuan Zhang, and Hui Liu, "High performance UHF RFID tag antennas on liquid-filled bottles," Progress In Electromagnetics Research, Vol. 165, 83-92, 2019.
doi:10.2528/pier19041001

13. Claucherty, Ethan, Danielle Cummins, Angelica Rossi, and Bahar Aliakbarian, "Effect of beverage composition on radio frequency identification (RFID) performance using polyethylene terephthalate (PET) bottles for smart food packaging applications," Foods, Vol. 13, No. 5, 643, 2024.
doi:10.3390/foods13050643

14. Bansal, Aarti, Surbhi Sharma, and Rajesh Khanna, "Platform tolerant dual‐band UHF‐RFID tag antenna with enhanced read range using artificial magnetic conductor structures," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 2, e22065, 2020.
doi:10.1002/mmce.22065

15. Bansal, Aarti, Surbhi Sharma, and Rajesh Khanna, "Compact meandered RFID tag antenna with high read range for UHF band applications," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 29, No. 11, e21695, 2019.
doi:10.1002/mmce.21695

16. Bansal, Aarti, Surbhi Sharma, and Rajesh Khanna, "Compact meandered folded-dipole RFID tag antenna for dual band operation in UHF range," Wireless Personal Communications, Vol. 114, No. 4, 3321-3336, 2020.
doi:10.1007/s11277-020-07530-9

17. Sarr, Pape Waly, Ibra Dioum, Aminata Diop, Demba Ba, Mamadou Mansour Khouma, and Ibrahima Gueye, "A new broadband compact meander dipole antenna for RFID applications," 2022 International Conference on Electrical, Computer and Energy Technologies (ICECET), 1-6, Prague, Czech Republic, 2022.
doi:10.1109/icecet55527.2022.9873009

18. Unhelkar, Bhuvan, Sudhanshu Joshi, Manu Sharma, Shiv Prakash, Ashwin Krishna Mani, and Mukesh Prasad, "Enhancing supply chain performance using RFID technology and decision support systems in the industry 4.0 –-- A systematic literature review," International Journal of Information Management Data Insights, Vol. 2, No. 2, 100084, 2022.
doi:10.1016/j.jjimei.2022.100084

19. Varriale, Vincenzo, Antonello Cammarano, Francesca Michelino, and Mauro Caputo, "Integrating blockchain, RFID and IoT within a cheese supply chain: A cost analysis," Journal of Industrial Information Integration, Vol. 34, 100486, 2023.
doi:10.1016/j.jii.2023.100486

20. Nayak, Rajkishore, Majo George, Irfan Ul Haq, and Hiep Cong Pham, "Sustainability benefits of RFID technology in Vietnamese fashion supply chain," Cleaner Logistics and Supply Chain, Vol. 5, 100086, 2022.
doi:10.1016/j.clscn.2022.100086

21. Xue, Fulin, Yiming Zhang, Junlong Li, and Hui Liu, "Circularly polarized cross-dipole antenna for UHF RFID readers applicated in the warehouse environment," IEEE Access, Vol. 11, 38657-38664, 2023.
doi:10.1109/access.2023.3253542

22. Kusuda, Kaori, Kazuhiko Yamashita, Emiko Morishita, Nao Ishibashi, Yoshito Shiraishi, and Hiromitsu Yamaguchi, "Comparison of reading times of RFID-tagged and barcode-engraved surgical instruments," Journal of Surgical Research, Vol. 304, 121-125, 2024.
doi:10.1016/j.jss.2024.09.087

23. Zannas, Konstantinos, Francesco P. Chietera, Abanob Abdelnour, Darine Kaddour, Riccardo Colella, Luca Catarinucci, Yvan Duroc, and Smail Tedjini, "Designing UHF RFID tag antennas with barcode shape for dual-technology identification," IET Microwaves, Antennas & Propagation, Vol. 16, No. 12, 733-742, 2022.
doi:10.1049/mia2.12269

24. Kubáňová, Jaroslava, Iveta Kubasáková, Kristián Čulík, and Lukáš Štítik, "Implementation of barcode technology to logistics processes of a company," Sustainability, Vol. 14, No. 2, 790, 2022.
doi:10.3390/su14020790

25. Suresh, Setti and Geetha Chakaravarthi, "RFID technology and its diverse applications: A brief exposition with a proposed Machine Learning approach," Measurement, Vol. 195, 111197, 2022.
doi:10.1016/j.measurement.2022.111197

26. Casula, Giovanni Andrea, Giorgio Montisci, and Giuseppe Mazzarella, "A wideband PET inkjet-printed antenna for UHF RFID," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 1400-1403, 2013.
doi:10.1109/lawp.2013.2287307

27. Griffin, Joshua D., Gregory D. Durgin, Andreas Haldi, and Bernard Kippelen, "Radio link budgets for 915 MHz RFID antennas placed on various objects," Texas Wireless Symposium, Vol. 44, 2005.

28. Bong, Fwee-Leong, Kunalen Thirappa, Eng-Hock Lim, and Kogulabalan Perumal, "Compact metal-mountable UHF RFID tag antenna with two large C-shaped slots for on-the-fly tuning," Progress In Electromagnetics Research M, Vol. 101, 173-183, 2021.
doi:10.2528/pierm21010102

29. Saghlatoon, Hossein, Lauri Sydänheimo, Leena Ukkonen, and Manos Tentzeris, "Optimization of inkjet printing of patch antennas on low-cost fibrous substrates," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 915-918, 2014.
doi:10.1109/lawp.2014.2322572

30. Zuffanelli, Simone, Pau Aguila, Gerard Zamora, Ferran Paredes, Ferran Martin, and Jordi Bonache, "A high-gain passive UHF-RFID tag with increased read range," Sensors, Vol. 16, No. 7, 1150, 2016.
doi:10.3390/s16071150

31. Marrocco, G., E. Di Giampaolo, and R. Aliberti, "Estimation of UHF RFID reading regions in real environments," IEEE Antennas and Propagation Magazine, Vol. 51, No. 6, 44-57, 2009.
doi:10.1109/map.2009.5433096
