Abstract

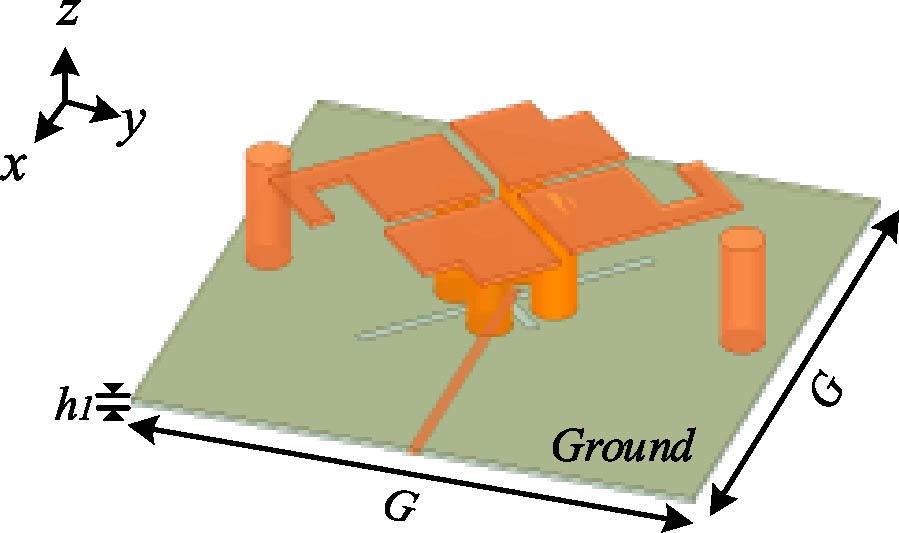

In this paper, a broadband circularly polarized (CP) magneto-electric (ME) dipole antenna based on microstrip line aperture-coupled feeding structure is proposed. The antenna is fed by the microstrip line, which is utilized to couple the energy to the antenna through the slot etched on the ground plane. Based on a linearly polarized (LP) ME dipole antenna, two centrosymmetric L-shaped strips are loaded to the patches located at the +45° diagonal position and the patches located at the -45° diagonal position are truncated. As a result, the current direction is changed to be parallel to the equivalent magnetic current to radiate CP wave. To improve the axial-ratio (AR) bandwidth of the antenna, the rectangular slot initially etched on the ground plane is modified to an asymmetric cross slot, which can generate a minimum AR point at high frequency. In this way, the AR bandwidth is increased from 32.4% to 51.7%. On this basis, to further extend the AR bandwidth, the metal columns are introduced at both ends of the antenna, and another additional AR minimum point is generated at the low frequency. The measured results indicate that the impedance bandwidth (|S₁₁| ≤ -10 dB) is 57% (2.40-4.33 GHz) and the 3 dB AR bandwidth is 63% (2.39-4.57 GHz). Moreover, the proposed antenna exhibits flat gain and stable unidirectional radiation pattern across the operational frequency region.

1. Midya, Manas, Shankar Bhattacharjee, and Monojit Mitra, "Compact CPW-fed circularly polarized antenna for WLAN application," Progress In Electromagnetics Research M, Vol. 67, 65-73, 2018.
doi:10.2528/pierm18021505 Google Scholar

2. Santosa, Cahya Edi, Josaphat Tetuko Sri Sumantyo, Chua Ming Yam, Katia Urata, Koichi Ito, and Steven Gao, "Subarray design for C-band circularly-polarized synthetic aperture radar antenna onboard airborne," Progress In Electromagnetics Research, Vol. 163, 107-117, 2018.
doi:10.2528/pier18060602 Google Scholar

3. Li, Chao, Fu-Shun Zhang, Fan Zhang, and Kaiwen Yang, "A wideband circularly polarized antenna with wide beamwidth for GNSS applications," Progress In Electromagnetics Research C, Vol. 84, 189-200, 2018.
doi:10.2528/pierc18041206 Google Scholar

4. Cheng, Yang and Yuandan Dong, "Wideband circularly polarized split patch antenna loaded with suspended rods," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 2, 229-233, 2021.
doi:10.1109/lawp.2020.3045988 Google Scholar

5. Jiang, Haoyue, Ningning Yan, Kaixue Ma, and Yongqiang Wang, "A wideband circularly polarized dielectric patch antenna with a modified air cavity for Wi-Fi 6 and Wi-Fi 6E applications," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 1, 213-217, 2023.
doi:10.1109/lawp.2022.3201077 Google Scholar

6. Lu, Wen-Ying, Xiao Ding, and Wei Shao, "Low-profile wide axial-ratio beamwidth circularly polarized antenna with simple feed," Progress In Electromagnetics Research C, Vol. 152, 163-170, 2025.
doi:10.2528/pierc24121802 Google Scholar

7. Wang, Zhuopeng, Xin Zhang, Haoyu Fang, Ao Ni, and Yanhui Cheng, "Broadband circularly polarized crossed dipole antenna loaded with magneto-electric dipole," Progress In Electromagnetics Research C, Vol. 152, 25-32, 2025.
doi:10.2528/pierc24101801 Google Scholar

8. Wang, Jixing, Yao Zhang, Longfang Ye, and Qing Huo Liu, "A wideband circularly polarized filtering antenna based on slot-patch structure," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 8, 1858-1862, 2023.
doi:10.1109/lawp.2023.3267053 Google Scholar

9. Chen, Rui-Sen, Guan-Long Huang, Sai-Wai Wong, Mustafa K. Taher Al-Nuaimi, Kam-Weng Tam, and Wai-Wa Choi, "Bandwidth-enhanced circularly polarized slot antenna and array under two pairs of degenerate modes in a single resonant cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 2, 288-292, 2023.
doi:10.1109/lawp.2022.3209494 Google Scholar

10. Wang, Lei, Wen-Xiao Fang, Yun-Fei En, Yun Huang, Wei-Heng Shao, and Bin Yao, "Wideband circularly polarized cross-dipole antenna with parasitic elements," IEEE Access, Vol. 7, 35097-35102, 2019.
doi:10.1109/access.2019.2904658 Google Scholar

11. Tan, Qingquan, Kuikui Fan, Weiliang Yu, Leilei Liu, and Guo Qing Luo, "A circularly polarized strip dipole antenna array with working bandwidth above 40% for wireless and satellite communications," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 1, 9-13, 2024.
doi:10.1109/lawp.2023.3314440 Google Scholar

12. Wu, Duo-Long, Jianwei Pan, Liang Hua Ye, Jian-Feng Li, Fan Jiang, Xinxin Tian, Rui Li, and Zhenxin Hu, "A broadband circularly polarized dipole antenna with high 1 dB gain flatness," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 6, 1784-1788, 2024.
doi:10.1109/lawp.2024.3369760 Google Scholar

13. Luk, Kwai-Man and Hang Wong, "A new wideband unidirectional antenna element," International Journal of Microwave and Optical Technology, Vol. 1, No. 1, 35-44, 2006. Google Scholar

14. Xu, Yanhong, Kwai-Man Luk, Ao Li, and Jie Sun, "A novel compact magneto-electric dipole antenna for millimeter-wave beam steering applications," IEEE Transactions on Vehicular Technology, Vol. 70, No. 11, 11772-11783, 2021.
doi:10.1109/tvt.2021.3114217 Google Scholar

15. Zhou, Mengli, Yanhong Xu, Anyi Wang, and Jianqiang Hou, "A wideband magnetoelectric dipole antenna for 4G/5G communication," Microwave and Optical Technology Letters, Vol. 65, No. 11, 2941-2946, 2023.
doi:10.1002/mop.33805 Google Scholar

16. Xu, Yanhong, Minling Wang, Xiaochao Yang, Can Cui, Xuhui Fan, Tingting Bai, and Jianqiang Hou, "A wideband high-isolated dual-polarized magnetoelectric dipole antenna for 4G/5G communications," Progress In Electromagnetics Research Letters, Vol. 122, 53-58, 2024.
doi:10.2528/pierl24071004 Google Scholar

17. Li, Yujian and Kwai-Man Luk, "A 60-GHz wideband circularly polarized aperture-coupled magneto-electric dipole antenna array," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 4, 1325-1333, 2016.
doi:10.1109/tap.2016.2537390 Google Scholar

18. Tan, Qingquan, Kuikui Fan, Weiliang Yu, Yufeng Yu, and Guo Qing Luo, "A broadband circularly polarized planar antenna array using magneto-electric dipole element with bent strips for Ka-band applications," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 1, 39-43, 2023.
doi:10.1109/lawp.2022.3201271 Google Scholar

19. Feng, Botao, Liangying Li, Kwok L. Chung, and Yansheng Li, "Wideband widebeam dual circularly polarized magnetoelectric dipole antenna/array with meta-columns loading for 5G and beyond," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 1, 219-228, 2021.
doi:10.1109/tap.2020.3008632 Google Scholar

20. Cui, Xuewu, Feng Yang, and Min Gao, "Wideband CP magnetoelectric dipole antenna with microstrip line aperture-coupled excitation," Electronics Letters, Vol. 54, No. 14, 863-864, 2018.
doi:10.1049/el.2018.1046 Google Scholar

21. Li, Mingjian and Kwai-Man Luk, "A wideband circularly polarized antenna for microwave and millimeter-wave applications," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 4, 1872-1879, 2014.
doi:10.1109/tap.2014.2298246 Google Scholar

22. Sun, Jie and Kwai-Man Luk, "Wideband linearly-polarized and circularly-polarized aperture-coupled magneto-electric dipole antennas fed by microstrip line with electromagnetic bandgap surface," IEEE Access, Vol. 7, 43084-43091, 2019.
doi:10.1109/access.2019.2907723 Google Scholar

23. Tan, Qingquan, Kuikui Fan, Weiliang Yu, WenLei Wang, Leilei Liu, and Guo Qing Luo, "A circularly polarized magneto-electric dipole antenna array with wide AR and impedance bandwidth for millimeter-wave applications," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 9, 2250-2254, 2023.
doi:10.1109/lawp.2023.3283013 Google Scholar

24. Tian, Yingzhou, Jun Ouyang, Peng Fei Hu, and Yongmei Pan, "Millimeter-wave wideband circularly polarized endfire planar magneto-electric dipole antenna based on substrate integrated waveguide," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 1, 49-53, 2022.
doi:10.1109/lawp.2021.3117311 Google Scholar

25. Yang, Xue-Xia, Houtong Qiu, Tian Lou, Zixuan Yi, Qi-Dong Cao, and Steven Gao, "Circularly polarized millimeter wave frequency beam scanning antenna based on aperture-coupled magneto-electric dipole," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 9, 7603-7611, 2022.
doi:10.1109/tap.2022.3191983 Google Scholar

26. Ding, Kang, Yujian Li, and Yanjie Wu, "Broadband circularly polarized magnetoelectric dipole antenna by loading parasitic loop," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 11, 11085-11090, 2022.
doi:10.1109/tap.2022.3188360 Google Scholar
