2025-11-01
A Wideband Circularly Polarized Textile-Based Microstrip Antenna for Wearable Wireless Applications
By
Progress In Electromagnetics Research C, Vol. 161, 135-141, 2025
Abstract

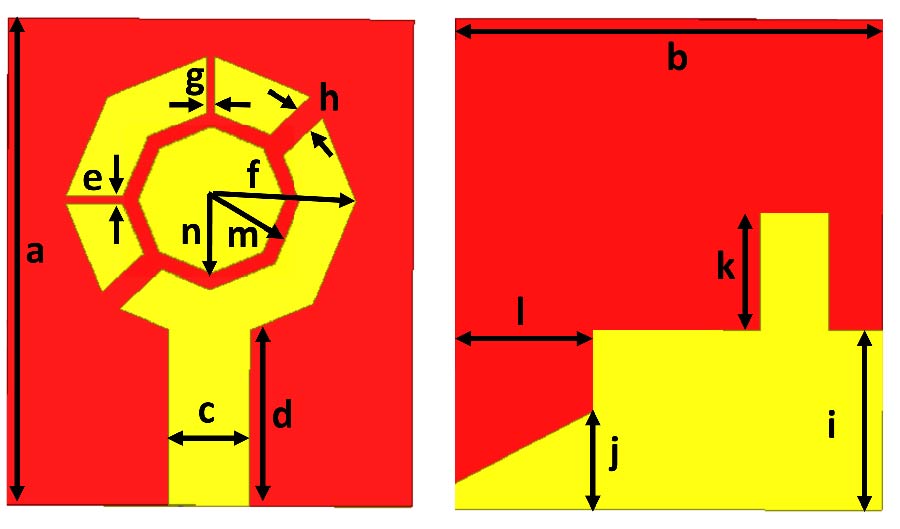

This paper presents the design, fabrication, and analysis of a wideband circularly polarized wearable antenna operating in the frequency range of 2.6 GHz to 4.7 GHz. The antenna is designed on a jeans substrate with dimensions of 25 × 30 × 1.4 mm3, having a dielectric constant of 1.7 and a loss tangent of 0.085. The proposed antenna demonstrates a gain of 2.8-3.4 dB across the operating frequency band and exhibits circular polarization in the frequency range of 3.2 GHz to 3.9 GHz. To achieve wideband performance and circular polarization, the antenna design incorporates an octagonal ring patch with a hybrid slot and stub in the partial ground plane, along with four slots in the ring patch. The antenna is fabricated and its performance is validated through Vector Network Analyzer and anechoic chamber measurements, showing good correlation with simulated results. Specific Absorption Rate (SAR) analysis and on-body simulations are conducted to evaluate its suitability for wearable applications.
Citation
Sekhar Manepalli, Lalitha Bhavani Konkyana, Sanapala Umamaheswararao, Vysyaraju Lokesh Raju, Chaitanya Kumar Marpu, and Kotni Krishnam Raju, "A Wideband Circularly Polarized Textile-Based Microstrip Antenna for Wearable Wireless Applications," Progress In Electromagnetics Research C, Vol. 161, 135-141, 2025.
doi:10.2528/PIERC25091602
References

1. Chaudhary, Sameeksha, Anirudh Agarwal, Deepak Mishra, and Santosh Shah, "A review on Green communication for wearable and implantable wireless body area networks," Computer Networks, Vol. 252, 110693, 2024.
doi:10.1016/j.comnet.2024.110693

2. Singh, Sunaina, Ranjan Mishra, Ankush Kapoor, and Soni Singh, "A comprehensive review and analysis of the design aspects, structure, and applications of flexible wearable antennas," Telecom, Vol. 6, No. 1, 3, 2025.
doi:10.3390/telecom6010003

3. Karthikeyan, T. A., M. Nesasudha, S. Saranya, and B. Sharmila, "A review on fabrication and simulation methods of flexible wearable antenna for industrial tumor detection systems," Journal of Industrial Information Integration, Vol. 41, 100673, 2024.
doi:10.1016/j.jii.2024.100673

4. Douhi, Saïd, Abdelkrim Boumegnane, Nabil Chakhchaoui, Adil Eddiai, Omar Cherkaoui, and M'hammed Mazroui, "A wideband flexible antenna utilizing PMMA/PVDF-HFP/PZT polymer composite film and silver-based conductive ink for wearable applications," Polymers for Advanced Technologies, Vol. 35, No. 9, e6575, 2024.
doi:10.1002/pat.6575

5. Baudh, Rishabh Kumar, Sonal Sahu, Manoj Singh Parihar, and V. Dinesh Kumar, "A wideband circularly polarized all textile on body antenna for defense applications," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 71, No. 2, 567-571, Feb. 2024.
doi:10.1109/tcsii.2023.3308213

6. Baudh, Rishabh Kumar, Mahendra Kumar, Sonal Sahu, Manoj Singh Parihar, and Dinesh Kumar, "A low-profile, wideband, circularly polarized, slotted, U-shaped textile antenna for W-BAN applications," ETRI Journal, Vol. 47, No. 4, 579-589, 2025.
doi:10.4218/etrij.2024-0081

7. Baudh, Rishabh Kumar, Sonal Sahu, Manoj Singh Parihar, et al., "A compact wideband low-profile all textile on/off body antenna for satcom and defense applications," International Journal of Communication Systems, Vol. 37, No. 17, e5933, 2024.
doi:10.1002/dac.5933

8. Varma, D. Ramesh, M. Murali, M. Vamshi Krishna, and G. S. N. Raju, "Miniaturized novel textile antenna for biomedical applications," 2023 2nd International Conference on Paradigm Shifts in Communications Embedded Systems, Machine Learning and Signal Processing (PCEMS), 1-6, Nagpur, India, 2023.
doi:10.1109/pcems58491.2023.10136066

9. Marterer, Verena, Michaela Radouchová, Radek Soukup, Susanne Hipp, and Tomáš Blecha, "Wearable textile antennas: Investigation on material variants, fabrication methods, design and application," Fashion and Textiles, Vol. 11, No. 1, 9, 2024.
doi:10.1186/s40691-023-00369-1

10. Abdulla, Fawzia Abdien Ali and Aşkin Demirkol, "A novel textile-based UWB patch antenna for breast cancer imaging," Physical and Engineering Sciences in Medicine, Vol. 47, No. 3, 851-861, 2024.
doi:10.1007/s13246-024-01409-w

11. Ibrahim, Nur Fatihah, Philip Ayiku Dzabletey, Hyoungsoo Kim, and Jae-Young Chung, "An all-textile dual-band antenna for BLE and LoRa wireless communications," Electronics, Vol. 10, No. 23, 2967, 2021.
doi:10.3390/electronics10232967

12. Parameswari, S. and C. Chitra, "Textile UWB antenna with metamaterial for healthcare monitoring," International Journal of Antennas and Propagation, Vol. 2021, No. 1, 5855626, 2021.
doi:10.1155/2021/5855626

13. Kareem, Farah R., Mohamed El Atrash, Ahmed A. Ibrahim, and Mahmoud A. Abdalla, "Dual-band all textile antenna with AMC for heartbeat monitor and pacemaker control applications," International Journal of Microwave and Wireless Technologies, Vol. 14, No. 9, 1206-1221, 2022.
doi:10.1017/s1759078721001604

14. Venkatachalam, Dinesh, Vijayalakshmi Jagadeesan, Kamal Batcha Mohamed Ismail, Manoharan Arun Kumar, Shanmugam Mahalingam, and Junghwan Kim, "Compact flexible planar antennas for biomedical applications: Insight into materials and systems design," Bioengineering, Vol. 10, No. 10, 1137, 2023.
doi:10.3390/bioengineering10101137

15. Sakulchat, Suwat, Amnoiy Ruengwaree, Voranuch Thongpool, and Watcharaphon Naktong, "Low-cost flexible graphite monopole patch antenna for wireless communication applications," Computers, Materials & Continua, Vol. 71, No. 3, 6069-6088, 2022.
doi:10.32604/cmc.2022.024050

16. Singh, Saurabh and Sudhanshu Verma, "SAR reduction and gain enhancement of compact wideband stub loaded monopole antenna backed with electromagnetic band gap array," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 31, No. 10, e22813, 2021.
doi:10.1002/mmce.22813

17. Yadav, Ashok, Pramod Singh, Ramesh Kumar Verma, and Vinod Kumar Singh, "Design and comparative analysis of circuit theory model-based slot-loaded printed rectangular monopole antenna for UWB applications with notch band," International Journal of Communication Systems, Vol. 36, No. 3, e5390, 2023.
doi:10.1002/dac.5390

18. Jabbar, Abdul, Muhammad Zubair, Muhammad Ashar Naveed, Muhammad Qasim Mehmood, and Yehia Massoud, "A photopaper-based low-cost, wideband wearable antenna for wireless body area network applications," IET Microwaves, Antennas & Propagation, Vol. 16, No. 15, 962-970, 2022.
doi:10.1049/mia2.12313
