Compact and Broadband CPW-to-RWG Transition Using 180° Phase Shifter

Yueh-Hsien Cheng,

Dr. Yueh-Hsien Cheng

National Taiwan University of Science and Technology

Taiwan

Homepage

Chun-Long Wang

Prof. Chun-Long Wang

Department of Electronic and Computer Engineering

National Taiwan University of Science and Technology

Taiwan

Homepage

Progress In Electromagnetics Research C, Vol. 164, 51-57, 2026

doi:10.2528/PIERC25092403 | Google Scholar

Abstract

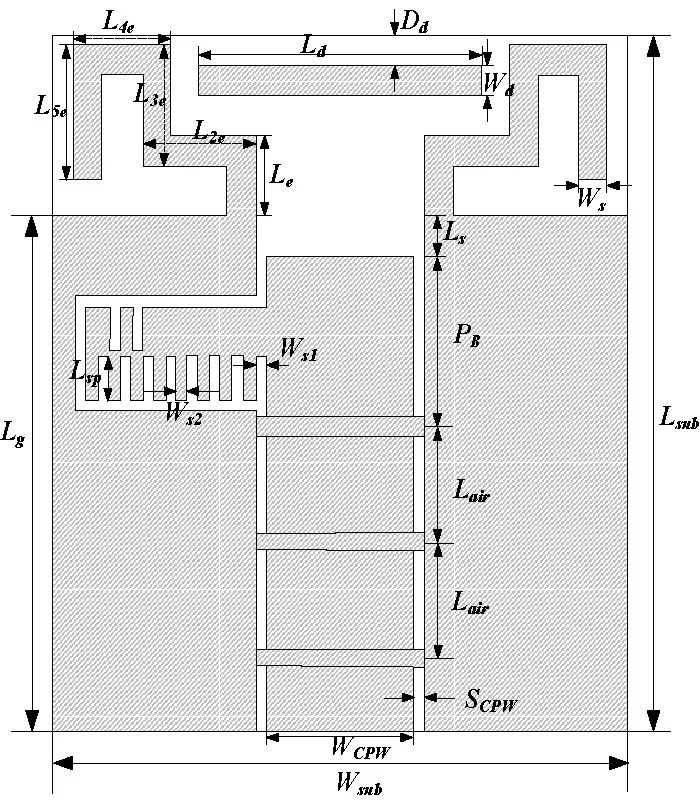

In this paper, a compact and broadband 50-Ω coplanar waveguide-to-rectangular waveguide (CPW-to-RWG) transition using a 180° phase shifter and a meandered dipole is proposed. The frequency range, for which the reflection coefficient is smaller than -15 dB, covers the whole X-band (8.2~12.4 GHz). In addition to the broadband performance, the transition occupies a small length of 7.37 mm. Furthermore, the characteristic impedance of the coplanar waveguide is 50 Ω, which conforms to the commonly used 50 Ω impedance of radio frequency systems. To further reduce the circuit size, a compact and broadband 50-Ω CPW-to-RWG transition using an inductance-compensated 180° phase shifter and a meandered dipole is proposed. The frequency range, for which the reflection coefficient is smaller than -15 dB, also covers the whole X-band (8.2~12.4 GHz). Besides, the transition size is reduced from 7.37 mm to 6.55 mm, which is smaller than a quarter-wavelength. Furthermore, the characteristic impedance of the coplanar waveguide is of the nominal value of 50 Ω.

Download Full Article (66) View Full Article volume

Citation

Copy Export

Yueh-Hsien Cheng, and Chun-Long Wang, "Compact and Broadband CPW-to-RWG Transition Using 180° Phase Shifter," Progress In Electromagnetics Research C, Vol. 164, 51-57, 2026.
doi:10.2528/PIERC25092403

References

1. Ponchak, G. E. and R. N. Simons, "A new rectangular waveguide to coplanar waveguide transition," IEEE International Digest on Microwave Symposium, Vol. 1, 491-492, Dallas, TX, USA, 1990.
doi:10.1109/MWSYM.1990.99626

2. Shireen, Rownak, Shouyuan Shi, Peng Yao, Christopher A. Schuetz, Julien Macario, and Dennis W. Prather, "CPW to rectangular waveguide transition on an LiNbO substrate," IEEE Transactions on Microwave Theory and Techniques, Vol. 57, No. 6, 1494-1499, Jun. 2009.
doi:10.1109/TMTT.2009.2020673 Google Scholar

3. Fang, Ruei-Ying, Cheng-Tze Wang, and Chun-Long Wang, "A direct CPW-to-rectangular waveguide transition using a dipole slot antenna," 2009 European Microwave Conference (EuMC), 157-160, Rome, Italy, 2009.
doi:10.23919/EUMC.2009.5296536

4. Dong, Yunfeng, Tom K. Johansen, Vitaliy Zhurbenko, and Peter Jesper Hanberg, "Rectangular waveguide-to-coplanar waveguide transitions at U-band using E-plane probe and wire bonding," 2016 46th European Microwave Conference (EuMC), 5-8, London, UK, 2016.
doi:10.1109/EuMC.2016.7824263

5. Mottonen, V. S., "Wideband coplanar waveguide-to-rectangular waveguide transition using fin-line taper," IEEE Microwave and Wireless Components Letters, Vol. 15, No. 2, 119-121, Feb. 2005.
doi:10.1109/lmwc.2004.842855 Google Scholar

6. Lin, Ting-Huei and Ruey-Beei Wu, "CPW to waveguide transition with tapered slotline probe," IEEE Microwave and Wireless Components Letters, Vol. 11, No. 7, 314-316, Jul. 2001.
doi:10.1109/7260.933782 Google Scholar

7. Mottonen, V. S. and A. V. Raisanen, "Novel wide-band coplanar waveguide-to-rectangular waveguide transition," IEEE Transactions on Microwave Theory and Techniques, Vol. 52, No. 8, 1836-1842, Aug. 2004.
doi:10.1109/tmtt.2004.831580 Google Scholar

8. Fang, Ruei-Ying and Chun-Long Wang, "Miniaturized coplanar waveguide to rectangular waveguide transition using inductance-compensated slotline," IEEE Transactions on Components, Packaging and Manufacturing Technology, Vol. 2, No. 10, 1666-1671, Oct. 2012.
doi:10.1109/tcpmt.2012.2208460 Google Scholar

9. Ma, K.-P., Y. Qian, and T. Itoh, "Analysis and applications of a new CPW-slotline transition," IEEE Transactions on Microwave Theory and Techniques, Vol. 47, No. 4, 426-432, Apr. 1999.
doi:10.1109/22.754876 Google Scholar
