Abstract

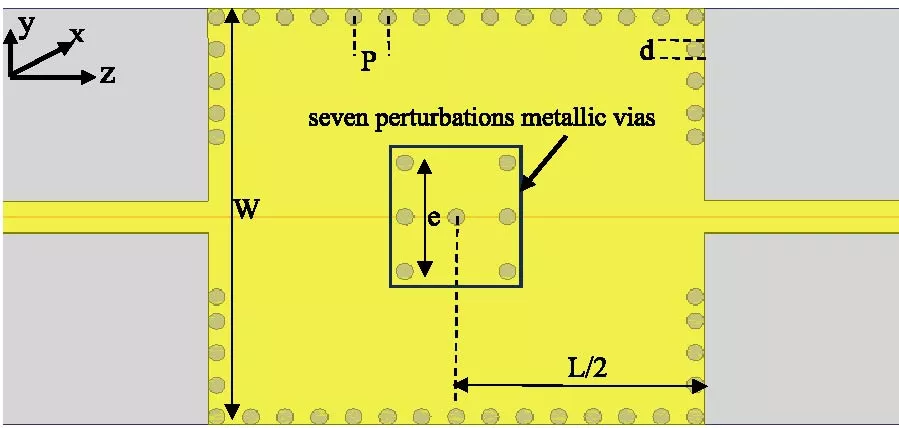

In this research, a simple design with a compact size of a triple-band bandpass filter (BPF) based on SIW is proposed. The proposed design consists of a main SIW cavity combined with two others-secondary SIW cavities. The three passbands of the proposed BPF are formed based on the center frequencies (CFs) of the four modes given by the main SIW cavity and two transmission poles (TP₁ and TP₂) achieved with the secondary SIW cavity. The SIW modes achieved with the main SIW cavity are TE₁₀₁, TE₂₀₁, and TE₃₀₁ addition to the suppressed mode, and those modes are realized by the perturbation of seven metallic vias. The coupling of the TP₁ with the suppressed mode realizes the first passband of the filter proposed with a bandwidth of 0.53 GHz. Vertical CPW slots are etched at the main SIW cavity for coupling TE₁₀₁ and TE₂₀₁ to form the second passband with a bandwidth of 1.3 GHz. Horizontal CPW slots are etched in the two rectangular secondary SIW cavities to join the TP₂ with TE₃₀₁ mode for realizing the third passband with a bandwidth of 1.2 GHz. Finally, an adjustable bandwidth filter with CFs of 6.9/10.1/13.3 GHz, respectively, has been achieved. Also, six transmission zeros (TZs) are achieved in the operation frequency range (6-16 GHz), which improves the selectivity of the filter. The proposed filter is modeled with an approximate equivalent circuit, and the prototype of the filter is fabricated and tested to demonstrate its excellent performance. A good agreement was realized among simulation, equivalent circuit LC model, and measurement S-parameters, which proves and validates the operation of the proposed triple-band BPF. The multiple advantages of the proposed filter, such as a simple structure, compactness (1.29λ_g × 1.62λ_g), selectivity, and high performance, make it a promising candidate for multi-tasking communication systems.

1. Jia, Hongting, Kuniaki Yoshitomi, and Kiyotoshi Yasumoto, "Rigorous and fast convergent analysis of a rectangular waveguide coupler slotted in common wall," Progress In Electromagnetics Research, Vol. 46, 245-264, 2004.
doi:10.2528/pier03100102 Google Scholar

2. Sun, Kae-Oh, Sung-Jin Ho, Chih-Chuan Yen, and D. Van Der Weide, "A compact branch-line coupler using discontinuous microstrip lines," IEEE Microwave and Wireless Components Letters, Vol. 15, No. 8, 519-520, 2005.
doi:10.1109/lmwc.2005.852789 Google Scholar

3. Elsherbini, Adel and Kamal Sarabandi, "Compact directive ultra-wideband rectangular waveguide based antenna for radar and communication applications," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 5, 2203-2209, 2012.
doi:10.1109/tap.2012.2189727 Google Scholar

4. Aboualalaa, Mohamed, Adel B. Abdel-Rahman, Ahmed Allam, Hala Elsadek, and Ramesh K. Pokharel, "Design of a dual-band microstrip antenna with enhanced gain for energy harvesting applications," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 1622-1626, 2017.
doi:10.1109/lawp.2017.2654353 Google Scholar

5. Zhao, X. H., J. F. Bao, G. C. Shan, Y. J. Du, Y. B. Zheng, Y. Wen, and C. H. Shek, "D-band micromachined silicon rectangular waveguide filter," IEEE Microwave and Wireless Components Letters, Vol. 22, No. 5, 230-232, 2012.
doi:10.1109/lmwc.2012.2193121 Google Scholar

6. Shen, Wei, Xiao-Wei Sun, and Wen-Yan Yin, "A novel microstrip filter using three-mode stepped impedance resonator (TSIR)," IEEE Microwave and Wireless Components Letters, Vol. 19, No. 12, 774-776, 2009.
doi:10.1109/lmwc.2009.2033495 Google Scholar

7. Pozar, David M., Microwave Engineering: Theory and Techniques, John Wiley & Sons, 2005.

8. Rhbanou, Ahmed, Mohamed Sabbane, and Seddik Bri, "Design of dual-mode substrate integrated waveguide band-pass filters," Circuits and Systems, Vol. 6, No. 12, 257-267, 2015.
doi:10.4236/cs.2015.612026 Google Scholar

9. Pilote, A. J., K. A. Leahy, B. A. Flanik, and K. A. Zaki, "Waveguide filters having a layered dielectric structure," U.A. Patent, No. 5, 382931, Jan. 1995.

10. Boulesbaa, Mohammed, Tarek Djerafi, Ahmed Bouchekhlal, and Boualem Mekimah, "Design of a directional coupler based on SIW technology for X band applications," 2020 1st International Conference on Communications, Control Systems and Signal Processing (CCSSP), 85-89, El Oued, Algeria, 2020.
doi:10.1109/CCSSP49278.2020.9151478

11. Hong, Jia-Shen G. and M. J. Lancaster, Microstrip Filters for RF/Microwave Applications, John Wiley & Sons, 2004.
doi:10.1002/0471221619

12. Wu, Lin-Sheng, Jun-Fa Mao, Wen-Yan Yin, and Yong-Xin Guo, "A dual-band filter using stepped-impedance resonator (SIR) embedded into substrate integrated waveguide (SIW)," 2010 IEEE Electrical Design of Advanced Package & Systems Symposium, 1-4, Singapore, 2010.
doi:10.1109/EDAPS.2010.5683025

13. Dong, Y., C. T. M. Wu, and T. Itoh, "Miniaturised multi-band substrate integrated waveguide filters using complementary split-ring resonators," IET Microwaves, Antennas & Propagation, Vol. 6, No. 6, 611-620, 2012.
doi:10.1049/iet-map.2011.0448 Google Scholar

14. Zhang, Hao, Wei Kang, and Wen Wu, "Miniaturized dual-band differential filter based on CSRR-loaded dual-mode SIW cavity," IEEE Microwave and Wireless Components Letters, Vol. 28, No. 10, 897-899, 2018.
doi:10.1109/lmwc.2018.2867082 Google Scholar

15. Guo, Xin, Lei Zhu, and Wen Wu, "Design method for multiband filters with compact configuration in substrate integrated waveguide," IEEE Transactions on Microwave Theory and Techniques, Vol. 66, No. 6, 3011-3018, 2018.
doi:10.1109/tmtt.2018.2830337 Google Scholar

16. Zhou, Kang, Chunxia Zhou, and Wen Wu, "Substrate-integrated waveguide triple-band filter with improved frequency and bandwidth allocations," Electronics Letters, Vol. 54, No. 19, 1132-1134, 2018.
doi:10.1049/el.2018.5758 Google Scholar

17. Xie, Hao-Wei, Kang Zhou, Chun-Xia Zhou, and Wen Wu, "Substrate-integrated waveguide triple-band bandpass filters using triple-mode cavities," IEEE Transactions on Microwave Theory and Techniques, Vol. 66, No. 6, 2967-2977, 2018.
doi:10.1109/tmtt.2018.2833462 Google Scholar

18. Liu, Yi-Jie, Gang Zhang, Shi-Cheng Liu, and Ji-Quan Yang, "Compact triple-band filter with adjustable passbands on one substrate integrated waveguide square resonant cavity," Microwave and Optical Technology Letters, Vol. 62, No. 12, 3709-3715, 2020.
doi:10.1002/mop.32491 Google Scholar

19. Li, Daotong, Wei Luo, Xiaoquan Chen, Ying Liu, Kai-Da Xu, and Qiang Chen, "Miniaturized dual-/tri-/quad-band bandpass filters using perturbed multimode SIW cavity," IEEE Transactions on Components, Packaging and Manufacturing Technology, Vol. 13, No. 10, 1685-1693, 2023.
doi:10.1109/tcpmt.2023.3311439 Google Scholar

20. Namanathan, Praveena and Gunavathi Nagarajan, "Realization of dual-mode, high-selectivity SIW cavity bandpass filter by perturbing circular shape vias," Applied Physics A, Vol. 128, No. 9, 773, 2022.
doi:10.1007/s00339-022-05918-x Google Scholar

21. Lin, Li-Jing, Min-Hua Ho, and Wei-Qin Xu, "Design of compact suspended stripline bandpass filters with wide stopband," Microwave and Optical Technology Letters, Vol. 50, No. 4, 865-868, 2008.
doi:10.1002/mop.23250 Google Scholar

22. Omar, Amjad A., Nihad I. Dib, Khelifa Hettak, Maximilian C. Scardelletti, and Raed M. Shubair, "Design of coplanar waveguide elliptic low pass filters," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 19, No. 5, 540-548, 2009.
doi:10.1002/mmce.20376 Google Scholar

23. Zheng, Shao Yong, Zhi Li Su, Yong Mei Pan, Zeeshan Qamar, and Derek Ho, "New dual-/tri-band bandpass filters and diplexer with large frequency ratio," IEEE Transactions on Microwave Theory and Techniques, Vol. 66, No. 6, 2978-2992, 2018.
doi:10.1109/tmtt.2018.2833862 Google Scholar

24. Yang, Zeng, Bin You, and Guoqing Luo, "Dual-/tri-band bandpass filter using multimode rectangular SIW cavity," Microwave and Optical Technology Letters, Vol. 62, No. 3, 1098-1102, 2020.
doi:10.1002/mop.32145 Google Scholar

25. Zhang, Junjie, Qing Liu, Dongfang Zhou, and Dewei Zhang, "Single- and triple-band bandpass filters using novel perturbed isosceles right-angled triangular SIW cavities," IET Microwaves, Antennas & Propagation, Vol. 15, No. 3, 241-252, 2021.
doi:10.1049/mia2.12034 Google Scholar

26. Ren, Baoping, Chunhua Qin, and Xuehui Guan, "Compact dual- and triple-wideband filters using interdigital spoof surface plasmon polaritons," IEEE Microwave and Wireless Technology Letters, Vol. 35, No. 1, 51-54, 2025.
doi:10.1109/lmwt.2024.3484749 Google Scholar

27. Liao, Qingqing, Guangpu Tang, Tong Xiao, Chengguo Liu, Lifeng Huang, and Hongguang Wang, "Design of 5G-advanced and beyond millimeter-wave filters based on hybrid SIW-SSPP and metastructures," Electronics, Vol. 14, No. 15, 3026, 2025.
doi:10.3390/electronics14153026 Google Scholar

Dr. Obaida Oulad Haddar

Prof. Mohammed Boulesbaa

Dr. Tarek Djerafi
