A Deadbeat Predictive Current Vector Control Algorithm for Improving Current Control Performance of Stepper Motors

Jianmin Ma,

Dr. Jianmin Ma

China University of Petroleum

China

Homepage

Kexin Ma

Dr. Kexin Ma

Ocean University of China

China

Homepage

Progress In Electromagnetics Research C, Vol. 163, 277-284, 2026

doi:10.2528/PIERC25101602

Abstract

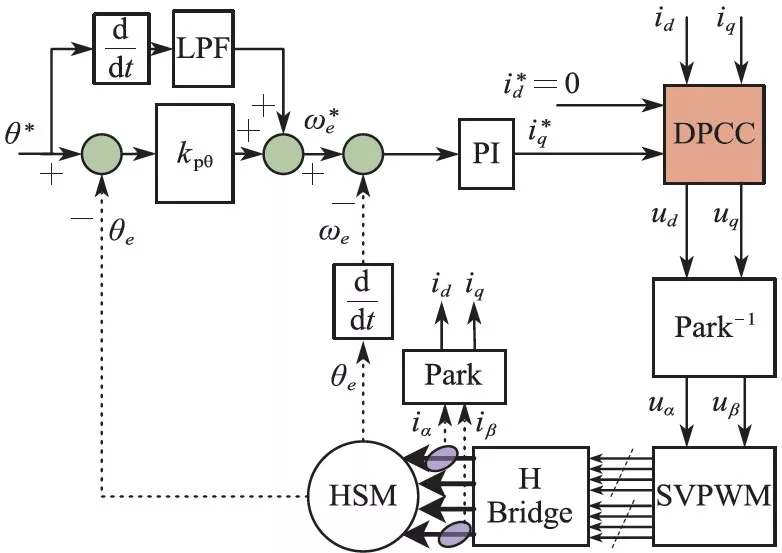

To address the issues of step loss, control lag, and low precision in open-loop hybrid stepper motors applied in economical CNC machine tools, a deadbeat predictive current field oriented control method (DPCFOC) is proposed. First, the research progress of hybrid stepper motor vector control is systematically reviewed, analyzing the advantages and limitations of existing schemes in error compensation, model construction, and algorithm implementation. Subsequently, the continuous mathematical model of the hybrid stepper motor in the rotating coordinate system is established, and the discrete deadbeat predictive model and current prediction equation are derived using the first-order forward Euler method. On this basis, a deadbeat vector control algorithm is proposed. Compared with the traditional dual-closed-loop vector control with PI regulators, the algorithm predicts the next-step current through the motor model and calculates the optimal reference voltage vector in advance to eliminate current error, thereby improving dynamic response speed. Stability analysis via Z-transformation reveals that the system remains stable when the model inductance parameter is within 0-2 times the actual inductance. For the two-phase hybrid stepper motor, a space vector pulse width modulation (SVPWM) strategy based on a dual H-bridge inverter is designed, using 4 non-zero vectors and 2 zero vectors to synthesize the desired voltage vector. Finally, an experimental platform is built with a TMS320F28335 controller and a 57CME22A closed-loop stepper motor to verify the algorithm. This study provides a feasible solution for improving the control precision and dynamic performance of hybrid stepper motors in economical CNC machine tools.

Download Full Article (7) View Full Article volume

Citation

Copy Export

Jianmin Ma, and Kexin Ma, "A Deadbeat Predictive Current Vector Control Algorithm for Improving Current Control Performance of Stepper Motors," Progress In Electromagnetics Research C, Vol. 163, 277-284, 2026.
doi:10.2528/PIERC25101602

References

1. Liu, Xin, Yanfei Pan, Yilin Zhu, Hui Han, and Lei Ji, "Decoupling control of permanent magnet synchronous motor based on parameter identification of fuzzy least square method," Progress In Electromagnetics Research M, Vol. 103, 49-60, 2021.
doi:10.2528/pierm21032601

2. Zhu, Lidong, Ben Xu, and Huangqiu Zhu, "Interior permanent magnet synchronous motor dead-time compensation combined with extended Kalman and neural network bandpass filter," Progress In Electromagnetics Research M, Vol. 98, 193-203, 2020.
doi:10.2528/pierm20100903

3. Zhou, Chuyao and Bin Liu, "A hybrid stepper motor control solution based on a low-cost position sensor," 2019 IEEE International Conference on Mechatronics and Automation (ICMA), 1836-1841, Tianjin, China, 2019.
doi:10.1109/ICMA.2019.8816190

4. Lee, Youngwoo, Donghoon Shin, Wonhee Kim, and Chung Choo Chung, "Nonlinear H2 control for a nonlinear system with bounded varying parameters: Application to PM stepper motors," IEEE/ASME Transactions on Mechatronics, Vol. 22, No. 3, 1349-1359, 2017.
doi:10.1109/TMECH.2017.2686901

5. Lai, Chiu-Keng, Jhang-Shan Ciou, and Chia-Che Tsai, "FPGA-based stepper motor vector control system design," 2017 International Automatic Control Conference (CACS), 1-5, Pingtung, Taiwan, 2017.
doi:10.1109/CACS.2017.8284269

6. Kim, Wonhee, Donghoon Shin, and Chung Choo Chung, "Microstepping with nonlinear torque modulation for permanent magnet stepper motors," IEEE Transactions on Control Systems Technology, Vol. 21, No. 5, 1971-1979, 2013.
doi:10.1109/tcst.2012.2211079

7. Sarr, Marie Pascaline, Mouhamadou Falilou Ndiaye, Biram Dieng, and Ababacar Thiam, "Field oriented control of stepper motors for a mini heliostat tracking," 2021 IEEE 1st International Maghreb Meeting of the Conference on Sciences and Techniques of Automatic Control and Computer Engineering MI-STA, 104-109, Tripoli, Libya, 2021.
doi:10.1109/MI-STA52233.2021.9464388

8. Jeong, Yong Woo, Youngwoo Lee, and Chung Choo Chung, "A survey of advanced control methods for permanent magnet stepper motors," Journal of Marine Science and Technology, Vol. 28, No. 5, 2, 2020.
doi:10.6119/JMST.202010_28(5).0002

9. Ricci, Stefano and Valentino Meacci, "Simple torque control method for hybrid stepper motors implemented in FPGA," Electronics, Vol. 7, No. 10, 242, 2018.
doi:10.3390/electronics7100242

10. Bernardi, Fabio, Emilio Carfagna, Giovanni Migliazza, Giampaolo Buticchi, Fabio Immovilli, and Emilio Lorenzani, "Performance analysis of current control strategies for hybrid stepper motors," IEEE Open Journal of the Industrial Electronics Society, Vol. 3, 460-472, 2022.
doi:10.1109/ojies.2022.3185659

11. Li, Caijie, Shengchang Tang, Mengchuang Yin, Xuan Zhao, and Hui You, "Enhancing position tracking of hybrid stepper motors using lyapunov-based current controllers," Electronics, Vol. 14, No. 10, 1997, 2025.
doi:10.3390/electronics14101997

12. Paul, Mr. Jijo and Dominic Mathew, "A novel vector control strategy for bipolar stepper motor," International Journal of Scientific & Engineering Research, Vol. 5, No. 7, 2014.

13. Lixian, Song and Wan Rahiman, "A compound control for hybrid stepper motor based on PI and sliding mode control," IEEE Access, Vol. 12, 163536-163550, 2024.
doi:10.1109/access.2024.3490793

14. Skuric, Antun, Hasan Sinan Bank, Richard Unger, Owen Williams, and David González-Reyes, "SimpleFOC: A field oriented control (FOC) library for controlling brushless direct current (BLDC) and stepper motors," Journal of Open Source Software, Vol. 7, No. 74, 4232, 2022.
doi:10.21105/joss.04232

15. Rahmatullah, Rohullah, Ayca Ak, and Necibe Fusun Oyman Serteller, "Design of sliding mode control using SVPWM modulation method for speed control of induction motor," Transportation Research Procedia, Vol. 70, 226-233, 2023.
doi:10.1016/j.trpro.2023.11.023
