Abstract

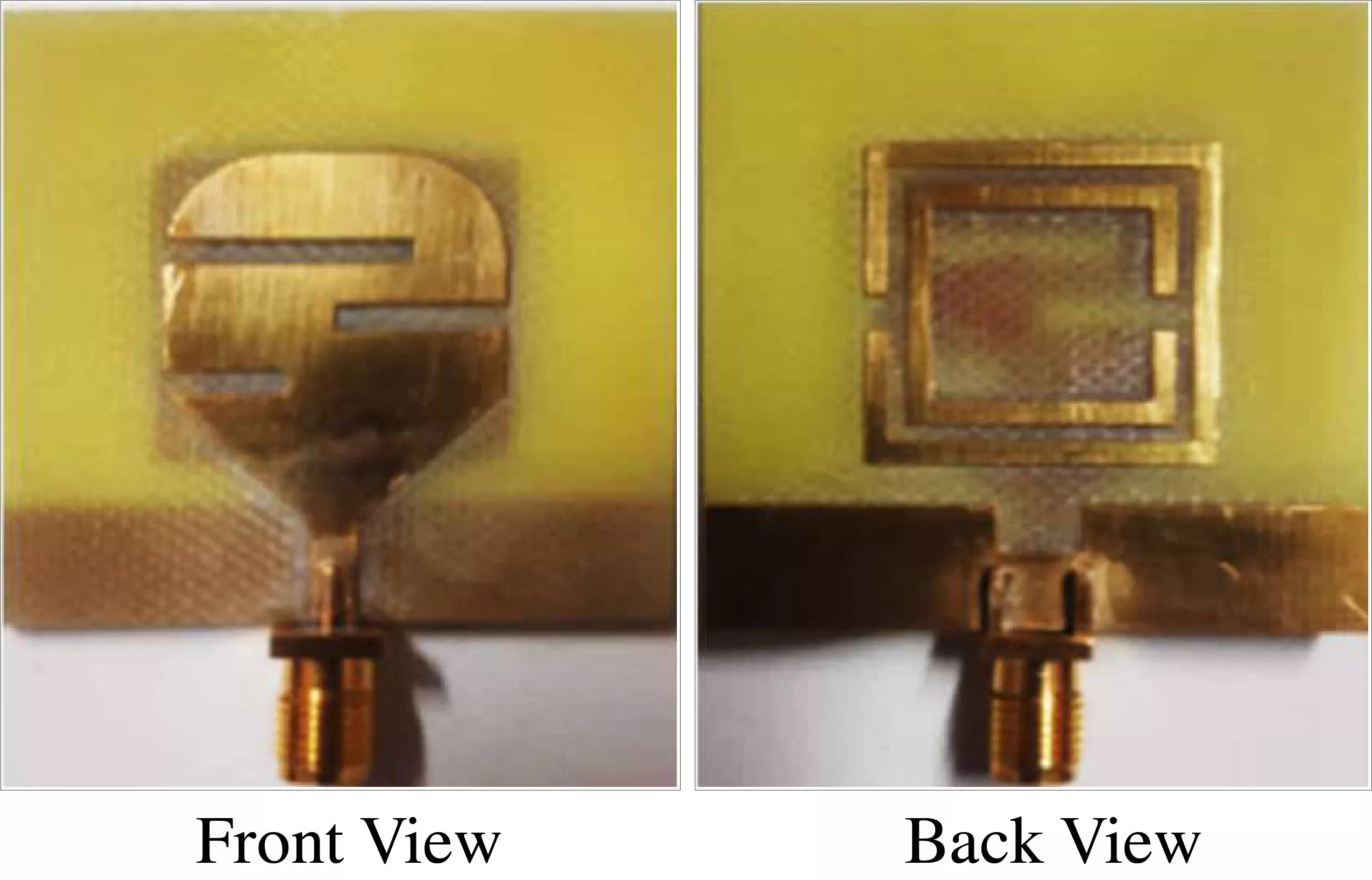

This paper describes the design methodology of a compact multiband microstrip patch antenna intended for next-generation wireless communication applications. The proposed antenna operates over seven distinct frequency bands: 1.25-1.32 GHz, 2.30-2.44 GHz, 2.50-2.75 GHz, 2.92-3.25 GHz, 3.40-3.65 GHz, 3.70-4.23 GHz, and 4.70-6.0 GHz. These operating bands support a wide range of wireless services, including LTE, 5G communications, Wi-MAX, ISM applications, radar systems, and broadband wireless communications. Multiband performance is achieved through the incorporation of three strategically placed slits in the radiating patch along with a square split-ring resonator (SSRR). By adjusting the dimensions of the slits and the position of the SSRR, the operating frequency bands can be effectively tuned. The proposed antenna occupies a compact footprint of 40 × 40 mm² and consists of a radiating patch, a partial ground plane, and an SSRR structure. Simulation results demonstrate resonant frequencies at 1.3, 2.38, 2.66, 3.0, 3.5, 4.2, 4.9, and 5.7 GHz. Owing to its compact size, multiband capability, and simple structure, the proposed antenna offers advantages in terms of reduced cost, lower system complexity, and miniaturization, making it suitable for modern wireless communication systems.

1. Balanis, Constantine A., Antenna Theory: Analysis and Design, John Wiley & Sons, 2016.

2. Kumar, Girish and K. P. Ray, Broadband Microstrip Antennas, Artech House, 2003.

3. Garg, Ramesh, Microstrip Antenna Design Handbook, Artech House, 2001.

4. Gupta, Anupma, Meet Kumari, Manish Sharma, Mohammed H. Alsharif, Peerapong Uthansakul, Monthippa Uthansakul, and Shonak Bansal, "8-port MIMO antenna at 27 GHz for n261 band and exploring for body centric communication," PLoS ONE, Vol. 19, No. 6, e0305524, 2024.
doi:10.1371/journal.pone.0305524 Google Scholar

5. Malathy, E. M., I. R. Praveen Joe, and P. Ajitha, "Miniaturized dual-band metamaterial-loaded antenna for heterogeneous vehicular communication networks," IETE Journal of Research, Vol. 69, No. 5, 2436-2445, 2023.
doi:10.1080/03772063.2021.1892539 Google Scholar

6. Hakanoglu, Baris Gurcan, Burak Koc, Osman Sen, Husnu Yalduz, and Mustafa Turkmen, "Stub loaded patch antenna and a novel method for miniaturization at sub 6 GHz 5G and Wi-Fi frequencies," Advances in Electrical & Computer Engineering, Vol. 21, No. 2, 23-32, 2021.
doi:10.4316/aece.2021.02003 Google Scholar

7. Baena, Juan D., Ricardo Marqués, Francisco Medina, and Jesús Martel, "Artificial magnetic metamaterial design by using spiral resonators," Physical Review B, Vol. 69, No. 1, 014402, 2004.
doi:10.1103/physrevb.69.014402 Google Scholar

8. Zade, Prasanna L. and Sachin S. Khade, "Miniaturized novel multi resonance monopole planar antenna with slots, slits, split ring resonator," Progress In Electromagnetics Research C, Vol. 145, 75-82, 2024.
doi:10.2528/pierc24051102 Google Scholar

9. Mazen, Karima, Ahmed Emran, Ahmed S. Shalaby, and Ahmed Yahya, "Design of multi-band microstrip patch antennas for mid-band 5G wireless communication," International Journal of Advanced Computer Science and Applications(IJACSA), Vol. 12, No. 5, 459-469, 2021.
doi:10.14569/ijacsa.2021.0120557 Google Scholar

10. Gupta, Anupma, Vipan Kumar, Shonak Bansal, Mohammed H. Alsharif, Abu Jahid, and Ho-Shin Cho, "A miniaturized tri-band implantable antenna for ISM/WMTS/lower UWB/Wi-Fi frequencies," Sensors, Vol. 23, No. 15, 6989, 2023.
doi:10.3390/s23156989 Google Scholar

11. Aziz, Muhammad Afiq Abdul, Norhudah Seman, and T. Han Chua, "Microstrip antenna design with partial ground at frequencies above 20 GHz for 5G telecommunication systems," Indonesian Journal of Electrical Engineering and Computer Science, Vol. 15, No. 3, 1466-1473, Sep. 2019.
doi:10.11591/ijeecs.v15.i3.pp1466-1473 Google Scholar

12. Khade, Sachin S., Dinesh B. Bhoyar, Ketki Kotpalliwar, Chitra V. Bawankar, and Manish S. Kimmatkar, "Four element EC slot MIMO antenna for WLAN, Wi-Fi and 5G applications," Progress In Electromagnetics Research C, Vol. 139, 147-158, 2024.
doi:10.2528/PIERC23082201 Google Scholar

13. Kulkarni, Jayshri, Chow-Yen-Desmond Sim, Rajendra Talware, Vivek Deshpande, Abhijit Chitre, and Jaume Anguera, "Design and analysis of dual band tapered-fed monopole antenna for 5G and satellite applications," 2021 IEEE 18th India Council International Conference (INDICON), 1-6, Guwahati, India, 2021.
doi:10.1109/INDICON52576.2021.9691580

14. Baena, J. D., J. Bonache, F. Martín, R. M. Sillero, F. Falcone, T. Lopetegi, M. A. G. Laso, J. Garcia-Garcia, I. Gil, M F. Portillo, and M. Sorolla, "Equivalent-circuit models for split-ring resonators and complementary split-ring resonators coupled to planar transmission lines," IEEE Transactions on Microwave Theory and Techniques, Vol. 53, No. 4, 1451-1461, Apr. 2005.
doi:10.1109/tmtt.2005.845211 Google Scholar

15. Ullah, Sadiq, Shaheen Ahmad, Burhan A. Khan, Farooq A. Tahir, and James A. Flint, "An hp-shape hexa-band antenna for multi-standard wireless communication systems," Wireless Networks, Vol. 25, No. 3, 1361-1369, 2019.
doi:10.1007/s11276-018-1760-x Google Scholar

16. Tripathi, Shivesh, N. P. Pathak, and M. Parida, "Dual-band dual-beam microstrip patch antenna for intelligent transportation systems application," 2018 5th IEEE Uttar Pradesh Section International Conference on Electrical, Electronics and Computer Engineering (UPCON), 1-5, Gorakhpur, India, 2018.
doi:10.1109/UPCON.2018.8596861

17. Li, Jian-Feng, Chun-Xu Mao, Duo-Long Wu, Liang-Hua Ye, and Gary Zhang, "A dual-beam wideband filtering patch antenna with absorptive band-edge radiation nulls," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 12, 8926-8931, 2021.
doi:10.1109/tap.2021.3097359 Google Scholar

18. Kannadhasan, S. and A. C. Shagar, "Design and analysis of U-Shaped micro strip patch antenna," 2017 Third International Conference on Advances in Electrical, Electronics, Information, Communication and Bio-Informatics (AEEICB), 367-370, Chennai, India, 2017.
doi:10.1109/AEEICB.2017.7972333

19. Gupta, Manisha and Vinita Mathur, "Koch boundary on the square patch microstrip antenna for ultra wideband applications," Alexandria Engineering Journal, Vol. 57, No. 3, 2113-2122, Sep. 2018.
doi:10.1016/j.aej.2017.06.005 Google Scholar

20. Sarkar, D., K. Saurav, and K. V. Srivastava, "Multi-band microstrip-fed slot antenna loaded with split-ring resonator," Electronics Letters, Vol. 50, No. 21, 1498-1500, Oct. 2014.
doi:10.1049/el.2014.2625 Google Scholar

21. Raval, Falguni, Sweety Purohit, and Y. P. Kosta, "Dual-band wearable antenna using split ring resonator," Waves in Random and Complex Media, Vol. 26, No. 2, 235-242, 2016.
doi:10.1080/17455030.2015.1137374 Google Scholar

22. Taheri, Mohammad Mehdi Samadi, Abdolali Abdipour, and Gert Frolund Pedersen, "Compact penta band printed slot antenna for GSM, Bluetooth, WiMAX, 4G LTE, and WLAN applications," 2017 11th European Conference on Antennas and Propagation (EUCAP), 2152-2154, Paris, France, 19-24 March 2017.
doi:10.23919/EuCAP.2017.7928813

23. Xu, Bo, Jakob Helander, Andreas Ericsson, Zhinong Ying, Sailing He, Mats Gustafsson, and Daniel Sjöberg, "Investigation of planar near-field measurement of millimeter-wave antenna for 5G application," 2016 International Symposium on Antennas and Propagation (ISAP), 600-601, Okinawa, Japan, 2016.

24. Liu, HanJiang, RongLin Li, Yan Pan, XuLin Quan, Li Yang, and Liang Zheng, "A multi-broadband planar antenna for GSM/UMTS/LTE and WLAN/WiMAX handsets," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 5, 2856-2860, May 2014.
doi:10.1109/tap.2014.2308525 Google Scholar

25. Wang, Tuo, Ying-Zeng Yin, Jian Yang, Yong-Li Zhang, and Jiao-Jiao Xie, "Compact triple-band antenna using defected ground structure for WLAN/WiMAX applications," Progress In Electromagnetics Research Letters, Vol. 35, 155-164, 2012.
doi:10.2528/pierl12082814 Google Scholar

26. Janning, D. S. and B. A. Munk, "Effects of surface waves on the currents of truncated periodic arrays," IEEE Transactions on Antennas and Propagation, Vol. 50, No. 9, 1254-1265, Sep. 2002.
doi:10.1109/tap.2002.801378 Google Scholar

27. Krishnan, Sivanand, Pankaj Sharma, and Ong Hwee Woon, "Antenna radiation pattern considerations for UWB localization," 2007 IEEE Antennas and Propagation Society International Symposium, 333-336, Honolulu, HI, USA, 2007.
doi:10.1109/APS.2007.4395498

28. Chaparala, Rishitej, Shaik Imamvali, Sreenivasulu Tupakula, Krishna Prakash, Shonak Bansal, Mohd Muzafar Ismail, and Ahmed Jamal Abdullah Al-Gburi, "Spoof surface plasmon polaritons-based feeder for a dielectric rod antenna at microwave frequencies," Progress In Electromagnetics Research M, Vol. 129, 23-32, 2024.
doi:10.2528/pierm24080403 Google Scholar

29. Chaparala, Rishitej, Shaik Imamvali, Sreenivasulu Tupakula, Krishna Prakash, Shonak Bansal, Mohd Muzafar Ismail, and Ahmed Jamal Abdullah Al-Gburi, "Spoof surface plasmon polaritons-based feeder for a dielectric rod antenna at microwave frequencies.," Progress In Electromagnetics Research M, Vol. 129, 23-32, 2024.
doi:10.2528/pierm24080403 Google Scholar

Dr. Prasanna L. Zade

Dr. Sachin S. Khade

Dr. Deveshree Marotkar

Dr. Vaishali Dhede

Prof. Pravin Tajane

Dr. Pranjali M. Jumle

Dr. Prabhakar Domaji Dorge
