Abstract

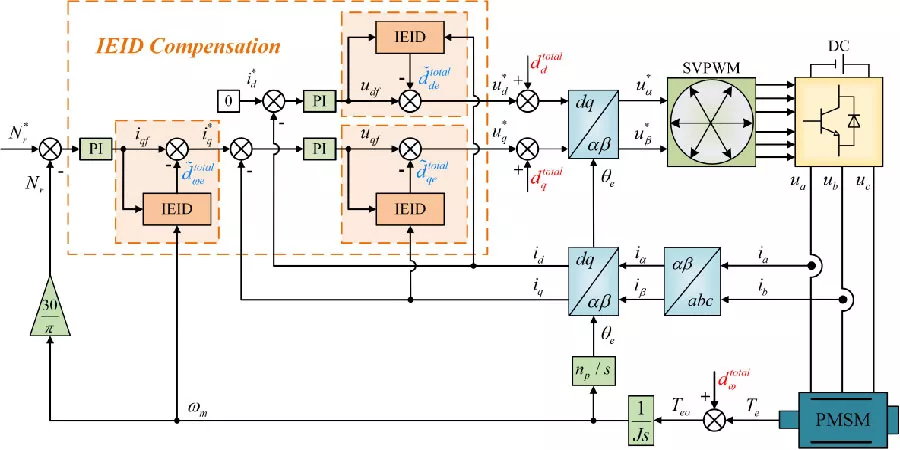

This paper presents an improved equivalent-input-disturbance (IEID) method based on enhanced estimators. This method addresses the degradation performance in a permanent magnet synchronous motor (PMSM) drive system caused by multi-source disturbances in different frequency bands. First, a PMSM model is established that considers these disturbances and categorizes them as control inputs for both current and speed-loops. Next, the estimated compensation structures of the dual-loop equivalent-input-disturbance (EID) are designed. To address the differing sensitivities of the dual-loop anti-disturbance frequency bands, enhanced estimators are designed to expand their respective bandwidths. This reduces the sensitivity of the system to uncertainty, and parameter-adjusting conditions are derived to ensure stability. Finally, the simulation results demonstrate that, when PMSM operates under the nominal condition, the IEID method suppresses steady-state speed fluctuation by approximately 63% compared to the method without EID compensation, by approximately 35% compared to the conventional EID method, and by approximately 25% compared to improved sliding mode observer-based EID (ISMO-EID) method; when PMSM parameters are perturbed, the suppression rates can further reach to 65%, 44%, and 32%, respectively. The findings indicate that the proposed method exhibits superior steady-state tracking accuracy and disturbance suppression performance, while also exhibiting enhanced robustness in transient scenarios.

1. Yang, Jun, Wen-Hua Chen, Shihua Li, Lei Guo, and Yunda Yan, "Disturbance/uncertainty estimation and attenuation techniques in PMSM drives --- A survey," IEEE Transactions on Industrial Electronics, Vol. 64, No. 4, 3273-3285, 2017.
doi:10.1109/tie.2016.2583412 Google Scholar

2. Wei, Qi, Lieyi Dong, Wanyou Li, Mauro Andriollo, and Depeng Zeng, "Comparative analysis of electromagnetic vibration and torque ripple of multi-unit PMSMs under normal and fault operation," IEEE Transactions on Magnetics, Vol. 61, No. 9, 1-6, 2025.
doi:10.1109/tmag.2025.3553749 Google Scholar

3. Cheng, Ming, Zhiyuan Xu, Yang Jiang, and Chenchen Zhao, "Investigation of cogging torque generation mechanisms in flux-switching permanent magnet machines based on general air-gap field modulation theory," Chinese Journal of Electrical Engineering, Vol. 11, No. 2, 207-215, 2025.
doi:10.23919/cjee.2025.000135 Google Scholar

4. Hu, Mingjin, Wei Hua, Zheng Wu, Ningyi Dai, Huafeng Xiao, and Wei Wang, "Compensation of current measurement offset error for permanent magnet synchronous machines," IEEE Transactions on Power Electronics, Vol. 35, No. 10, 11119-11128, 2020.
doi:10.1109/tpel.2020.2978230 Google Scholar

5. Kim, Sam-Young, Wootaik Lee, Min-Sik Rho, and Seung-Yub Park, "Effective dead-time compensation using a simple vectorial disturbance estimator in PMSM drives," IEEE Transactions on Industrial Electronics, Vol. 57, No. 5, 1609-1614, 2010.
doi:10.1109/tie.2009.2033098 Google Scholar

6. Dorrell, David G., Jonathan K. H. Shek, Markus A. Mueller, and Min-Fu Hsieh, "Damper windings in induction machines for reduction of unbalanced magnetic pull and bearing wear," IEEE Transactions on Industry Applications, Vol. 49, No. 5, 2206-2216, 2013.
doi:10.1109/tia.2013.2262033 Google Scholar

7. Zhang, Jianyi, Wei Ren, and Xi-Ming Sun, "Current-constrained adaptive robust control for uncertain PMSM drive systems: Theory and experimentation," IEEE Transactions on Transportation Electrification, Vol. 9, No. 3, 4158-4169, 2023.
doi:10.1109/tte.2023.3236431 Google Scholar

8. Zhang, Zhang, Xiaodong Yang, Weiyu Wang, Kaiwen Chen, Norbert Chow Cheung, and Jianfei Pan, "Enhanced sliding mode control for PMSM speed drive systems using a novel adaptive sliding mode reaching law based on exponential function," IEEE Transactions on Industrial Electronics, Vol. 71, No. 10, 11978-11988, 2024.
doi:10.1109/tie.2023.3347845 Google Scholar

9. Wu, Ze-Hao, Hua-Cheng Zhou, Feiqi Deng, and Bao-Zhu Guo, "Disturbance observer-based boundary control for an antistable stochastic heat equation with unknown disturbance," IEEE Transactions on Automatic Control, Vol. 68, No. 6, 3604-3611, 2023.
doi:10.1109/tac.2022.3191390 Google Scholar

10. Cao, Haiyang, Yongting Deng, Yuefei Zuo, Xiufeng Liu, Jianli Wang, and Christopher H. T. Lee, "A variable structure ADRC for enhanced disturbance rejection and improved noise suppression of PMSM speed system," IEEE Transactions on Industrial Electronics, Vol. 72, No. 5, 4481-4495, 2025.
doi:10.1109/tie.2024.3468613 Google Scholar

11. She, Jin-Hua, Xin Xin, and Yaodong Pan, "Equivalent-input-disturbance approach --- Analysis and application to disturbance rejection in dual-stage feed drive control system," IEEE/ASME Transactions on Mechatronics, Vol. 16, No. 2, 330-340, 2011.
doi:10.1109/tmech.2010.2043258 Google Scholar

12. She, Jin-Hua, Mingxing Fang, Yasuhiro Ohyama, Hiroshi Hashimoto, and Min Wu, "Improving disturbance-rejection performance based on an equivalent-input-disturbance approach," IEEE Transactions on Industrial Electronics, Vol. 55, No. 1, 380-389, 2008.
doi:10.1109/tie.2007.905976 Google Scholar

13. Du, Youwu, Weihua Cao, Jinhua She, Min Wu, Mingxing Fang, and Seiichi Kawata, "Disturbance rejection and robustness of improved equivalent-input-disturbance-based system," IEEE Transactions on Cybernetics, Vol. 52, No. 8, 8537-8546, 2022.
doi:10.1109/tcyb.2021.3053597 Google Scholar

14. Stein, G., "Respect the unstable," IEEE Control Systems Magazine, Vol. 23, No. 4, 12-25, 2003.
doi:10.1109/MCS.2003.1213600 Google Scholar

15. Zhou, Kemin and John Comstock Doyle, Essentials of Robust Control, Prentice Hall, Upper Saddle River, NJ, 1998.

16. Huang, Gang, Jiajun Li, Edwardo F. Fukushima, Changfan Zhang, Jing He, and Kaihui Zhao, "An improved equivalent-input-disturbance approach for PMSM drive with demagnetization fault," ISA Transactions, Vol. 105, 120-128, 2020.
doi:10.1016/j.isatra.2020.06.010 Google Scholar
