2026-01-16
Wide-Angle Scanning Phased Array Based on Phase Mode Antenna Element
By
Progress In Electromagnetics Research C, Vol. 164, 271-278, 2026
Abstract

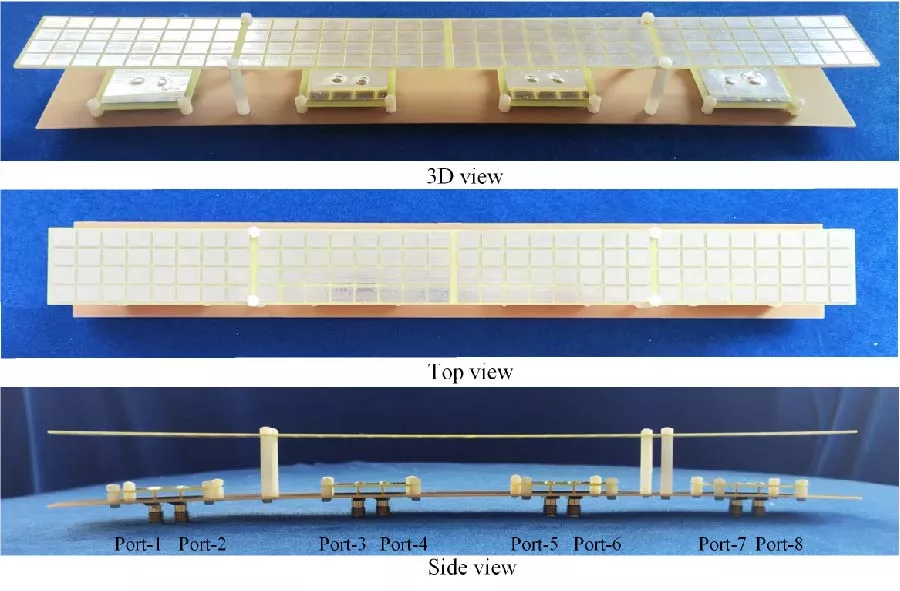

To address the significant gain degradation that conventional phased arrays suffer during wide-angle scanning, a linear antenna array based on phase mode antenna elements is proposed. The phase mode antenna element is three-layer structure with two feeding ports. It can operate in odd mode, even mode, and hybrid mode by using different excitation strategies, and continuous beam scanning is achieved using hybrid mode, which results in a wide-angle beam scanning performance of the antenna array. The maximum beam gain can be obtained by using the method of maximum power transmission efficiency (MMPTE) compared with the traditional beam scanning method. The optimal excitation distributions calculated by MMPTE lead to a significant improvement in wide-angle beam scanning for the phase mode antenna array.
Citation
Ming-Qi Yi, and Shen-Yun Wang, "Wide-Angle Scanning Phased Array Based on Phase Mode Antenna Element," Progress In Electromagnetics Research C, Vol. 164, 271-278, 2026.
doi:10.2528/PIERC25111502
References

1. Yaseen, Noor Waadullah and Jafar Ramadhan Mohammed, "Scanned antenna arrays with random deactivated elements," Progress In Electromagnetics Research Letters, Vol. 119, 1-6, 2024.
doi:10.2528/pierl24020702        Google Scholar

2. Bai, Yan-Ying, Shaoqiu Xiao, Ming-Chun Tang, Zhuo-Fu Ding, and Bing-Zhong Wang, "Wide-angle scanning phased array with pattern reconfigurable elements," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 11, 4071-4076, 2011.
doi:10.1109/tap.2011.2164176        Google Scholar

3. Yang, Guangwei, Jianying Li, Rui Xu, Yihan Ma, and Yangxiao Qi, "Improving the performance of wide-angle scanning array antenna with a high-impedance periodic structure," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1819-1822, 2016.
doi:10.1109/lawp.2016.2537850        Google Scholar

4. Doane, Jonathan P., Kubilay Sertel, and John L. Volakis, "A wideband, wide scanning tightly coupled dipole array with integrated balun (TCDA-IB)," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 9, 4538-4548, 2013.
doi:10.1109/tap.2013.2267199        Google Scholar

5. Yetisir, Ersin, Nima Ghalichechian, and John L. Volakis, "Ultrawideband array with 70° scanning using FSS superstrate," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 10, 4256-4265, 2016.
doi:10.1109/tap.2016.2594817        Google Scholar

6. Kim, Seongjung and Sangwook Nam, "Ultra-wideband and wide-angle insensitive absorber based on TCDA-under-tightly coupled dipole array," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 9, 5682-5690, 2021.
doi:10.1109/tap.2021.3061008        Google Scholar

7. Zhao, Liangliang, Hailiang Zhu, Yujie Di, Huiling Zhao, Jinchao Mou, and Chufeng Hu, "Design of joinable antenna array with wide-angle scanning," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 2, 479-483, 2025.
doi:10.1109/lawp.2024.3505937        Google Scholar

8. Zhao, Liangliang, Hailiang Zhu, Can Ding, Ganyu Liu, Huiling Zhao, Jinchao Mou, and Y. Jay Guo, "An ultrawideband dual-polarized tightly coupled dipole array (TCDA) with wide scanning range," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 7, 1961-1965, 2024.
doi:10.1109/lawp.2023.3330508        Google Scholar

9. Hu, Chang-Hai, Bing-Zhong Wang, Guo-Feng Gao, Ren Wang, Shao-Qiu Xiao, and Xiao Ding, "Conjugate impedance matching method for wideband and wide-angle impedance matching layer with 70° scanning in the H-plane," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 1, 63-67, 2021.
doi:10.1109/lawp.2020.3039521        Google Scholar

10. Yu, Daqun, Zhang-Cheng Hao, Lei Sun, Kai Yan, Wenbo Zhang, and Yuan Jiang, "Design of a wideband wide scanning phased antenna array with FSS superstrates," Progress In Electromagnetics Research Letters, Vol. 112, 41-47, 2023.
doi:10.2528/pierl23070101        Google Scholar

11. Zhang, Yujie, Shiwen Tang, Junhui Rao, Chi-Yuk Chiu, Xudong Chen, and Ross Murch, "A dual-port dual-beam pattern-reconfigurable antenna with independent 2-D beam-scanning," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 10, 7628-7643, 2024.
doi:10.1109/tap.2024.3452425        Google Scholar

12. Du, Yu, Yu-Hang Yang, Zhu-Bin Han, Jian-Ying Li, and Shi-Gang Zhou, "Wide-angle scanning array based on reconfigurable element integrated of binary array," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 6, 1949-1953, 2024.
doi:10.1109/lawp.2024.3375304        Google Scholar

13. Sun, Bin-Feng, Xiao Ding, You-Feng Cheng, and Wei Shao, "2-D wide-angle scanning phased array with hybrid patch mode technique," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 4, 700-704, 2020.
doi:10.1109/lawp.2020.2977730        Google Scholar

14. Yang, Guangwei and Shuai Zhang, "Dual-polarized wide-angle scanning phased array antenna for 5G communication systems," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 9, 7427-7438, 2022.
doi:10.1109/tap.2022.3141188        Google Scholar

15. Dai, Chunliang and Lei Gan, "A dual-polarized wide-angle scanning antenna with high isolation for Van Atta applications," Progress In Electromagnetics Research Letters, Vol. 103, 81-88, 2022.
doi:10.2528/pierl22011803        Google Scholar

16. Gao, Guo-Feng, Xiao Ding, You-Feng Cheng, and Wei Shao, "Dual-polarized wide-angle scanning phased array based on mutimode patch elements," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 3, 546-550, 2019.
doi:10.1109/lawp.2019.2896197        Google Scholar

17. Chen, Zhijiao, Zeyu Song, Haiwen Liu, Xiaoming Liu, Junsheng Yu, and Xiaodong Chen, "A compact phase-controlled pattern-reconfigurable dielectric resonator antenna for passive wide-angle beam scanning," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 5, 2981-2986, 2021.
doi:10.1109/tap.2020.3030549        Google Scholar

18. Wang, Kun, Junping Geng, Han Zhou, Silei Yang, Rui Zhao, Jie Chen, Jingzheng Lu, Xudong Tang, Jing Zhang, and Ronghong Jin, "A novel low-profile phased antenna with dual-port and its application in 1-D linear array to 2-D scanning," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 8, 6718-6731, 2022.
doi:10.1109/tap.2022.3161339        Google Scholar

19. Wang, Kun, Junping Geng, Silei Yang, Jingzheng Lu, Rui Zhao, Xudong Tang, Xuepeng Li, Da Su, Ao Zhang, Haotian Li, Enyu Li, and Ronghong Jin, "A novel phase mode antenna with triport and its application in a 1-D generalized phased array to 2-D scanning," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 10, 8072-8087, 2023.
doi:10.1109/tap.2023.3305775        Google Scholar

20. Wang, Yuqi, Quan Xue, Zhipeng Hu, and Shaowei Liao, "Mixed-modes-enabled element-level beamforming antenna with enhanced isolation for phased array applications," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 5, 4577-4582, 2024.
doi:10.1109/tap.2024.3349675        Google Scholar

21. Geyi, Wen, "The method of maximum power transmission efficiency for the design of antenna arrays," IEEE Open Journal of Antennas and Propagation, Vol. 2, 412-430, 2021.
doi:10.1109/ojap.2021.3066310        Google Scholar
