Abstract

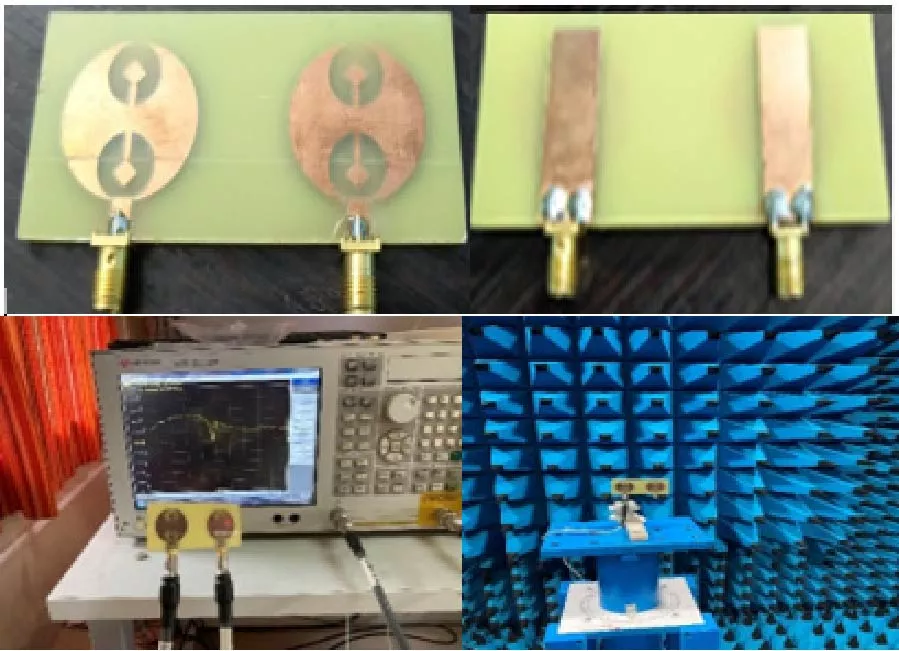

This research paper presents a novel two-element Notched Circular Patch (NCP) antenna tailored for n78 5G NR band communication, resonating at a frequency of 3.5 GHz. The primary focus of this study is to enhance isolation using a simple antenna design with advanced optimization techniques. The proposed NCP antenna incorporates two diamond-shaped slots within a circular patch, designed to operate at n78 band or C-band. Through meticulous design and fabrication processes, the antenna achieves an inter-element spacing that is optimized with GA algorithm, and 1/4 of the ground structure is considered at the center of the patch, significantly improving its performance at 3.5 GHz, maintaining a VSWR of 1.1. The proposed 60 × 30 mm² NCP antenna exhibits remarkable characteristics, including > -30 dB isolation, a reflection coefficient of -27 dB, and a gain of 4 dBi. These results underscore the effectiveness of the antenna design in reducing mutual coupling and enhancing isolation, which are essential for achieving reliable and efficient communication in 5G. The NCP MIMO antenna is thoroughly analyzed using characteristic mode analysis (CMA), and CMA parameters' influence on antenna performance is discussed. The design further highlights its practicality and potential for implementation in various wireless communication systems.

1. Luo, Shengyuan, Gert Frølund Pedersen, and Shuai Zhang, "Massive MIMO array design with high isolation by using decoupling cavity," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 3, 974-978, Mar. 2023.
doi:10.1109/tcsii.2022.3216394 Google Scholar

2. Liu, Feng, Jiayin Guo, Luyu Zhao, Guan-Long Huang, Yingsong Li, and Yingzeng Yin, "Ceramic superstrate-based decoupling method for two closely packed antennas with cross-polarization suppression," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 3, 1751-1756, Mar. 2021.
doi:10.1109/tap.2020.3016388 Google Scholar

3. Tran, Huy Hung and Nghia Nguyen-Trong, "Performance enhancement of MIMO patch antenna using parasitic elements," IEEE Access, Vol. 9, 30011-30016, 2021.
doi:10.1109/access.2021.3058340 Google Scholar

4. Wen, Dingliang, Yang Hao, Hanyang Wang, and Hai Zhou, "Design of a MIMO antenna with high isolation for smartwatch applications using the theory of characteristic modes," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 3, 1437-1447, Mar. 2019.
doi:10.1109/tap.2018.2884849 Google Scholar

5. Luo, Shengyuan, Yingsong Li, Yinfeng Xia, and Liang Zhang, "A low mutual coupling antenna array with gain enhancement using metamaterial loading and neutralization line structure," Applied Computational Electromagnetics Society Journal (ACES), Vol. 34, No. 3, 411-418, 2019. Google Scholar

6. Li, Jianxing, Xiaoke Zhang, Zhi Wang, Xiaoming Chen, Juan Chen, Yingsong Li, and Anxue Zhang, "Dual-band eight-antenna array design for MIMO applications in 5G mobile terminals," IEEE Access, Vol. 7, 71636-71644, 2019.
doi:10.1109/access.2019.2908969 Google Scholar

7. Aw, M. S., K. Ashwath, T. Ali, et al. "A compact two element MIMO antenna with improved isolation for wireless applications," Journal of Instrumentation, Vol. 14, No. 6, P06014, Jun. 2019.
doi:10.1088/1748-0221/14/06/p06014 Google Scholar

8. Chouhan, Sanjay, Debendra Kumar Panda, and Vivek Singh Kushwah, "Modified circular common element four-port multiple-input-multiple-output antenna using diagonal parasitic element," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 29, No. 2, e21527, 2019.
doi:10.1002/mmce.21527 Google Scholar

9. Zhang, Yi-Ming, Shuai Zhang, Jia-Lin Li, and Gert Frølund Pedersen, "A transmission-line-based decoupling method for MIMO antenna arrays," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 5, 3117-3131, May 2019.
doi:10.1109/tap.2019.2900406 Google Scholar

10. Li, Ming-Yang, Yong-Ling Ban, Zi-Qiang Xu, Jinhong Guo, and Zhe-Feng Yu, "Tri-polarized 12-antenna MIMO array for future 5G smartphone applications," IEEE Access, Vol. 6, 6160-6170, Dec. 2017.
doi:10.1109/access.2017.2781705 Google Scholar

11. Sarkar, Debdeep and Kumar Vaibhav Srivastava, "A compact four-element MIMO/diversity antenna with enhanced bandwidth," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2469-2472, 2017.
doi:10.1109/lawp.2017.2724439 Google Scholar

12. Gali, Rama Lakshmi and Madhavi Tatineni, "Design of a dual-band H-cut circular antenna with various decoupling methods for 5G NR band," 2025 International Conference on Inventive Computation Technologies (ICICT), 1935-1939, Kirtipur, Nepal, Apr. 2025.
doi:10.1109/ICICT64420.2025.11005281

13. Talha, Mohammed Younus, Kamili Jagadeesh Babu, and Rabah W. Aldhaheri, "Design of a compact MIMO antenna system with reduced mutual coupling," International Journal of Microwave and Wireless Technologies, Vol. 8, No. 1, 117-124, Feb. 2016.
doi:10.1017/s1759078714001287 Google Scholar

14. Anitha, R., P. V. Vinesh, K. C. Prakash, P. Mohanan, and K. Vasudevan, "A compact quad element slotted ground wideband antenna for MIMO applications," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 10, 4550-4553, Oct. 2016.
doi:10.1109/tap.2016.2593932 Google Scholar

15. Wong, Kin-Lu, Jun-Yu Lu, Li-Yu Chen, Wei-Yu Li, and Yong-Ling Ban, "8-antenna and 16-antenna arrays using the quad-antenna linear array as a building block for the 3.5-GHz LTE MIMO operation in the smartphone," Microwave and Optical Technology Letters, Vol. 58, No. 1, 174-181, Jan. 2016.
doi:10.1002/mop.29527 Google Scholar

16. Radhi, Alaa H., R. Nilavalan, Yi Wang, H. S. Al-Raweshidy, Amira A. Eltokhy, and Nur Ab Aziz, "Mutual coupling reduction with a wideband planar decoupling structure for UWB-MIMO antennas," International Journal of Microwave and Wireless Technologies, Vol. 10, No. 10, 1143-1154, Jul. 2018.
doi:10.1017/s1759078718001010 Google Scholar

17. Alsultan, Raghad Ghalib Saadallah and Gölge Ögücü Yetkin, "Mutual coupling reduction of E-shaped MIMO antenna with matrix of C-shaped resonators," International Journal of Antennas and Propagation, Vol. 2018, No. 1, 4814176, Feb. 2018.
doi:10.1155/2018/4814176 Google Scholar

18. Sharawi, Mohammad S., Ahmed B. Numan, Muhammad U. Khan, and Daniel N. Aloi, "A dual-element dual-band MIMO antenna system with enhanced isolation for mobile terminals," IEEE Antennas and Wireless Propagation Letters, Vol. 11, 1006-1009, Aug. 2012.
doi:10.1109/lawp.2012.2214433 Google Scholar

19. Zhao, Xing, Swee Ping Yeo, and Ling Chuen Ong, "Decoupling of inverted-F antennas with high-order modes of ground plane for 5G mobile MIMO platform," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 9, 4485-4495, Sep. 2018.
doi:10.1109/tap.2018.2851381 Google Scholar

20. Zhu, Jianfeng, Shufang Li, Botao Feng, Li Deng, and Sixing Yin, "Compact dual-polarized UWB quasi-self-complementary MIMO/diversity antenna with band-rejection capability," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 905-908, Sep. 2015.
doi:10.1109/lawp.2015.2479622 Google Scholar

21. Saad, A. A. R., "Approach for improving inter-element isolation of orthogonally polarised MIMO slot antenna over ultra-wide bandwidth," Electronics Letters, Vol. 54, No. 18, 1062-1064, Sep. 2018.
doi:10.1049/el.2018.5346 Google Scholar

22. Shehata, Mohamed, Mohamed Sameh Said, and Hassan Mostafa, "Dual notched band quad-element MIMO antenna with multitone interference suppression for IR-UWB wireless applications," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 11, 5737-5746, 2018.
doi:10.1109/tap.2018.2868725 Google Scholar

23. Hasan, Md. Mhedi, Mohammad Tariqul Islam, Touhidul Alam, Ahmed Alzamil, and Mohamed S. Soliman, "Electromagnetic coupling shielding in compact MIMO antenna using symmetric T-shaped metamaterial structure for 5G communications," Optics & Laser Technology, Vol. 169, 110046, 2024.
doi:10.1016/j.optlastec.2023.110046 Google Scholar

24. Puri, Vishal and Hari Shankar Singh, "Design of an isolation improved MIMO antenna using metasurface based absorber for wireless applications," Optik, Vol. 259, 168963, 2022.
doi:10.1016/j.ijleo.2022.168963 Google Scholar

25. Zeng, Wen-Feng and Fu-Chang Chen, "Wideband high-isolation antenna pair for 5G smartphones using multiple characteristic modes," AEU --- International Journal of Electronics and Communications, Vol. 170, 154856, 2023.
doi:10.1016/j.aeue.2023.154856 Google Scholar

Ms. Rama Lakshmi Gali

Dr. Madhavi Tatineni
