Abstract

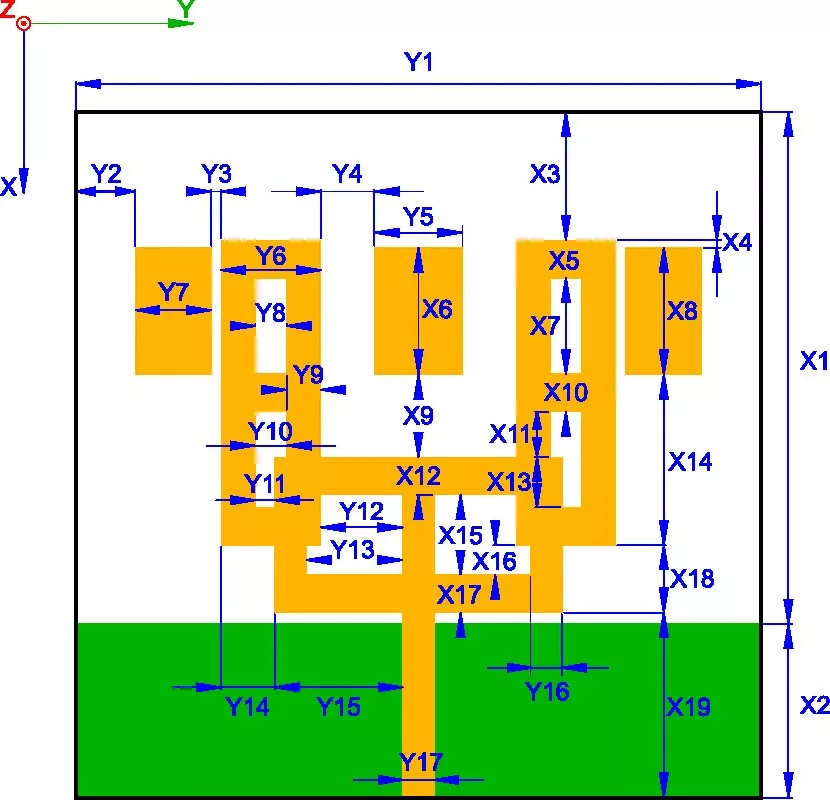

This article presents an enhanced-gain ultra-wideband (UWB) antenna with multiple notch responses to suppress the effects of coexisting wireless systems. The proposed antenna is developed in two stages. In the first stage, a reduced-ground U-shaped monopole with parasitic patches was designed to obtain a wide bandwidth between 3.02 and 10.76 GHz while maintaining a peak realized gain higher than 7 dB. In the second stage, selective frequency-rejection capabilities are tuned using split-ring structures (SRSs) for dual and higher-order notch responses. Two configurations are studied: dual-set SRS, which gives rise to low and high region notches centered at 5.73 GHz and 8.31 GHz, respectively, and higher-order SRS notch configuration providing a broad notch about 6.78 GHz with a 5.45% fractional rejection bandwidth. Parametric analysis indicated that the notch depth, notch bandwidth, and center frequency were independent and could be controlled via geometric tuning. The simulated results, supported by measurements from Keysight's PNA-X, corroborate the reflection coefficient, gain behavior, and notch performance; any deviations are attributed to variations experienced during the fabrication. The proposed approach achieves a UWB, increased gain, and flexible interference suppression, qualifying it for modern UWB communication systems that require a compact design.

1. "Revision of Part 15 of the commission's rules regarding ultra wideband transmission systems," Tech. Rep. FCC 02-48, eT Docket No. 98-153; 17 FCC Rcd 7435, Federal Communications Commission, Washington, D.C., Apr. 2002.

2. Yao, Shanhua, Tianchu Yang, Xiaorong Qiu, and Xiang Li, "A frog-shaped UWB MIMO antenna design for 5G," Progress In Electromagnetics Research C, Vol. 151, 101-112, 2025.
doi:10.2528/pierc24110702 Google Scholar

3. Yao, Shanhua, Xiaorong Qiu, and Tianchu Yang, "A miniaturized UWB MIMO antenna design for 5G multi-band applications," Progress In Electromagnetics Research C, Vol. 153, 1-12, 2025.
doi:10.2528/pierc24123001 Google Scholar

4. Sekhar, Manepalli and Nelaturi Suman, "CPW fed super-wideband antenna for microwave imaging application," Progress In Electromagnetics Research C, Vol. 130, 201-212, 2023.
doi:10.2528/pierc22122707 Google Scholar

5. Singh, Chandraveer and Chetna Sharma, "A miniaturized SC-DGS tapered-fed notched UWB antenna designed for breast tumor detection applications," Physica Scripta, Vol. 100, No. 6, 065529, 2025.
doi:10.1088/1402-4896/add62f Google Scholar

6. Bu, Dinuo, Shi-Wei Qu, and Shiwen Yang, "Planar, ultra-wideband and dual-polarized phased array antenna for millimeter-wave vehicular communication," IEEE Transactions on Vehicular Technology, Vol. 73, No. 7, 9972-9983, 2024.
doi:10.1109/tvt.2024.3364251 Google Scholar

7. Desai, Arpan, Heng-Tung Hsu, Basma M. Yousef, Allam M. Ameen, Yi-Fan Tsao, and Ahmed A. Ibrahim, "UWB connected ground transparent 4-port flexible MIMO antenna for IoT applications," IEEE Internet of Things Journal, Vol. 11, No. 7, 12475-12484, 2024.
doi:10.1109/jiot.2023.3333814 Google Scholar

8. Kakaraparty, Karthik and Ifana Mahbub, "High-gain, compact UWB antenna for wireless power transfer based wearable applications," IEEE Open Journal of Antennas and Propagation, 2024.
doi:10.1109/ojap.2024.3520069 Google Scholar

9. Muhsin, Muhannad Y., Zainab S. Muqdad, Asaad H. Sahar, Zainab F. Mohammad, and Hussam Al-Saedi, "Ultra-wideband antenna system design for future mmWave applications," Journal of Telecommunications and Information Technology, Vol. 1, 67-73, 2025.
doi:10.26636/jtit.2025.1.1951 Google Scholar

10. Zhao, Liangliang, Yongmao Wang, Chenlu Liu, Dengyang Song, Chufeng Hu, Chuwei Li, Huiling Zhao, and Zefang Wang, "Compact circular-shaped MIMO antenna covers UWB bandwidth with four frequently-used band-notched characteristics for multi-scenario applications," IEEE Access, Vol. 12, 32762-32771, 2024.
doi:10.1109/access.2024.3371571 Google Scholar

11. Platt, Jori M., Ljubodrag B. Boskovic, and Dejan S. Filipovic, "Wideband biconical antenna with embedded band-notch resonator," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 3, 2921-2925, 2024.
doi:10.1109/tap.2024.3349785 Google Scholar

12. Sadineni, Ramesh Babu, K. Srinivasa Rao, Thotakura Sushma, Paruchuri Venkata Krishna Kanth, V. Ramakoteswara Rao, and Dinesha Puttaraje Gowda, "Design of ultra-wideband antenna with quadruple band notch reconfigurability," Progress In Electromagnetics Research C, Vol. 144, 23-31, 2024.
doi:10.2528/pierc24032302 Google Scholar

13. Al-Saedi, Hussam, Muhannad Y. Muhsin, Zainab F. Mohammad, and Wael M. Abdel-Wahab, "Ultra-wideband antenna array for modern millimeter-wave wireless applications," Journal of Engineering and Sustainable Development, Vol. 29, No. 5, 573-581, 2025.
doi:10.31272/jeasd.3077 Google Scholar

14. Ahmad, Sarosh, Umer Ijaz, Salman Naseer, Adnan Ghaffar, Muhammad Awais Qasim, Faisal Abrar, Naser Ojaroudi Parchin, Chan Hwang See, and Raed Abd-Alhameed, "A jug-shaped CPW-fed ultra-wideband printed monopole antenna for wireless communications networks," Applied Sciences, Vol. 12, No. 2, 821, 2022.
doi:10.3390/app12020821 Google Scholar

15. Park, Seungyong and Kyung-Young Jung, "Novel compact UWB planar monopole antenna using a ribbon-shaped slot," IEEE Access, Vol. 10, 61951-61959, 2022.
doi:10.1109/access.2022.3182443 Google Scholar

16. Khan, Muhammad Abbas, Umair Rafique, Hüseyin Şerif Savci, Anis Nurashikin Nordin, Saad Hassan Kiani, and Syed Muzahir Abbas, "Ultra-wideband pentagonal fractal antenna with stable radiation characteristics for microwave imaging applications," Electronics, Vol. 11, No. 13, 2061, 2022.
doi:10.3390/electronics11132061 Google Scholar

17. Kumar, N. Niranjan, B. S. Srikanth, Stuttee Bellona Gurung, S. Manu, G. N. S. Gowthami, Tanweer Ali, and Sameena Pathan, "A slotted UWB monopole antenna with truncated ground plane for breast cancer detection," Alexandria Engineering Journal, Vol. 59, No. 5, 3767-3780, 2020.
doi:10.1016/j.aej.2020.06.034 Google Scholar

18. Samadianfard, Rasoul, Javad Nourinia, Changiz Ghobadi, Majid Shokri, and Roghayeh Samadianfard, "A compact, ultra-thin UWB microstrip antenna for microwave imaging applications," Soft Computing, Vol. 27, No. 24, 19113-19124, Dec. 2023.
doi:10.1007/s00500-023-08182-0 Google Scholar

19. Rani, Preeti, Manoj Kumar Gaur, Poonam Tiwari, Meenu Kaushik, Anshuman Shastri, and Vishant Gahlaut, "Design and implementation of a compact ultra-wideband reconfigurable antenna using RF MEMS switch technology," Discover Electronics, Vol. 2, No. 1, 32, Jun. 2025.
doi:10.1007/s44291-025-00077-8 Google Scholar

20. Thaiwirot, Wanwisa, Jariyanee Ardhan, Saowarat Prengsri, Prayoot Akkaraekthalin, and Suramate Chalermwisutkul, "The low-profile all-textile UWB antenna with AMC for WBAN Applications," EURASIP Journal on Wireless Communications and Networking, Vol. 2025, No. 1, 56, Jul. 2025.
doi:10.1186/s13638-025-02487-4 Google Scholar

21. Devana, V. N. Koteswara Rao, N. Radha, P. Sunitha, Fahad N. Alsunaydih, Fahd Alsaleem, and Khaled Alhassoon, "Compact MIMO UWB antenna integration with Ku band for advanced wireless communication applications," Heliyon, Vol. 10, No. 5, e27393, 2024.
doi:10.1016/j.heliyon.2024.e27393 Google Scholar

22. Saeidi, Tale, Sarmad Nozad Mahmood, Sahar Saleh, Nick Timmons, Ahmed Jamal Abdullah Al-Gburi, and Faroq Razzaz, "Ultra-wideband (UWB) antennas for breast cancer detection with microwave imaging: A review," Results in Engineering, Vol. 25, 104167, 2025.
doi:10.1016/j.rineng.2025.104167 Google Scholar

23. Cameron, Richard J., Chandra M. Kudsia, and Raafat R. Mansour, Microwave Filters for Communication Systems: Fundamentals, Design, and Applications, John Wiley & Sons, 2018.

24. Martínez-Lozano, Andrea, Carolina Blanco-Angulo, Héctor García-Martínez, Roberto Gutiérrez-Mazón, Germán Torregrosa-Penalva, Ernesto Ávila-Navarro, and José María Sabater-Navarro, "UWB-printed rectangular-based monopole antenna for biological tissue analysis," Electronics, Vol. 10, No. 3, 304, 2021.
doi:10.3390/electronics10030304 Google Scholar

Mr. Mohammed Fadhel Hasan

Mr. Hussein Al-Jeshami

Dr. Hussam Al-Saedi

Dr. Hussain A. Hammas

Dr. Muhannad Y. Muhsin

Prof. Jawad K. Ali
