Abstract

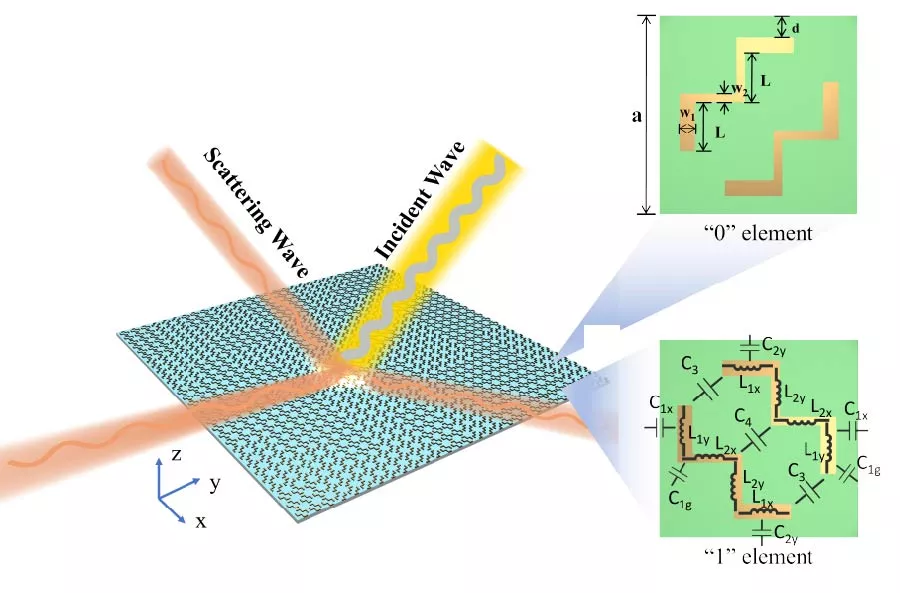

This study proposes a broadband, wide-angle metasurface for bistatic radar cross-section (RCS) reduction by integrating a low-profile bent-line unit design with an Adaptive Binary Particle Swarm Optimization algorithm enhanced by Array Pattern Synthesis (ABPSO-APS). The optimized metasurface achieves over 10 dB of bistatic RCS reduction across 8.4-21 GHz (86.7% fractional bandwidth), with a peak reduction of 22 dB, outperforming conventional checkerboard, genetic algorithm, and particle swarm optimization layouts by 22.82%, 15.27%, and 7.91%, respectively. The design also exhibits angular stability up to 30° and polarization insensitivity under both TE and TM incidences, while maintaining an ultrathin profile of only 0.1λ (where λ is the wavelength at the center frequency). These results demonstrate its strong potential as a compact and efficient solution for advanced electromagnetic stealth and radar signature control applications.
