2026-08-11
Advanced Computational Framework for Terahertz Inverse Imaging in Stratified Biomedical Media: A Physics-Informed FDTD Model with Dielectric Gradient Reconstruction
By
Khushi D. Thakkar,

    Dr. Khushi D. Thakkar

    Department of Electronics and Communication Engineering

    Dharmsinh Desai University

    India

    Homepage

Rizwan Habibbhai Alad,

    Dr. Rizwan Habibbhai Alad

    Department of Electronics and Communication, Faculty of Technology

    Dharmsinh Desai University

    India

    Homepage

Purvang D. Dalal

    Dr. Purvang D. Dalal

    Department of Electronics and Communication

    Dharmsinh Desai University

    India

    Homepage

Progress In Electromagnetics Research C, Vol. 172, 262-274, 2026
doi:10.2528/PIERC26010902 | Google Scholar

Abstract

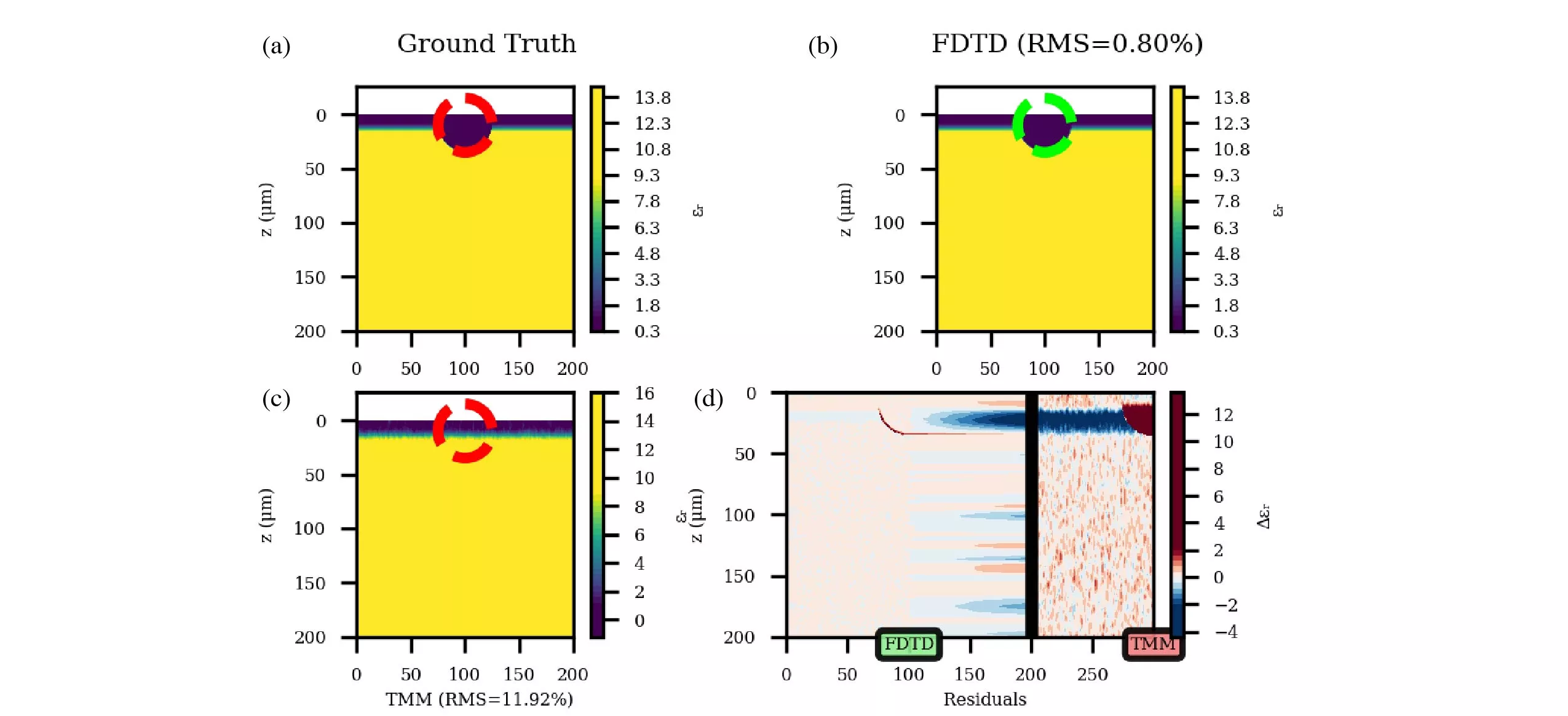

Terahertz Time-Domain Spectroscopy (THz-TDS) enables noninvasive skin hydration monitoring, but existing techniques rely on one-dimensional fitting, which cannot resolve lateral heterogeneity. This paper presents a physics-informed twodimensional finite-difference time-domain (2D-FDTD) forward modeling framework coupled with an adjoint-based optimization algorithm to reconstruct spatially resolved permittivity maps of hydrated skin. The forward model employs a Dual-Debye dielectric dispersion formulation with relaxation times τ1 = 8.3 ps (free water) and τ2 = 0.3 ps (bound water), capturing the frequency-dependent response in the range εr = 6.34-8.71 corresponding to physiological hydration fractions φ = 0.20-0.70. An adjointbased gradient descent algorithm with total variation (TV) regularization recovers the 2D permittivity distribution from reflected THz-TDS signals, achieving 0.03% root-mean-square (RMS) reconstruction error at the 30th iteration. Frequencydomain decomposition of the absorption coefficient is validated against synthetic hydrogel phantom data, confirming that bound water contributes 82 ± 4% of total absorption at 0.5 THz. The framework distinguishes healthy skin, psoriasis, and chronic wound edema with p < 10-17 statistical significance. To the best of the authors' knowledge, this constitutes an early demonstration of a 2D physics-informed inverse imaging framework demonstrated on both depth-resolved gradient phantoms and laterally heterogeneous pore phantoms of the 6-9 permittivity band with sub-percent accuracy in the THz biomedical domain; experimental validation of in-vivo tissue remains a critical next step.
Download Full Article (19) View Full Article volume
Citation
Khushi D. Thakkar, Rizwan Habibbhai Alad, and Purvang D. Dalal, "Advanced Computational Framework for Terahertz Inverse Imaging in Stratified Biomedical Media: A Physics-Informed FDTD Model with Dielectric Gradient Reconstruction," Progress In Electromagnetics Research C, Vol. 172, 262-274, 2026.
doi:10.2528/PIERC26010902
References

1. Sun, Q., Y. He, E. P. J. Parrott, and E. P. MacPherson, "In vivo THz imaging of human skin: Accounting for occlusion effects," 2016 41st International Conference on Infrared, Millimeter, and Terahertz waves (IRMMW-THz), 1-2, Copenhagen, Denmark, 2016.
doi:10.1109/IRMMW-THz.2016.7758883

2. Lindley, Hannah, A. I. Hernandez-Serrano, Q. Sun, J. Wang, and E. Pickwell-MacPherson, "Pressure controlled in vivo THz measurements of skin: Monitoring the effects of moisturizers," 2019 44th International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), 1-2, Paris, France, 2019.
doi:10.1109/IRMMW-THz.2019.8874221

3. Taylor, Zachary D., Rahul S. Singh, David B. Bennett, Priyamvada Tewari, Colin P. Kealey, Neha Bajwa, et al. "THz medical imaging: In vivo hydration sensing," IEEE Transactions on Terahertz Science and Technology, Vol. 1, No. 1, 201-209, 2011.
doi:10.1109/tthz.2011.2159551        Google Scholar

4. Ding, Xuefei, Arturo I. Hernandez-Serrano, Jacob J. Young, and Emma Pickwell-MacPherson, "Variation of skin hydration profile with biophysical factors and lifestyle revealed by in vivo terahertz sensing," Biomedical Optics Express, Vol. 15, No. 9, 5180-5198, 2024.
doi:10.1364/boe.527731        Google Scholar

5. Hernandez-Serrano, A. I. and Emma Pickwell-MacPherson, "In-vivo stratum corneum hydration inspection using a non-invasive terahertz hand-held scanner," 2023 48th International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), 1-1, Montreal, QC, Canada, 2023.
doi:10.1109/irmmw-thz57677.2023.10299338

6. Tamminen, A., M. Baggio, R. Grigorev, I. Nefedova, S. V. Pälli, J. Ala-Laurinaho, E. R. Brown, V. P. Wallace, E. MacPherson, T. Maloney, and Z. D. Taylor, "Characterization of bound and free water in gelatin hydrogels and their contribution to THz frequency permittivity," 2022 47th International Conference on Infrared, Millimeter and Terahertz Waves (IRMMW-THz), 1-2, Delft, Netherlands, 2022.
doi:10.1109/irmmw-thz50927.2022.9895595

7. Born, M. and E. Wolf, Principles of Optics: Electromagnetic Theory of Propagation, Interference and Diffraction of Light, 7th Ed., Cambridge University Press, 1999.
doi:10.1063/1.1325200

8. Agarwal, Agrima, Fayyaz Minhas, and Emma Pickwell-MacPherson, "Physics informed model for classification of dry skin using THz-TDS signals," 2024 49th International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), 1-2, Perth, Australia, 2024.
doi:10.1109/irmmw-thz60956.2024.10697654

9. Young, Jacob, Rayko Stanchev, and Emma Pickwell-MacPherson, "Optical alignment for non-contact in vivo THz sensing," 2023 48th International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), 1-1, Montreal, QC, Canada, 2023.
doi:10.1109/irmmw-thz57677.2023.10299307

10. Kindt, J. T. and C. A. Schmuttenmaer, "Far-infrared dielectric properties of polar liquids probed by femtosecond terahertz pulse spectroscopy," The Journal of Physical Chemistry, Vol. 100, No. 24, 10373-10379, 1996.
doi:10.1021/jp960141g        Google Scholar

11. Costa, Goncalo, Emily M. Brogden, Jacob J. Young, Huiliang Ou, Arturo I. Hernandez-Serrano, Rayko I. Stantchev, Stefan A. F. Bon, and Emma Pickwell-MacPherson, "Developing hydration maps of polymer latex film formation using terahertz time-domain spectroscopy," Langmuir, Vol. 40, No. 47, 25023-25033, 2024.
doi:10.1021/acs.langmuir.4c03103        Google Scholar

12. Taflove, A. and S. C. Hagness, Computational Electrodynamics: The Finite-Difference Time-Domain Method, 3rd Ed., Artech House, 2005.
doi:10.1016/b978-012170960-0/50046-3

13. Roden, J. Alan and Stephen D. Gedney, "Convolution PML (CPML): An efficient FDTD implementation of the CFS–PML for arbitrary media," Microwave and Optical Technology Letters, Vol. 27, No. 5, 334-339, 2000.
doi:10.1002/1098-2760(20001205)27:5<334::aid-mop14>3.0.co;2-a        Google Scholar

14. Fichtner, A., Full Seismic Waveform Modelling and Inversion, Springer, 2011.
doi:10.1007/978-3-642-15807-0

15. Jayasankar, D., A. I. Hernandez-Serrano, R. A. Hand, J. Stake, and E. MacPherson, "Investigation of hydrogel skin phantoms using terahertz time-domain spectroscopy," 2022 52nd European Microwave Conference (EuMC), 401-403, Milan, Italy, 2022.
doi:10.23919/eumc54642.2022.9924308

16. Page, B. G., J. J. Young, A. I. Hernandez-Serrano, J. Hardwicke, and E. Pickwell-MacPherson, "Applying frequency-wavelet domain deconvolution to in vivo terahertz measurements of skin conditions," IEEE Transactions on Terahertz Science and Technology, Vol. 15, No. 4, 573-581, July 2025.
doi:10.1109/tthz.2025.3566562        Google Scholar

17. Chen, Xuequan, Qiushuo Sun, Jiarui Wang, and Emma Pickwell-MacPherson, "Skin surface feature influence on terahertz in vivo measurements," 2020 45th International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), 1-2, Buffalo, NY, USA, 2020.
doi:10.1109/irmmw-thz46771.2020.9370690

18. Neu, Jens and Charles A. Schmuttenmaer, "Tutorial: An introduction to terahertz time domain spectroscopy (THz-TDS)," Journal of Applied Physics, Vol. 124, No. 23, 231101, 2018.
doi:10.1063/1.5047659        Google Scholar

19. Withayachumnankul, Withawat and Mira Naftaly, "Fundamentals of measurement in terahertz time-domain spectroscopy," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 35, No. 8, 610-637, 2014.
doi:10.1007/s10762-013-0042-z        Google Scholar

20. Abdelraouf, Omar A. M., A. Ahmed, Emadeldeen Eldele, and Ahmed A. Omar, "Physics-informed neural networks in electromagnetic and nanophotonic design," arXiv preprint arXiv:2505.03354, 2025.
doi:10.48550/arXiv.2505.03354        Google Scholar

21. Pan, C. H., Physics-Informed Optimization Methods of Metasurface and Reconfigurable Antenna Inverse Design for Intelligent Sensing and Imaging Systems, Princeton University ProQuest Dissertations & Theses, 2025.
