Abstract

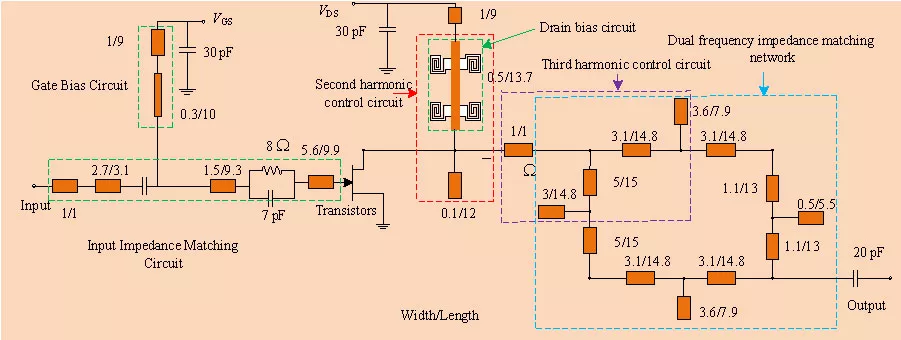

This paper proposes a dual-band class-F^-1 high-efficiency power amplifier with an integrated structure for harmonic suppression and fundamental matching. The fundamental matching network employed a dual-frequency coupler with open branches. This structure is partially reused for third-harmonic control by leveraging two open branches and two branch lines. By adjusting the characteristic impedance of the quarter-wavelength transmission line, the third-harmonic impedance is adjusted to a short circuit at both fundamental frequencies at the drain of the power amplifier. The second-harmonic control network consists of a quarter-wavelength open stub and a drain bias line loaded with a double spiral defected ground structure (DGS), which controls the second-harmonic impedance to an open circuit state at the drain, satisfying the class F^-1 harmonic conditions. A dual-band high-efficiency class F^-1 power amplifier operating at 2.6 GHz/3.4 GHz is designed and fabricated. The measured results show drain efficiencies of 73.5% and 74.3% at 2.6 GHz/3.4 GHz, with output power exceeding 40 dBm and gain above 10 dB.

1. Tahmasbi, Meisam, Farhad Razaghian, and Sobhan Roshani, "Design of high-efficiency Hybrid Power Amplifier with concurrent F&F^-1 class operations for 5G application," Frequenz, Vol. 75, No. 11-12, 467-477, 2021.
doi:10.1515/freq-2021-0044 Google Scholar

2. Xuan, Xuefei, Yueyue Liu, Muyi Zhai, Yang Wang, Xianlei Ge, Guohua Liu, and Zhiqun Cheng, "Design of bandwidth‐enhanced power amplifier based on class‐EF modes," Microwave and Optical Technology Letters, Vol. 63, No. 8, 2122-2128, 2021.
doi:10.1002/mop.32871 Google Scholar

3. Feng, Wenjie, Wenbin Wu, Xin Yu Zhou, Wenquan Che, and Yongrong Shi, "Broadband high-efficiency quasi-class-J power amplifier based on nonlinear output capacitance effect," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 69, No. 4, 2091-2095, 2022.
doi:10.1109/tcsii.2022.3141423 Google Scholar

4. Cripps, Steve C., Paul J. Tasker, Alan L. Clarke, Jonathan Lees, and Johannes Benedikt, "On the continuity of high efficiency modes in linear RF power amplifiers," IEEE Microwave and Wireless Components Letters, Vol. 19, No. 10, 665-667, 2009.
doi:10.1109/lmwc.2009.2029754 Google Scholar

5. Faeghi, Pouya and Jeffrey S. Walling, "A probe antenna with an integrated band-pass filter via shielded SIW," 2025 IEEE Texas Symposium on Wireless and Microwave Circuits and Systems (WMCS), 1-4, Waco, TX, USA, 2025.
doi:10.1109/WMCS63512.2025.11104879

6. Lim, Jong-Sik, Ho-Sup Kim, Jun-Seek Park, Dal Ahn, and Sangwook Nam, "A power amplifier with efficiency improved using defected ground structure," IEEE Microwave and Wireless Components Letters, Vol. 11, No. 4, 170-172, 2001.
doi:10.1109/7260.916333 Google Scholar

7. Huang, Wen and Jiang Liu, "High-efficiency class-F power amplifier based on double spiral defected ground structure," International Journal of Electronics, Vol. 111, No. 3, 485-498, 2024.
doi:10.1080/00207217.2022.2164078 Google Scholar

8. Kazimierczuk, Marian K., RF Power Amplifiers, John Wiley & Sons, 2014.
doi:10.1002/9781118844373

9. Woo, Young Yun, Youngoo Yang, and Bumman Kim, "Analysis and experiments for high-efficiency class-F and inverse class-F power amplifiers," IEEE Transactions on Microwave Theory and Techniques, Vol. 54, No. 5, 1969-1974, 2006.
doi:10.1109/tmtt.2006.872805 Google Scholar

10. Zhang, Hualiang and Kevin J. Chen, "A stub tapped branch-line coupler for dual-band operations," IEEE Microwave and Wireless Components Letters, Vol. 17, No. 2, 106-108, 2007.
doi:10.1109/lmwc.2006.890330 Google Scholar

11. Gao, Mingming, Gaoyang Xu, and Jingchang Nan, "Design of concurrent tri-band high-efficiency power amplifier based on wireless applications," Electronics, Vol. 11, No. 21, 3544, 2022.
doi:10.3390/electronics11213544 Google Scholar

12. Chen, Peng, Songbai He, Xianfei Wang, and Zhijiang Dai, "1.7/2.6 GHz high‐efficiency concurrent dual‐band power amplifier with dual‐band harmonic wave controlled transformer," Electronics Letters, Vol. 50, No. 3, 184-185, 2014.
doi:10.1049/el.2013.3781 Google Scholar

13. Meng, Xiangyu, Cuiping Yu, Yongle Wu, and Yuanan Liu, "Design of dual-band high-efficiency power amplifiers based on compact broadband matching networks," IEEE Microwave and Wireless Components Letters, Vol. 28, No. 2, 162-164, 2018.
doi:10.1109/lmwc.2017.2787058 Google Scholar

14. Dai, Zhijiang, Songbai He, Jingzhou Pang, Jun Peng, Chaoyi Huang, and Fei You, "Sub‐optimal matching method for dual‐band class‐J power amplifier using real frequency technique," IET Microwaves, Antennas & Propagation, Vol. 11, No. 9, 1218-1226, 2017.
doi:10.1049/iet-map.2015.0703 Google Scholar

15. Chen, H., G.-X. Liu, F. Zhu, M.-T. Han, and D. Jiang, "Design of dual-band power amplifier based on tri-band impedance matching circuit," Journal of Electromagnetic Waves and Applications, Vol. 35, No. 12, 1601-1610, 2021.
doi:10.1080/09205071.2021.1909502 Google Scholar

Dr. Wen Huang

Dr. Junhao Zhao

Dr. Jiang Liu

Professor Honggang Hao
