Abstract

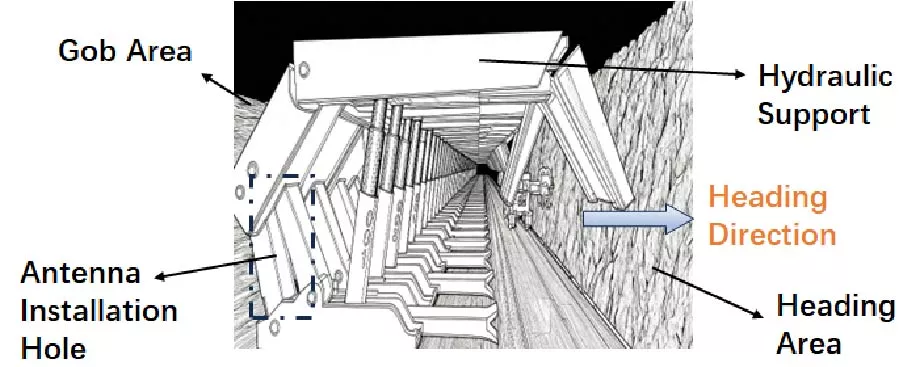

Wireless communication nodes in the underground mine gob area are often disturbed by different orientations; therefore, antennas with quasi-isotropic radiation are critical for reliable wireless communication. To address this challenge, a compact, cylindrical, conformal, quasi-isotropic antenna operating in the VHF band is proposed. The design integrates a shorted-patch structure with orthogonal dipole radiation, formed by a shorting post and patch aperture, to realize nearly isotropic Radiation. A capacitive-coupling feed is employed to enhance impedance matching, yielding an impedance bandwidth of about 1.02 MHz (S₁₁ < -10 dB) at 170 MHz. The fabricated prototype, with dimensions of 120 mm × 120 mm × 110 mm (0.068λ₀ × 0.068λ₀ × 0.063λ₀), was validated through full-wave simulations and experimental testing. The two results show excellent agreement, demonstrating a measured maximum-minimum gain variation of only 2.74 dB, confirming the antenna's good quasi-isotropic characteristics. Owing to its compact volume, stable matching, and consistent omnidirectional coverage, the proposed antenna is a good candidate for underground mine gob area communication nodes.

1. Cacciuttolo, Carlos, Edison Atencio, Seyedmilad Komarizadehasl, and Jose Antonio Lozano-Galant, "Internet of things long-range-wide-area-network-based wireless sensors network for underground mine monitoring: Planning an efficient, safe, and sustainable labor environment," Sensors, Vol. 24, No. 21, 6971, 2024.
doi:10.3390/s24216971 Google Scholar

2. Sanmiquel, Lluís, Josep M. Rossell, and Carla Vintró, "Study of Spanish mining accidents using data mining techniques," Safety Science, Vol. 75, 49-55, 2015.
doi:10.1016/j.ssci.2015.01.016 Google Scholar

3. Qiang, Xingbang, Guoqing Li, Jie Hou, Xia Zhang, and Yujia Liu, "Intelligent safety risk analysis and decision-making system for underground metal mines based on big data," Sustainability, Vol. 15, No. 13, 10086, 2023.
doi:10.3390/su151310086 Google Scholar

4. Li, Jianxing, Yanyang Wang, Luoxing Zhang, Binke Huang, Sen Yan, and Xiaoming Chen, "A quasi-isotropic antenna with system ground plane for IoT-based smart home applications," IEEE Internet of Things Journal, Vol. 11, No. 8, 14449-14459, Apr. 2024.
doi:10.1109/jiot.2023.3342452 Google Scholar

5. Ryu, Hong-Kyun, Gichul Jung, Dea-Keun Ju, Sungkyun Lim, and Jong-Myung Woo, "An electrically small spherical UHF RFID tag antenna with quasi-isotropic patterns for wireless sensor networks," IEEE Antennas and Wireless Propagation Letters, Vol. 9, 60-62, 2010.
doi:10.1109/lawp.2010.2043046 Google Scholar

6. Li, Qing, Wen-Jun Lu, Sheng-Guang Wang, and Lei Zhu, "Planar quasi-isotropic magnetic dipole antenna using fractional-order circular sector cavity resonant mode," IEEE Access, Vol. 5, 8515-8525, 2017.
doi:10.1109/access.2017.2696988 Google Scholar

7. Zhang, Weiquan, Yue Li, Ziheng Zhou, and Zhijun Zhang, "Dual-mode compression of dipole antenna by loading electrically small loop resonator," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 4, 3243-3247, Apr. 2020.
doi:10.1109/tap.2019.2948712 Google Scholar

8. Wang, Yanyang and Sen Yan, "Design of an electrically small 3-D antenna with quasi-isotropic radiation pattern," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 10, 1873-1877, Oct. 2021.
doi:10.1109/lawp.2021.3098174 Google Scholar

9. Wang, Yang, Ming-Chun Tang, Dajiang Li, Kun-Zhi Hu, Mei Li, and Xiaoheng Tan, "Low cost, electrically small, quasi-isotropic antenna based on split ring resonator," 2019 International Applied Computational Electromagnetics Society Symposium --- China (ACES), 1-2, Nanjing, China, 2019.
doi:10.23919/ACES48530.2019.9060708

10. Wang, Ruiqi, Kirill Klionovski, and Atif Shamim, "An antenna with quasi-isotropic radiation pattern designed with bent dipoles," 2023 IEEE International Symposium on Antennas and Propagation and USNC-URSI Radio Science Meeting (USNC-URSI), 1057-1058, Portland, OR, USA, 2023.
doi:10.1109/USNC-URSI52151.2023.10237881

11. Xu, Yizhen, Yilong Zhu, Sichao Wen, and Yuandan Dong, "Planar quasi-isotropic antenna and its implementation of filtering response," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 12, 2407-2411, Dec. 2021.
doi:10.1109/lawp.2021.3113319 Google Scholar

12. Liang, Liang and Sean V. Hum, "A low-profile antenna with quasi-isotropic pattern for UHF RFID applications," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 210-213, 2013.
doi:10.1109/lawp.2013.2245393 Google Scholar

13. Peng, Lin, Kai Sun, Xing Jiang, Si-Min Li, and Cheng-Li Ruan, "EZR-MZR resonators for compact low-profile omnidirectional circular-polarized antenna design," IEEE Photonics Journal, Vol. 9, No. 4, 1-15, Aug. 2017.
doi:10.1109/jphot.2017.2723404 Google Scholar

14. Munir, Mehr E., Moustafa M. Nasralla, and Maged Abdullah Esmail, "Four port tri-circular ring MIMO antenna with wide-band characteristics for future 5G and mmWave applications," Heliyon, Vol. 10, No. 8, e28714, 2024.
doi:10.1016/j.heliyon.2024.e28714 Google Scholar

15. Pan, Y.-M., K. W. Leung, and K. Lu, "Compact quasi-isotropic dielectric resonator antenna with small ground plane," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 2, 577-585, 2014. Google Scholar

16. Cho, Yong Heui and Jae-Yong Kwon, "Theoretical and numerical analyses of a quasi-isotropic antenna with almost everywhere isotropy," IEEE Access, Vol. 13, 135579-135588, 2025.
doi:10.1109/access.2025.3594282 Google Scholar

17. Sellak, Lahcen, Asma Khabba, Samira Chabaa, Saida Ibnyaich, Vincent Kai Loung Yong, Atmane Baddou, and Abdelouhab Zeroual, "RBFNN-based UWB 4 × 4 MIMO antenna design with compact size, high isolation, and improved diversity performance for millimeter-wave 5G applications," Physica Scripta, Vol. 99, No. 6, 066007, 2024.
doi:10.1088/1402-4896/ad4747 Google Scholar

18. Su, Jiaqi, Bin Li, Xin Yao, Bochao Zhao, Fengchao Ren, Hengshuang Zhang, and Xiaoli Wang, "A L-band high gain amplifier module using 3D SiP technology," 2023 6th International Conference on Electronics Technology (ICET), 324-328, Chengdu, China, 2023.
doi:10.1109/ICET58434.2023.10211962

19. Bao, Zengdi, Yong-Xin Guo, and Raj Mittra, "Single-layer dual-/tri-band inverted-F antennas for conformal capsule type of applications," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 12, 7257-7265, Dec. 2017.
doi:10.1109/tap.2017.2758161 Google Scholar

20. Wang, Yanyang, Sen Yan, and Binke Huang, "Conformal folded inverted-F antenna with quasi-isotropic radiation pattern for robust communication in capsule endoscopy applications," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 8, 6537-6550, Aug. 2022.
doi:10.1109/tap.2022.3161342 Google Scholar

21. Capozzoli, Amedeo, Claudio Curcio, Francesco D'Agostino, and Angelo Liseno, "A review of the antenna field regions," Electronics, Vol. 13, No. 11, 2194, 2024.
doi:10.3390/electronics13112194 Google Scholar

22. Rodriguez, Ignacio, Huan C. Nguyen, Troels B. Sorensen, and Ondrej Franek, "Base station antenna pattern distortion in practical urban deployment scenarios," 2014 IEEE 80th Vehicular Technology Conference (VTC2014-Fall), 1-6, Vancouver, BC, Canada, 2014.
doi:10.1109/VTCFall.2014.6965887

23. Talashila, Rajavardhan and Harishankar Ramachandran, "Determination of far fields of wire antennas on a PEC sphere using spherical harmonic expansion," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 4, 646-650, Apr. 2019.
doi:10.1109/lawp.2019.2900291 Google Scholar
