Abstract

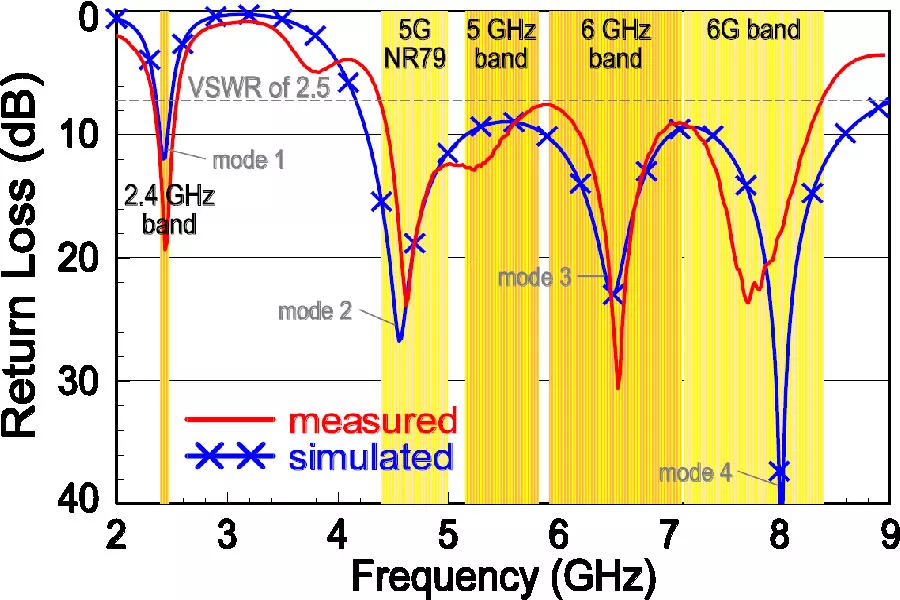

A compact yet simple, printed monopole design targeted at providing multiband operation in the 2.4/5/6 GHz Wi-Fi 8 (2400-2484/5150-7125 MHz) bands and also the 5G new radio (NR79) (4.4-5.0 GHz) band and 6G upper mid-band in the 7.125-8.4 GHz range is demonstrated. The antenna is composed of longer and shorter radiating arms, as well as a matching stub that protrudes from the longer arm around the antenna port and extends toward the shorter arm. The two arms and the stub are all printed on a low-cost single-layer substrate. Four resonant modes of the antenna are excited, with the lower mode covering the 2.4 GHz band and the three upper modes forming a wide 7.4-dB return-loss bandwidth of about 4.3-8.6 GHz, covering the 5G NR79 band, 5/6 GHz Wi-Fi bands, and 6G upper mid-band. Additionally, the design can be fed by a commercially available coaxial cable, allowing the antenna to have considerable flexibility in installation within wireless devices.

1. IEEE, ``Inspiring Technology: 34 Breakthroughs" Celebrating 140 Years of Advancing Technology for the Benefit of Humanity, 32-35, 2023.

2. Balanis, Constantine A., Antenna Theory: Analysis and Design, John Wiley & Sons, 2016.

3. Lee, Chi-Hun and Seong-Ook Park, "A compact printed hook‐shaped monopole antenna for 2.4/5‐GHz WLAN applications," Microwave and Optical Technology Letters, Vol. 48, No. 2, 327-329, 2006.
doi:10.1002/mop.21340 Google Scholar

4. Su, Saou-Wen and Fa-Shian Chang, "Compact, printed mobile‐unit antenna for 2.4 and 5 GHz WLAN applications," Microwave and Optical Technology Letters, Vol. 52, No. 12, 2648-2653, 2010.
doi:10.1002/mop.25561 Google Scholar

5. Chen, Wen-Shan, Bau-Yi Lee, and Po-Yuan Chang, "A compact and small printed monopole antenna for WLAN applications," Microwave and Optical Technology Letters, Vol. 53, No. 7, 1518-1522, 2011.
doi:10.1002/mop.26089 Google Scholar

6. Naser-Moghadasi, M., R. A. Sadeghzadeh, M. Fakheri, T. Aribi, T. Sedghi, and B. S. Virdee, "Miniature hook-shaped multiband antenna for mobile applications," IEEE Antennas and Wireless Propagation Letters, Vol. 11, 1096-1099, 2012.
doi:10.1109/lawp.2012.2214199 Google Scholar

7. Yeo, Wei Long, Koon Chun Lai, Kim Ho Yeap, Peh Chiong Teh, and Humaira Nisar, "A compact dual-band hook-shaped antenna for wireless applications," Microwave and Optical Technology Letters, Vol. 59, No. 8, 1882-1887, 2017.
doi:10.1002/mop.30651 Google Scholar

8. Fakhriddinovich, Azimov Uktam, Md. Abu Sufian, Wahaj Abbas Awan, Niamat Hussain, and Nam Kim, "A compact antenna with multiple stubs for ISM, 5G sub-6-GHz, and WLAN," IEEE Access, Vol. 11, 130418-130425, 2023.
doi:10.1109/access.2023.3333881 Google Scholar

9. Wi, Seokju, Hoseung Lee, Junmo Choi, Jeonghwan Kim, Rui Li, and Hyeongdong Kim, "A compact dual-band antenna using a gap-coupled monopole branch for Wi-Fi 6/6E/7 applications," Scientific Reports, Vol. 16, 2026.
doi:10.1038/s41598-026-35094-4 Google Scholar

10. Galati-Giordano, Lorenzo, Giovanni Geraci, Marc Carrascosa, and Boris Bellalta, "What will Wi-Fi 8 be? A primer on IEEE 802.11 bn ultra high reliability," IEEE Communications Magazine, Vol. 62, No. 8, 126-132, 2024.
doi:10.1109/mcom.001.2300728 Google Scholar

11. MediaTek, "Wi-Fi 8: Pioneering the future of connectivity," https://www.mediatek.com/tek-talk-blogs/wi-fi-8-pioneering-the-future-of-connectivity, 2024.

12. Nokia Corporation, "6G mid-band spectrum technology explained," https://www.nokia.com/6g/6g-mid-band-spectrum-technology-explained/, 2024.

13. Samsung Electronics Co., Ltd., "Upper mid-band spectrum for 6G: Opportunities and key enablers," https://research.samsung.com/blog/Upper-Mid-Band-Spectrum-for-6G-Opportunities-and-Key-Enablers#none, 2024.

14. 5G Americas, "The 6G upgrade in the 7-8 GHz spectrum range: Coverage capacity and technology," https://www.5gamericas.org/wp-content/uploads/2024/10/The-6G-Upgrade-in-the-7-8-GHz-Spectrum-Id.pdf, 2024.

15. Lee, Cheng-Tse, Che-Chi Wan, and Saou-Wen Su, "Multi-laptop-antenna designs for 2.4/5/6 GHz WLAN and 5G NR77/78/79 operation," 2020 International Symposium on Antennas and Propagation (ISAP), 421-422, Osaka, Japan, 2021.
doi:10.23919/ISAP47053.2021.9391347

16. Yusuf, Derry Permana, Fang-Hsien Chu, and Saou-Wen Su, "Ultra-wideband Wi-Fi 6E/5G NR antenna for laptop applications," 2022 Asia-Pacific Microwave Conference (APMC), 548-550, Yokohama, Japan, 2022.
doi:10.23919/APMC55665.2022.9999908

17. Su, Saou-Wen and Yen-Liang Kuo, "Planar, metal-plate shorted monopole for Wi-Fi 7 and 6G applications," 2024 International Symposium on Antennas and Propagation (ISAP), 1-2, Incheon, Korea, 2024.
doi:10.1109/ISAP62502.2024.10845952

18. Su, Saou-Wen, "Multiband, multimode, printed antenna for 5G, and Wi-Fi 7 laptop computer applications," IEEE Access, Vol. 13, 200769-200776, 2025.
doi:10.1109/access.2025.3637067 Google Scholar

19. Su, Saou-Wen, Tung-Chan Yu, and Ju-Cheng Huang, "Flat-plate dipole antenna for Wi-Fi 8 and 6G operation," Progress In Electromagnetics Research C, Vol. 156, 201-205, 2025.
doi:10.2528/pierc25041603 Google Scholar

20. Su, Yu-Ting and Saou-Wen Su, "Low-cost, printed monopole antenna for Wi-Fi 8 and 6G laptop computers," 2025 International Symposium on Antennas and Propagation (ISAP), 1-2, Fukuoka, Japan, 2025.
doi:10.23919/ISAP63122.2025.11362059

21. DeMarinis, J., "The antenna cable as a source of error in EMI measurements," IEEE 1988 International Symposium on Electromagnetic Compatibility, 9-14, Seattle, WA, USA, 1988.
doi:10.1109/ISEMC.1988.14078

22. Hertel, T. W., "Cable-current effects of miniature UWB antennas," 2005 IEEE Antennas and Propagation Society International Symposium, 524-527, Washington, DC, USA, 2005.
doi:10.1109/APS.2005.1552303

23. Sun, Libin, Yue Li, Zhijun Zhang, and Hanyang Wang, "Self-decoupled MIMO antenna pair with shared radiator for 5G smartphones," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 5, 3423-3432, 2020.
doi:10.1109/tap.2019.2963664 Google Scholar

24. Sim, Chow-Yen-Desmond, Heng-You Liu, and Ci-Jin Huang, "Wideband MIMO antenna array design for future mobile devices operating in the 5G NR frequency bands n77/n78/n79 and LTE band 46," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 1, 74-78, 2020.
doi:10.1109/lawp.2019.2953334 Google Scholar

25. Chen, Shu-Chuan, Lung-Chi Chou, Chung-I. G. Hsu, and Sheng-Min Li, "Compact sub-6-GHz four-element MIMO slot antenna system for 5G tablet devices," IEEE Access, Vol. 8, 154652-154662, 2020.
doi:10.1109/access.2020.3016649 Google Scholar

26. Sun, Libin, Yue Li, and Zhijun Zhang, "Wideband decoupling of integrated slot antenna pairs for 5G smartphones," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 4, 2386-2391, 2021.
doi:10.1109/tap.2020.3021785 Google Scholar

27. Sun, Libin, Yue Li, and Zhijun Zhang, "Wideband integrated quad-element MIMO antennas based on complementary antenna pairs for 5G smartphones," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 8, 4466-4474, 2021.
doi:10.1109/tap.2021.3060020 Google Scholar

28. Wong, Kin-Lu, Cheng-Hsuan Shaw, Wan-Ting Li, and Wei-Yu Li, "Ultra-wideband on-metal four-antenna module for 5G/6G/WiFi-6E IoT mobile device MIMO antennas and its field test study," IEEE Access, Vol. 12, 166349-166367, 2024.
doi:10.1109/access.2024.3495041 Google Scholar

29. Balanis, Constantine A., Antenna Theory: Analysis and Design, John Wiley & Sons, 2016.

Dr. Saou-Wen Su

Dr. Guan-Lin Chen
