Abstract

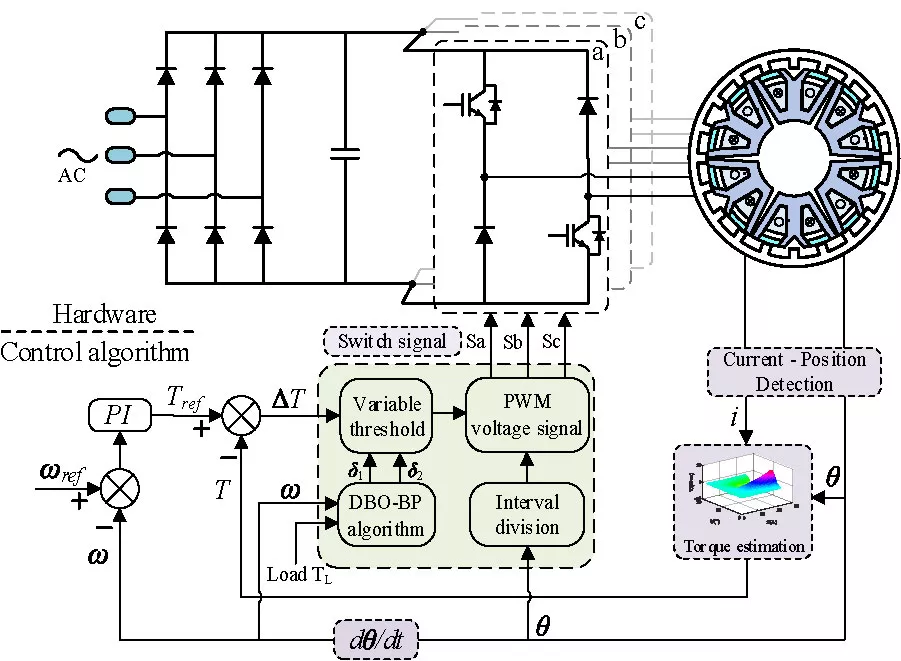

To address the issue of significant torque ripple in traditional direct instantaneous torque control strategies for permanent magnet assisted switched reluctance motors, which stems from the use of fixed hysteresis thresh-olds, this paper proposes a variable hysteresis threshold pulse width modulation (PWM) method based on subdivided regions. First, based on the torque-current ratio curve features, the two-phase exchange (TpE) region is subdivided into two-phase exchange I (TpE I) and two-phase exchange II (TpE II), using the angle of equal torque-current ratio as the dividing point. PWM control was applied within these two intervals to ensure a smoother transition of the total torque during commutation. Second, the hysteresis threshold is optimized by a BP neural network tuned via the dung beetle optimizer (DBO) algorithm under different speeds and loads, thereby enhancing the system's flexibility. Finally, simulations and experiments were performed using a 6/20 three phases permanent magnet-assisted switched reluctance motor. Experimental results show that the torque ripple is reduced from 30.4% to 11% under 500 r/min and 5 N.m, and PWM with a variable hysteresis threshold can effectively suppress torque ripple.

1. Sun, Xiaodong, Liyun Feng, Kaikai Diao, and Zebin Yang, "An improved direct instantaneous torque control based on adaptive terminal sliding mode for a segmented-rotor SRM," IEEE Transactions on Industrial Electronics, Vol. 68, No. 11, 10569-10579, 2021.
doi:10.1109/tie.2020.3029463 Google Scholar

2. Jia, Wanying, Yumeng Hua, Yinghao Cui, Xiaomei Liu, Zhiyan Zhang, and Hongbo Qiu, "Comparative study of different hybrid excitation electrical machines with doubly salient poles," Journal of Power Electronics, Vol. 25, No. 10, 1845-1854, 2025.
doi:10.1007/s43236-025-01014-4 Google Scholar

3. Fu, G. J., Y. H. Chen, and H. W. Mu, "Design and protection of the controller for SRD system," Science Technology and Engineering, Vol. 7, No. 22, 5886-5889, 2007.
doi:10.3969/j.issn.1671-1815.2007.22.034 Google Scholar

4. Song, Shoujun, Gaoliang Fang, Zhihui Zhang, Ruiqing Ma, and Weiguo Liu, "Unsaturated-inductance-based instantaneous torque online estimation of switched reluctance machine with locally linearized energy conversion loop," IEEE Transactions on Industrial Electronics, Vol. 65, No. 8, 6109-6119, 2018.
doi:10.1109/tie.2017.2787570 Google Scholar

5. Cai, Y. C. and L. B. Wang, "Self-adaptive rbf neural network control theory of switched reluctance motor," Science Technology and Engineering, Vol. 12, No. 4, 908-910, 2012.
doi:10.3969/j.issn.1671-1815.2012.04.044 Google Scholar

6. Tian, D. X., B. N. Qu, J. C. Song, and Y. Zhao, "An analytical method of PWM duty cycle for switched reluctance motors based on current chopping control," Transactions of China Electrotechnical Society, Vol. 34, No. 21, 4449-4457, 2019.
doi:10.19595/j.cnki.1000-6753.tces.181358 Google Scholar

7. Deepak, M., G. Janaki, and C. Bharatiraja, "Model predictive current control improved performance on SRM drive for electric vehicles," 2023 IEEE International Transportation Electrification Conference (ITEC-India), 1-6, Chennai, India, 2023.
doi:10.1109/ITEC-India59098.2023.10471377

8. Yang, W. H., B. Gou, Y. Lei, X. X. Song, and J. Wang, "SRM torque ripple suppression method based on model predictive control," Advanced Technology of Electrical Engineering and Energy, Vol. 39, No. 8, 18-28, 2020.
doi:10.12067/ATEEE1905010 Google Scholar

9. Ren, Ping, Jingwei Zhu, Yan Zhao, and Zhe Jing, "A novel direct torque control method for switched reluctance motors based on optimal turn-on angle," Journal of Power Electronics, Vol. 24, No. 9, 1417-1427, 2024.
doi:10.1007/s43236-024-00805-5 Google Scholar

10. Al-Amyal, Fahad, László Számel, and Mahmoud Hamouda, "An enhanced direct instantaneous torque control of switched reluctance motor drives using ant colony optimization," Ain Shams Engineering Journal, Vol. 14, No. 5, 101967, 2023.
doi:10.1016/j.asej.2022.101967 Google Scholar

11. Ben, Tong, Hongliang Wang, Long Chen, Yongchao Zhang, and Libing Jing, "Torque ripple reduction strategy for switched reluctance motor based on segmented non-linear correction torque sharing function," Journal of Power Electronics, Vol. 24, No. 12, 1933-1943, 2024.
doi:10.1007/s43236-024-00867-5 Google Scholar

12. Han, G., Z. Lu, M. Wu, and D. Yu, "Direct instantaneous torque control method for switched reluctance motor based on an improved sliding mode control strategy," Transactions of China Electrotechnical Society, Vol. 37, No. 22, 5740-5755, 2022.
doi:10.19595/j.cnki.1000-6753.tces.220424 Google Scholar

13. Qing, L, H. M. Wang, and X. L. Ge, "A high efficiency torque ripple suppression method for switched reluctance motor," Transactions of China Electrotechnical Society, Vol. 35, No. 9, 1912-1920, 2020.
doi:10.19595/j.cnki.1000-6753.tces.190035 Google Scholar

14. Song, Shoujun, Gaoliang Fang, Runshan Hei, Jianan Jiang, Ruiqing Ma, and Weiguo Liu, "Torque ripple and efficiency online optimization of switched reluctance machine based on torque per ampere characteristics," IEEE Transactions on Power Electronics, Vol. 35, No. 9, 9608-9616, 2020.
doi:10.1109/tpel.2020.2974662 Google Scholar

15. Cai, Yan, Chunlei Ju, Haonan Wang, Y. Wan, and H. Zhang, "A new direct instantaneous torque control method of switched reluctance motor and its high efficiency operation," Transactions of China Electrontechnical Society, Vol. 37, No. 18, 4625-4637, 2022.
doi:10.19595/j.cnki.1000-6753.tces.212003 Google Scholar

16. Gobbi, R. and K. Ramar, "Optimisation techniques for a hysteresis current controller to minimise torque ripple in switched reluctance motors," IET Electric Power Applications, Vol. 3, No. 5, 453-460, 2009.
doi:10.1049/iet-epa.2008.0191 Google Scholar

17. Lee, Yong Keun, "Torque ripple and switching power loss minimization with constant band hysteresis current controller for BLDC motor," 2019 IEEE PES Asia-Pacific Power and Energy Engineering Conference (APPEEC), 1-4, Macao, China, 2019.
doi:10.1109/APPEEC45492.2019.8994737

18. Li, L. H., L. Li, X. Wang, et al., "A loss prediction model for PMSM based on BP neural network optimized by dung beetle optimizer," Modern Manufacturing Engineering, No. 2, 130-137, 2025.
doi:10.16731/j.cnki.1671-3133.2025.02.016 Google Scholar

19. Huang, W. J., X. Y. Dong, and J. Z. Zhu, "Model predictive torque control of permanent magnet synchronous motors based on dung beetle optimization algorithm," Small & Special Electrical Machines, Vol. 52, No. 7, 67-71, 2024.
doi:10.3969/j.issn.1004-7018.2024.07.013 Google Scholar

20. Huang, C. Z., J. X. Xu, X. P. Liu, W. S. Cao, and Y. L. Wu, "A four region DITC method for permanent magnet assisted switched reluctance motor," Proceedings of the CSEE, Vol. 43, No. 6, 2438-2449, 2023.
doi:10.13334/j.0258-8013.pcsee.212610 Google Scholar

21. Zhu, Yesheng, G. Zhang, and Y. Huang, "PWM-based direct instantaneous torque control of switched reluctance machine," Transactions of China Electrotechnical Society, Vol. 32, No. 7, 31-39, 2017. Google Scholar

22. Gong, Chengyi, Junxin Xu, Chaozhi Huang, Renquan Xiao, and Yanwen Sun, "A torque ripple suppression strategy for the three regions PWM-DITC permanent magnet assisted reluctance motor," Journal of Electrical Engineering, Vol. 20, No. 1, 78-87, 2025.
doi:10.11985/2025.01.008 Google Scholar

23. Zhang, Wengang and Xiaoping Zhang, "A method for direct instantaneous torque control of switched reluctance motor using variable hysteresis pulse width modulation," Mechanical Science and Technology for Aerospace Engineering, Vol. 43, No. 5, 858-864, 2024.
doi:10.13433/j.cnki.1003-8728.20220265 Google Scholar

24. Huang, Chaozhi, Yuliang Wu, Hongwei Yuan, Wensheng Cao, and Yongmin Geng, "An analytic method of segmented PWM duty cycle for switched reluctance motor," CES Transactions on Electrical Machines and Systems, Vol. 7, No. 2, 163-170, 2023.
doi:10.30941/cestems.2023.00008 Google Scholar

25. Cheng, Yong, Xiao-Xiao Cao, and Yi-Long Zhang, "Hysteresis-PWM direct instantaneous torque control of switched reluctance motor," Electric Machines and Control, Vol. 24, No. 8, 74-82, 2020.
doi:10.15938/j.emc.2020.08.010 Google Scholar
