Abstract

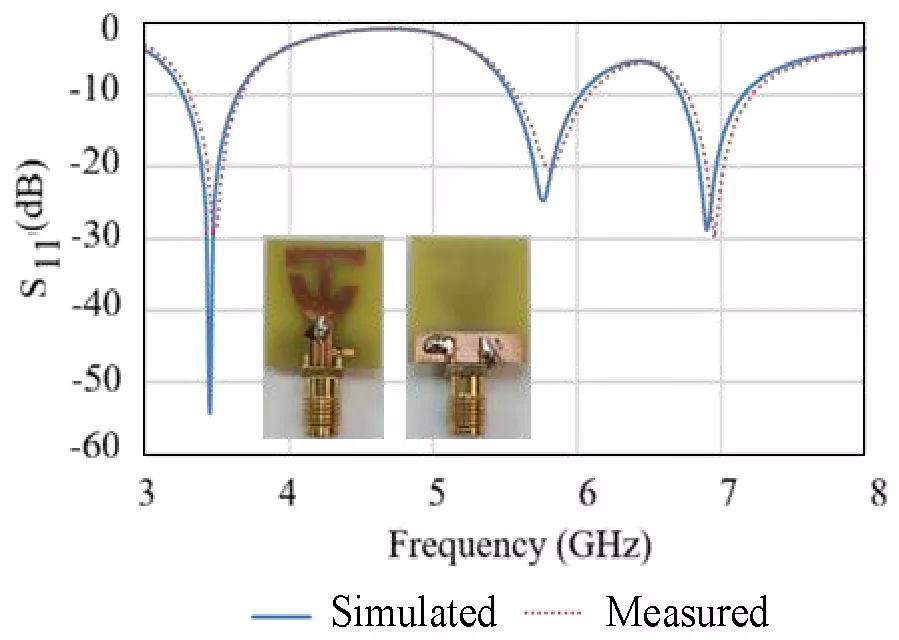

In this paper, an elliptical monopole antenna is modified and loaded with stubs and slots to improve filtering characteristics over tri-band operation. As the surface current is concentrated at the periphery of the monopole and decreases away from the feed, therefore, a slotted elliptical monopole is designed and sliced from the top. A rectangular strip is added at the top and center to create two symmetrical loops. A slot in each loop at a different position causes the antenna to operate over dual/tri-bands. A rectangular stub is added in the feed-line to improve the band-stop/filtering characteristics. The parameters of the structure are optimized to obtain S₁₁ ≤ -10 dB over 3.22-3.64 GHz, 5.53-6.03 GHz and 6.71-7.14 GHz for 5G, V2X, WLAN and Wi-Fi 6E applications. The three bands can be tuned independently. The compact 0.171λ₀ × 0.184λ₀ antenna, fabricated on 1.6 mm FR4 substrate (λ₀ is the free-space wavelength at 3.22 GHz), offers maximum S₁₁ of -0.9 dB and -4.9 dB, respectively, between the lower and middle bands and middle and upper bands. Minimum S₁₁ of -55 dB, -25 dB and -27 dB are obtained over the lower, middle, and upper bands respectively. The measured results validate the simulation ones.

1. Kumar, Girish and Kamala Prasan Ray, Broadband Microstrip Antennas, Artech House, 2003.

2. Kumar, Om Prakash, Pramod Kumar, Tanweer Ali, Pradeep Kumar, and Shweta Vincent, "Ultrawideband antennas: Growth and evolution," Micromachines, Vol. 13, No. 1, 60, 2022.
doi:10.3390/mi13010060 Google Scholar

3. Perli, Bhaskara Rao and Maheswara Rao Avula, "Design of wideband elliptical ring monopole antenna using characteristic mode analysis," Journal of Electromagnetic Engineering and Science, Vol. 21, No. 4, 299-306, 2021.
doi:10.26866/jees.2021.4.r.37 Google Scholar

4. Xiang, Zhen, Zhonggen Wang, Chenlu Li, and Rui You, "Design of UWB monopole antenna with ring structure based on characteristic mode theory," Progress In Electromagnetics Research C, Vol. 158, 225-234, 2025.
doi:10.2528/PIERC25060317 Google Scholar

5. Maity, Budhadeb and Sisir Kumar Nayak, "A super wideband CPW-fed elliptical slot monopole antenna for wireless applications," Progress In Electromagnetics Research C, Vol. 130, 139-154, 2023.
doi:10.2528/pierc22120505 Google Scholar

6. Sivanagaraju, Nagidi and Manchikalapudi Satya Sai Ram, "Design and analysis of wideband circularly polarized antenna loaded with ring structure," Progress In Electromagnetics Research C, Vol. 158, 57-61, 2025.
doi:10.2528/PIERC25061204 Google Scholar

7. Kumar, Om Prakash, Tanweer Ali, Pramod Kumar, Pradeep Kumar, and Jaume Anguera, "An elliptical-shaped dual-band UWB notch antenna for wireless applications," Applied Sciences, Vol. 13, No. 3, 1310, 2023.
doi:10.3390/app13031310 Google Scholar

8. Du, Yingjie and Mingxin Liu, "A dual-notched ultra-wideband monopole antenna based on frequency selective surface technology," Progress In Electromagnetics Research C, Vol. 145, 101-105, 2024.
doi:10.2528/pierc24061105 Google Scholar

9. Koohestani, Mohsen, Nima Azadi-Tinat, and Anja K. Skrivervik, "Compact slit-loaded ACS-fed monopole antenna for Bluetooth and UWB systems with WLAN band-stop capability," IEEE Access, Vol. 11, 7540-7550, 2023.
doi:10.1109/access.2023.3238577 Google Scholar

10. Jadhav, Jagadish Baburao and Pramod Jagan Deore, "Filtering antenna with radiation and filtering functions for wireless applications," Journal of Electrical Systems and Information Technology, Vol. 4, No. 1, 125-134, 2017.
doi:10.1016/j.jesit.2016.10.007 Google Scholar

11. Mao, Chun Xu, Yao Zhang, Xiu Yin Zhang, Pei Xiao, Yi Wang, and Steven Gao, "Filtering antennas: Design methods and recent developments," IEEE Microwave Magazine, Vol. 22, No. 11, 52-63, 2021.
doi:10.1109/mmm.2021.3102199 Google Scholar

12. Jadhav, Jagadish Baburao and Pramod Jagan Deore, "A compact planar ultra-wideband bandpass filter with multiple resonant and defected ground structure," AEU --- International Journal of Electronics and Communications, Vol. 81, 31-36, 2017.
doi:10.1016/j.aeue.2017.07.003 Google Scholar

13. Barigidad, Spoorti, Aishwarya C. Yeshawant, Sridevi Rao, C. A. Tharunya, Tanweer Ali, and Sameena Pathan, "A triple band modified F-shaped monopole antenna for RFID application," Bulletin of Electrical Engineering and Informatics, Vol. 9, No. 6, 2469-2476, 2020. Google Scholar

14. Woo, Dong Sik, "A triple band C-shape monopole antenna for vehicle communication application," Progress In Electromagnetics Research C, Vol. 121, 97-106, 2022.
doi:10.2528/pierc22060202 Google Scholar

15. El Hadri, Doae, Asmaa Zugari, Alia Zakriti, Mohssine El Ouahabi, and Mohamed Taouzari, "A compact triple band antenna for military satellite communication, radar and fifth generation applications," Advanced Electromagnetics, Vol. 9, No. 3, 66-73, 2020.
doi:10.7716/aem.v9i3.1420 Google Scholar

16. Thiruvenkadam, Saminathan and Eswaran Parthasarathy, "Compact multiband monopole antenna design for IoT applications," Journal of Electromagnetic Waves and Applications, Vol. 37, No. 5, 629-643, 2023.
doi:10.1080/09205071.2022.2163191 Google Scholar

17. Song, Wenliang, Zibin Weng, Yong-Chang Jiao, Lei Wang, and Hong-Wei Yu, "Omnidirectional WLAN antenna with common-mode current suppression," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 9, 5980-5985, 2021.
doi:10.1109/tap.2021.3076261 Google Scholar

18. Salim, Ali J., Jabbar K. Mohammed, Hussam Al-Saedi, and Jawad K. Ali, "A proximity-fed multi-band printed antenna for wireless communication applications," Progress In Electromagnetics Research C, Vol. 145, 153-165, 2024.
doi:10.2528/pierc23122503 Google Scholar

19. Jing, Jianwei, Jiafei Pang, Hang Lin, Zhenyu Qiu, and Chang-Jun Liu, "A multiband compact low-profile planar antenna based on multiple resonant stubs," Progress In Electromagnetics Research Letters, Vol. 94, 1-7, 2020.
doi:10.2528/pierl20071104 Google Scholar

20. Verulkar, S., Alka Khade, Mahadu Trimukhe, and Rajiv Kumar Gupta, "Dual band split ring monopole antenna structures for 5G and WLAN applications," Progress In Electromagnetics Research C, Vol. 122, 17-30, 2022.
doi:10.2528/pierc22050803 Google Scholar

21. Luo, Zekai, Tao Su, and Kai-Da Xu, "A single-layer low-profile dual-wideband monopolar patch antenna with shorting vias and parasitic annular sectors," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 2, 432-436, 2023.
doi:10.1109/lawp.2022.3215210 Google Scholar

22. Saeed, M. Jawad, Muhammad M. Tahseen, and Ahmed A. Kishk, "Compact multiband omnidirectional antenna for maximizing frequency coverage," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 3, 597-601, 2025.
doi:10.1109/lawp.2024.3509473 Google Scholar

23. Bharadwaj, Shreyas S., Deepika Sipal, Dinesh Yadav, and Shiban Kishen Koul, "A compact tri-band frequency reconfigurable antenna for LTE/Wi-Fi/ITS applications," Progress In Electromagnetics Research M, Vol. 91, 59-67, 2020.
doi:10.2528/pierm20011904 Google Scholar

24. Singh, Prem Pal, Pankaj Kumar Goswami, Sudhir Kumar Sharma, and Garima Goswami, "Frequency reconfigurable multiband antenna for IoT applications in WLAN, Wi-Max, and C-band," Progress In Electromagnetics Research C, Vol. 102, 149-162, 2020.
doi:10.2528/pierc20022503 Google Scholar

25. Wang, Lan, Jianguo Yu, Tangyao Xie, and Kun Bi, "A novel multiband fractal antenna for wireless application," International Journal of Antennas and Propagation, Vol. 2021, No. 1, 9926753, 2021.
doi:10.1155/2021/9926753 Google Scholar

26. Kaur, Amandeep and Praveen K. Malik, "Multiband elliptical patch fractal and defected ground structures microstrip patch antenna for wireless applications," Progress In Electromagnetics Research B, Vol. 91, 157-173, 2021.
doi:10.2528/pierb20102704 Google Scholar

27. Parasher, Rishi, Dinesh Yadav, and Ankur Saharia, "Metamaterial-based octagonal ring penta-band antenna for sub-6 GHz 5G, WLAN, and WiMAX wireless applications," Progress In Electromagnetics Research B, Vol. 104, 109-129, 2024.
doi:10.2528/pierb23112603 Google Scholar

28. Christydass, Samuel Prasad Jones and Nagarajan Gunavathi, "Dual-band complementary split-ring resonator engraved rectangular monopole for GSM and WLAN/WiMAX/5G sub-6 GHz band (new radio band)," Progress In Electromagnetics Research C, Vol. 113, 251-263, 2021.
doi:10.2528/pierc21052007 Google Scholar

29. Asif, Muhammad, Daniyal Ali Sehrai, Saad Hassan Kiani, Jalal Khan, Mujeeb Abdullah, Muhammad Ibrar, Mohammad Alibakhshikenari, Francisco Falcone, and Ernesto Limiti, "Design of a dual band SNG metamaterial based antenna for LTE 46/WLAN and Ka-band applications," IEEE Access, Vol. 9, 71553-71562, 2021.
doi:10.1109/access.2021.3077844 Google Scholar

30. Ray, K. P., "Design aspects of printed monopole antennas for ultra-wide band applications," International Journal of Antennas and Propagation, Vol. 2008, No. 1, 713858, 2008.
doi:10.1155/2008/713858 Google Scholar

31. Abdulzahra, Duaa H., Falih Alnahwi, Abdulkareem S. Abdullah, Yasir I. A. Al-Yasir, and Raed A. Abd-Alhameed, "A miniaturized triple-band antenna based on square split ring for IoT applications," Electronics, Vol. 11, No. 18, 2818, 2022.
doi:10.3390/electronics11182818 Google Scholar

Ms. Sheetal Mete

Prof. Jagadish Jadhav

Professor Brijesh Iyer

Professor Anjali Rochkari

Professor Sanjay Laxmikant Nalbalwar
