Abstract

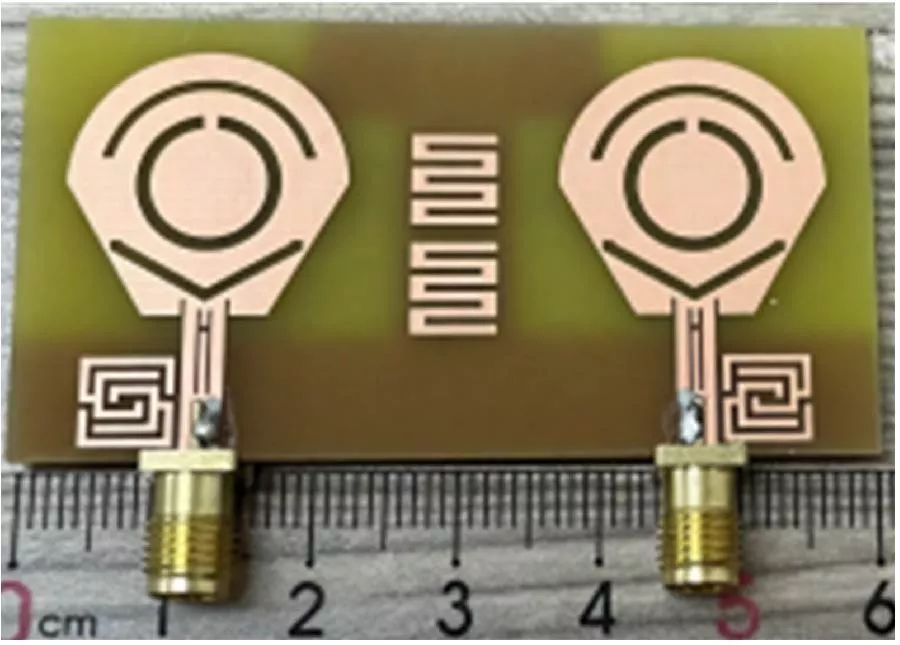

This paper proposes a compact UWB MIMO antenna with band-notched characteristics and high isolation. With a miniaturized footprint of 60 × 32 mm, the antenna covers the full UWB spectrum of 3.1-13 GHz. A core structural innovation lies in the design of a novel SRR metamaterial unit, which exhibits superior high-frequency decoupling capability by regulating electromagnetic wave propagation; combined with the synergistic decoupling mechanism of a meandered-line radiating patch and an I-shaped DGS for low-frequency isolation enhancement, the antenna achieves an excellent measured isolation (S₂₁) of better than -21 dB across the entire operating band. Additionally, four precise notched bands (3.3-3.4 GHz WiMAX, 4.4-5.0 GHz n79, 5.15-5.825 GHz WLAN, 7.9-8.4 GHz) are realized via strategically etched slots on radiating elements to suppress interference. Verified by measurements, the measured ECC is as low as below 0.018, and the diversity gain maintains stability near the ideal 10 dBi. The antenna exhibits stable radiation patterns throughout the impedance bandwidth, accompanied by outstanding diversity performance.
