Abstract

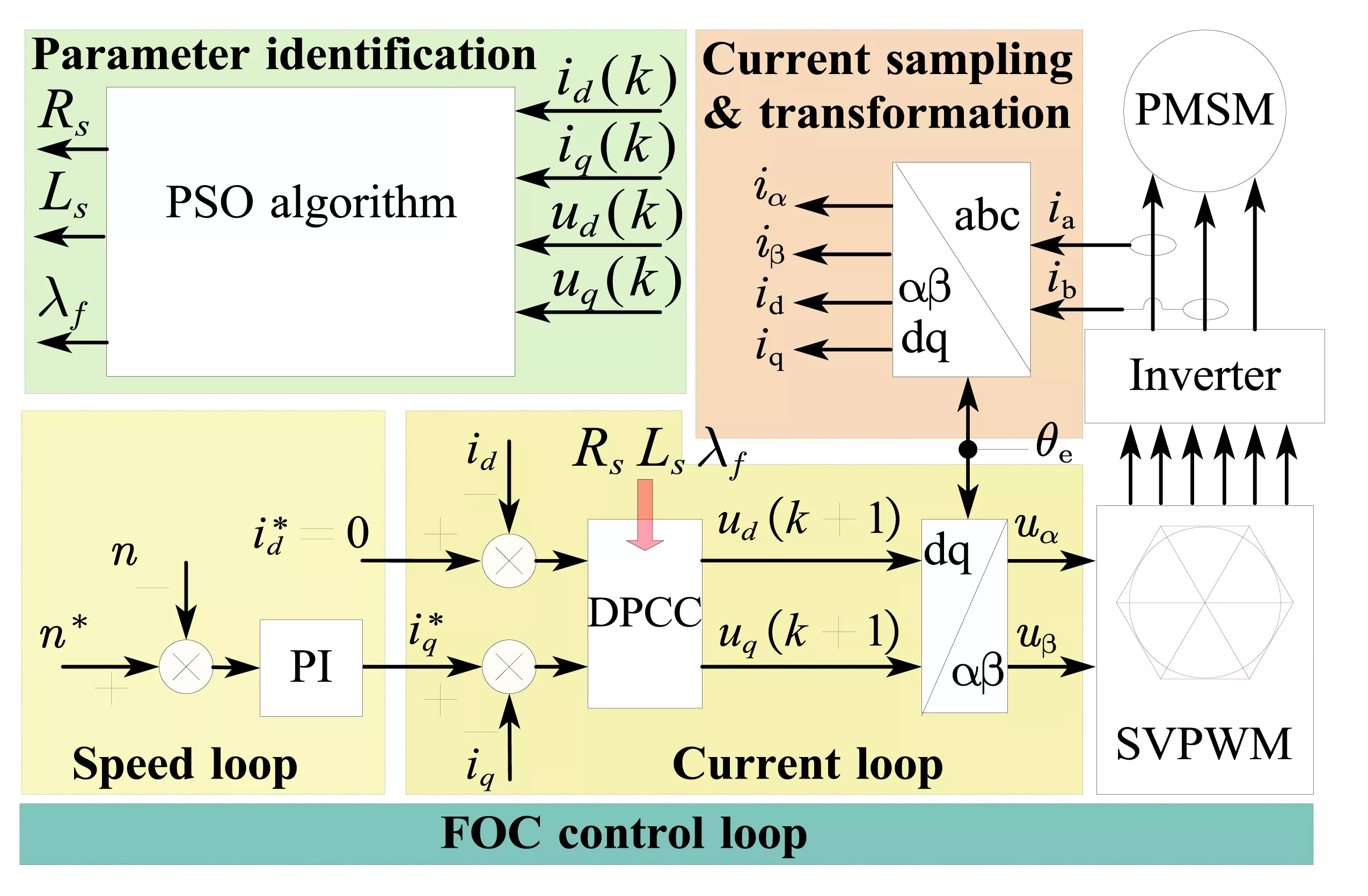

A multi-step deadbeat predictive control method for permanent magnet synchronous motors based on fuzzy adaptive particle swarm optimization (PSO) parameter identification is proposed to address the problem of performance degradation under parameter mismatch conditions. First, this method dynamically adjusts the learning factors of the PSO algorithm through fuzzy control, improving the convergence speed and stability of parameter identification. Secondly, this method can accurately identify key parameters such as stator resistance, inductance, and permanent magnet flux without the need for additional injection of excitation signals injections, effectively solving the problem of the under rank model under rank in traditional identification methods. The experimental results demonstrate that this method significantly improves the dynamic response speed and steady-state control accuracy of the system under parameter mismatch conditions, effectively suppresses speed fluctuations and current surges, improves current ripple characteristics, and provides a high-performance solution for high-precision driving scenarios such as CNC machine tools.

1. Han, Lin, Shanshan Wang, Zhonggen Wang, Xiaobing Zhu, and Wenyan Nie, "Design of compensated PLL for position sensorless drives of PMSMs," Progress In Electromagnetics Research C, Vol. 149, 25-35, 2024.
doi:10.2528/pierc24091101 Google Scholar

2. Wang, Jiaoyang, Renjun Zhou, and Junqin Liu, "New non-singular fast terminal sliding mode control of permanent magnet synchronous motor based on super-twisting sliding mode observer," Progress In Electromagnetics Research C, Vol. 146, 151-162, 2024.
doi:10.2528/pierc24061501 Google Scholar

3. Sul, Seung-Ki, Control of Electric Machine Drive Systems, John Wiley & Sons, 2011.
doi:10.1002/9780470876541

4. Wang, Yizhe, Wu Liao, Sheng Huang, Ji Zhang, Meizhou Yang, Chengxu Li, and Shoudao Huang, "A robust DPCC for IPMSM based on a full parameter identification method," IEEE Transactions on Industrial Electronics, Vol. 70, No. 8, 7695-7705, 2023.
doi:10.1109/tie.2022.3212371 Google Scholar

5. Ke, Dongliang, Fengxiang Wang, Xinhong Yu, S. Alireza Davari, and Ralph Kennel, "Predictive error model-based enhanced observer for PMSM deadbeat control systems," IEEE Transactions on Industrial Electronics, Vol. 71, No. 3, 2242-2252, 2024.
doi:10.1109/tie.2023.3269476 Google Scholar

6. Liu, Zixuan, Xiaoyan Huang, Qichao Hu, Zhaokai Li, Ze Jiang, Yelong Yu, and Zhuo Chen, "A modified deadbeat predictive current control for improving dynamic performance of PMSM," IEEE Transactions on Power Electronics, Vol. 37, No. 12, 14173-14185, 2022.
doi:10.1109/tpel.2022.3188761 Google Scholar

7. Wang, Fei, Wubin Kong, and Zhiqiang Wang, "Dynamic flux weakening-based DPCC for rapid torque rise of SPMSM drives at medium-to-high speeds," IEEE Transactions on Industrial Electronics, Vol. 72, No. 11, 11035-11047, 2025.
doi:10.1109/tie.2025.3558037 Google Scholar

8. Sun, Xiaodong, Sunyang Zhang, Xingke An, Zonghao Su, and Feng Li, "A robust DPCC and inductance identification method for SPMSM based on incremental model and current error compensation," IEEE Transactions on Industrial Electronics, Vol. 73, No. 1, 219-229, 2026.
doi:10.1109/tie.2025.3591674 Google Scholar

9. Wu, Xuan, Huiyu Chen, Bo Liu, Ting Wu, Chao Wang, and Shoudao Huang, "Improved deadbeat predictive current control of PMSM based on a resistance adaptive position observer," IEEE Transactions on Transportation Electrification, Vol. 10, No. 3, 5215-5224, 2024.
doi:10.1109/tte.2023.3328948 Google Scholar

10. Cao, Haiyang, Yongting Deng, Jing Liu, Yun Zuo, Xiufeng Liu, Huanzhi Wang, and Christopher H. T. Lee, "Improved deadbeat predictive current control of PMSM drives with repetitive control-based disturbance correction observer," IEEE Transactions on Power Electronics, Vol. 40, No. 1, 801-812, 2025.
doi:10.1109/tpel.2024.3482315 Google Scholar

11. Wang, Lanbing, Shuo Zhang, Chengning Zhang, and Ying Zhou, "An improved deadbeat predictive current control based on parameter identification for PMSM," IEEE Transactions on Transportation Electrification, Vol. 10, No. 2, 2740-2753, 2024.
doi:10.1109/tte.2023.3296700 Google Scholar

12. Yang, Chengbo, Wei Liu, Songyan Niu, Jiahua Lyu, and Kwok Tong Chau, "Parameter-tuning-free two-step identification of mechanical parameters for PMSM drives," IEEE Transactions on Industrial Electronics, Vol. 72, No. 12, 12378-12392, 2025.
doi:10.1109/tie.2025.3577312 Google Scholar

13. Xiang, Danqi, Jianzhong Yang, Yong Hao, and Guangda Xu, "Parallel-cascaded parameter identification scheme for PMSM-driven servo systems during self-commission," IEEE Transactions on Industrial Electronics, Vol. 72, No. 2, 1914-1924, 2025.
doi:10.1109/tie.2024.3417983 Google Scholar

14. Zhang, Sai, Anwen Shen, Xin Luo, Qipeng Tang, and Zicheng Li, "An adaptive strategy for PMSM-based disturbance estimation and online parameter identification," IEEE/ASME Transactions on Mechatronics, Vol. 29, No. 4, 2522-2533, 2024.
doi:10.1109/tmech.2023.3333382 Google Scholar

15. Zhou, Dazuo and Xin Wang, "Deadbeat control of permanent magnet synchronous motorized spindle based on improved parameter identification algorithm," Progress In Electromagnetics Research C, Vol. 153, 81-86, 2025.
doi:10.2528/pierc25010201 Google Scholar

Dr. Dazuo Zhou

Dr. Xin Wang
